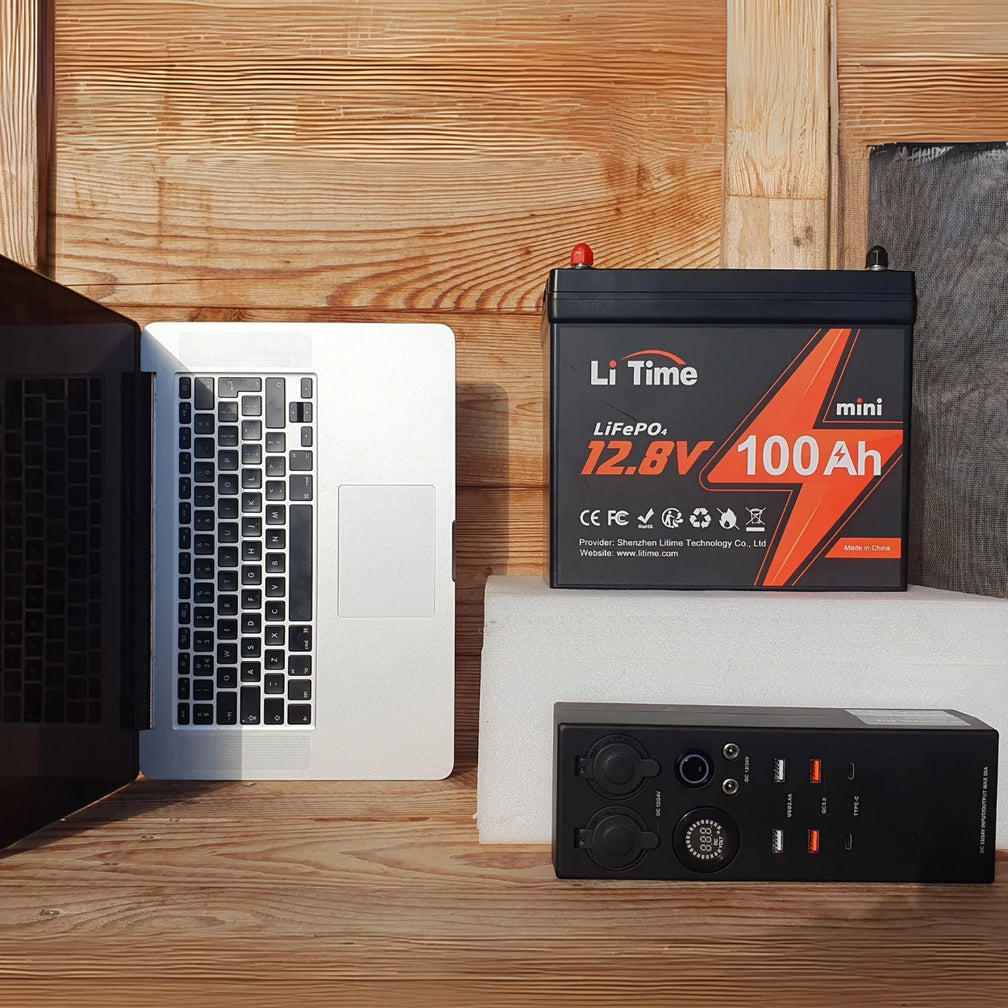

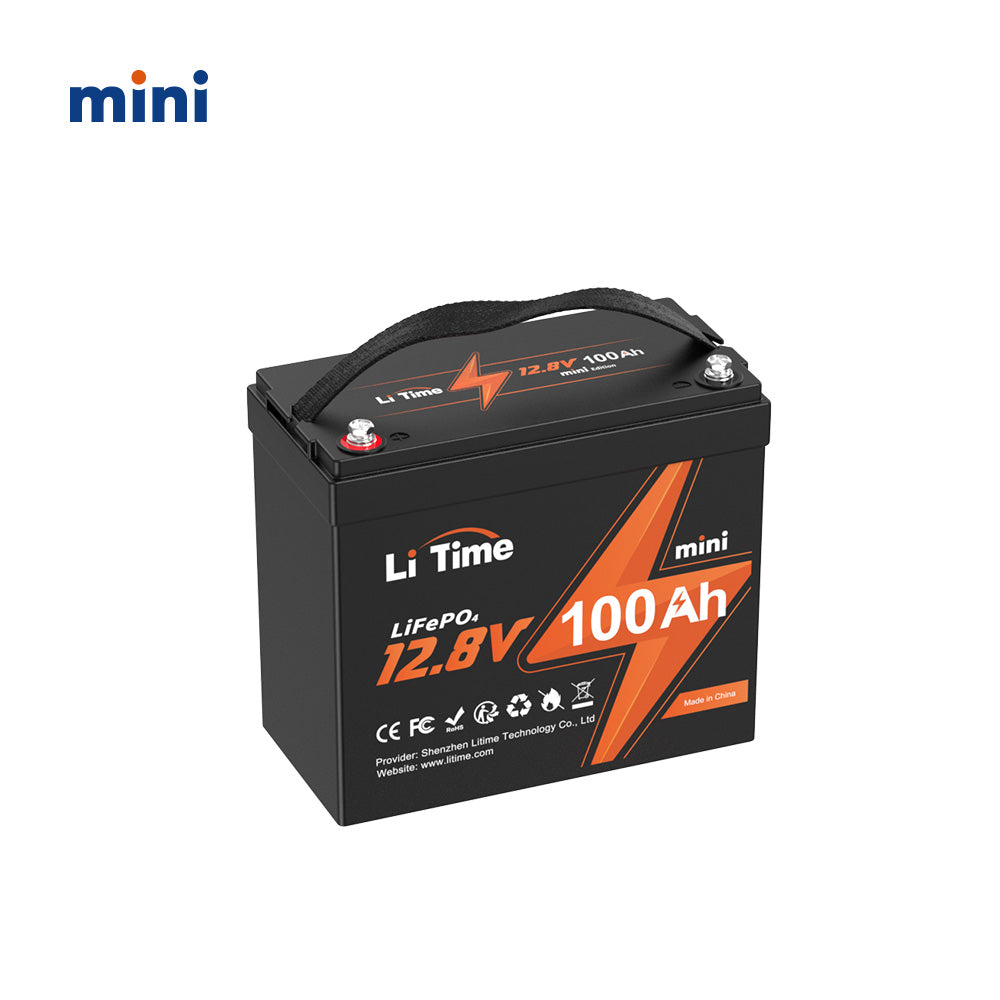

LiTime 12V 100Ah Mini LiFePO4 Lithium Battery -Small Deep Cycle Battery
- Industry highest level of energy density LiFePO4 battery: 164.5Wh/L (142.2Wh/kg).
- The lightest 12V 100Ah LiFePO4 battery ever with only 19 lb in weight.
- 1stGen LiTime BMS, safe and reliable for 10 years of everyday use.
- Expandable 4P4S (16 batteries) connection for max 20.48kWh energy.
- 4000+ deep cycles at 100% DoD, 6000+ at 80% DoD, and 15,000+ cycles at 60% DoD.
- The all-new design allows you to install the battery in any direction, even upside down.
- 5-year warranty, backed up by technical support within 24h.
- Perfect for RV, Vans, and trolling motors where weight and size are your priority.
- Do NOT use as starter battery.
-
ABYC Official Certi.: All LiTime marine batteries meet ABYC standards, ensuring the highest safety for your sailing needs.
30-Day Price Guarantee
- $229.99
-
$599.99 - $229.99
- Unit price
- per

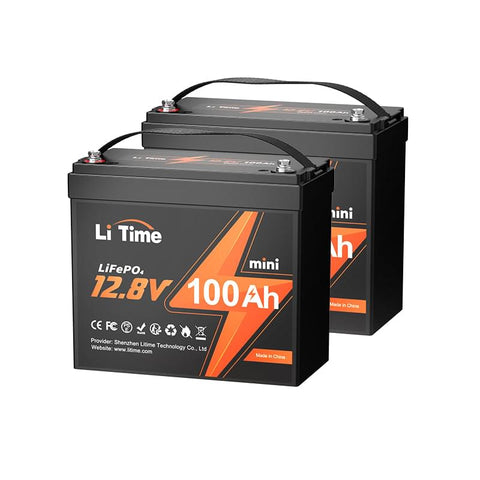

2 Pack - $35 OFF
CODE: $35OFF
Start the New Year Strong with LiFePO4 Savings! Grab our lightest, smallest batteries in a limited flash sale. Get $35 off exclusively for 2-pack purchases—hurry, codes are limited!
Subtotal:
$229.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
2-5 business days delivery.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
The LiTime 12V 100Ah Mini is the capacity-leading flagship delivering the highest energy density in LiTime history and even the whole industry. Protected all around by the powerful 1st Gen LiTime BMS, LiTime 12V 100Ah Mini is taken with the latest technology that redefines the size of the LiFePO4 battery!

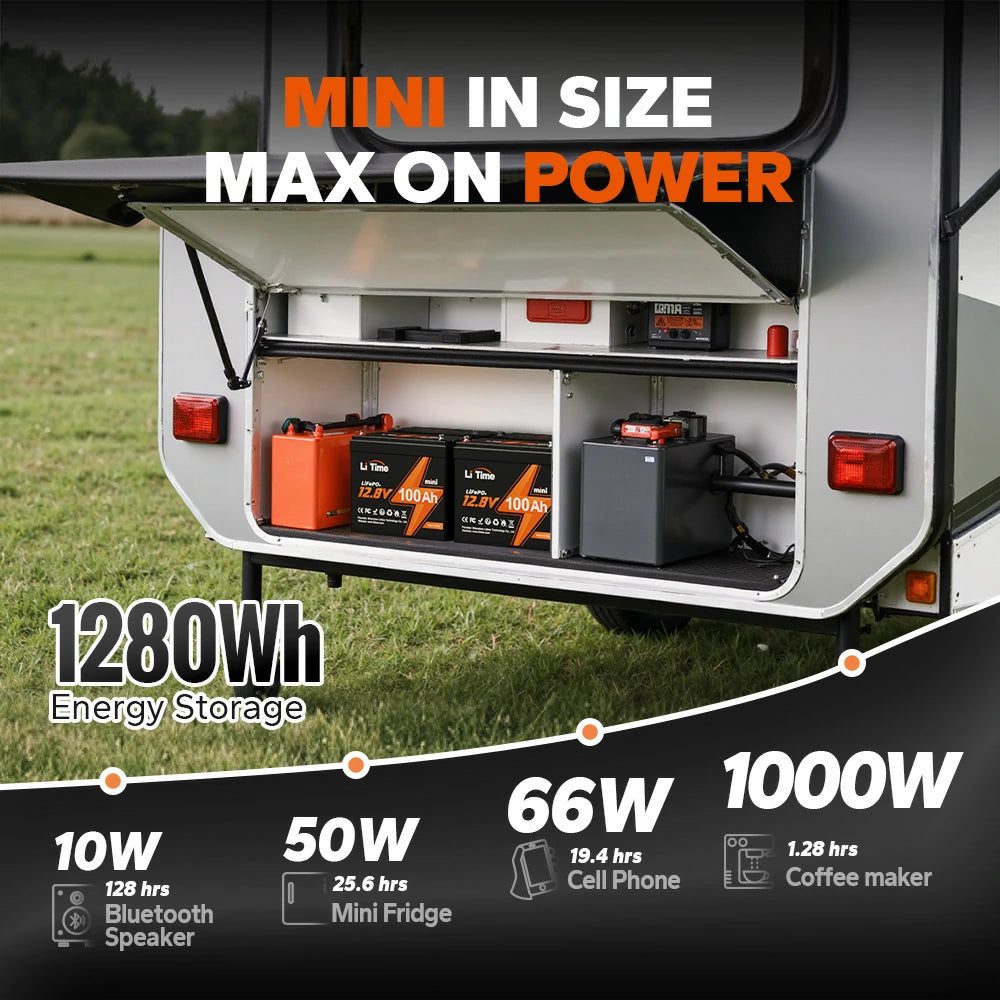

Mini in Size, Max on Power
10 years of R&D strength sets up the industry benchmark for the new generation of LiFePO4 battery: denser, lighter, smaller, more powerful, and not overpriced! Industry smallest & lightest 12V 100Ah LiFePO4 battery ever, with max 20.48Wh (4P4S) capacity for expansion, ready to power you all up safely and enough on the way or at home.

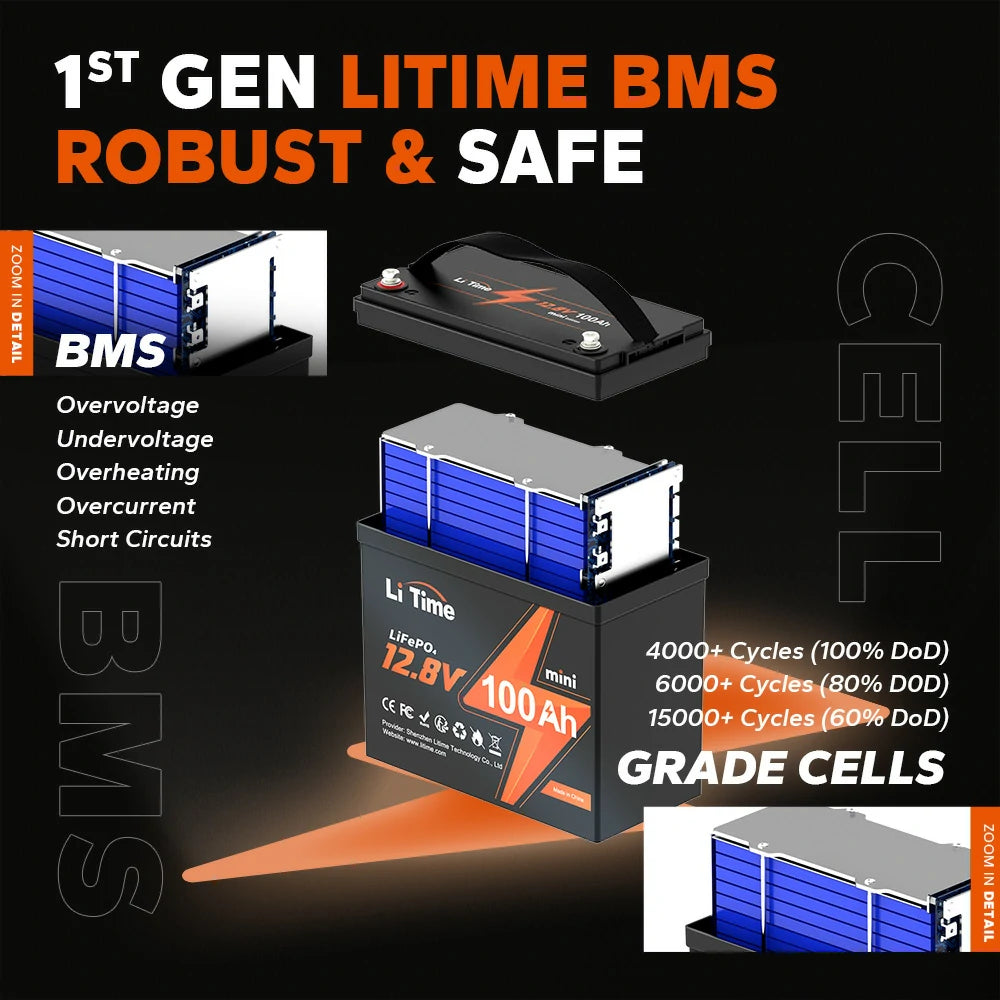

1st Gen LiTime BMS, 4000+ Life Cycles
The latest LiTime self-developed BMS provides full safety protection for overvoltage, undervoltage, overheating, overcurrent and short circuits, ensuring ultra-reliability and safety of the battery. The upgraded auto-balancing technique improves the battery life by maximizing the capacity of a battery pack with multiple cells in series, backing up that all batteries deliver life cycles from 4000+ (100% DoD) to 15000 cycles ( 60% DoD). That’s pretty much 10 years of everyday use.

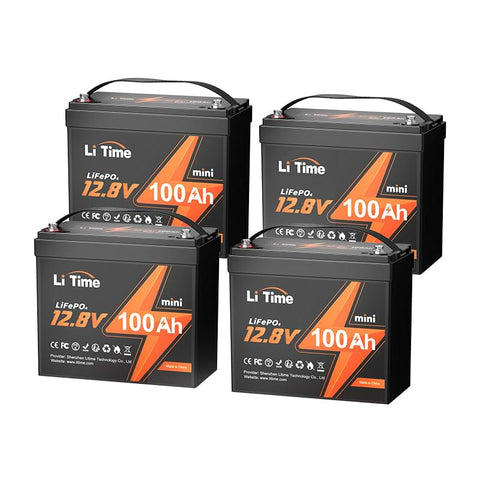

Expandable 20.48KWh for Every Need
The LiTime 12V 100Ah Mini LiFePO4 battery supports a maximum expansion capacity of 20.48Wh (max 4P4S battery connected in series and parallel to build a 48V(51.2V) 400Ah battery system), so you can have more flexibility in getting a DIY battery system to cover all your needs.
All-New Design, Outside & In
The LiTime first-ever cell layout design leads the way in cutting off the battery size while allowing for compact and precise fitment for battery safety, with no loss in any performance. The matte-finish, heat-resistant, and IP65 waterproof design give the battery a much higher tolerance in extreme applications. Whether you are bumpy on the road or on the water, LiTime 12V 100Ah Mini gives you an ultimate safe experience.

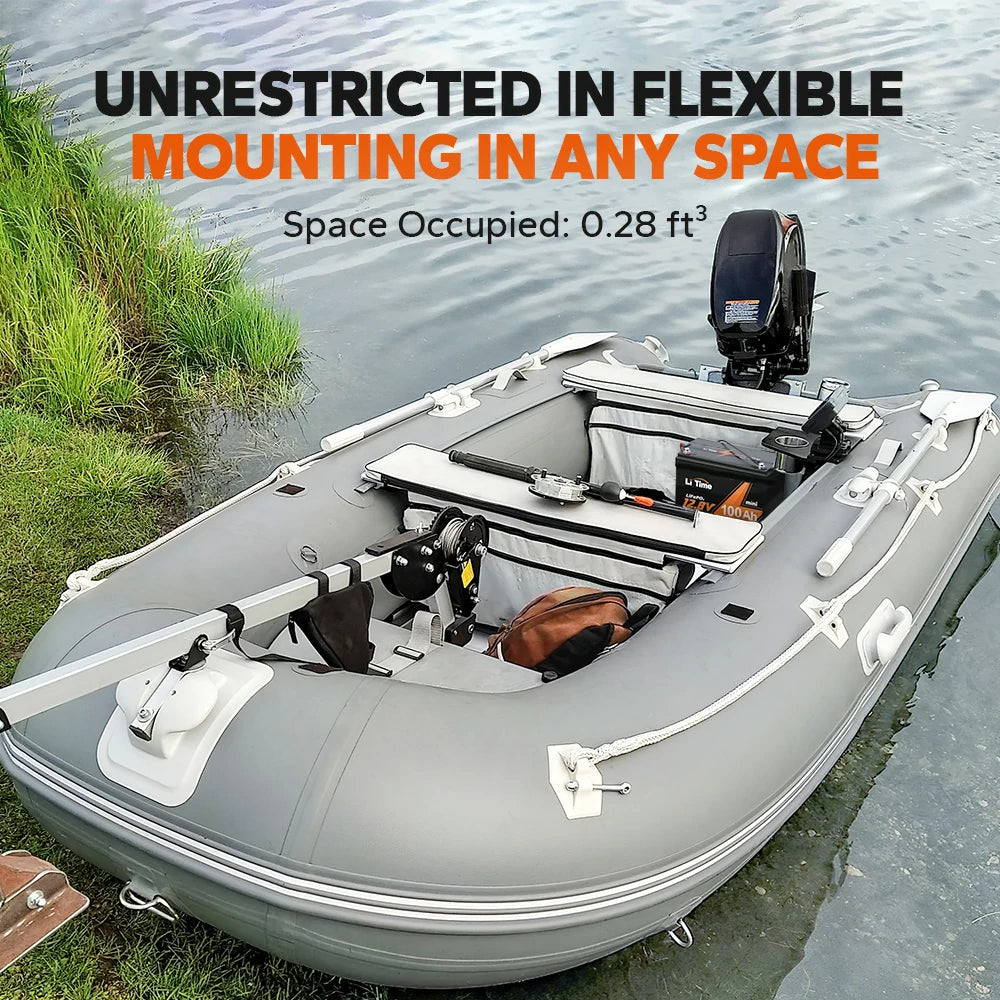

Every Direction Mounted, Even Upside Down
The optimum internal design, compact structure, and overall casting make the 12V 100Ah Mini a rock-solid reliability, backed up by LiTime’s rigorous tolerance tests to make the battery the safest ever. This gives you the flexibility to install the battery in any direction right where you need them or where it is best suited for your application, and never get damaged on the bumpy road.
3 Ways to Recharge
With 3 different ways to top up the battery, LiTime gives you a cost-effective renewable energy source to stay powered.
Power Your Life and Discovery
Precautions for Use
What Expert Said
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
UL, FCC, CE, RoHS, UN38.3
ABYC Official Certi.：
Yes
Bluetooth：
/
Self-Heating：
/
BMS
BMS：
100A
Max. Continuous Output Power：
1280W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
Max. Discharge Current 5 Seconds：
250A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4V ± 0.2V
Recommend Charge Current：
20A (0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature：
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：
-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Protection：
/
OTHERS
Terminals：
M8 bolts
Weight Approx.：
19 lbs
Size：
10.24*5.24*8.96 in
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: What battery charger should I use for the LiTime 12V 100Ah Mini LiFePO4 lithium battery?
A:
We recommend using a 14.6V lithium iron phosphate (LiFePO4) battery charger to maximize the capacity.
☆ Recommend charging voltage: 14.2V ~ 14.6V
☆ Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity.
50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.
Attention: ☆ Connect the charger to the battery before connecting it to the grid power in case of sparks.
☆ Remember to disconnect the charger from the battery after fully charging.
Q: Can I use an alternator or generator to charge the LiFePO4 lithium battery?
A:Yes. You can use your alternator or generator to charge LiTime batteries. If your alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, you can use a 14.6V lithium iron phosphate (LiFePO4) battery charger to maximize the capacity.
Q: Are LiTime LiFePO4 Lithium batteries safe?
A: Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.
Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?
A:
No. The LiTime mini batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.
If you need the marine starting batteries, visit LiTime 12V 20Ah Marine Cranking or 12V 140Ah Dual Purpose battery to choose.

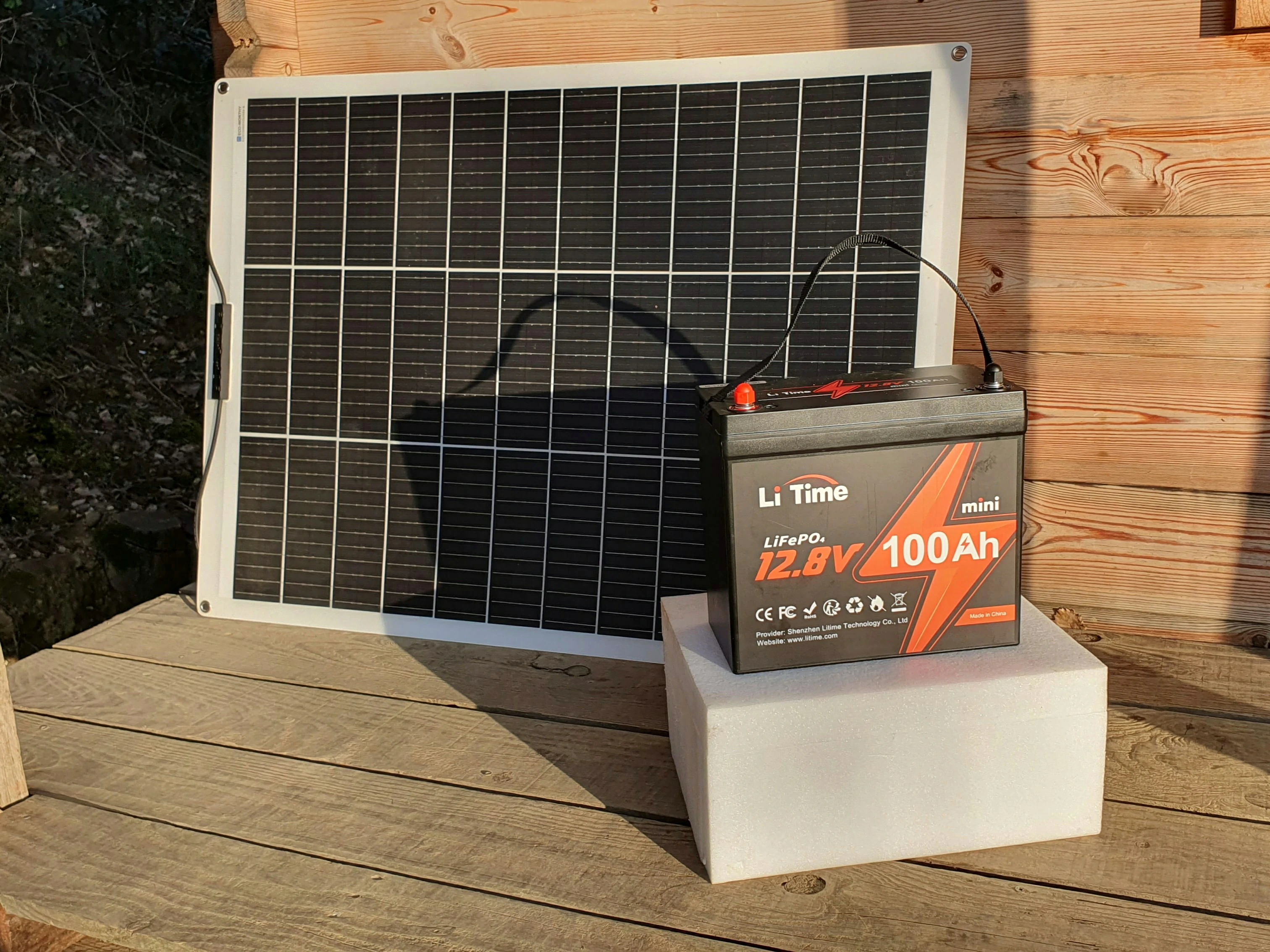

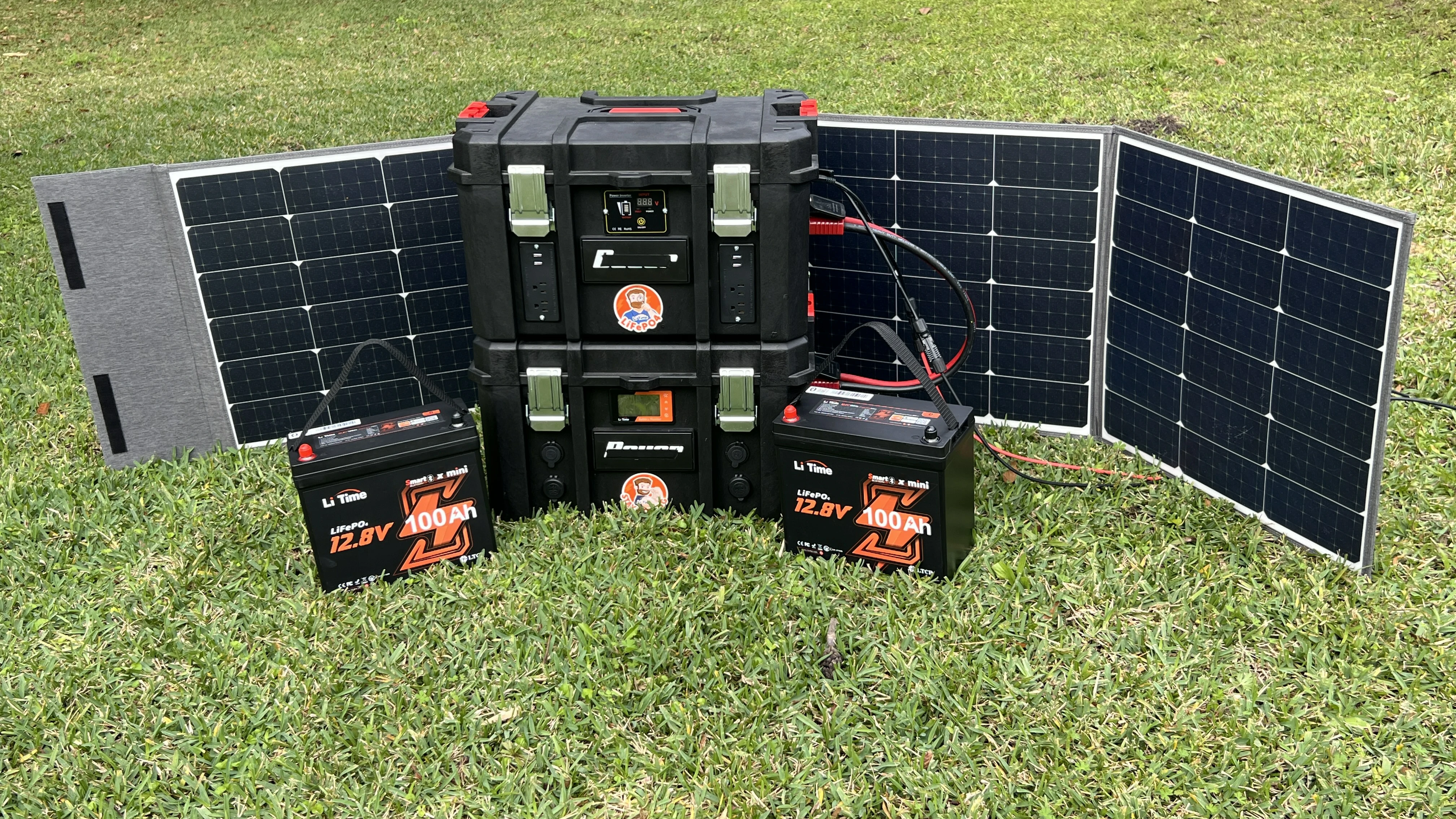

Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?
A:
Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels.
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 400W solar panels. It may take more than one day to fully charge the battery by ≥400W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
Besides solar panels, there are 2 more ways to charge.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.
The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current:
- 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity;
- 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Lithium Battery Chargers
To charge 12V battery, it is recommended to use 14.6V battery charger.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current:
- 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity;
- 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
A:
LiTime 12V 100Ah mini LiFePO4 batteries can safely charge between 0℃ to 50 ℃ / 32℉ to 122 ℉. Please note that the 12V 100Ah mini version does not include low-temperature charging protection function.
Q: How do I store LiTime LiFePO4 lithium batteries?
A:
It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, recharge the batteries at least every 3 months. Recommended storage environment: 10℃～35℃ (50℉～95℉），45%RH～75％RH
REVIEWS
T
One of my favorite things about the LiTime mini 12v 100a battery is the way it looks. Very good design. Kudos to the designer.
B
Works great fits perfect in my kayak.
G
This lightweight battery will give me years of reliable power when needed. If it ever gets exposed to extreme low temperature, the battery will protect itself from being damaged.
R
I bought 2 of these compact power babies! great power for my water cooker (100A) but I emptied them twice by mistake since I don't have a controller / monitor that fits with the battery. My suggestion is that these are offered together with the pack. Further, I trust no damage because of this action.
P

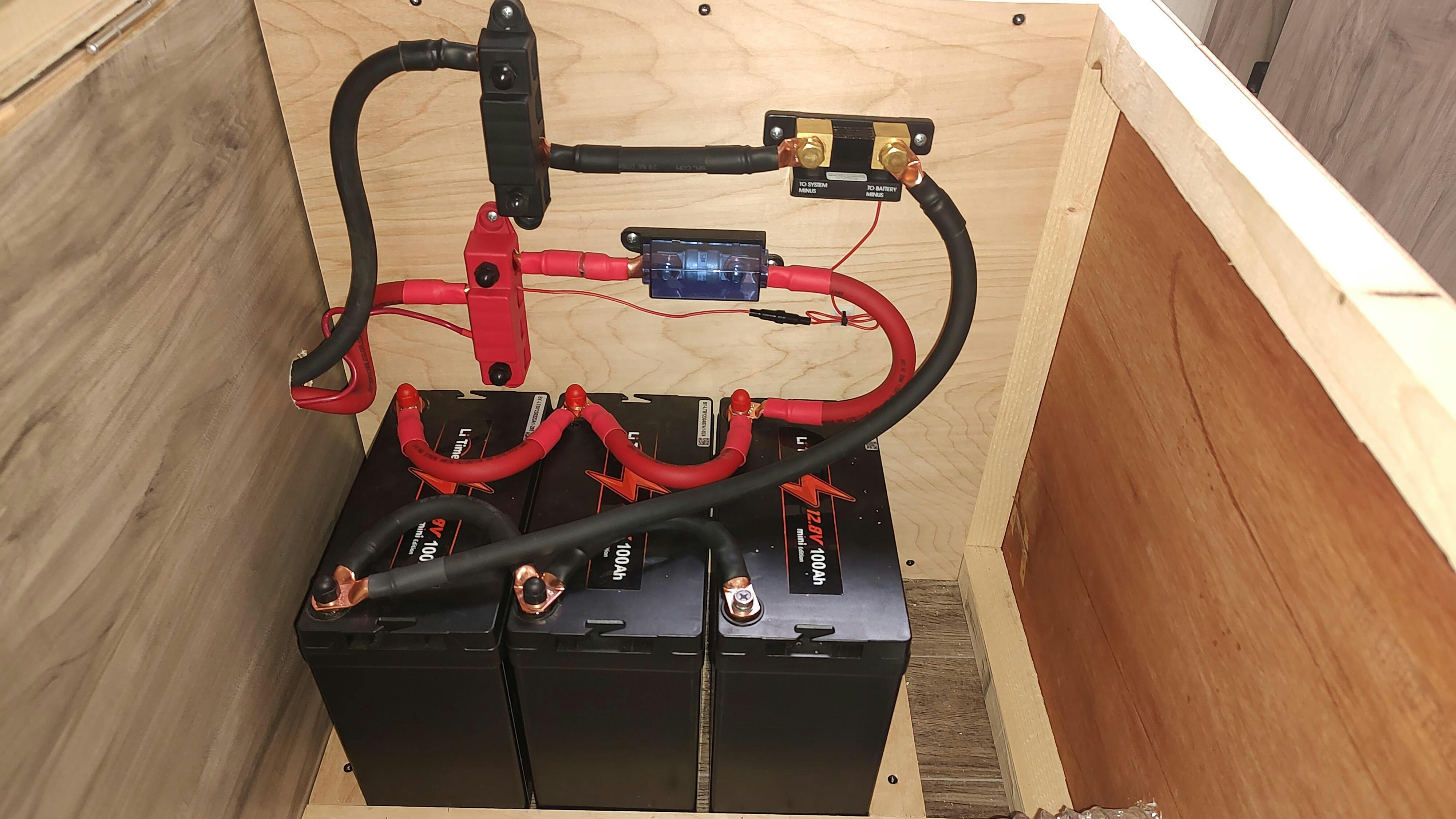

I purchased the LiTime 12v 100ah Mini batteries for my FWC Grandby to replace the existing AGM batteries. It's amazing how much lighter the LiTime Mini batteries are, the conversion was easy, and the fit & finish on the LiTime Minis is great. Once I fabricate some shields for the batteries, I will be able to use the extra room for storage. I definitely recommend LiTime Mini batteries as a replacement.
