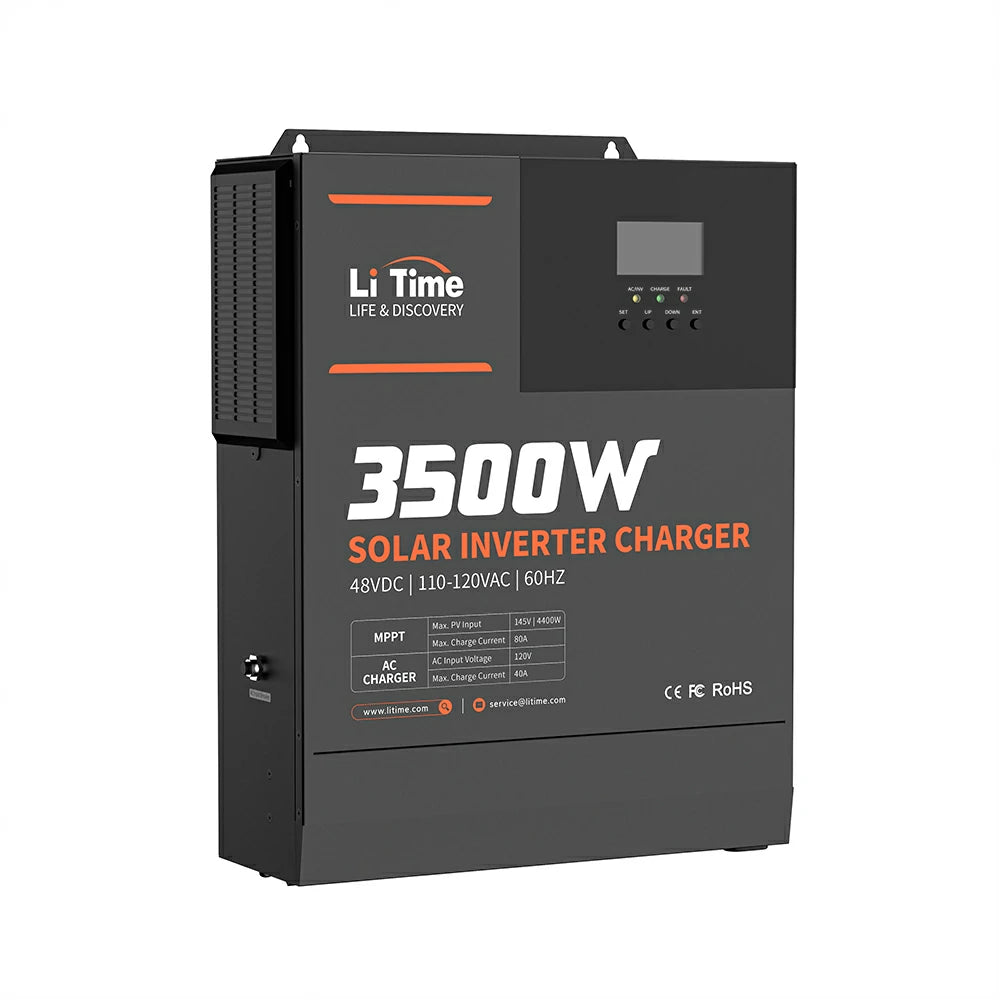

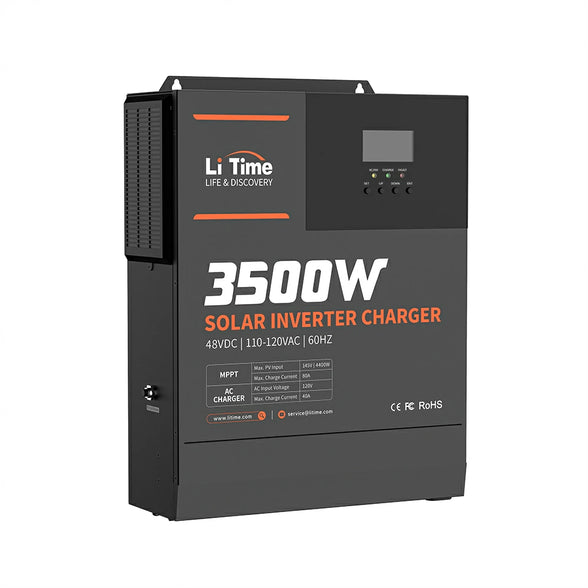

LiTime 48V 3500 Watt Pure Sine Wave All in One Solar Inverter Charger for Home
Litime 48V 3500W All-in-One Solar Inverter Charger | MPPT Solar Controller | Pure Sine Wave Output | Uninterrupted Power Supply | RS485 Communication | Home Energy Storage, Cabin, Off-Grid Solar System
-
3-in-1 Integration: Combines MPPT solar controller (Max. 80A), pure sine wave inverter (3500W), and battery charger (Max. 40A) in one unit, for fewer wires and simplified operation.
-

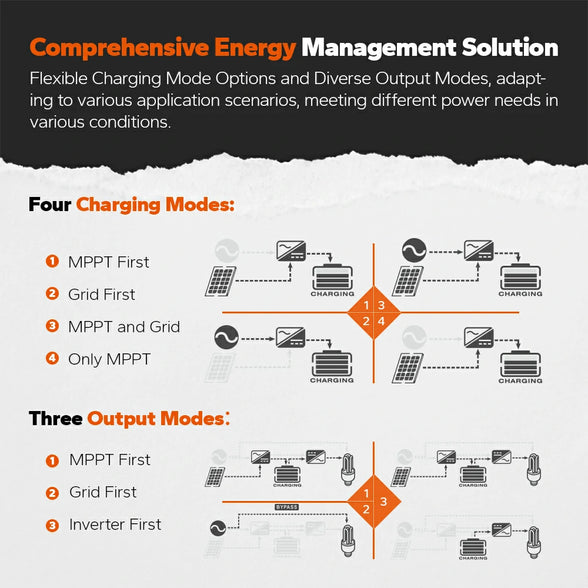

Smart Charging & Output Modes: With 4 charge modes and 3 output modes, delivering robust flexibility for diverse energy scenarios.
-

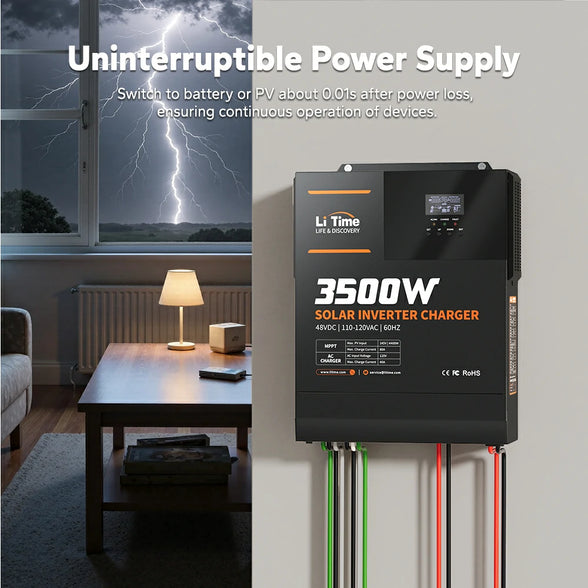

Enhanced Energy Stability & Savings: Features UPS and multiple output modes, reducing reliance on traditional energy sources.
-
High Power Capacity: 3000W rated power & 6000W surge power for high demand power, ideal for home energy storage, and off-grid applications.
-
Auto Photovoltaic Tracking & Pure Sine Wave Output: Ensures stable and efficient energy conversion and usage.
-

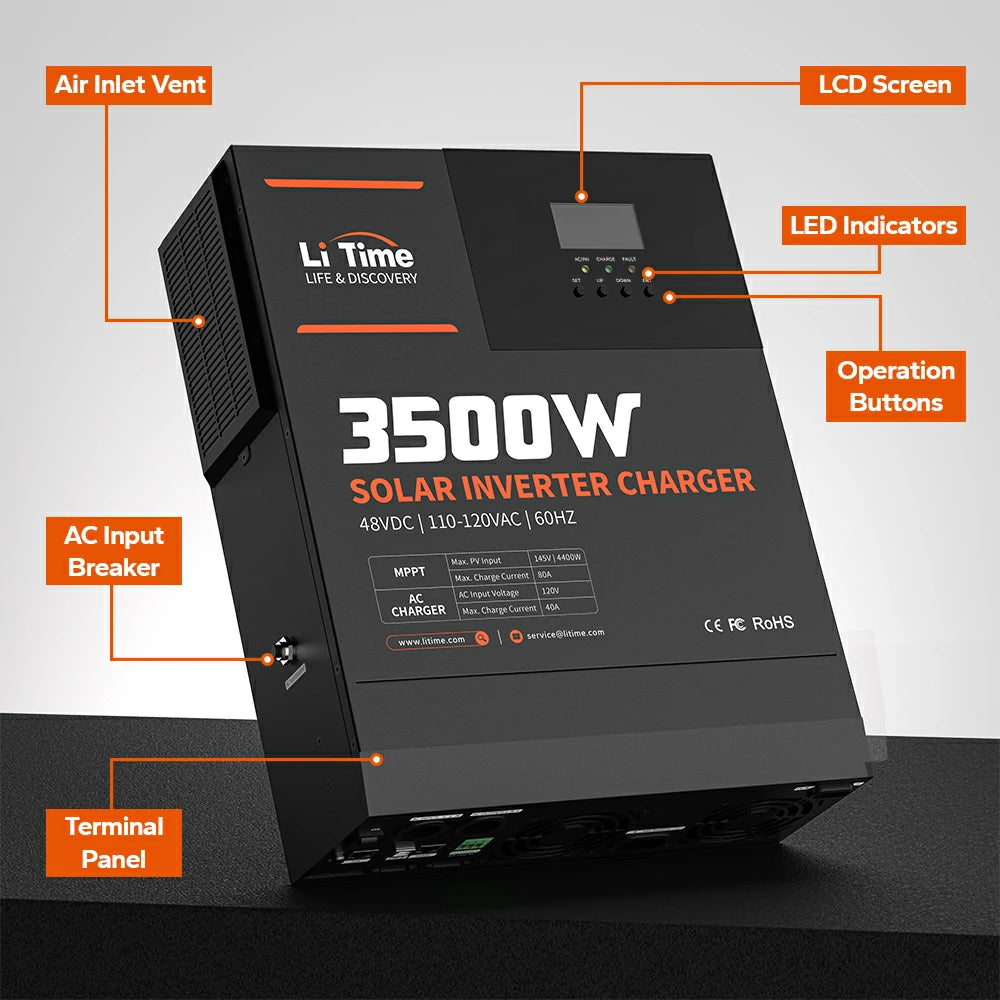

Real-time Monitoring: With LCD Screen & LED Indicator, allows to check the instant data and status.
-
RS485 Communication: Reports battery faults (undervoltage/ overvoltage/ overcurrent) for system-wide protection.
-

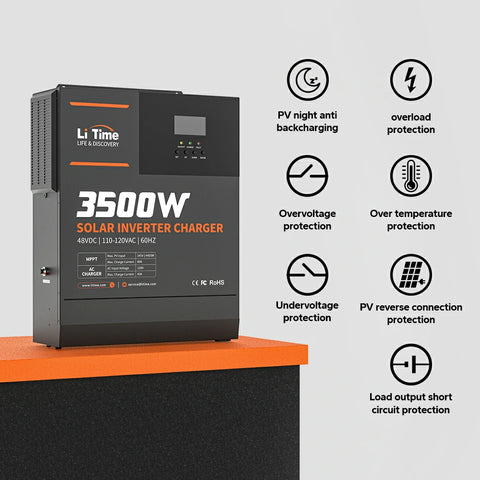

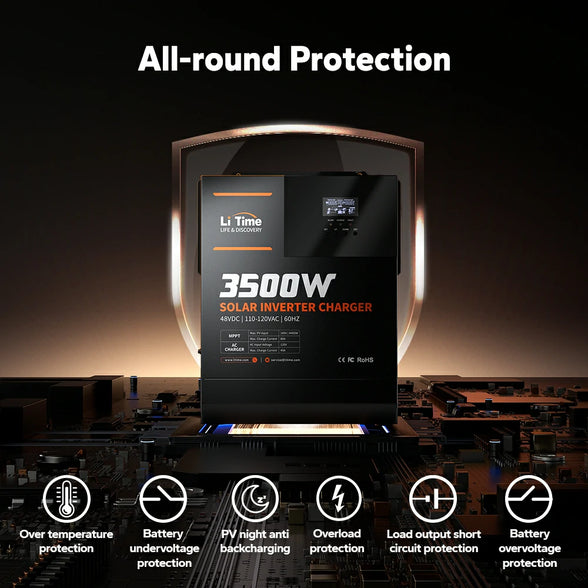

All-round Protection: With 2 cooling fans and multiple protections, including load output short circuit, over-temperature, overload and more, ensuring efficient operation and extending your system's lifespan.
-
For Any 48V Batteries: Suitable for 48V lead-acid, lithium, and user modes, including LiTime 51.2V 30Ah GC COMM./ 51.2V 100Ah GC COMM.
-
Lithium Battery Activation function: Activates BMS-protected lithium batteries by grid/PV for seamless operation.
-
Wide Application: Ideal for home energy storage, off-grid, farm, garage, etc.
- Note: This solar inverter charger is intended for single use only and cannot be used in parallel.
30-Day Price Guarantee
- $539.99
-
$899.99 - $539.99
- Unit price
- per
Calling All Early Birds - Score 2025 Hottest Deals Right Now on Our Newly All-in-One Inverter Chargers! Limited stocks, grab yours now.
Subtotal:
$539.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 3-8 business days.
2 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
LiTime 48V 3500W Solar Inverter Charger
LiTime 3500W inverter charger integrates an inverter, battery charger, and transfer switch into a single system. When AC power is available, it charges the house batteries and passes any excess AC power to downstream devices, like TVs or microwaves. Once AC power is lost, it converts DC battery power into AC electricity.
The LiTime solar inverter charger features an integrated LiFePO4 lithium battery activation function and delivers a pure sine wave output. Equipped with an easy-to-read LED screen and indicator lights, it also supports RS485 communication.

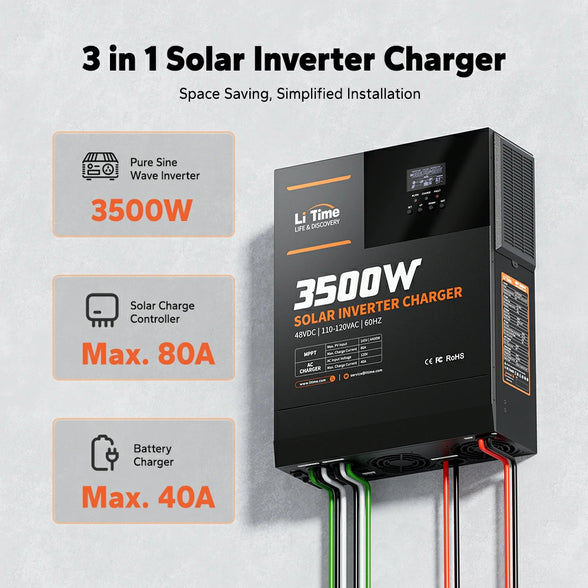

A Solar Inverter Charger=MPPT + Pure Sine Wave Inverter + Lithium Battery Charger
A solar inverter charger combines three essential components into one: an MPPT (Maximum Power Point Tracking) charge controller, a pure sine wave inverter, and a lithium battery charger. The MPPT maximizes the efficiency of solar energy input, ensuring optimal charging for your batteries. The pure sine wave inverter delivers clean, stable AC power, making it ideal for sensitive electronics. The lithium battery charger ensures efficient and safe charging for modern LiFePO4 and other lithium batteries. This all-in-one solution simplifies solar power systems, providing seamless energy management.
Max. Charge Current Pure Sine Wave
Utility Power:40A Max Rated Power:3500W
MPPT:80A Max Voltage Range:120VAC±5%

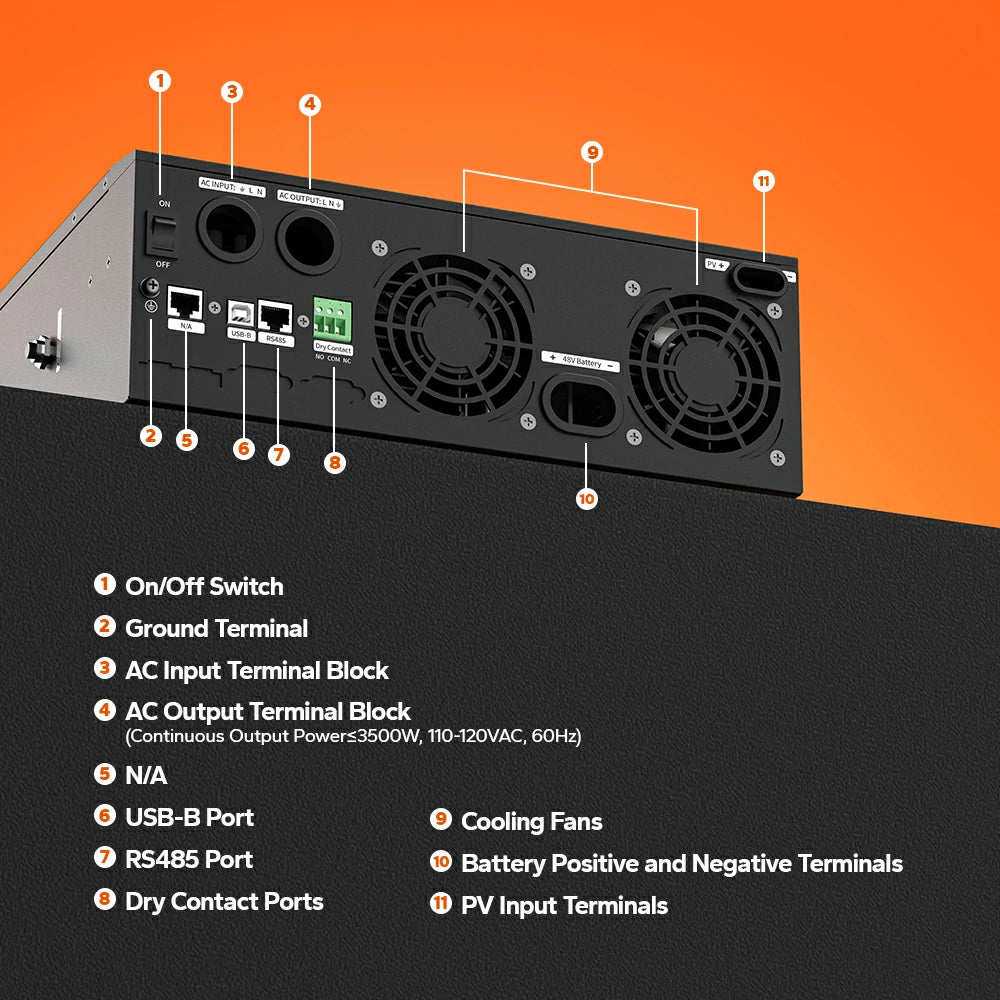

Support RS485 Communication Function
The RS485 communication function enables effortless monitoring of battery input/output information, alarm/error status, charging mode, and output mode, enhancing user experience and efficiency.

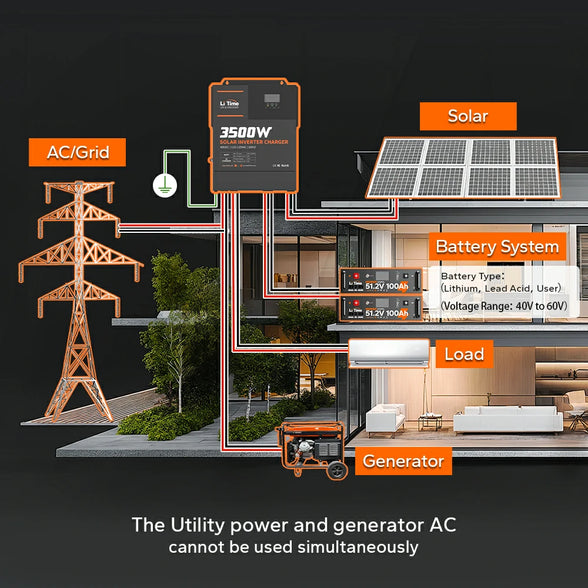

Note: Generator AC and Utility Power AC Cannot be Used Simultaneously
Build Your Solar System with LiTime 3500W Solar Inverter Charger
SPECS
PV Input
Operating Voltage Range：
60V to 145V
Recommended Operating Voltage Range：
60V to 115V
Max. Power：
4400W
Max. Input Current：
50A
MPPT Output
Max. Power：
4200W
Charge Current Range：
0A to 80A
Efficiency：
＞94%
Battery Input
Rated Voltage：
48V
Voltage Range：
120VAC±5%
Terminal：
M6
Battery Type：
Lithium, Lead Acid, User
Max. Charge Current (PV+AC)：
120A
AC Input
Voltage Range：
120VAC±5%
Current Range：
0A to 40A
Frequency：
60Hz±0.3Hz
Max. Input Current：
40A
AC Output
Voltage Range：
120VAC±5%
Rated Power：
3500W
Surge Power (5 Seconds)：
6000W
Rated Current：
29A
Frequency：
60Hz±0.3Hz
Output Wave Form：
Pure Sine Wave
Inverter Efficiency：
＞91%
Bypass Efficiency：
＞95%
General
Max. Charge Current (PV+AC)：
120A
No Load Power Consumption：
Normal Mode<50W, ECO Mode<30W
Humidity Range：
5% to 95%
OperatingTemperature Range：
14°F to 131°F/-10°C to 55°C
Storage Temperature：
-13°F to 140°F/-25°C to 60°C
Weight Approx.：
23.15 lbs/ 10.5 kg

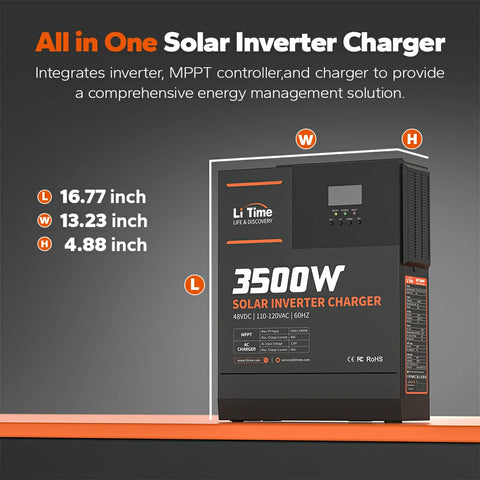

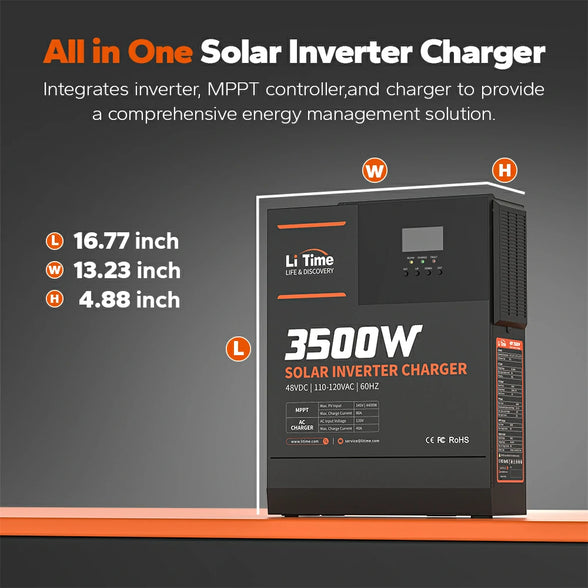

Dimension (L*W*H)：
16.77*13.23*4.88 inch
FAQ
Q: Can I use 12V battery system for this inverter charger?
A:
Sorry. This inverter charger is only suitable for 48V system. If you need the inverter charger for 12V battery, visit LiTime 3000W Inverter Charger
Q: What should I pay attention to when using the inverter charger?
A:
The product is used with a pemanent power source (battery, PV and gridpower). Input and/or output teminals may still be dangerously energized,even when the product is switched off.
ALWAY'S make sure the solar inverter chargeris in the OFF position and disconnect all AC and Dc connections before carrying out maintenance or servicing the product.
Do not remove the terminial panel or touch the wiring terminials, the mains input and AC output voltage is high.
Q: What's the difference between an inverter and inverter charger?
A:
An inverter converts DC (battery) power into AC power and supplies it to connected devices. An inverter/charger goes a step further by connecting to an AC power source, continuously charging the batteries when AC power is available. During a power outage, it automatically switches to battery power to maintain the flow of electricity to connected equipment.
