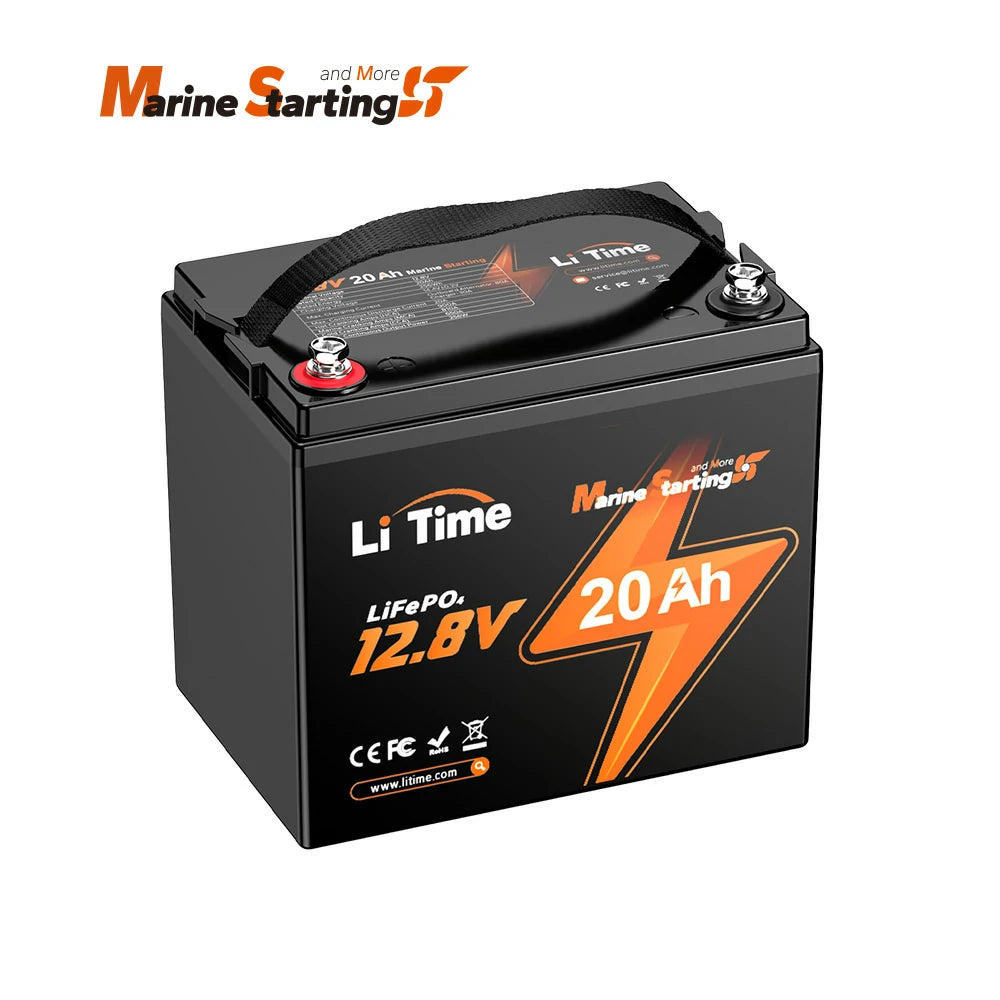

🌟【New Launch Price】LiTime 12V 20Ah Marine Starting Lithium Battery

LiTime lithium marine starting battery offers 650 CCA and 810 MCA, supporting crank up max.135 HP fuel powered marine outboard motor. Please consider both the horsepower and the CCA to confirm whether this battery is suitable for your engine.

Born for Marine: Ideal for starting fuel-powered outboard motors up to 135 HP.
Full Protection BMS: Provides 20+ protection against overcharging, over-discharging, over-current, overheating, and short circuit. Plus, BMS offers low-temp cut-off protection, auto-recovery after overload protection(30s), moisture & salt spray resistance, and pre-charge function.
EV Grade A+ LiFePO4 Starting Cells: Delivers over 5000 cranking cycles, 10 times the cranking cycles than SLA batteries that of 300~500 cycles. Plus, able to be charged via outboard alternator up to 80A.
Sheet Metal Constraint Structures: Cells are constrainted with sheet metal structures, which hepls to maintain reliable performance and prevent overheating, physical damage, and other safety risks.
Low-Temp Cut-Off Protection: Auotomatically cut off charge and discharge under freezing weather to protect battery from damages.
IP67 Waterproof & Dustproof: Suitable for harsh marine environments like rainy, dusty, or wet conditions, ensuring reliability and longevity.

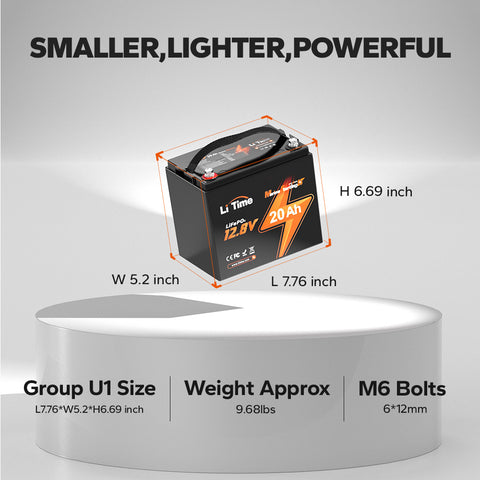

Compact and Lightweight: 9.68 lbs, BCI Group U1 size, L7.76*W5.2*H6.69 inch, reducing the boat's weight for improved performance.
Perfect Replacement of SLA: Utilizes automotive-grade lithium iron phosphate cells with higher energy density than lead-acid batteries.
Other Available Application: Can be adapted for use with fuel-powered riding lawnmowers.
Professional Testing & Certi.: UL1973 tested and certified by FCC, CE, RoHS, and UN38.3.
Beyond ABYC Standard: All LiTime marine starting batteries are developed to exacting standards and beyond from every aspect, no matter whether cells, BMS, or other technology craft.
DO NOT use as a starter battery for any type of vehicle, such as cars, motorbikes, tractors, etc. In addition, it is only for 12V starting use and does not support series and parallel connections.
This Item is Not Dual Purpose: If you want to purchase a dual purpose marine starting battery with deep cycle performance, we recommend you LiTime 12V 140Ah dual purpose marine starting battery.
Note: If you want to start an outboard motor over 135 HP with this item, please provide us with the required CCA of the motor and the charging current of the outboard alternator, we will help you check if it will support you.

30-Day Price Guarantee
$209.99
$429.99
$209.99

The highly anticipated and latest breakthrough lithium marine starting battery is now available. Don't miss early bird pricing!

Subtotal: $209.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

5 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
🌟【New Launch Price】LiTime 12V 20Ah Marine Starting Lithium Battery

🌟【New Launch Price】LiTime 12V 20Ah Marine Starting Lithium Battery

$429.99 $209.99

🌟【New Launch Price】LiTime 12V 20Ah Marine Starting Lithium Battery

$429.99 $209.99

Frequently Bought Together

🌟【New Launch Price】LiTime 12V 20Ah Marine Starting Lithium Battery 1000
$429.99 $209.99

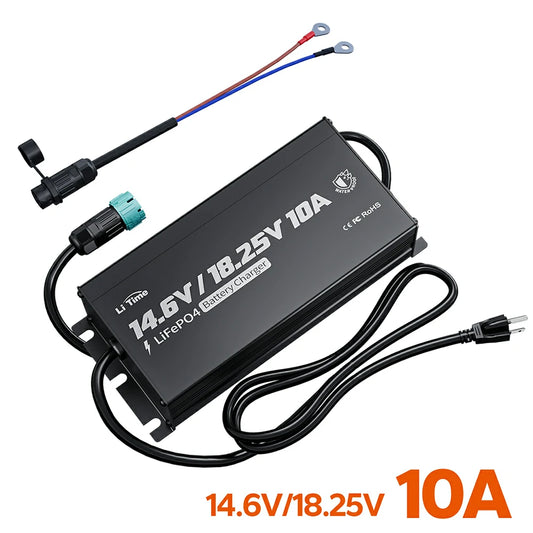

12V 10A LiFePO4 lithium battery charger with IP67 waterproof 1600
$138.56 $63.99
litime 12 volt 12ah deep cycle lithium battery 1000
$74.99 $45.99
LiTime 12V 100Ah trolling motor battery with Bluetooth 1000
$499.99 $219.99
Choose Options
Choose Options
Size: 1 Pack 12V 100Ah TM Bluetooth
Price Total: $0.00
    • FEATURES

    • SPECS

    • FAQ

    • REVIEWS

    Upgrade Your Power: LiTime 12V 20Ah Marine Starting Battery

    Discover the perfect replacement for your lead-acid battery with the LiTime 12V 20Ah Marine Starting Battery. Designed to deliver 650 CCA, it effortlessly starts outboard motors up to 135 HP. Featuring top EV Grade A+ LiFePO4 starting cells, this battery supports a max. charging current of 80A from outboard alternator. Experience superior performance in a more compact and lighter package, making it the ideal choice for any boating enthusiast seeking reliability and efficiency.

    LiTime 12V 20Ah Marine Starting Lithium Battery

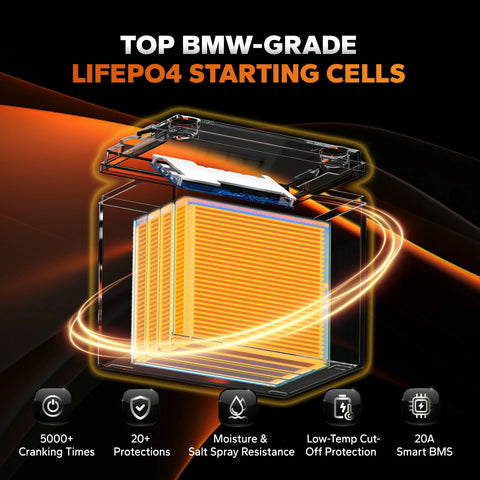

    All-Round Advanced EV Grade A+ LiFePO4 Starting Cells

    EV Grade A+ starting cells are ideal for high-end automotive production, offering excellent internal resistance and consistent capacity, the cells provide the highest capacity, superior cycling performance, longer lifespan, and robust discharge capabilities, even under long-term high-power use.

    Sheet Metal Constraint Structures


    Helps to maintain reliable performance and prevent overheating, physical damage, and other safety risks.



    Fast Charging and High Power Discharge


    Support max. charging current of 80A from outboard alternator and offer 650 CCA



    Low Impedance ≤40mΩ


    The lower the impedance, the better rate of charge and discharge the cells can go through.

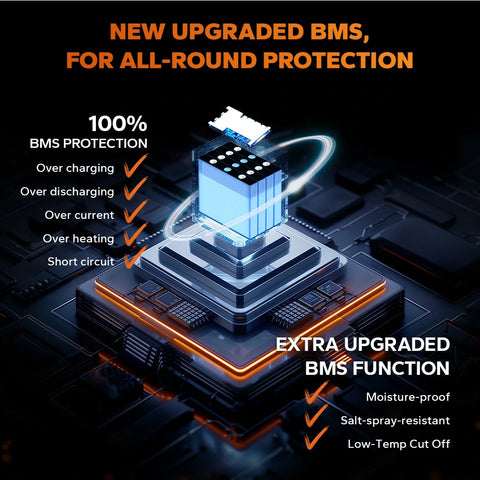

    Self-Developed BMS for Cranking up Marine Passion

    Distinct from basic BMS with only 5 protections (over-charge, over-discharge, over-current, over-temp, and short-circuit), the LiTime self-developed BMS includes these and offers over 20 protections, such as low-temp cut-off protection, auto-recovery after overload protection (30s), pre-charge function, and resistance to moisture and salt spray.

    LiTime 12V 20Ah Marine Starting Lithium Battery


    Safeguards Longivity and Performance under Low-Temp

    The battery features an intelligent cut-off function that halts charging below 0°C (32°F) and discharging below -20°C (-4°F). This low-temperature protection safeguards the battery from damage in cold conditions, extending its lifespan and ensuring long-lasting performance.

    LiTime 12V 20Ah Marine Starting Lithium Battery


    Born for Marine Outboard with Outdoor-Rated Quality

    Engineered for marine excellence, this battery delivers 650 CCA and 810 MCA, perfect for cranking outboard motors up to 135 HP. Designed with outdoor-rated quality, it features IP67 waterproof and dustproof protection, ensuring reliable performance in any conditions. Born for marine outboard use, it's your ideal companion on the water.

    IP67 waterproof & dust proof

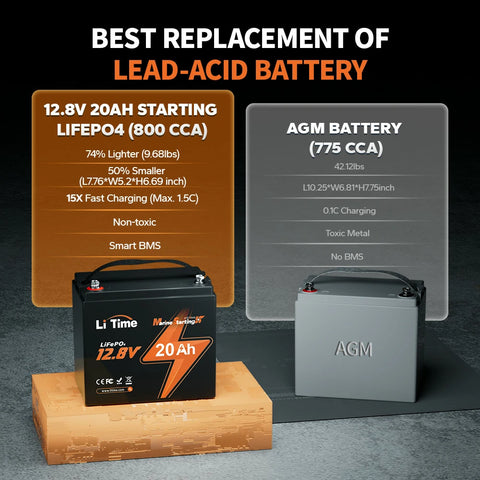

    All-Round Superior to Lead-Acid Battery

    Experience unparalleled power with LiTime LiFePO4 marine starting battery, offering all-round superiority over traditional lead-acid batteries. Enjoy over 5000 cranking times and a remarkable 10-year lifespan. LiTime 12V 20Ah marine starting battery weight 21% lighter than 12V 20Ah lead-acid abttery at just 9.68 lbs, ensuring you get the most efficient and reliable energy solution.

    better replacement of lead acid battery


    Three Fast Charging Ways

    With the LiTime 12V 20Ah starting battery, you can choose from three convenient charging options to suit your needs. Whether you use a LiFePO4 battery charger,  generator, or outboard alternator, you can fully charge your battery efficiently and reliably. We recommend 0.5C(10A) charging current, about 2 hours to charge fully. And only 40 minutes to fully charge if charged with a maximum continuous charge current of 1.5C (30A).Compared with lead-acid battery charging (usually charging current is 0.1C), the max. The charging current of the LiFePO4 battery can shorten the charging time by 15 times, so it can be charged with more power in a shorter period, which can satisfy the demand of going out in a hurry.

    3 ways of recharge


    Back by Professional Testing and Certi & Committed to Provide Best Service

    LiTime 12V 20Ah Marine Starting Lithium Battery


    Suitable for Fuel Powered Outboard and Riding Lawn Mower

    applicable scenarios

    SPECS

    BATTERY
    Cell Type:
    LiFePO4
    Warranty:
    5 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    12.8V
    Rated Capacity:
    20Ah
    Energy:
    256Wh
    Max. Expansion (Parallel & Series):
    No Series, No Parallel
    Internal Resistance:
    ≤40mΩ
    Certifications:
    UL1973, FCC, CE, RoHS, UN38.3
    ABYC Official Certi.:
    Yes
    Hot Cranking Amps (HCA):
    900A
    Marine Cranking Amps (MCA):
    810A
    Cold Cranking Amps (CCA):
    650A
    BMS
    BMS:
    20A
    Max. Continuous Output Power:
    256W
    Max. Continuous Discharge Current:
    20A
    Max. Charge Current (Outboard Alternator):
    80A
    Max. Charge Current (Outboard Charger):
    30A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    14.4V±0.2V
    Recommend Charge Current:
    10A (0.5C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    Low-Temperature Protection:
    Yes (32℉/0℃)
    Low-Temperature Charging Protection Auto Recovery:
    Yes (41℉/5℃)
    OTHERS
    Terminals:
    M6 size bolts
    Weight Approx.:
    9.68lbs
    Size:
    L7.76*W5.2*H6.69 inch
    Housing Material:
    ABS
    Protection Class:
    IP67

    FAQ

    Q: Can I use the battery to start the car engine?

    A:

    No. Please DO NOT use it as a starter battery for any type of vehicle, suchas cars, motorbikes, tractors, etc.

    For better using the battery, here are some safety precautions to notice:

    1. Do not use this battery as a starter battery for any type of vehicle, such as cars, motorcycles, trucks, etc.

    2. This battery is not suitable for engines (such as outboard motors) that use a charging coil instead of an alternator.

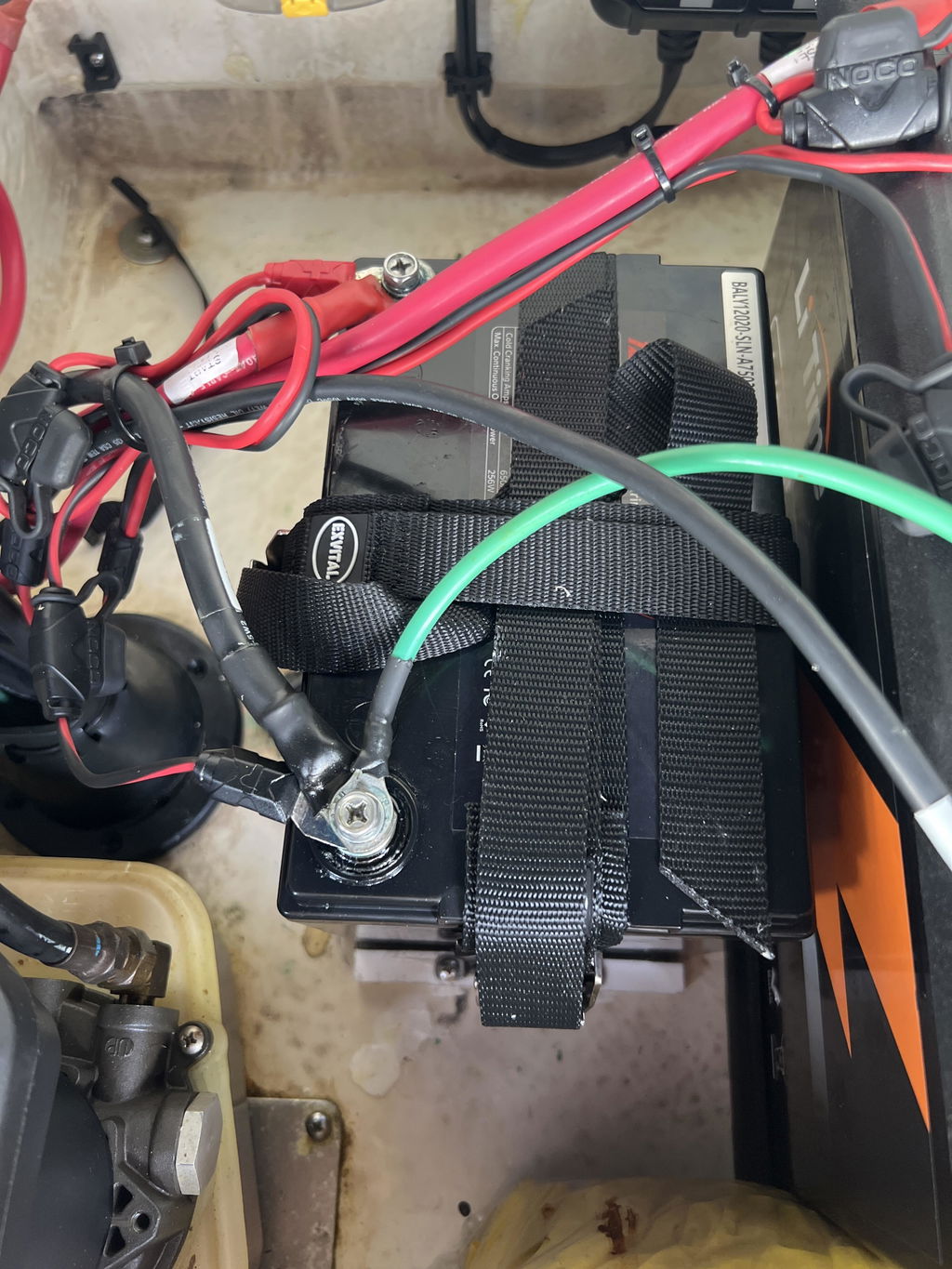

    3. When used in marine starting equipment (such as fuel outboard engines) or in environments with vibration, ensure the battery is securely mounted. However, it should not be used in areas with intense vibrations, such as tractors.

    4. When using with outboard engines or in shaking environments, make sure to securely fasten the battery to prevent damage from movement.

    5. Position the battery closer to the outboard motor, as different cable lengths may cause a certain amount of voltage loss, typically between 3% and 10%. If the voltage drop caused by the cable exceeds this range, the total cable length should be reduced.

    6. The 12V 20Ah marine cranking battery supports an IP67 protection rating. To avoid potential issues, do not fully submerge it in bilge water. To prevent parts of the battery from being exposed to water, it is recommended to install the battery in a waterproof battery container and/or place it in an elevated position.

    Q: How to know whether the battery can be applied to start my fuel outboard motor?

    A:

    Please ensure that your fuel outboard motor meets the following conditions when selecting a battery:

    1. Verify that the CCA (Cold Cranking Amps) required by your fuel outboard motor is less than the battery's CCA value of 650A.
    2. If your fuel outboard motor has an alternator, please ensure that the alternator's output current is less than the battery's maximum supported charging current of 80A.

    Q: What should I do when I receive the battery?

    A:

    When you receive your battery, please note that it may have a low State of Charge (SOC) due to transportation and storage. For optimal performance, we recommend charging the battery immediately to avoid over-discharge.

    Fully charge the battery with battery charger for LiFePO4 lithium  before first use. Battery voltage lower than 11.5V will not be able to start motors.

    The duration of a single start cannot exceed 3 seconds.When the primary ignition fails, wait for 15 seconds beforerestarting.If the motor still cannot be started after three ignitions, checkfor other causes and wait 5 minutes before igniting again.

    Q: Can I connect the LiTime 12V 20Ah marine cranking battery in series or parallel?

    A:

    No. This battery doesn't support series or parallel connection.
