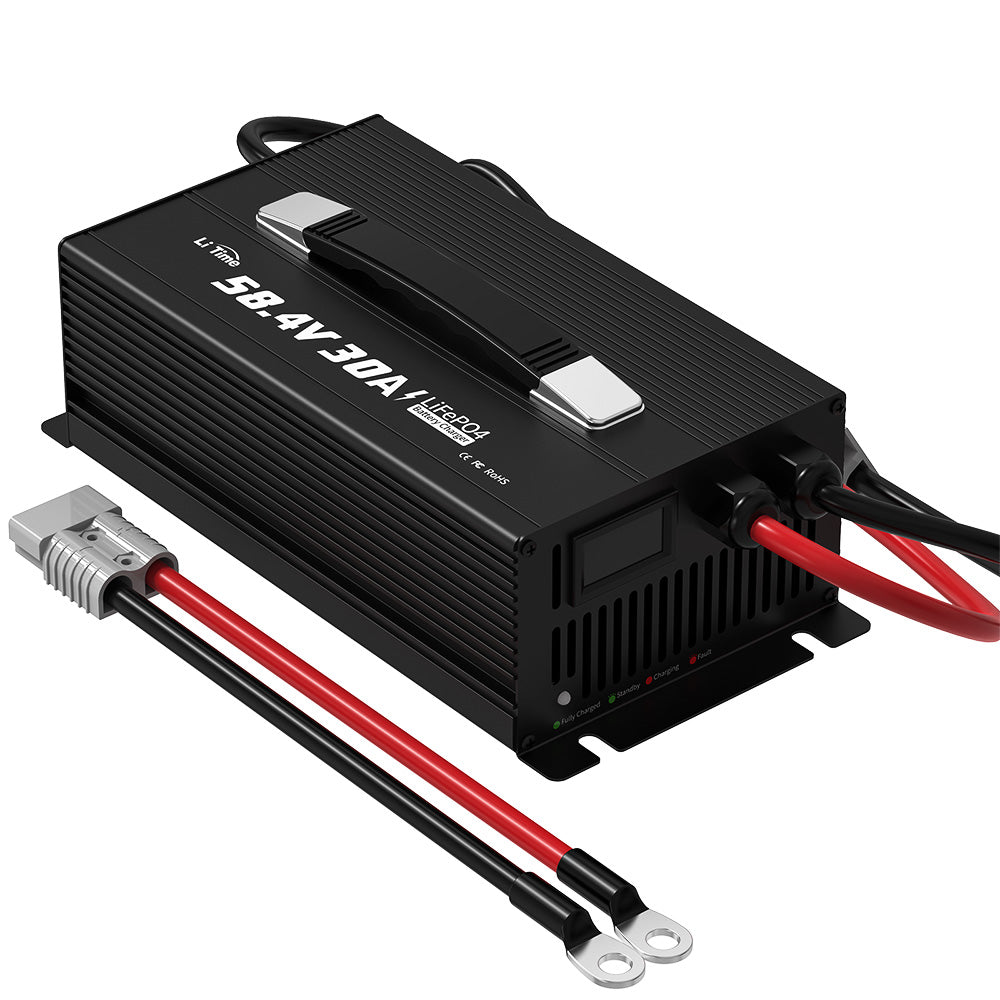

LiTime 48V 30A Lithium LiFePO4 Battery Charger
- 58.4V 30A LiFePO4 Battery Charger, with 100V-240V AC input, designed for golf carts.
- Input cable: 47.24 inch; output cable: 61.02 inch (including 13.78 inch Anderson extension cable)
- Safely jump-starts BMS-protected lithium batteries within 3 seconds.
- LED indicators for real-time monitoring: standby, charging/full charge, and abnormalities.
- Multiple protections: over-heating, reverse polarity, short circuit, over-current, and over-voltage safeguards.
- 3-stage smart charging: automatic pre-charge, CC, and CV stages.
- Flexible mounting with 4 screws, suitable for off-grid setups, boats, homes, and golf carts.
- 50A Anderson connector with high-quality wiring.
- CE, FCC, and RoHS certified.
- 2-year warranty, lifetime technical support, and 24-hour customer service.
30-Day Price Guarantee
- $259.99
-
$479.99 - $259.99
- Unit price
- per
Please hurry! Only 12 left in stock
Subtotal:
$259.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
2 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS

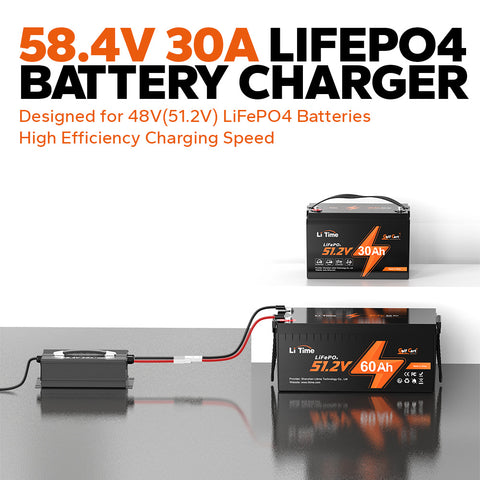

58.4V 30A Fast Charger For Your 48V Lithium Battery
This intelligent charger allows you to monitor the real-time charging status and activates your lithium battery as the BMS protection is triggered. With its advanced charging efficiency, this charger can fully charge your 48V (51.2V) 100Ah lithium battery in just 3.3 hours.
5 Safety Protection
LiTime LiFePO4 battery charger provides 100% safe and reliable protection, including over-heating, reverse polarity, output short-circuit, output over-current and output over-voltage protection, 100% guaranteeing your safety and your battery health.

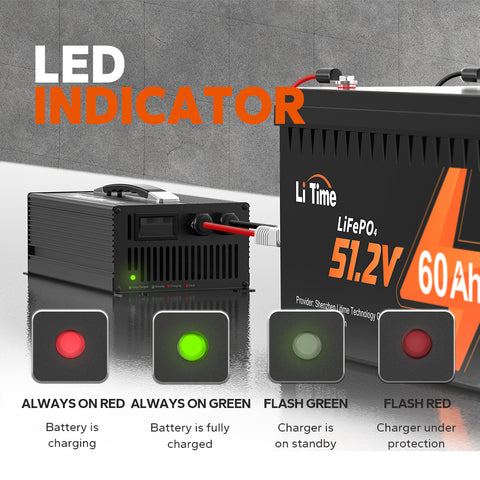

Real-Time View Battery Charging Status
LiTime smart battery charger has the function of monitoring charging status. You can view its power on/off, standby, charging, full charge and charging abnormalities status through LED indicators flash.
Smart 3-Stage Charging Mode
LiTime lithium battery charger features 3-stage intelligent charging, including pre-charge, constant current charging (cc), and constant voltage charging (cv). The charger can intelligently switch charging modes by identifying voltage so that you can get faster, safer, and more efficient charging and prolong your battery lifespan.

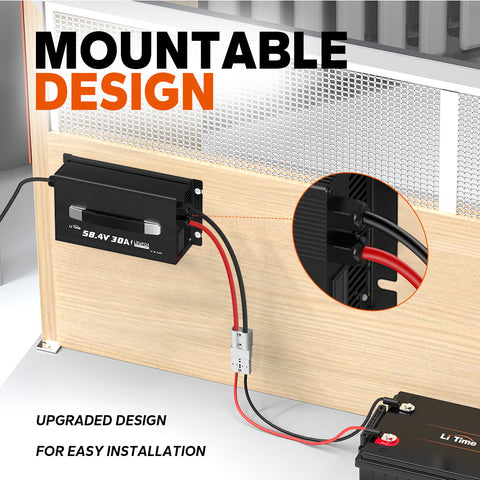

Flexible and Stable Installation

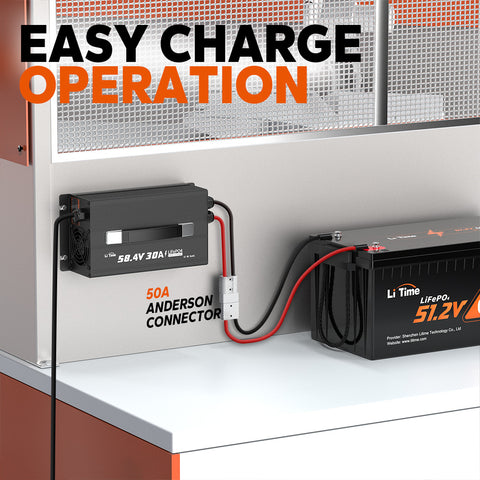

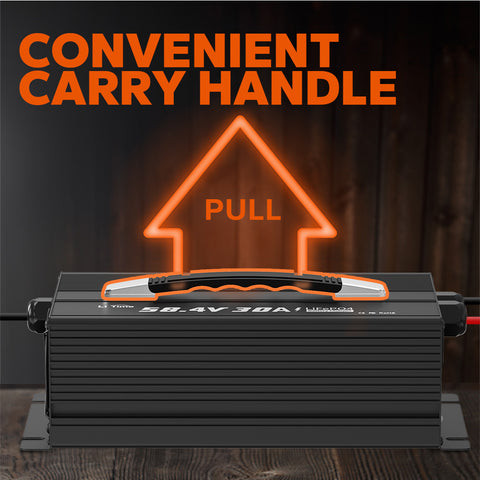

With 4 screws equipped, the LiTime 48V LiFePO4 battery charger can be mounted stably in any suitable scenario. Additionally, its portable handle makes it easy to carry to different destinations. This AC to DC battery charger is equipped with a 50A Anderson connection and M8 terminal, ensuring a safer and more efficient charging experience with faster charging times.
Paired with Your 48V Lithium Battery, Stable & Portable
With a sturdy shell, this charger has strong resistance against shocks and vibrations. Its hard construction makes it suitable for various applications, such as boats, off-grid cabins, homes, and golf carts.

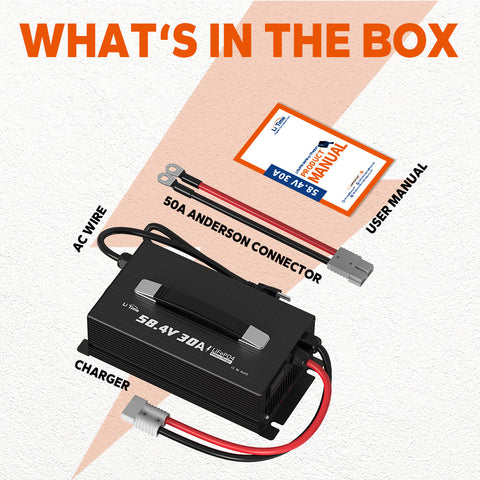

What's in the Box?
SPECS
BASIC
Charger Type：
LiFePO4
Output Voltage：
58.4V
Output Current：
30A
Max Input Current：
20A
Lithium Battery Activation：
√
Input Voltage Range：
100V to 240V; 50Hz to 60Hz
LED Indicator：
√
PROTECTION
Over Temperature：
√
Output Short-Circuit：
√
Reverse Polarity Connection：
√
Output Over-Voltage：
√
Output Over-Current：
√

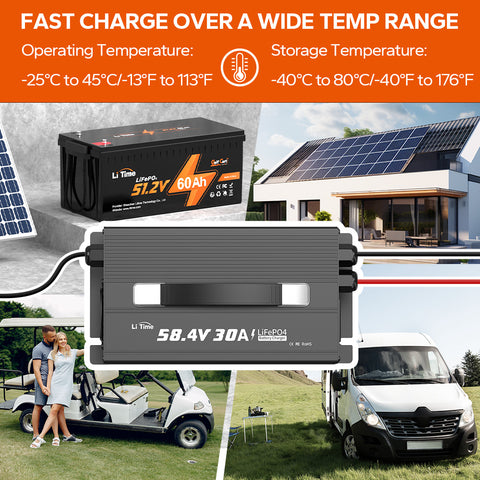

TEMPERATURE
Operating：
-25℃ to 45℃ / -13℉ ~ 113℉
Storage：
-40℃ to 80℃ / -40℉ to 176℉
OTHERS

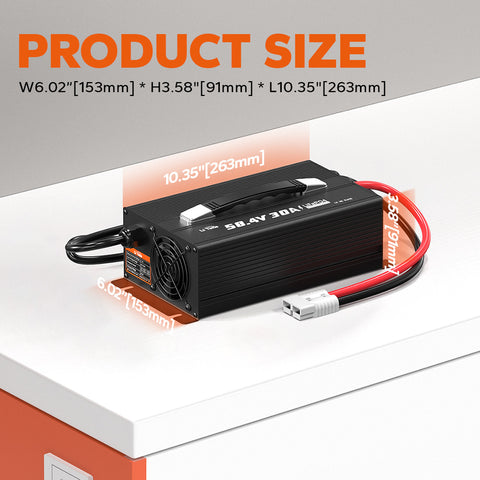

Size：
L10.35*W6.02*H3.58 inch
Approx. Weight：
7.71lbs
Warranty：
2 years
Certifications：
CE, FCC & RoHS
Anderson Connector：
50A/M8 Termianl
Input Cable：
47.24 inch
Output Cable：
61.02 inch (Include 13.78 inch Anderson Extension Cable)
FAQ
Q: What type of battery is this charger suitable for charging?
A:
This lithium battery charger is suitable for all types of 48V deep cycle LiFePO4 batteries, offering a reliable and efficient charging solution for various applications. Whether you're using it for golf carts, off-grid home energy backup, or other uses, this charger is designed to optimize battery performance and longevity.
Incorporating advanced charging technology, it ensures that your batteries receive the correct voltage and current, enhancing their lifespan while prioritizing safety. The charger features a built-in Battery Management System (BMS) that protects against overcharging, overheating, and short circuits, providing peace of mind throughout the charging process.
Q: How long does it take to charge a 48V 100Ah lithium battery?
A:
With 30A output charging current, it would take around 100/30=3.3 h to fully charge a 48V 100Ah LiFePO4 lithium battery.
Q: Is it OK to charge LiFePO4 to 100%?
A:
Yes, LiTime LiFePO4 batteries can be charged to 100%. Unlike some other lithium battery chemistries, LiFePO4 batteries are designed to handle full charges without significant risk of damage. However, for optimal longevity, it’s often recommended to keep the battery's SOC between 20% and 80% for regular use.
Q: Is it bad to completely drain a LiFePO4 battery?
A:
It is not recommended to fully discharge LiFePO4 batteries. Although these batteries can handle deep discharges better than lead-acid batteries, frequently discharging them to 0% can reduce their lifespan and performance. It's best to recharge the battery before it drops below a very low level, ideally at 20% or higher.
Q: Is it OK to leave a LiFePO4 battery on the charger?
A:
While it is generally safe to leave a LiFePO4 battery on the charger—thanks to the built-in Battery Management System (BMS) in both the charger and the battery that prevents overcharging—it’s still advisable to monitor the charging process.
Once the battery is fully charged, it’s best to disconnect it promptly to prevent any unnecessary damage.
For added convenience, LiTime offers chargers equipped with Anderson connectors, allowing you to stop charging simply by unplugging the connector, eliminating the need to unscrew the battery terminals after charging.
However, for optimal safety, it is recommended to unplug the AC power cord before disconnecting the Anderson connector.
