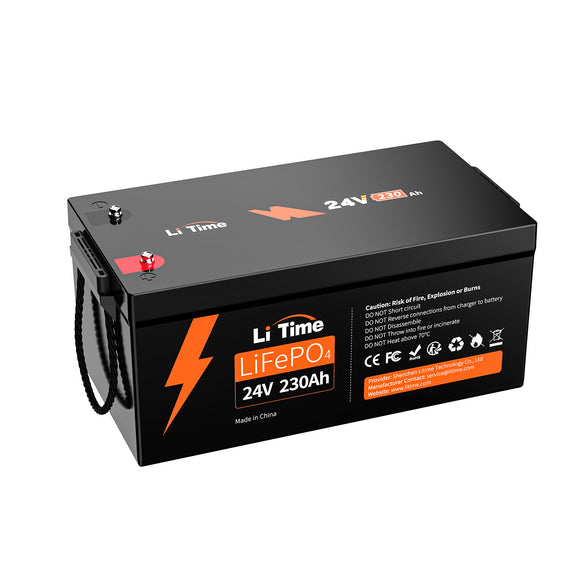

LiTime 24V 230Ah Deep Cycle LiFePO4 Lithium Trolling Motor Battery
High Capacity and Energy Density With a rated capacity of 230Ah and energy density of 5888Wh, the LiTime 24V LiFePO4 battery provides plenty of power for your energy storage needs, making it perfect for solar systems, RVs, boats, and off-grid applications.
Long Cycle Life The LiTime 24V LiFePO4 battery boasts a cycle life of 4,000 times at 25°C and 100% depth of discharge (DOD), ensuring excellent long-term performance and a reliable energy storage solution. And the 200A BMS board offers protection against overcharge, over-discharge, overcurrent, and short-circuit, ensuring the safety and longevity of your battery.
High-Performance With a maximum continuous discharge current of 200A and a maximum continuous output power of 5120W, this battery is well-suited for high-demand applications, ensuring consistent and reliable energy delivery. The battery supports a maximum continuous charge current of 200A, allowing for rapid and efficient charging. The recommended charge current of 46A (0.2C) offers a balance of charging speed and battery longevity.
Durable and Waterproof The ABS flame-retardant plastic housing provides a high level of protection, while the IP65 protection class ensures the battery is safe from dust and water ingress, making it suitable for use in various environments. LiFePO4 batteries are known for their excellent thermal stability and safety features, making them a more environmentally friendly and safer option for energy storage. Its group 8D size makes it suitable and popular for many scenarios.
Wide Operating Voltage Range With an operating voltage of 25.6V and a charging voltage of 28.8V±0.4V, the LiTime 24V LiFePO4 battery is compatible with various systems and devices. Experience the power, reliability, and safety of the LiTime 24V 230Ah LiFePO4 battery, and make it your go-to choice for all your energy storage needs. Order now on Amazon and enjoy top-notch performance for years to come.
DO NOT use as Starter Battery This battery is NOT suitable for starting engines. If you need a starting battery, please consider LiTime 12V marine starting batteries series.
Precautions for Use First, to connect in series-parallel, batteries must be identical (same brand, type, voltage, capacity, and BMS) and purchased within 1 month. Second, if OT terminals are attached directly with screws and their thickness is less than 2mm, add gaskets for lock attachment to prevent loosening and overheating. The same applies to clamps.
30-Day Price Guarantee
- $1,169.99
-
$2,199.99 - $1,169.99
- Unit price
- per
Limited Flash Sale Strats Now! Save Big with Member-Exclusive 8% Off on Our Power Monster! Grab the year’s best Deals before it is gone!
Automatic discount shown at checkout. Cannot combine with other codes.
Please hurry! Only 22 left in stock
Subtotal:
$1,169.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns

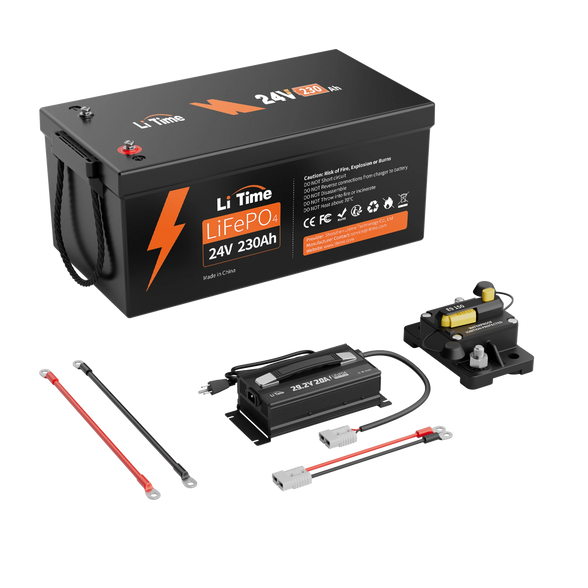

Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
LiTime 24V 230AhLiFePO4 battery

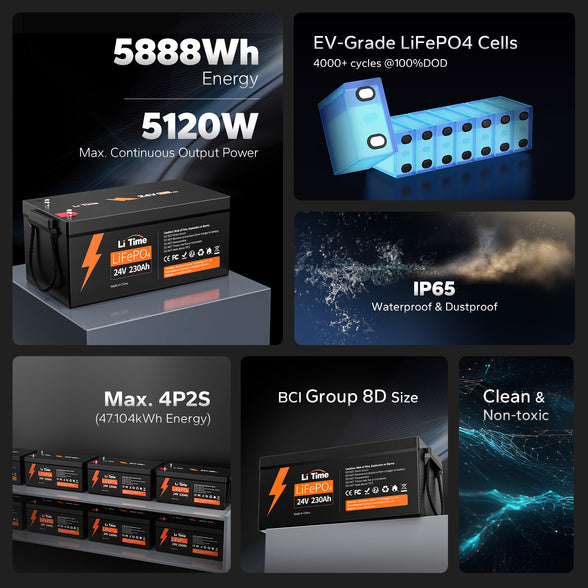

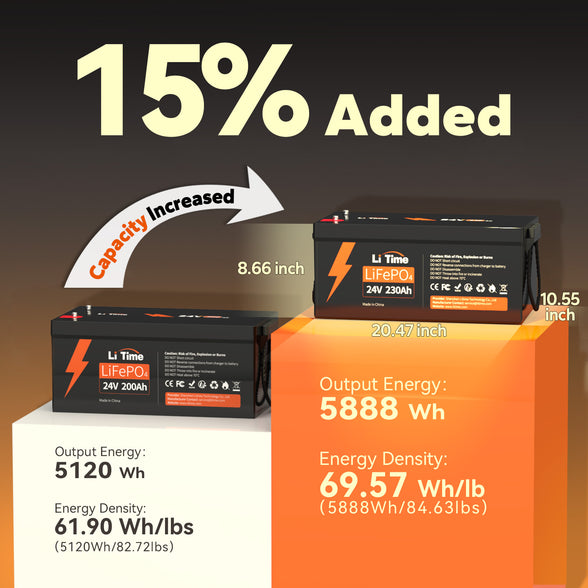

Upgrade your energy storage game with the LiTime 24V 230AhLiFePO4 battery! With a rated capacity of 230Ah and 5888Wh usable energy, this high-performance battery provides plenty of power for your energy needs. No more frequent recharging, no hassle of complex, space-consuming battery connections, just enjoy consistent and reliable energy delivery for your solar systems, RVs, boats, and off-grid applications.
Strong & Robust BMS
With the upgraded BMS in the 24V 230Ah LiFePO4 battery, your battery is fully protected against overvoltage, undervoltage, overheating, overcurrent, and short circuits, ensuring reliable and safe performance. The advanced auto-balancing technique maximizes battery life by optimizing each cell in the pack, resulting in up to 4,000 cycles at 100% DoD and 15,000 cycles at 60% DoD, meaning more than 10 years of everyday use.
Less Battery to Power More

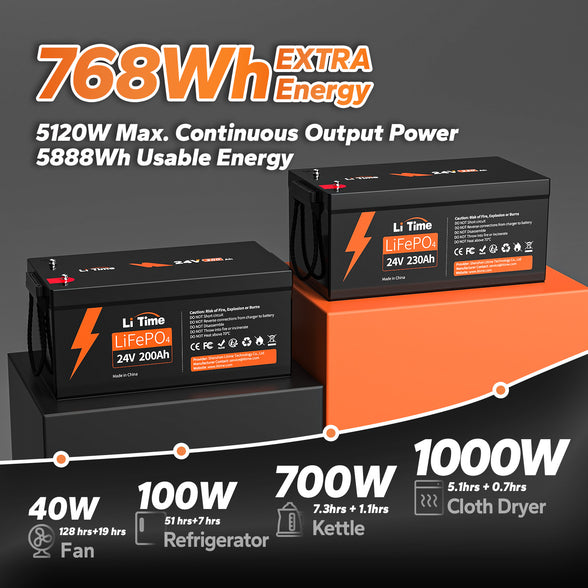

The LiTime 24V 230Ah LiFePO4 Battery's maximum continuous output power of 5120W and maximum continuous charge current of 200A make it an ideal energy storage solution for high-demand applications. This battery allows you to power multiple devices simultaneously without worrying about a loss of power or performance, so you can enjoy a seamless and reliable energy storage experience.

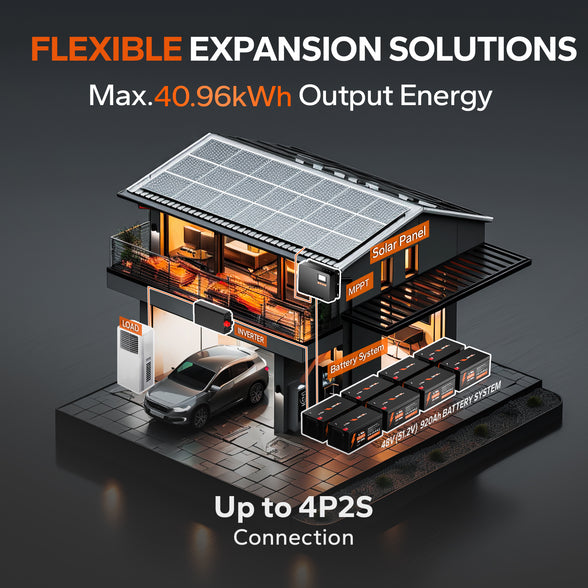

Expandable, Flexible & Powerful
The LiTime 24V 230Ah LiFePO4 Battery supports up to 4 parallel and 2 series connections, offering you a more versatile and reliable energy storage solution. This LiFePO4 battery provides longer backup power, greater reliability, and flexible installation options to meet your specific energy storage needs.

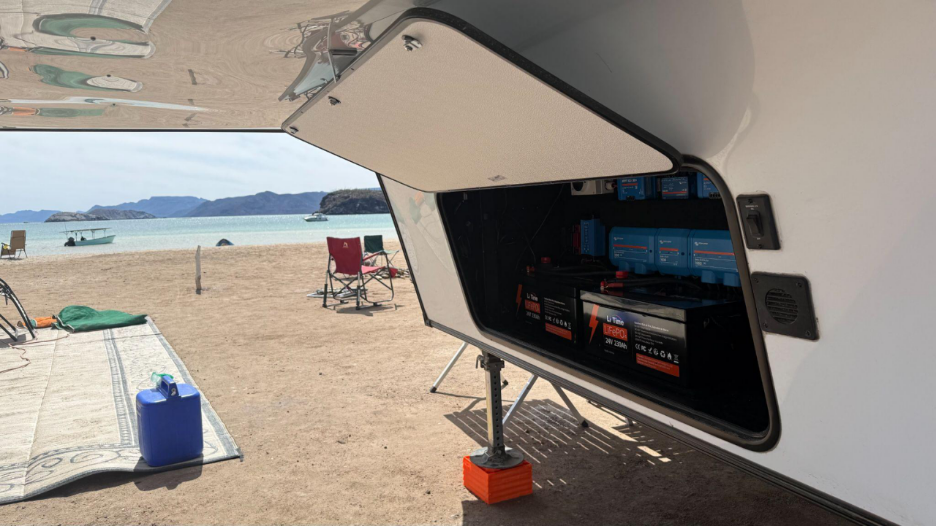

Power Your Life and Discovery
How to Charge
Professional Certi. and Service
SPECS
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
25.6V
Rated Capacity：
230Ah
Energy：
5888Wh
Max. Expansion (Parallel & Series)：
4P2S
Internal Resistance：
≤40mΩ
Certifications：
UL, FCC, CE, RoHS, UN38.3
BMS
BMS：
200A
Max. Continuous Output Power：
5120W
Max. Continuous Charge Current：
200A
Max. Continuous Discharge Current：
200A
Max. Discharge Current 5 Seconds：
400A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
28.8V ± 0.4V
Recommend Charge Current：
46A (0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature：
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：
-10℃ to 50℃ / 14℉ to 122℉
OTHERS
Terminals：
M8 bolts
Weight Approx.：
86.6 lbs

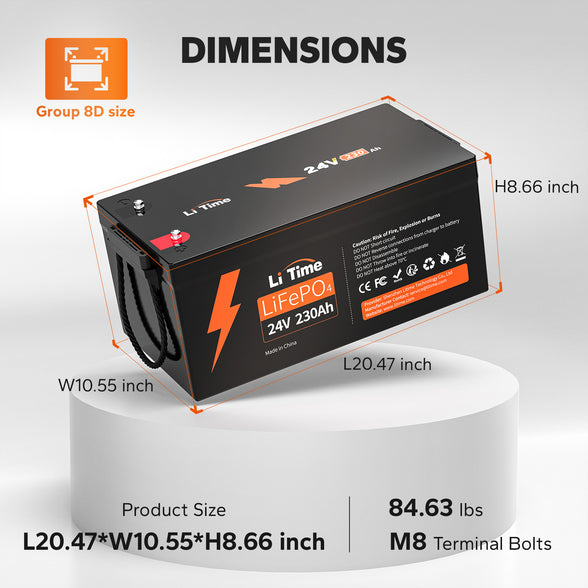

Size：
L20.47*W10.59*H8.66 inch (group 8D size)
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: Are LiTime LiFePO4 batteries safe?
A:Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.
Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?
A:
No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. If you need the marine starting batteries, visit LiTime 12V 20Ah Marine Cranking or 12V 140Ah Dual Purpose battery to choose.
Read on deep cycle vs starting batteries to learn more.
Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?
A:
Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. Here are 3 reliable ways to charge
1. Using Solar Panels
The LiTime 24V 230Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 1850W solar panels. It may take more than one day to fully charge the battery by ≥1850W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.
The Recommended Charging Voltage: 28.4V - 29.2V. The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 24V battery, it is recommended to use 29.2V battery charger.
The Recommended Charging Voltage: 28.4V - 29.2V.
The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?
Q: How many LiTime 24V 230Ah lithium Batteries can I connect at most?
A:
The LiTime 24V batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 2 batteries in series, 4 in parallel, or 8 in the series-parallel connection.
Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
A:
LiFePO4 batteries can safely charge between 0℃ to 50℃ / 32℉ to 122℉. LiTime Cold Weather Batteries include low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.
Q: Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
A:
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.
Q: How do I store LiTime LiFePO4 lithium batteries?
A:
It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment:-10°C to 50°C/14°F to 122°F，, 45%RH～75％RH.
REVIEWS
Customer Reviews
Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B

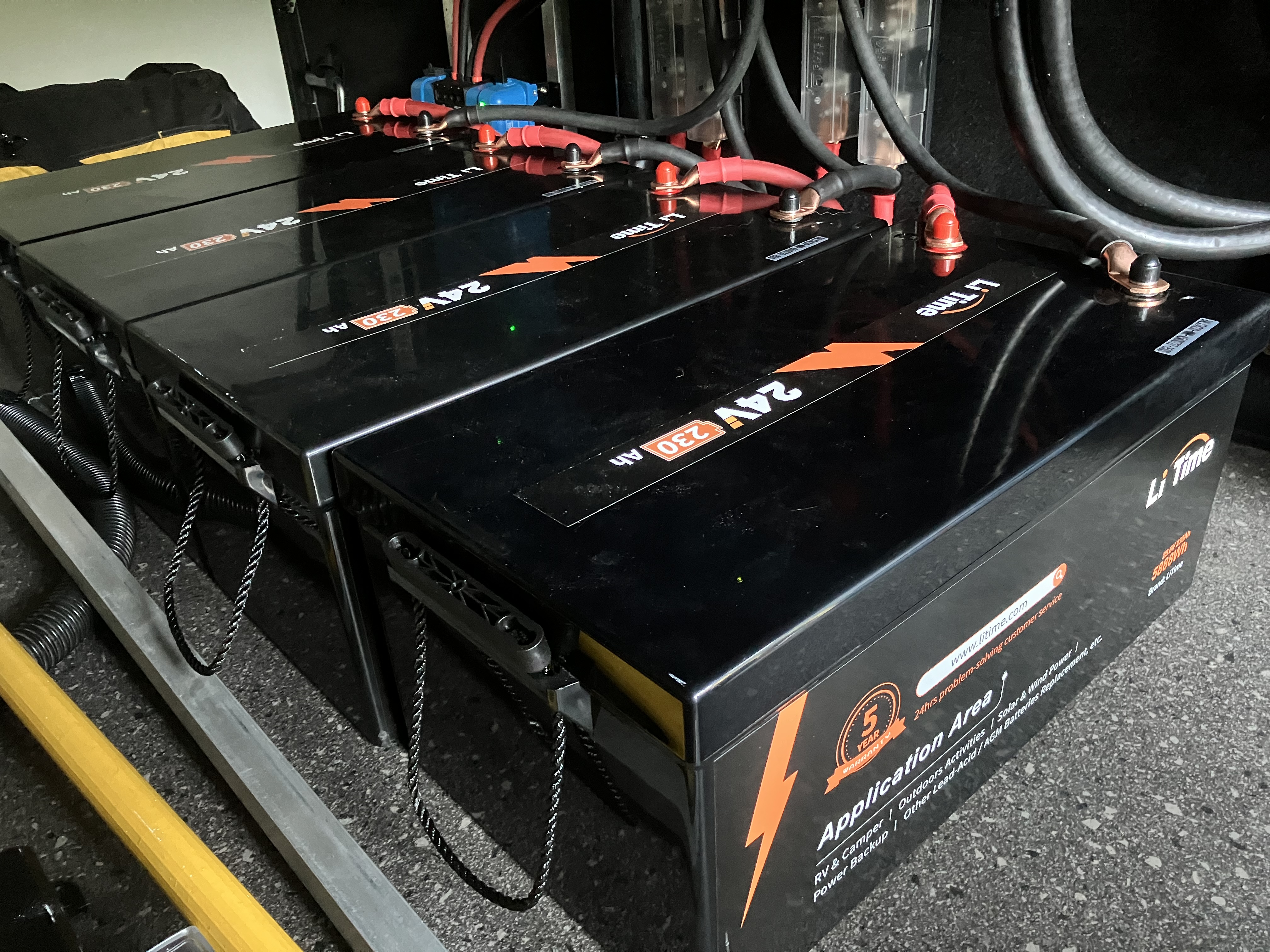

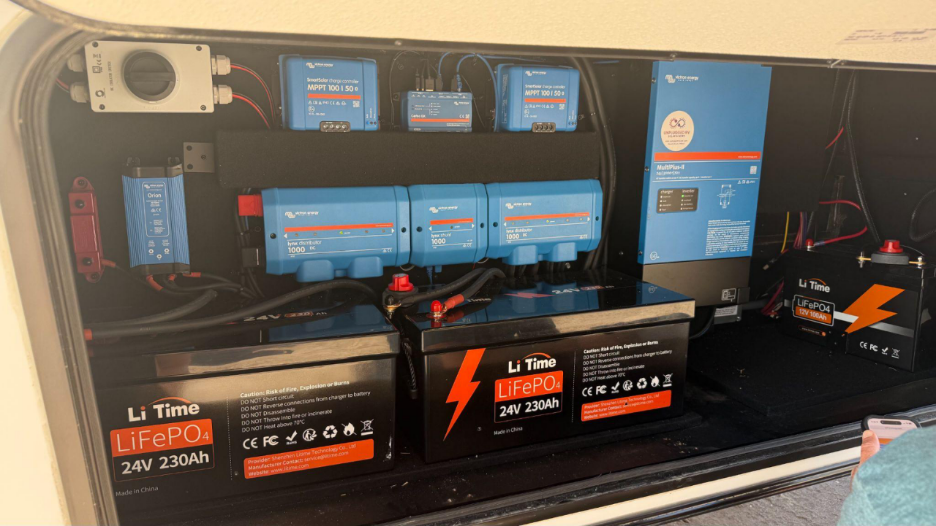

LItime 24v230ah 200ampBCM works extremely well .system 1400 watts of solar power using Renogy 60amp Mppt Victron MultiPlus-II 24v3000w70amp charger set at 49 amp charge

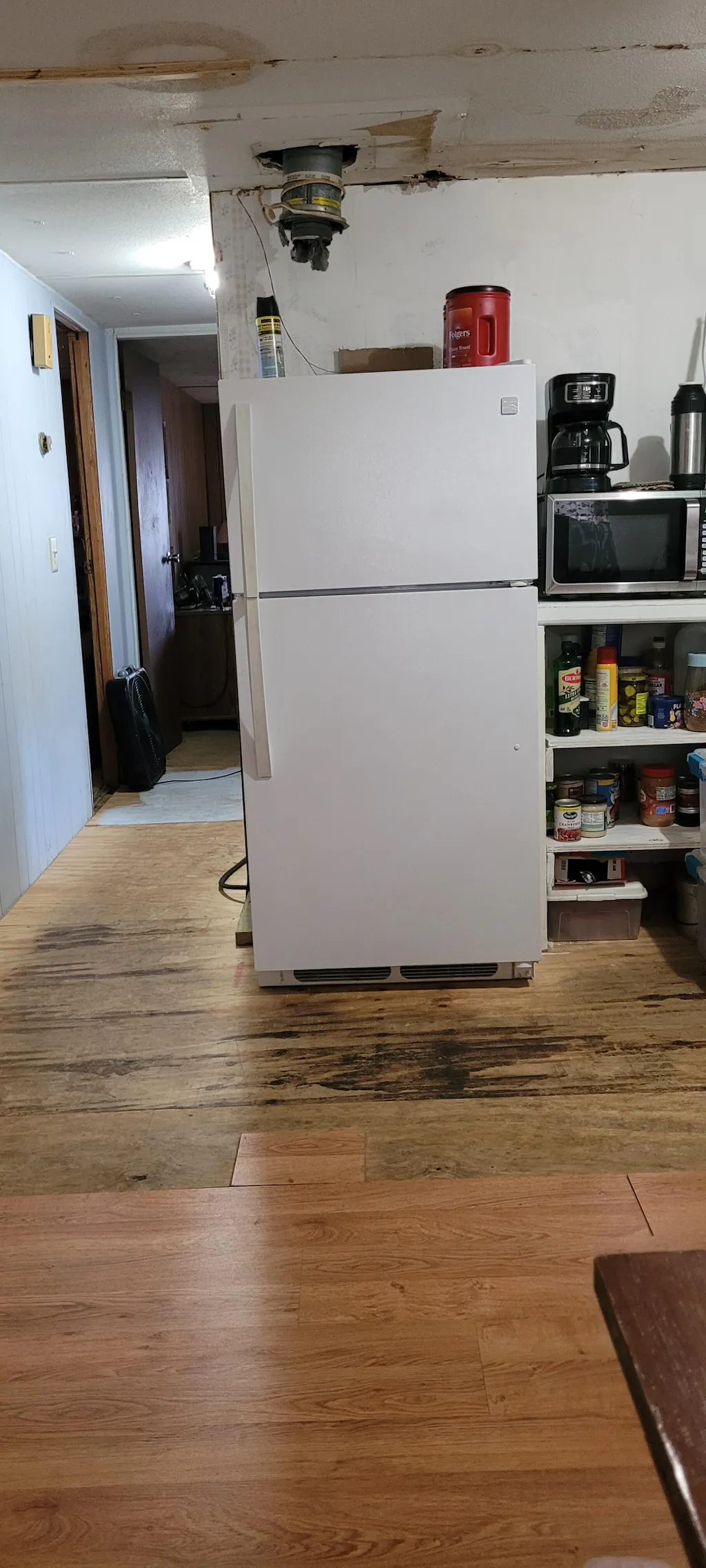

Inverter pulls 2986 watts 120v AC draws 139 amp .the 200amp BMS .Continues out Handel's that with room to spare .day 1 charge battery 100% from grid power. With the victron that afternoon plug kitchen in to my system coffee pot refrigerator. Running off battery overnight day 2 of course it was overcast squeezed 65ah from the solar system 26.3 v as night came Day 3 25.4v the sun was out clear day .at 230 pm battery was fully charged .95ah 2300kwh produced from solar .clouds moved in again day 4 cloudy all day battery was 25.4 day 5 refrigerator on and After making coffee 25.1
Clear sunny morning after fog burned off. Noon time battery was reading 27.6 clouds .moved in started the generator up let the victron charge it the rest of the way 20 min later at 49 amps I heard Gen idea down.checked DC v 28.4 volts around 5 amps and coming down battery charged I built this system as an emergency backup and also to help lower my electric bill.It's going to do that without any problem
A
Thxx
F
Whohoo!
: ]
[
I bought two more during prime day at the discounted price. So far these are working great. LiTime also just released an even larger 24v280ah battery pack with a couple nice features so I'll be looking at those when I need more capacity.
[

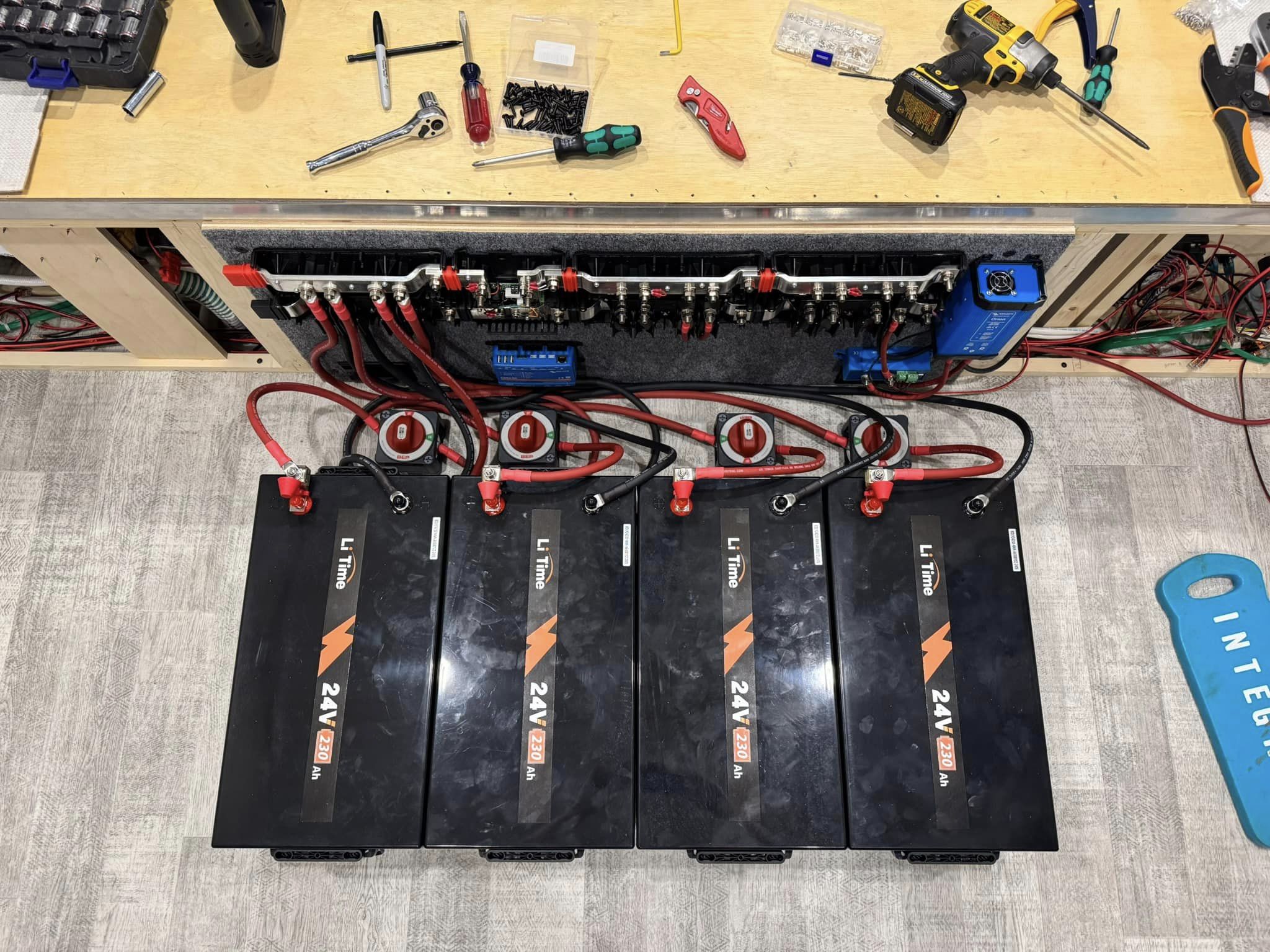

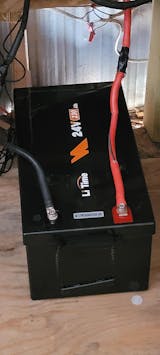

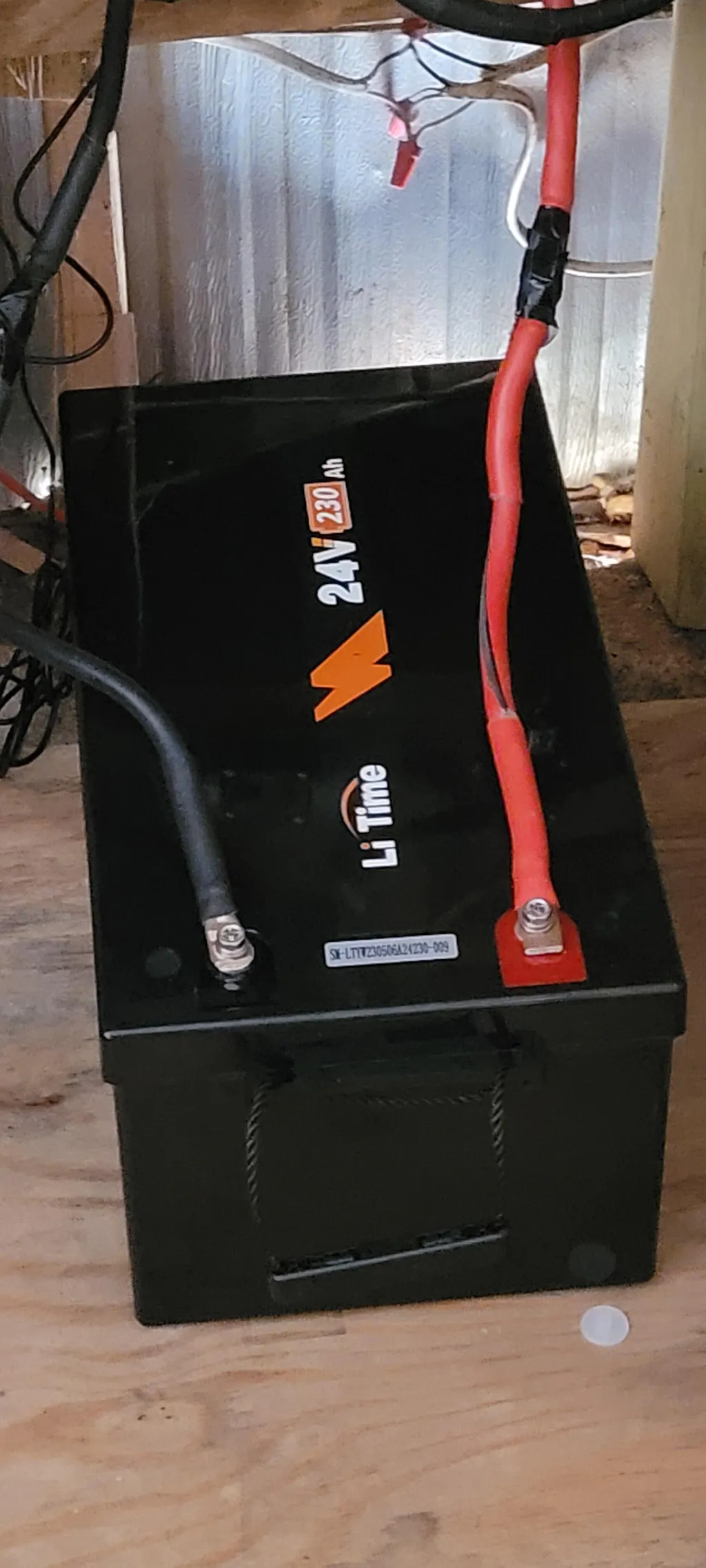

Ordered my batteries on Saturday night, They arrived the following Wednesday, checked them, They showed almost fully charged. I topped them off and installed them in my bus, They are working perfectly .Will purchase more of them if the need arises. Only one wish, I wish they had bluetooth to monitor them, otherwise, They are great !!! Priced right too !!
