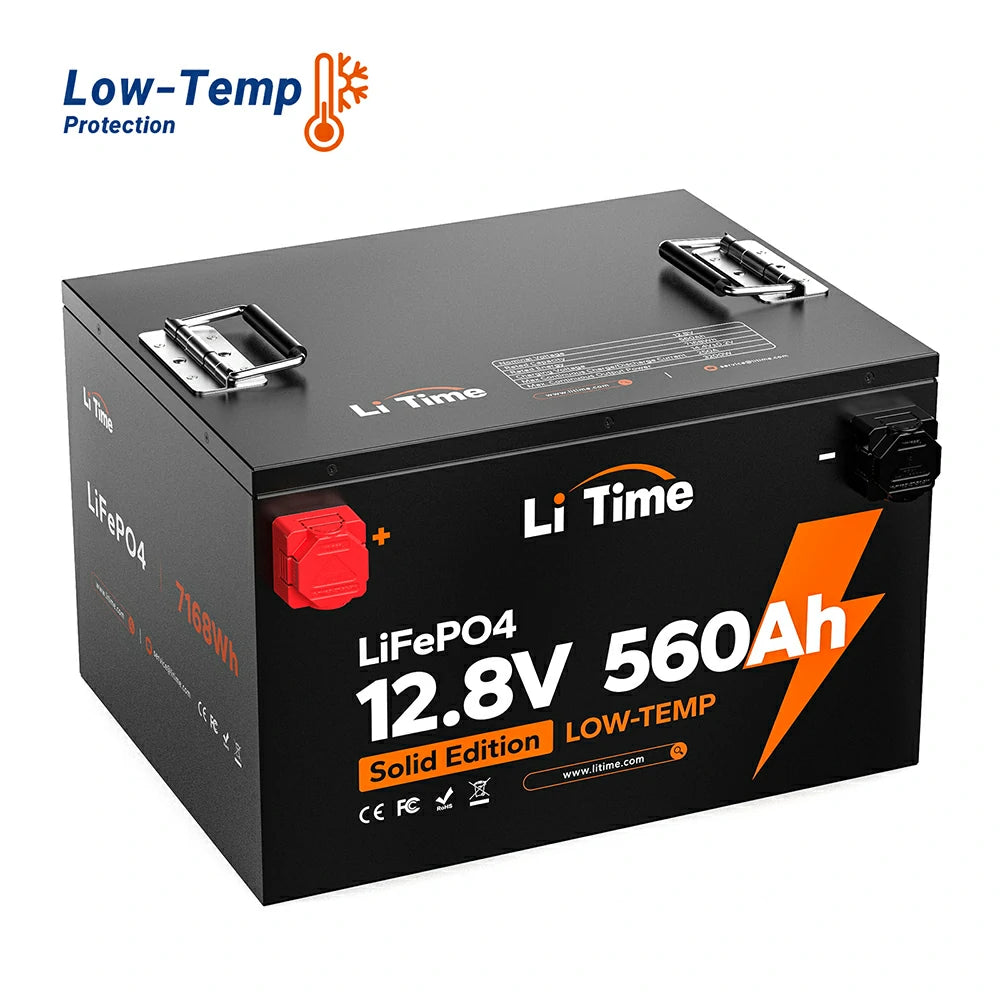

LiTime 12V 560Ah LiFePO4 Lithium Battery with Low-Temp Protection for Energy Storage

Max 7168Wh Energy, Metal Case Lithium Iron Phosphate Battery, Buit in 250A BMS, Up to 15000 Cycles, Perfect for Solar System, RV, Off grid, Home Energy Storage

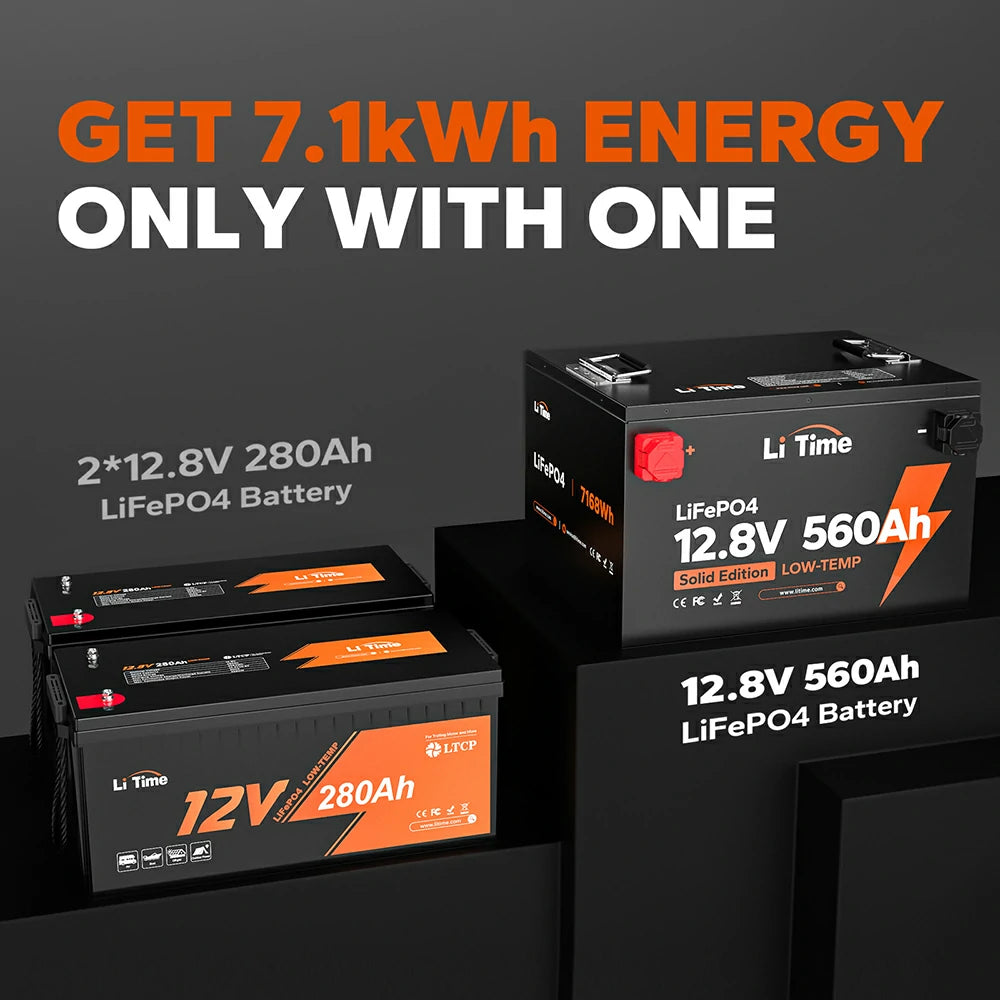

  • Powerful Capacity: Litime 12.8V 560Ah low temp cut off LiFePO4 battery has 7168Wh capacity and 3200W max. continuous load power.No need to connect 2*12.8V 280Ah batteries in parallel, one 12.8V 560Ah battery can meet a higher capacity requirement at one time, saving the cumbersome connection steps.Max. support 4P4S, up to 114.68kWh energy. Ideal for RV, home energy storage, off-grid systems, and solar power.
  • Robust BMS Protection & Low-Temp Cut Off: The built-in latest 250A BMS provides over 20+ protections. It can protect the LifePO4 battery from overcharging, over discharging, over current, overheating, and short circuit. Extra enhancements like low-temperature cutoff function, the battery cuts charging< 0°C/32°F, cuts discharging< -20°C/-4°F, better to prevent battery damages from charging/discharging in cold weather.Auto-recovery after overload protection, only 30 seconds auto reconnect instead of any manual operation. Pre-charge function make it can compatible with all inverters on the market.
  • Grade A LiFePO4 Cell & 10 Years Lifetime: LiTime's 12V 560Ah lithium batteries use grade A LiFePO4 cells with higher energy density in our battery pack. Compared with the 200-500 cycles and 3-year lifespan of lead-acid battery, Litime 12V 560Ah LiFePO4 Lithium battery has 10-year lifespan, with 4000+ cycles @100% DOD ,6000 cycles @80% DOD , 15000 cycles @60% DOD.
  • Superior SPCC shell: Litime 12.8V 560Ah low-temperature cut-off protection LiFePO4 lithium battery adopts an SPCC shell, which is more sturdy than the ABS shell. And the metal shell helps to dissipate heat under heavy continuous loads, which is beneficial for extending battery life.
  • Certified & Reliable Service: Rigorously UL1973 tested and certified by FCC, CE, RoHS, and UN38.3. We offer 5 years warranty for Litime LiFePO4 batteries.With local warehouses in CA, TX, PA and GA, we will be able to minimize the delivery time to 1-3 working days. Please be advised, the actual delivery time will be affected by the stock situation. Feel free to contact us to get the stock situation of your nearest warehouse.We provide a strong battery package, quick delivery as well as 24 hours timely customer support.
  • Tips on Using The LiTime Battery: This 12V 560Ah Low-temp LiFePO4 battery is suitable for energy storage rather than start-up. If you need a starting battery, please consider LiTime 12V marine starting batteries series.
$1,499.99
$2,371.99
$1,499.99
$200 OFF Discount
CODE: $200OFF copy

Black Friday Flash Sale on! Order now with $200 Off! Don’t miss out—be the first to secure our all-new, cutting-edge battery. Plus, Stackable with up to 8% Member Benefit. Limited-time offer, act fast!

Subtotal: $1,499.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

5 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
LiTime 12V 560Ah lithium battery with low-temp. cut-off protection

LiTime 12V 560Ah LiFePO4 Lithium Battery with Low-Temp Protection for Energy Storage

$2,371.99 $1,499.99

LiTime 12V 560Ah LiFePO4 Lithium Battery with Low-Temp Protection for Energy Storage

$2,371.99 $1,499.99

Frequently Bought Together

LiTime 12V 560Ah lithium battery with low-temp. cut-off protection 1000
$2,371.99 $1,499.99
litime 60a mppt solar charge controller 1000
$369.99 $179.99
LiTime 12V (14.6V) 80A Mountable LiFePO4 Battery Charger 1000
$428.56 $249.99
LiTime 12V 3000W pure sine wave inverter 1600
$399.99 $259.99
Price Total: $0.00
    • FEATURES

    • SPECS

    • FAQ

    • REVIEWS

    LiTime 12V home energy storage battery with spcc housing, grade-A cells, 10 years lifespan
    EV-grade-A cells provides 4000+ deep cycles, perfect replace 12v lead-acid battery
    smart BMS for LiTime 12 volt battery
    12v battery with low-temperature protection
    12V 560Ah LiFePO4 battery one-for-all power solution
    durable steel plate cold common housing
    12v power system for RVs
    how to charge a 12V 560Ah lithium battery
    perfect battery for RV, home energy storage, solar power, off-grid
    LiTime provides professional service

    SPECS

    BATTERY
    Cell Type:
    LiFePO4
    Warranty:
    5 Years
    Cycle Life:
    ≥4000 times
    Nominal Voltage:
    12.8V
    Rated Capacity:
    560Ah
    Energy:
    7168Wh
    Max. Expansion (Parallel & Series):
    4P4S
    Internal Resistance:
    ≤40mΩ
    Certifications:
    FCC, CE, RoHS, UN38.3
    BMS
    BMS:
    250A
    Max. Continuous Output Power:
    3200W
    Max. Continuous Charge Current:
    250A
    Max. Continuous Discharge Current:
    250A
    Max. Discharge Current 1 Second:
    1000A@1 Second
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    14.4V±0.2V
    Recommend Charge Current:
    112A (0.2C)
    TEMPERATURE
    Charge Temperature:
    0°C to 50°C/32°F to 122°F
    Discharge Temperature:
    -20°C to 60°C/-4°F to 140°F
    Storage Temperature:
    -10°C to 50°C/14°F to 122°F
    Low-Temperature Protection:
    Yes
    Low-Temperature Charging Protection Auto Recovery:
    Yes (5°C/41°F)
    OTHERS
    Terminals:
    M8 Size Bolts
    Weight Approx.:
    133lbs
    Size:
    L18.11*W15.16*H11.42 inch
    Housing Material:
    SPCC (Steel Plate Cold Common)

    FAQ

    Q: Can I conncet the battery in series or parallel?

    A:

    Yes. The LiTime 12V 560Ah Lithium Battery supports Max. support 4P4S, up to 114.68kWh energy. Ideal for RV, home energy storage, off-grid systems, and solar power.

    To connect batteries in series or parallel, they should meet the below conditions:

    a. identical batteries with the same battery capacity (Ah) and BMS (A);

    b. from the same brand (as lithium battery from different brands has their special BMS);

    c. purchased in near time (within one month).

    Q: What should I do when I receive the battery?

    A:

    When you receive your battery, please note that it may have a low State of Charge (SOC) due to transportation and storage. For optimal performance, we recommend charging the battery immediately to avoid over-discharge with lithium battery charger or solar panel + solar charge controller to charge.


    If you plan to store the battery for an extended period without use, charge it to a SOC of 30% to 50% and perform maintenance every three months. This will help preserve its functionality and performance over time.

    Q: Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

    A:

    No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.

    REVIEWS

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    B
    Bruce McGaughey
    So far so good! Thing is a beast!

    Don’t have much time with it yet, but build quality at least from the outside looks great. Showed up packaged very well and in about 3 days from time of order. Had some questions regarding battery settings in a smart shunt and Li Time support was very responsive on two occasions. Very pleased so far. My only wish was that this battery had Bluetooth for battery cell telemetry, but I compromised. Seems like they should all have this by now. I would and will buy again. Plan is to buy another when they come back in stock and are on sale.
