2C Discharge Rate Automotive Cells LiTime 24V (25.6V) 25Ah lithium battery is made of automotive grade A cells, which have higher energy density, more stable performance, and lower self-discharge rate. The battery can support maximum 2C rate discharging and 1C rate charging. This enables it to be used in scenarios that require high currents.

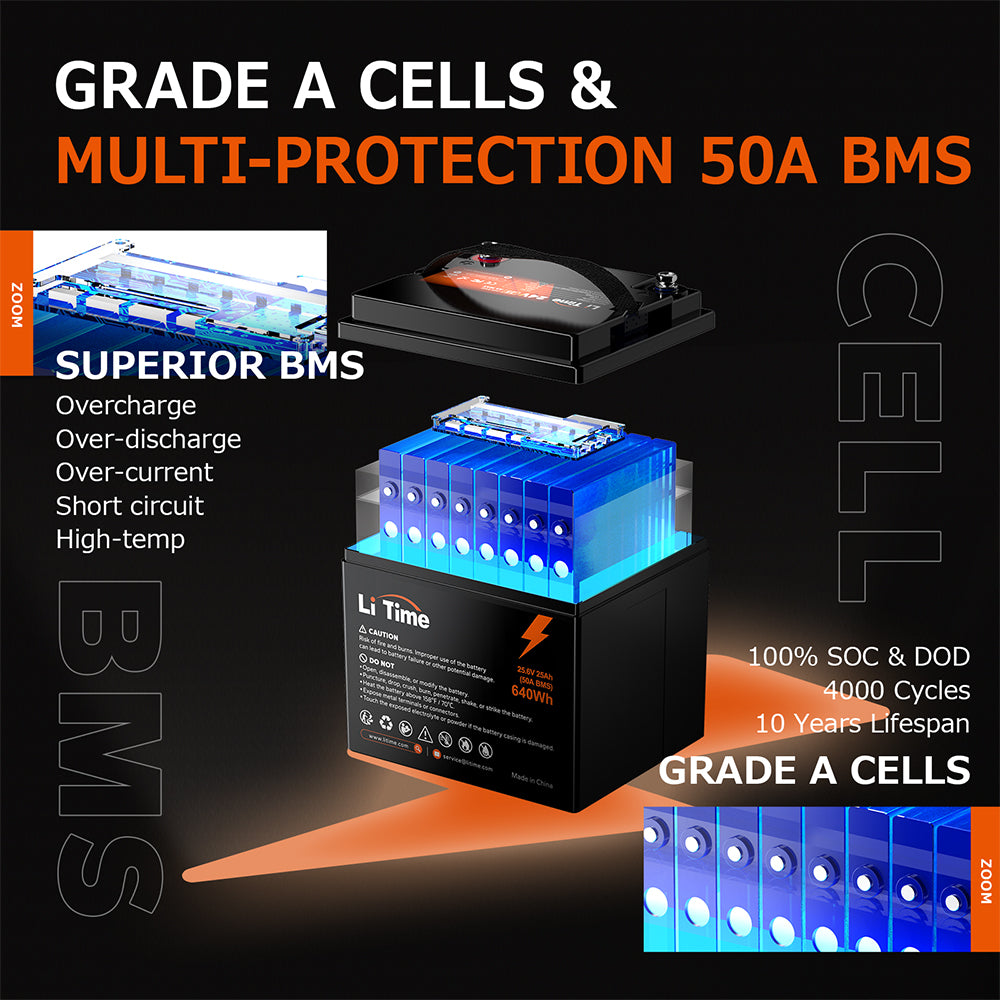

Built-in 50A BMS Protection LiTime 24V 25Ah Li-FePO4 battery is equipped with 50A BMS boards. The battery management system (BMS) has the functions of over-charging, over-discharging, over-current, over-heating, and short-circuit protection, to provide comprehensive protection for both the user and the battery.

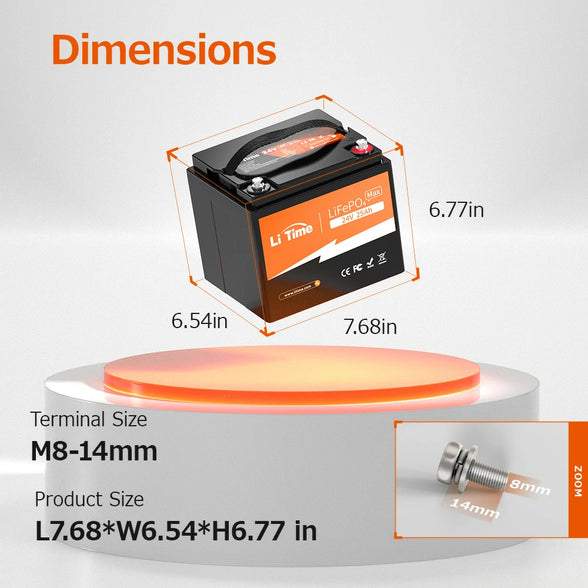

Small Size & Light Weight With high energy density which is smaller and lighter than lead-acid batteries of the same capacity, making it easier to carry and install. Therefore, the 25.6V 25Ah lithium battery can be installed to power mobility scooters and electric wheelchairs, or used as a power source for agricultural equipment and power tools, to meet the needs of most customers.
Max. 5.12kWh Energy Expansion Supports up to 4 batteries in parallel and 2 in series connections (Max. 4P2S) to form a 51.2V 100Ah battery system with a maximum energy expansion of 5.12kWh. You have more possibilities to design and create your battery system.
Purchase with Confidence Exquisite lithium battery technology enables the LiTime 25.6V 25Ah LiFePO4 battery to work brilliantly during a 10-year service life, with 4000+ cycles @100% DOD (6000 cycles @80% DOD, 15000 cycles @60% DOD). What's more, we offer a 5-year warranty and 24-hour professional technical support.
DO NOT use as Starter Battery If you need a starting battery, please consider LiTime 12V marine starting batteries series.
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
Product Warranty We stand behind the quality and performance of our products through comprehensive warranty coverage.
Batteries over 30Ah receive a 5-year warranty when used correctly according to the product manual instructions.
Batteries 30Ah or less and solar charge controllers are warranted for 3 years. Battery chargers carry a 2-year warranty.
Used batteries classified as "Like New" are warranted for 4 years, while "Very Good" condition batteries have a 3-year warranty.
All warranties are effective from the date of purchase by the end user. Correct installation and usage as specified in the product manual are required to maintain warranty eligibility.
Please take time to carefully review the manual prior to setup and operation to ensure proper use and long-lasting performance from your LiTime system. We're here to support you throughout the warranty periods.
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Reliable Power for Your Device
Features 2C discharge rate, built-in 50A BMS, 640Wh energy, 4000+ cycles with multiple certificates and 5 years warranty. It has a high energy density and is smaller and lighter than lead-acid batteries, with four comprehensive protection. It is perfect for electric wheelchair, mobility scooter, lawn mower, power tool.
Extended Runtime, Enhanced Safety
The compact Litime 24V(25.6V) 25Ah deep cycle LiFePO4 battery features high stability, charge/discharge rates, and a 50A BMS. It supports a maximum continuous 2C discharge and 1280W load power. The 640Wh capacity extends the driving time for electric scooters. With its lightweight design and powerful BMS, the battery reliably powers scooters safely.
More power supply
The 24V(25.6V) 25Ah LiFePO4 battery supports a maximum continuous discharging rate of 2C and a continuous charging rate of 1C. This enables it to be used in applications requiring high currents. Adopting Grade A LiFePO4 cells, which ensure quality and support for continuous 2C rate discharging up to a peak of 150A for 1 second, allows scooters or power tools to run with more power.

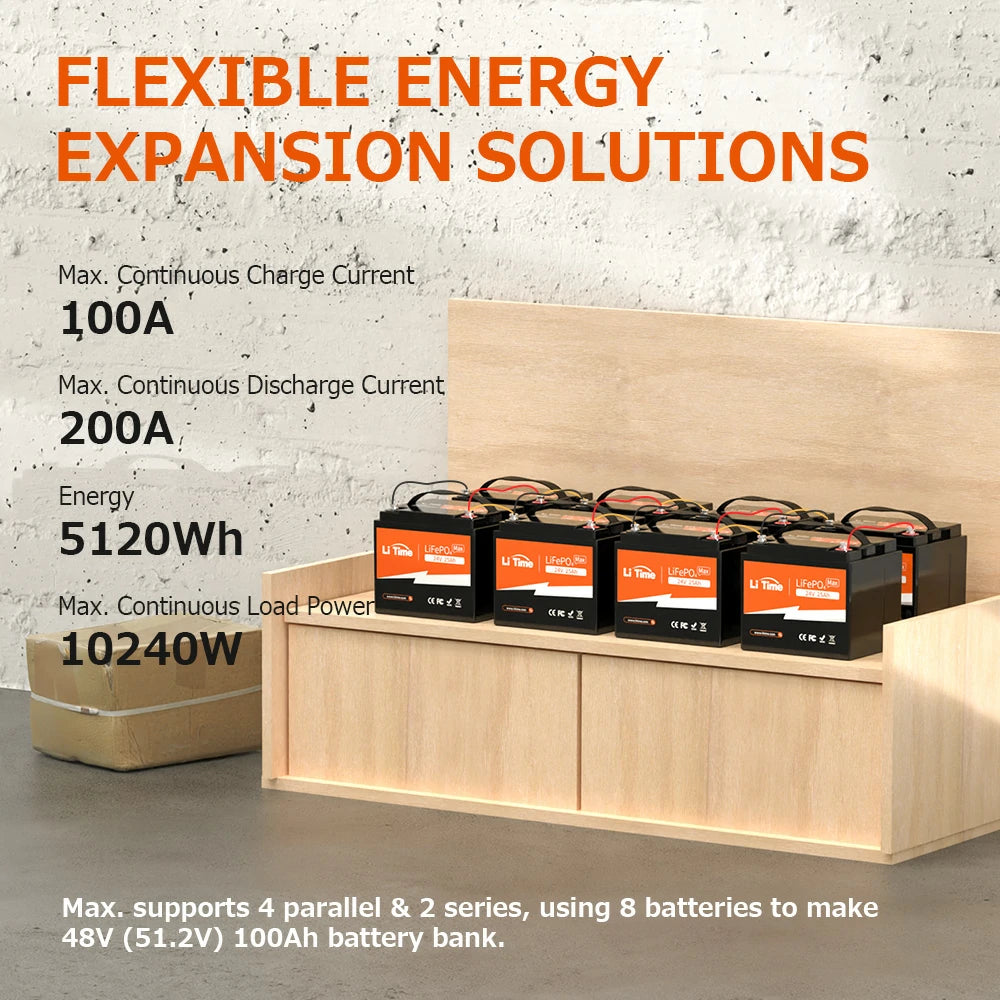

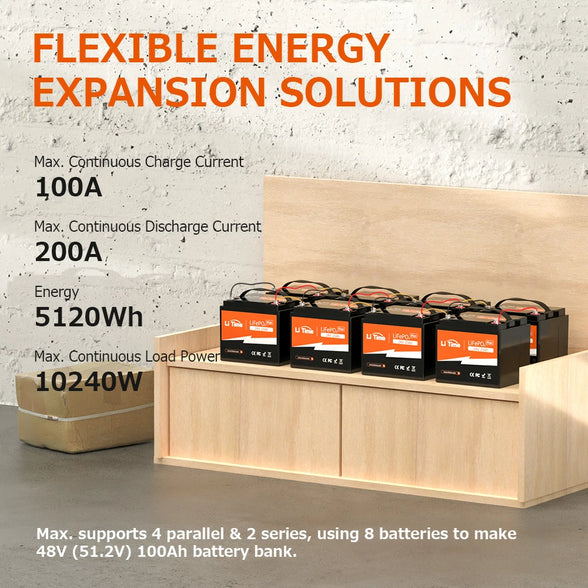

Energy Expansion
The LiTime 24V(25.6V) 25Ah battery offers flexible expansion capabilities. It supports connecting up to 4 batteries in parallel and 2 in series, forming a 51.2V 100Ah system with a maximum 5.12kWh energy capacity. This configuration allows for more design possibilities in customizing your own unique battery solution.

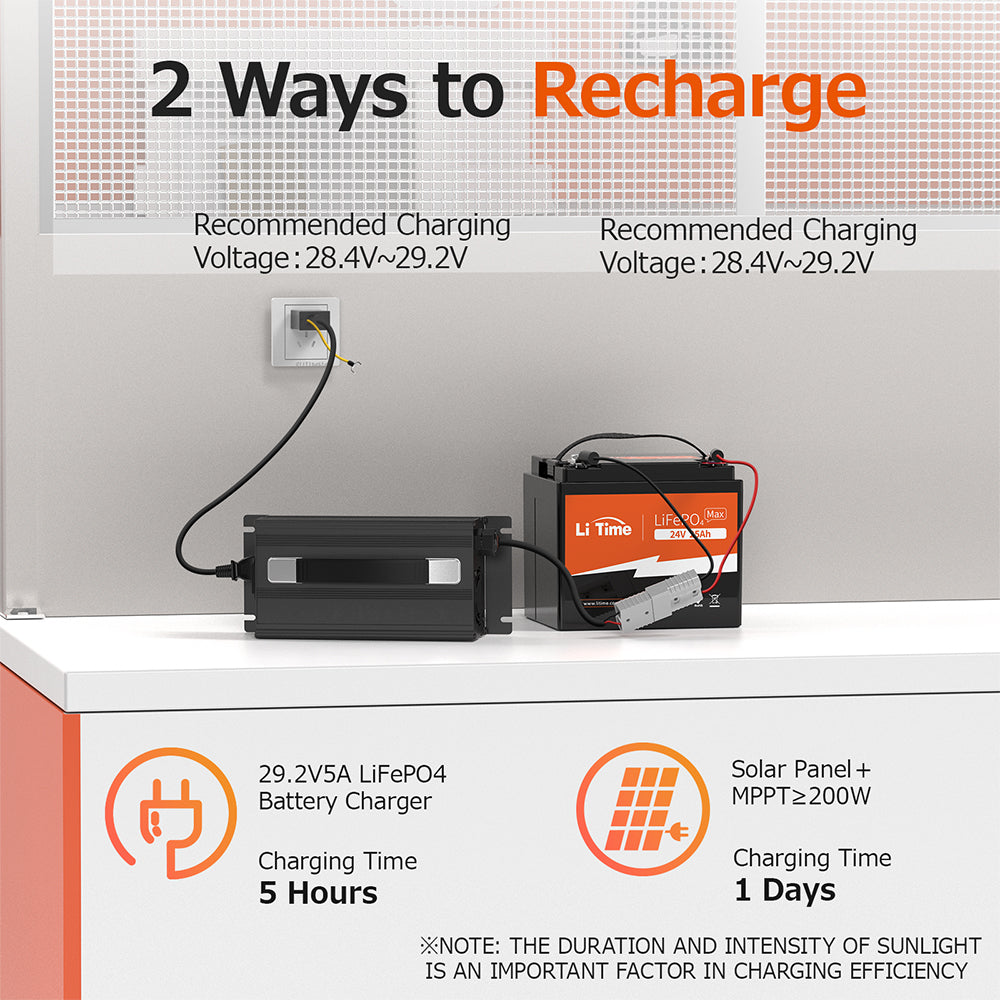

Ways to Recharge
The Litime 24V(25.6V) 25Ah battery supports three charging methods. It can be charged in approximately 5 hours using a 29.2V 5A LiFePO4 battery charger. Alternatively, charging via a solar panel (MPPT≥200W) provides an estimated charge time of 1 day. Also, a 12-24V DC to DC battery charger can charge for this battery.
Wide Application
The compact 25.6V 25Ah LiTime battery features a lightweight design with high energy density. Its portable size enables easy installation in electric vehicles and tools. Applicable to mobility aids, agriculture and more, this versatile lithium solution provides reliable energy.
No. LiTime batteries are deep cycle, please don't use it as a starting battery. If you need the marine starting batteries, visit LiTime 12V 20Ah Marine Cranking or 12V 140Ah Dual Purpose battery to choose.
When you receive your battery, please be aware that it may have a low State of Charge (SOC) due to the transportation and storage process. To ensure its optimal performance, we recommend charging the battery right away to avoid over-discharge. If you plan to store the battery for an extended period without usage, we suggest charging it to a SOC of 30% to 50% and performing maintenance every three months. These steps will help maintain its functionality and performance over time.
The LiTime 24V 25Ah battery supports three charging methods.
1. It can be charged in approximately 5 hours using a 29.2V 5A LiFePO4 battery charger.
2. Charging via a solar panel (MPPT≥200W) provides an estimated charge time of 1 day.
3. A 12-24V DC to DC battery charger can charge for this battery.
The battery has shown promising performance, though there are a few considerations for packaging, setup, and operation. Below is an analysis based on hands-on experience:
Delivery and Packaging
The battery arrived in good condition. While the main components were safe, additional padding on the sides would enhance confidence in shipping durability.
Initial Performance and Measurements
- Initial State of Charge (SOC): Out-of-the-box, the battery measured 26V, corresponding to about 25% SOC. This is fairly typical for lithium batteries during storage.
- Charging Setup: Connected to a Victron MPPT 75/15 controller, it quickly pulled 10A (~270W) from a solar array with a total output of 400W. This efficient charging aligns with LiFePO4 technology's ability to accept high current input.
Consumption and Overnight Discharge
- Power Draw: With a load of ~8W/hour (190W over 24 hours), the battery voltage stabilized at 26.44V overnight. This is an expected and satisfactory performance for light loads like a router and PTZ wireless camera (consumption ~5–8W).
- Parallel Configuration: Adding a second battery in parallel improved performance further, stabilizing voltage at 26.54V with the same load. This demonstrates the scalability and consistent performance of these batteries in parallel setups.
Cost-Effectiveness
The battery was a bargain considering its specifications:
- Capacity: 24V, 25Ah
- BMS: 50A capacity
The price-performance ratio is excellent, particularly for budget-conscious users looking for reliable energy storage.
Winter Preparation
- Cold Weather Concerns: These batteries lack built-in freeze protection, an essential feature for winter usage. However, integrating a Victron temperature sensor to disable charging below 5°C is a smart workaround.
- Heated Storage Solution: The plan to house batteries in a refrigerator with DC-DC step-down conversion for heating is innovative. Ensuring a stable temperature will prolong battery life and maintain performance.
Final Observations
The batteries perform well under moderate usage and offer excellent scalability for parallel configurations. The robust BMS provides safety, and the energy density is competitive for the price. While packaging and freeze protection could be improved, these are minor drawbacks compared to the overall value.
Pros:
- Affordable, especially during promotions.
- Efficient charging and stable voltage under light loads.
- Scalable for higher capacity systems.
Cons:
- Limited freeze protection requires external solutions.
- Packaging could be more robust.
Rating: 4.9/5
Highly cost-effective for light to moderate loads, with thoughtful planning required for winter operation. A great option for those balancing performance and budget.
Customer Support:
I had the pleasure of interacting with Elaine Qiu from Litime's customer support team, and I must say, the experience was great.
Elaine’s expertise in the technical aspects of Litime batteries and their integration into various systems was evident in every interaction.
Rating: 5/5
