LiTime 12V 230Ah Bluetooth Lithium RV Battery with Low-Temp Protection
Massive Bluetooth Power, 200A Output – Power Multiple Devices for RV, Off-Grid, and Home Storage with Smart Monitoring
- 200A Max. continuous charge/discharge current & 1000A Max. surge discharge current (1s).
- Smart Bluetooth 5.0, supports checking and controlling battery on the phone.
- Max. 2560W power & 2944Wh of usable energy, enough to power approx. 3kWh of daily home or use of fishing/RV/camping.
- Max. 4P4S to build a 51.2V 920Ah battery system (47.10kWh & 40.96kW).
- 6X energy density (65Wh/lbs) & 65% lighter, than a 12V 200Ah lead-acid battery.
- Low-temp protection, 32℉ charging off, -4℉ discharging off, and 41℉ charging resume.
- EV-grade LiFePO4 cells - safer, eco-friendly, non-toxic, and reliable.
- 4000+ Cycles @100% DOD, 6000+ cycles @80% DOD, 15,000+ cycles @60% DOD.
- 200A self-developed BMS with 20+ upgraded protections.
- IP65 Waterproof & Dustproof.
- 4 Charging ways - LiFePO4 charger/Solar/Generator/Alternator.
- Recommend LiTime 14.6V 60A charger or LiTime 60A MPPT for battery and Bluetooth activation.
- Do NOT use it as a starter battery. If need a starting battery, please consider LiTime 12V marine starting batteries series.
- $474.99
-
$889.99 - $474.99
- Unit price
- per
Order our upgraded Bluetooth 230Ah Battery now at the new launch price with a limited 8% lucky wheel discount. Don't miss out on the best savings on the latest innovation.
Please hurry! Only 78 left in stock
Subtotal:
$474.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
LiTime Upgraded 12V 230Ah Battery with Smart Bluetooth 5.0
Introducing the LiTime all-new upgraded 12V 230Ah battery with low-temp cut-off protection and Bluetooth 5.0, allowing easy monitoring and control from your phone. Featuring a self-developed 200A BMS with 20+ protections and EV Grade A LiFePO4 cells for 4000+ deep cycles, it outperforms lead-acid batteries. Ideal for RVs, home backup, off-grid, and marine power needs. Upgrade to smart Bluetooth power today!
Ultimate RV/Trailer/Camper Power Solution
Choosing a powerful battery is crucial for your RV, trailer, or camper adventures. The LiTime 12V 230Ah battery meets all your power needs, ensuring reliable energy for lighting, appliances, and electronics. With one battery, simplify your setup and fuel your journey with confidence, convenience, and the freedom to explore without limits.

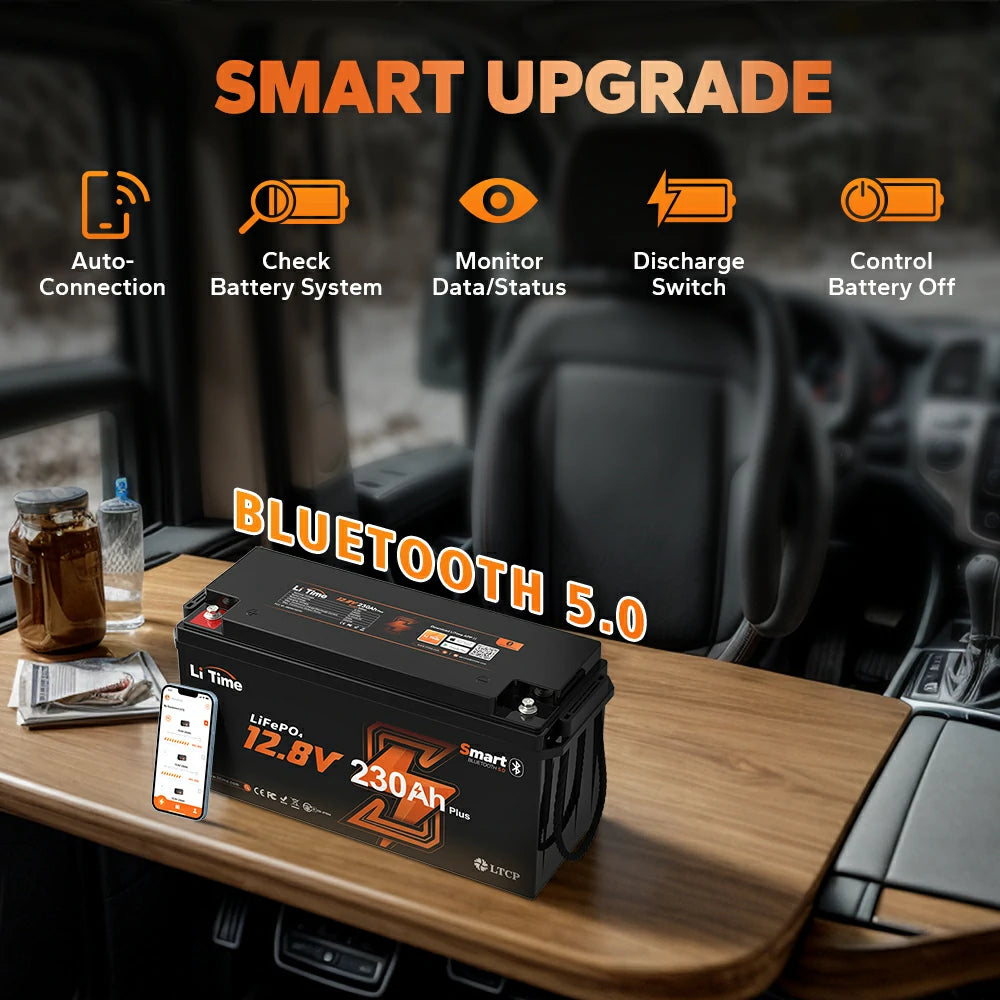

Control and Oversight of Your Battery Right at Your Fingertips
Upgrade to the LiTime 12V 230Ah battery with smart Bluetooth for the ultimate convenience on your RV/trailer/camper or marine adventures. This powerful battery allows you to monitor real-time battery data and status, control discharge on/off, and check the entire battery system with just a simple tap on your phone. Enjoy the ease and peace of mind that comes with having complete control and oversight of your power needs right at your fingertips. Choose convenience, choose LiTime.
Safeguard Your Battery in Freezing Conditions
Protect your battery from damage in freezing weather with LiTime’s advanced low-temp cut-off protection. The system automatically stops charging below 32℉ and discharging below -4℉, with charging recovery at ≥41℉. This feature is crucial for maintaining your battery's health and prolonging its lifespan, as it prevents the harmful effects of charging or discharging in extreme cold. Perfect for user who prioritize battery safety and longevity, LiTime ensures your power source remains protected, no matter the temperature. Trust in reliable LiTime power, no matter the weather.
Self-Developed 200A BMS - Unmatched All-Round Protection
LiTime's self-developed 200A BMS offers more than just basic protections like Over-Charge, Over-Discharge, Over-Current, Over-Heat, and Short-Circuit. It provides 20+ safeguards, including Low-Temp Cut-Off, Auto-Recovery After Overload (30s), Moisture-Proof, and Salt-Spray Resistance. Additionally, it features a Precharge Function to ensure smooth operation and prolong battery life. Choose LiTime for superior battery protection and reliability in all conditions.
Superior EV Grade A Cells - Premium Quality for Exceptional Performance
LiTime batteries utilize top-tier EV Grade A cells, providing significant advantages over competitor's Grade B cells. Grade A cells ensure higher energy density, more stable performance, and a longer lifespan, offering reliable and consistent power output. These cells undergo rigorous quality checks, ensuring low self-discharge rates and enhanced safety. This superior quality not only boosts overall efficiency but also maximizes the battery's durability and reliability, making it an ideal choice for RVs/trailers/campers, home storage, off-grid, and marine. Choose LiTime for unmatched performance and peace of mind with every adventure.
Superior Replacement for Lead-Acid Batteries
The LiTime 12V 230Ah battery is engineered to be a superior alternative to traditional lead-acid batteries, offering significant advantages in performance and efficiency. It weighs only one-third of a comparable lead-acid battery while delivering twice the energy capacity at 2944Wh, optimizing space with a compact design that is 30% smaller. With a lifespan of up to 10 years—3.3 times longer than lead-acid batteries—LiTime provides a high-performance, space-saving, and long-lasting power solution, making it the ideal upgrade for RVs/trailers/campers, home storage, off-grid, and marine. Choose LiTime for cutting-edge energy efficiency and durability.
High-Capacity Power Solution for All RV Applications
The LiTime 12V 230Ah battery delivers 2944Wh of energy and 2560W of continuous power, making it the ideal choice for powering all your RV applications. Its robust capacity efficiently supports a wide range of devices, from essential electronics like phones, laptops, and drones to high-demand appliances such as coolers, coffee makers, electric grills, and portable air conditioners. Engineered for reliable and consistent performance, the LiTime battery ensures that your power needs are met with ease and efficiency, providing the ultimate energy solution for your mobile lifestyle.
Max. 4P4S-Versatile Power Solution for
RVs, Home Backup, and Off-Grid Systems
The LiTime 12V 230Ah battery is not only ideal for RV applications but also excels as a robust power solution for home backup and off-grid systems. Supporting a maximum configuration of 4p4s, it forms a powerful 48V 920Ah system, delivering an impressive 47.1kWh of energy. In a typical household with an average daily consumption of around 30 kWh, this 4p4s system can provide uninterrupted power for approximately 1.5 days, offering peace of mind during outages or off-grid living. For lighter energy usage, it can extend even further, ensuring reliable, long-term power support tailored to your needs. Choose LiTime for a dependable and efficient energy solution that meets all your power requirements.
One Solution for Versatile Use
Flexible and Efficient Charging Options for Ultimate Convenience
Using a 14.6V 40A AC-DC charger to charge quickly and reliably in just 5.75 hours through an electric supply or generator. Connect to solar panels paired with an MPPT controller for optimal solar charging. Additionally, the battery can be charged via your vehicle’s alternator using a 40A DC-DC charger, providing flexibility whether you're on the move or stationary. This adaptability in charging options ensures your LiTime battery is always ready to deliver consistent power, no matter your energy source.
The Complete Package
Precautions for Use
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
230Ah
Energy：
2944Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
FCC ID,UL-1973,CE,RoHS,UN38.3
Bluetooth：
√
BMS
BMS：
200A
Max. Continuous Output Power：
2560W
Max. Continuous Charge Current：
200A
Max. Continuous Discharge Current：
200A
Max. Discharge Current 1 Second：
1000A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4±0.2V
Recommend Charge Current：
46A(0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
-20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection：
Yes
Low-Temperature Charging Protection Auto Recovery：
Yes
OTHERS
Terminals：
M8 Bolts
Weight Approx.：
45.98lbs
Size：
19.02*6.69*9.45inch
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: Can I use 12V 230Ah LiFePO4 lithium batteries as starting batteries?
A:
No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. Learn more about Deep Cycle VS Starting Batteries.
Visit LiTime Marine Starting Batteries for starting using.
Q: What to do when receving a new battery?
A:
When you receive your battery, it may have a low state of charge (SOC) due to transportation and storage. To ensure optimal performance, charge the battery immediately to avoid over-discharge.
Batteries with Bluetooth functionality may arrive in an off state, showing a terminal voltage between 3V and 5V, and you won't be able to connect them to your phone. This is because they are shipped powered off, similar to mobile phones, to minimize self-discharge and extend the battery's lifespan.
There are 2 ways to solve the problem: using an AC-DC lithium battery charger or an MPPT solar charge controller to charge it for 3 to 10 seconds, then the battery can be used normally.
If you plan to store the battery for a long time, charge it to a SOC of 50% and perform maintenance every three months. This will help preserve its functionality and performance.
Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?
A:
Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. Here are 3 ways to charge the battery.
1. Using Solar Panels
The LiTime 12V 230Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 12V battery, it is recommended to use 14.6V battery charger. The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?
Q: Can I charge LiTime 12V 230Ah LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
A:
LiFePO4 batteries can safely charge between 0℃ to 50℃ / 32℉ to 122℉. LiTime 12V 230Ah LiFePO4 batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.
Q: How do I monitor the battery status?
A:

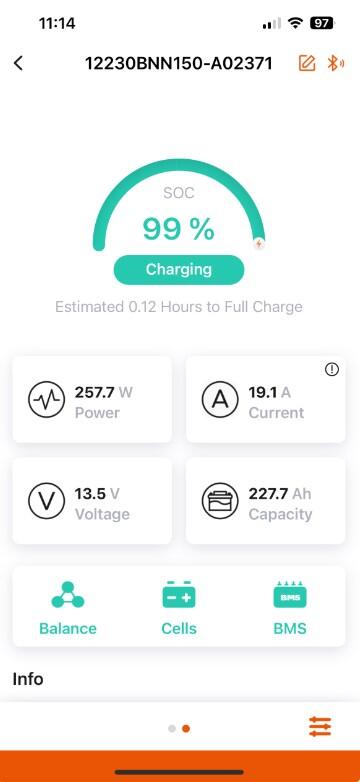

This 12V lithium battery, equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the LiTime App.
REVIEWS
C

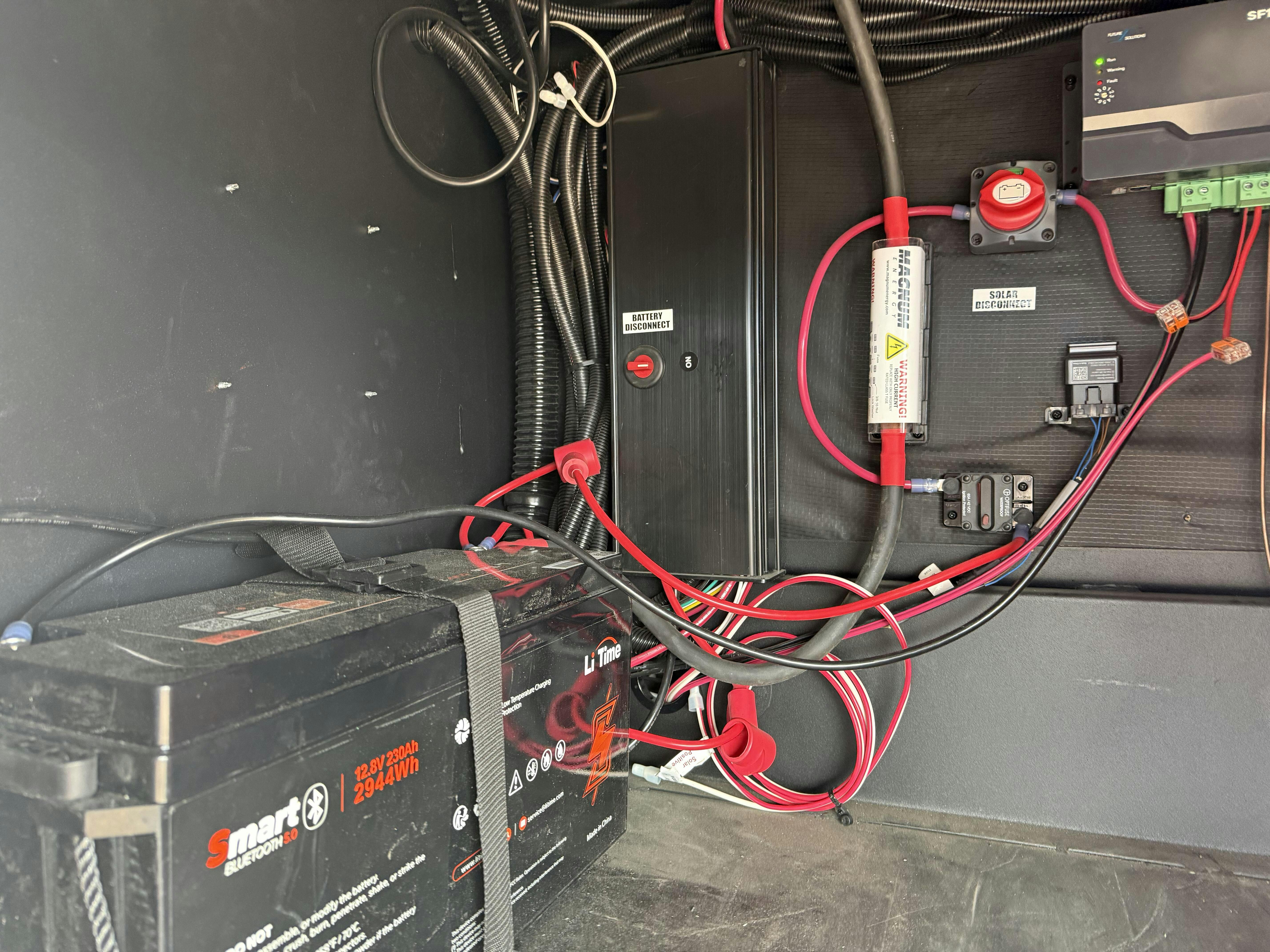

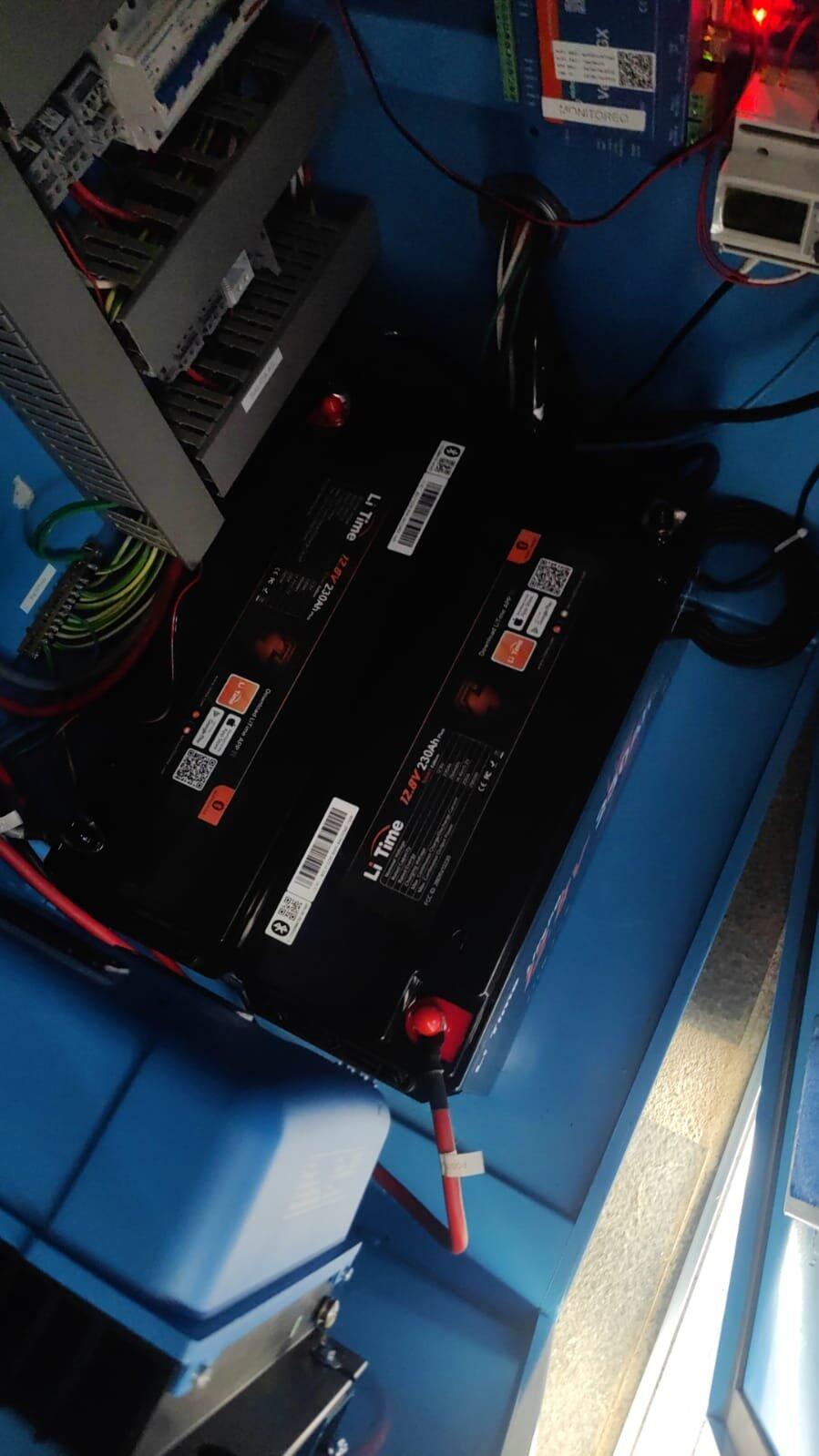

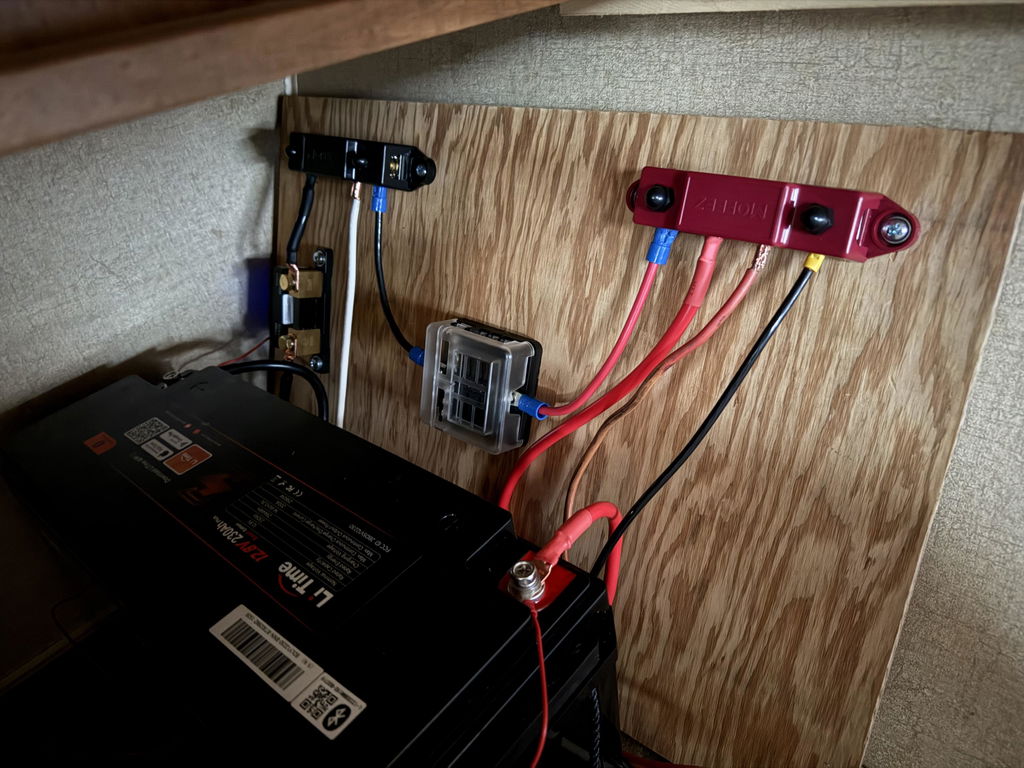

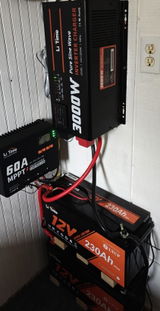

I put a LiTime 400ah battery in my boat a couple years ago and it works great! I just installed 2 of the 230ah batteries in my RV and really love the Bluetooth feature, looking forward to using the RV!
c
Excited to replace my RV's heavier AGMs with 4X the Amp hours. Easy DYI. Bluetooth BMS.
D

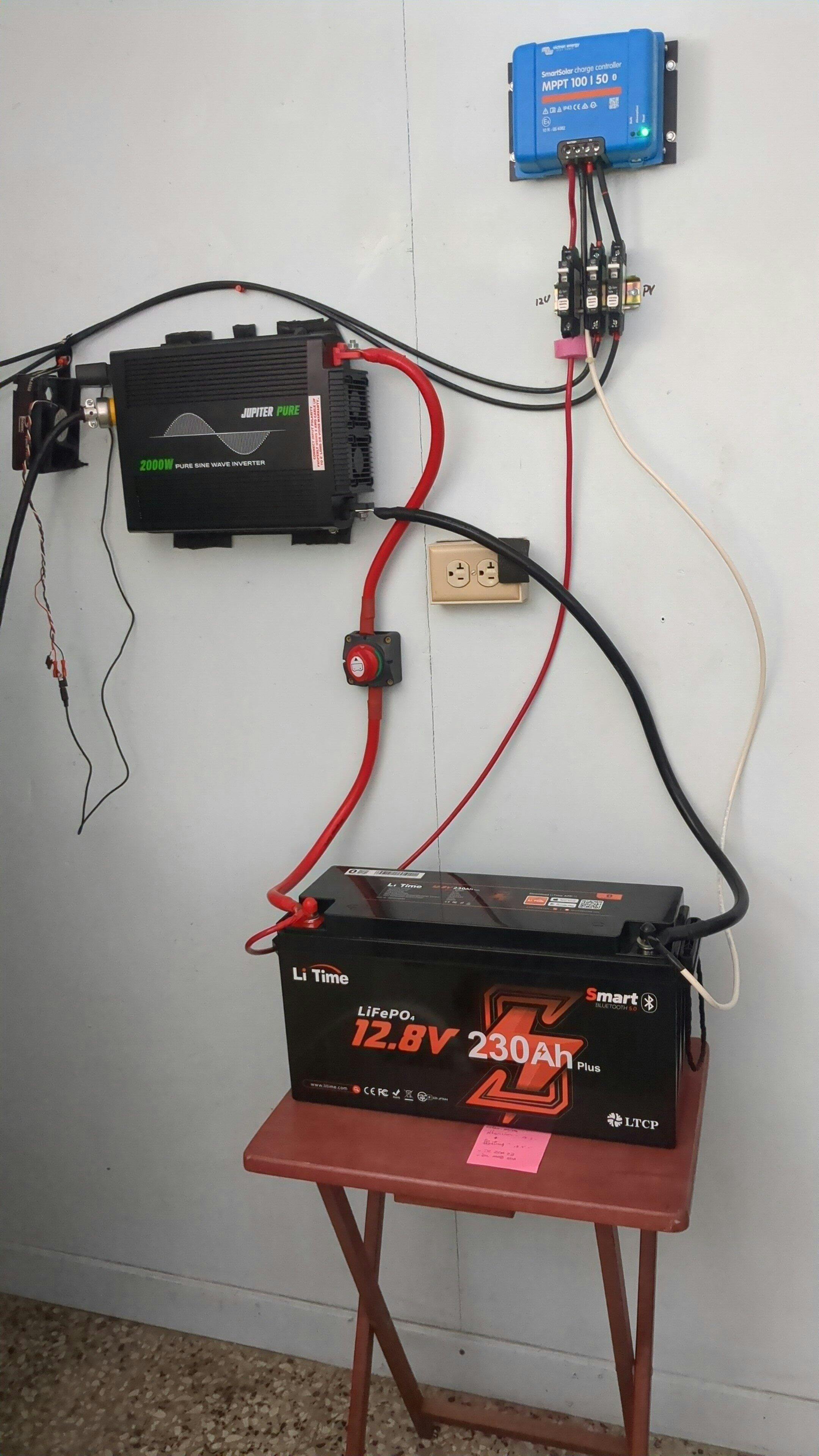

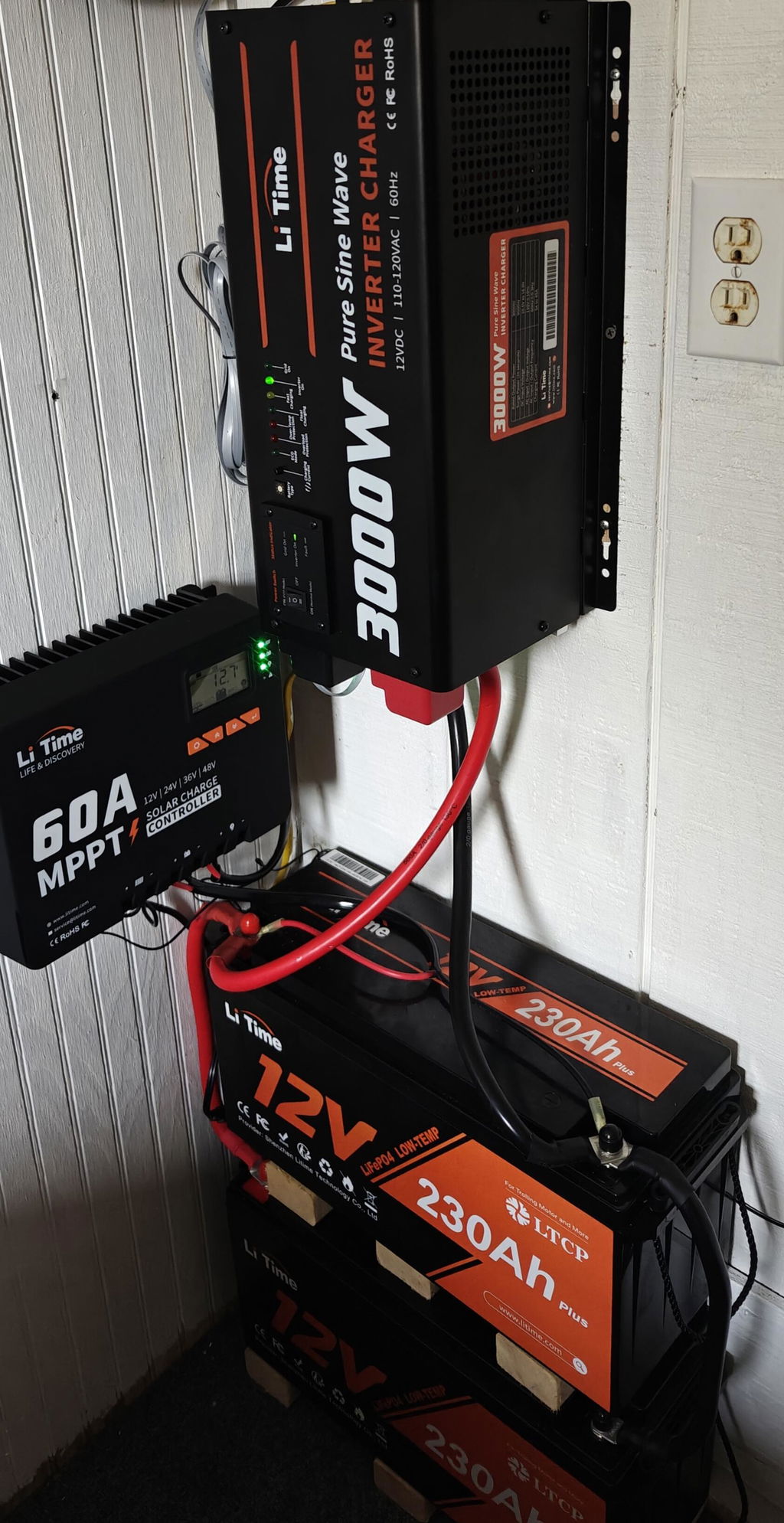

I use this 12.8v 230ah smart lithium battery to give my power station extra run time and I'm getting an extra 8 hours of extra run time out of it ... Very Happy with the purchase of this 12.8v 230ah smart battery . I also bought a 14.6v 40amp Lithium charger and it will fully charge this battery in about 5 hours at 11.6v on this Litime battery .... Great Pair !
B
Patrick helped me determine the best battery solution for my RV space after I ordered the wrong ones. He arranged a return and gave me lots of mounting information and battery orientation that allowed me to reorder great batteries for my RV. Not installed yet but I’m sure they will more than meet my needs and expectations
S
Works fine!
