LiTime 24V 3000W Pure Sine Wave Solar Inverter Charger
-
3-in-1 Integration: Combines MPPT solar controller (Max. 60A), pure sine wave inverter (3000W), and battery charger (Max. 50A) in one unit, for fewer wires and simplified operation.
-
High Power Capacity: 3000W rated power & 9000W surge power for high demand power, ideal for home energy storage, and off-grid applications.
-

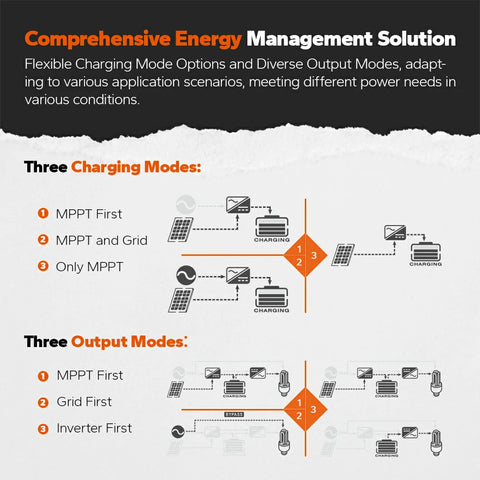

Smart Charging & Output Modes: With 3 charge modes and 3 output modes, delivering robust flexibility for diverse energy scenarios.
-
Enhanced Energy Stability: Features UPS and multiple output modes, to reduce reliance on traditional energy sources.
-

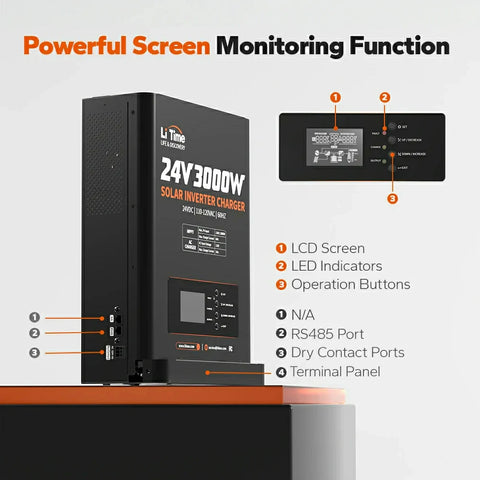

Integrated LCD Screen & LED Indicators: Allows for real-time system data monitoring.
-
Support RS485 Communication Protocol: Reports battery faults (undervoltage/overvoltage/overcurrent) for system-wide protection.
-
2 Cooling Fans: With 2 adjustable speed fans to efficiently dissipate heat and extend battery life.
-

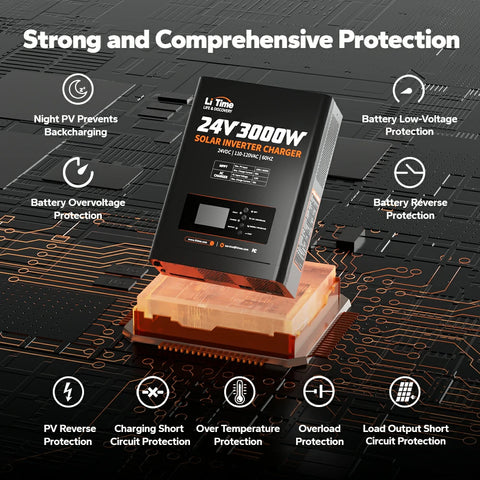

Comprehensive Protections: Includes load output short circuit, over-temperature, overload, and more for safe and reliable operation.
-
Lithium Battery Activation function: Activates BMS-protected lithium batteries by grid power for seamless operation.
-

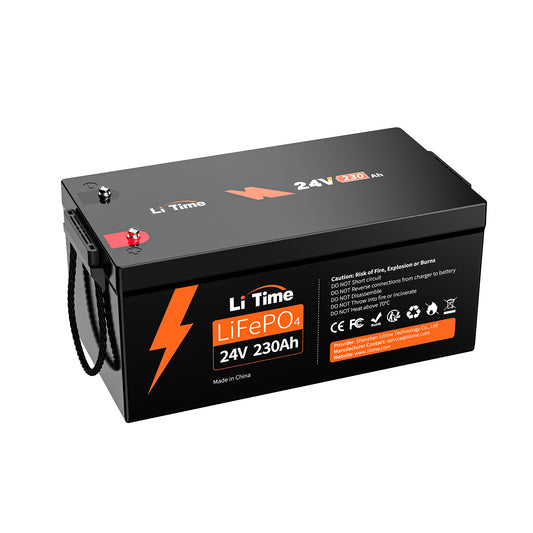

Wide Compatibility: Suitable for 24V lead-acid, lithium, and user modes, including LiTime 24V100Ah/24V100Ah Bluetooth/24V200Ah/24V 230Ah.
-
Wide Application: Ideal for home energy storage, off-grid, farm, garage, etc.
- Note: This solar inverter charger is intended for single use only and cannot be used in parallel.
30-Day Price Guarantee
- $459.99
-
$819.99 - $459.99
- Unit price
- per
Subtotal:
$459.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
2 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS

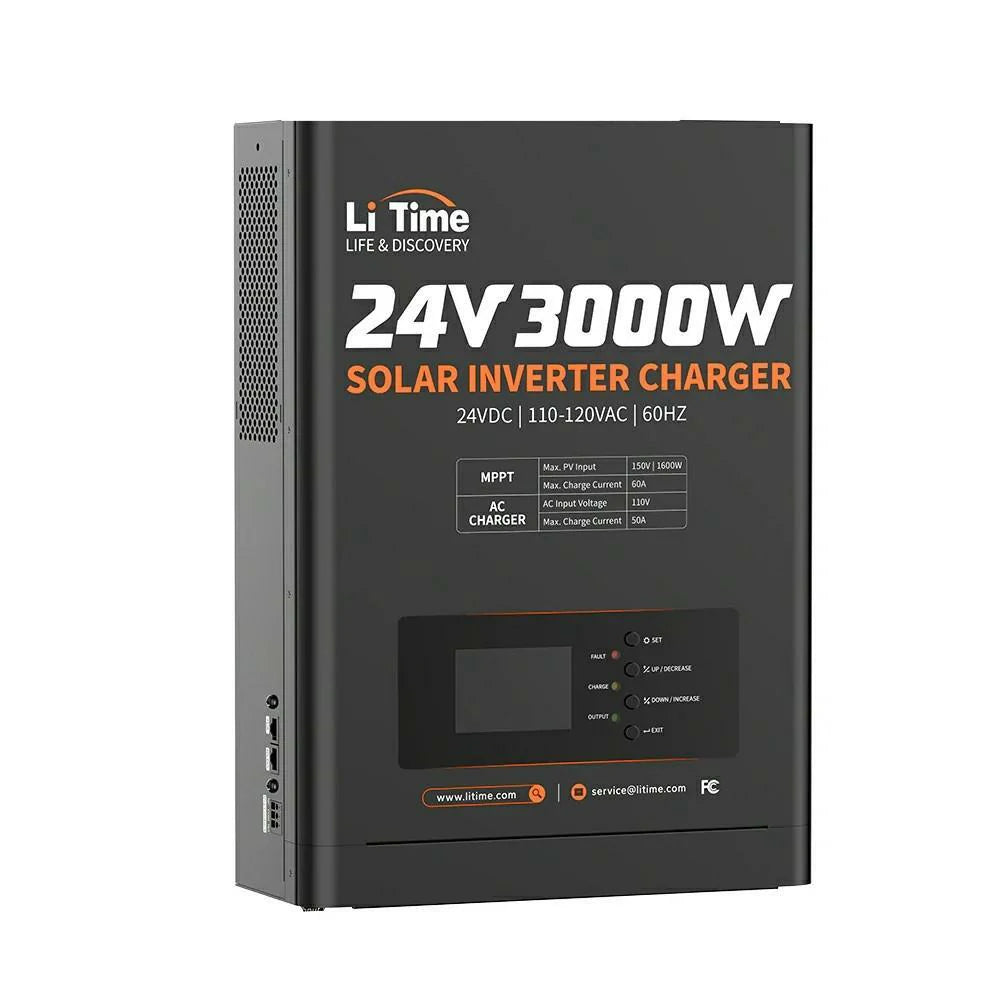

LiTime 24V 3000W Solar Inverter Charger
The LiTime 24V 3000W Solar Inverter Charger is a powerful and efficient solution for off-grid, home, solar system or backup power needs. It features a 3000W pure sine wave inverter with 9000W peak surge power, offering reliable performance even under heavy loads. With 24V DC input and 110-120V AC output, it supports a variety of applications. The inverter operates at up to 90% efficiency, ensuring optimal energy use. It also includes two cooling fans for better heat dissipation and a LiFePO4 battery activation. The user-friendly design includes an LCD screen and LED indicators for easy monitoring of system performance.
24V DC Input | 110-120V AC Output
Compatible with 24V DC and perfect for 110-120V AC systems, it is a versatile solution for off-grid, solar system, or home backup setups. Suitable for multiple battery types, users can switch between Lithium, Lead Acid, and User modes according to their needs.
.jpg)
Combination of Inverter+MPPT+Charger
The LiTime 24V 3000W Solar Inverter Charger offers a comprehensive power solution, combining an inverter, MPPT charge controller, and utility power charger in one unit. With a maximum charging current of 110A shared between the 50A utility power charger and 60A MPPT charge controller, this solar inverter charger ensures efficient battery charging from both solar and utility sources. The charging current can also be manually adjusted for added flexibility. The inverter delivers 3000W of pure sine wave power, providing clean, stable energy for sensitive devices and high-demand equipment. Ideal for off-grid systems, home, solar system, or backup power needs, this unit ensures reliable, high-performance power management.
Efficient and Fast Charging
Its MPPT charge controller supports charging currents up to 60A and is suitable for battery inputs rated at 24V with a voltage range of 19.0V to 31.2V. The PV input supports an operating voltage range of 30V to 150V, with a recommended range of 30V to 105V and a maximum solar power input of 1600W. The solar inverter charger features an AC input voltage range of 77V to 135V. The AC output delivers 110VAC ±10% of pure sine wave power, with a rated power of 3000W and a surge power capacity of 9000W. Additionally, the max AC charge current reaches 50A, ensuring fast and efficient battery charging.

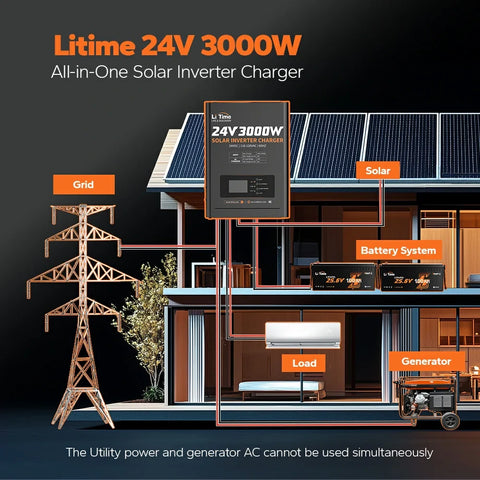

Note: Generator AC and utility power AC cannot be used simultaneously.

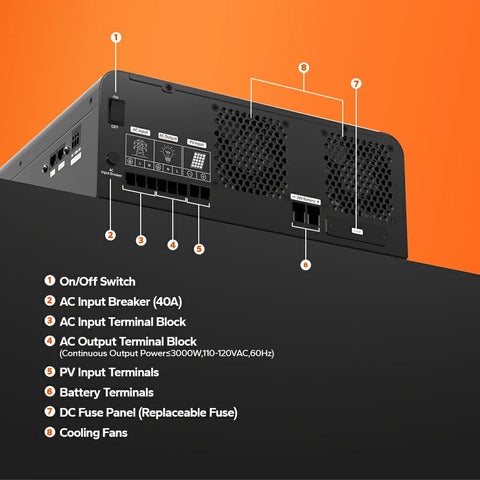

For optimal installation, the following recommended cable sizes and breaker ratings are provided:
Battery Connection: Use 2 AWG cable within 6ft (2m) with a 200A breaker for safe and efficient power flow.
AC Input/Output: 8 AWG cable within 6ft (2m) paired with a 63A breaker to handle standard AC loads.
PV (Photovoltaic) Input: 8 AWG cable within 16ft (5m) with a 63A breaker for solar input management.
Comprehensive New Energy Solution by LiTime
LiTime's 24V 3000W Solar Inverter Charger offers a comprehensive solution for new energy systems, designed to meet the demands of modern off-grid, backup, and renewable energy setups. This all-in-one device provides reliable power conversion, battery charging, and system monitoring, delivering a seamless energy experience.
All-in-One Solar Inverter Charger
The LiTime All-in-One Solar Inverter Charger is a powerful and versatile solution that integrates an inverter, charge controller, and charger into a single unit, providing a comprehensive energy management system.

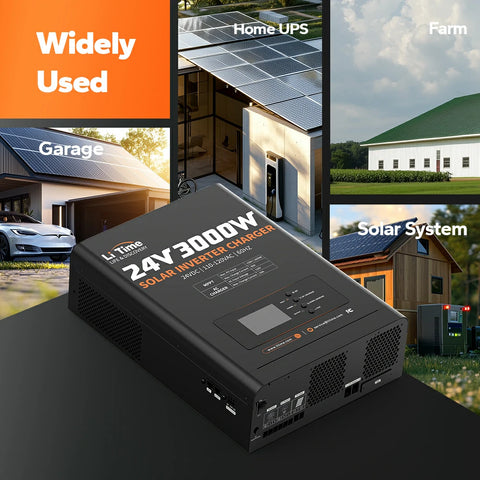

Suitable For Various Occasions
The LiTime All-in-One Solar Inverter Charger is designed to be suitable for various occasions, offering a versatile and reliable energy management solution for a range of applications including garage, home ups, solar system, farm and so on.
With its versatile functionality, this all-in-one unit adapts to various environments, ensuring that users benefit from continuous, efficient power across multiple scenarios.
SPECS
PV Input
Operating Voltage Range：
30V to 150V
Recommended Operating Voltage Range：
30V to 105V
Max. Power：
1600W
Max. Input Current：
40A
MPPT Output
Max. Power：
1600W
Charge Current Range：
60A
Efficiency：
95%
Battery Input
Rated Voltage：
24V
Voltage Range：
110V to 120V
Battery Type：
Lithium, Lead Acid, User
Max. AC Charge Current：
50A
Max. Charge Current (PV+AC)：
110A
AC Input
Voltage Range：
110V to 120V
Frequency：
60Hz±5%
Voltage Range (UPS Mode)：
92V to 132V±3V
Voltage Range (Normal Mode)：
77Vto 132V±3V
Max. Input Current：
40A
AC Output
Voltage Range：
110V to 120V
Rated Power：
3000W
Frequency：
60Hz±5%
Output Wave Form：
Pure Sine Wave
Bypass Efficiency：
＞95%
Inverter Output Voltage：
＞90%
Bypass Output Voltage Range (UPS Mode)：
92V to 132V±3V
Bypass Output Voltage Range (Normal Mode)：
77V to 132V±3V
Surge Power (500ms)：
9000W
General
Max. Charge Current (PV+AC)：
110A
No Load Power Consumption：
Normal Mode<18W, ECO Mode<6W
Humidity Range：
5% to 95%
OperatingTemperature Range：
32°F to 104°F /0°C to 40°C
Storage Temperature：
14°F to 122°F/-10°C to 50°C
Weight Approx.：
41.73 lbs

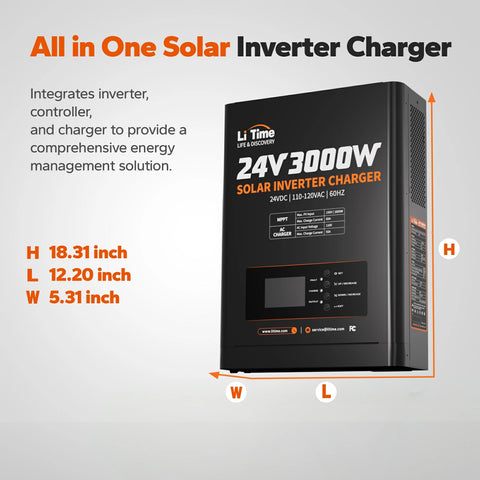

Dimension (L*W*H)：
18.31*12.20*5.31 in
FAQ
Q: What types of batteries are compatible with this inverter charger?
A:
This inverter charger is compatible with 24V lithium (LiFePO4), AGM, and lead-acid batteries. Check the battery specifications to ensure compatibility.
Q: Can this inverter charger run high-power appliances?
A:
Yes, with a 3000W continuous output, it can handle large appliances like refrigerators, microwaves, power tools, and small air conditioners, as long as the total load does not exceed 3000W.
Q: What is the difference between an inverter and an inverter charger?
A:
An inverter converts DC battery power to AC power for household devices, while an inverter charger also has a built-in charger that can recharge the battery when connected to shore power or a generator.
Q: Does the LiTime inverter charger have built-in protections?
A:
Yes, it includes protections for overload, over-temperature, short circuits, low and high voltage, and reverse polarity, ensuring safe operation.
Q: Can this inverter charger be used for off-grid solar systems?
A:
Absolutely. This unit is ideal for off-grid solar setups.
Q: How efficient is this inverter charger?
A:
The inverter operates at a high efficiency, typically around 90-95%, depending on the load, making it highly efficient for continuous use.
Q: How can I monitor the inverter charger’s performance?
A:
It includes an LCD display to monitor output, input voltage, battery status, and other key indicators for easy management.
Q: What is the surge power rating for this inverter charger?
A:
This inverter charger has a surge capacity, typically up to twice the continuous power rating, allowing it to handle high startup power demands from appliances like refrigerators.
