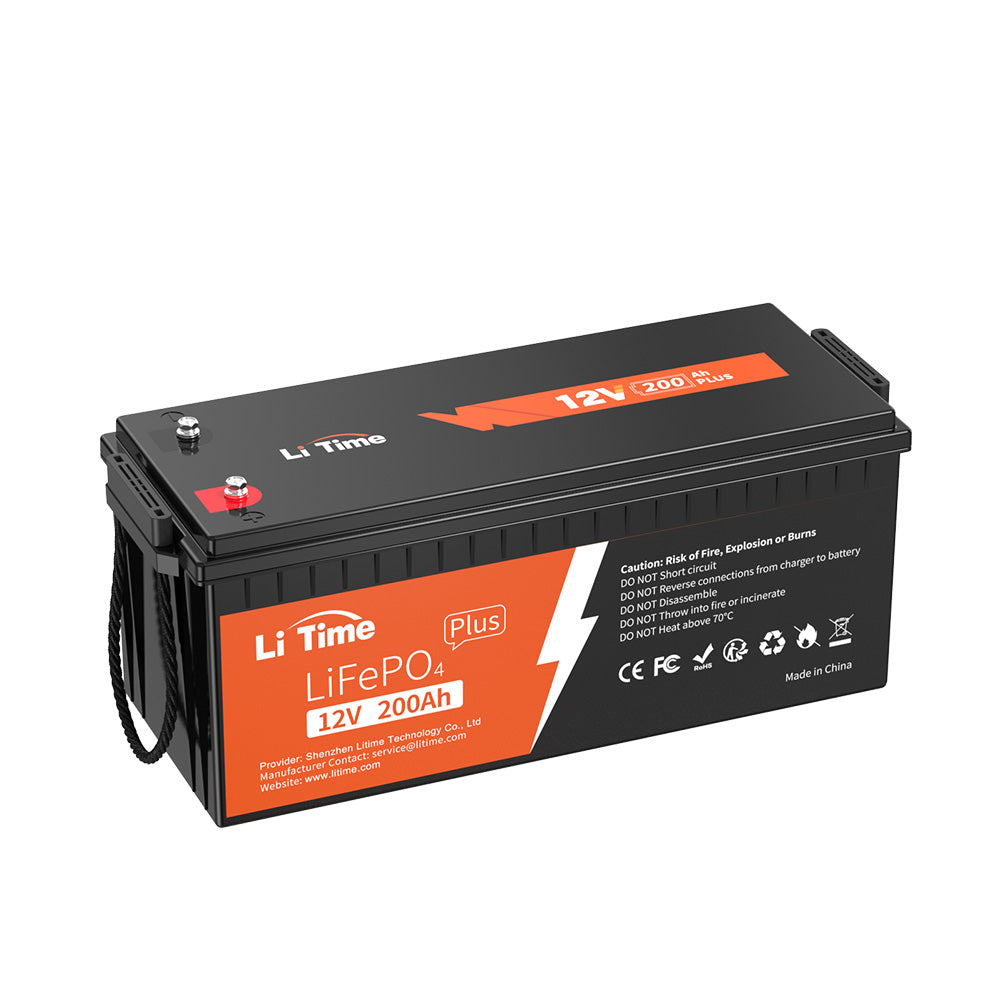

LiTime 12V 200Ah Plus LiFePO4 Lithium Battery - 200A BMS

LiTime 12V 200Ah Plus LiFePO4 Lithium Battery - 200A BMS

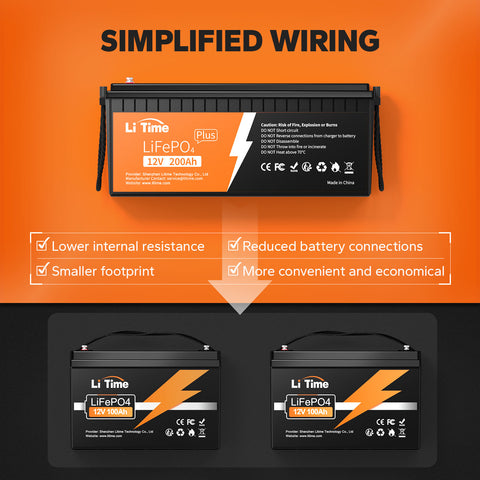

Upgraded Version of 12V 200Ah & LiFePO4 Battery

-LiTime 200A BMS, Stronger Flow Capacity
-Max 200A Continuous Dis/Charge Current, 400A(5S) of High Discharge Current
-2560Wh Energy, 2560W Continuous Output Power
-EV Grade-A Cells, 4000+ cycles @100%DOD
-Max 40.96kWh Energy (4P4S)
-High-temp Cut-off Protection
-48 lbs, 1/3 the Weight of 12V 200Ah Lead-acid battery
-3 Charging Ways (LiFePO4 charger, Solar, Generator)
-Suitable for RVs/Campers/Home Storage/Off-grid/Solar/Marine/Trolling Motors(30~70 lb)
-Free Maintance, Lower Maintance Fee
-Fast Delivery & Excellent Customer Service
-DO NOT use as Starter Battery If you need a starting battery, please consider LiTime 12V marine starting batteries series.

$409.99; ~~$819.99~~; $409.99
Unit price: per

This Year Best Price + Extra 8% Member-only Discount for Upgraded Version and Performance of 200Ah Lithium Battery. Act Now Before Prices Go Back Up!

Please hurry! Only 26 left in stock

Limited-Time Offers, End in: 151D 8H 23M 0S

Size: 1 Pack 12V 200Ah Plus 1 Pack 12V 200Ah Plus 2 Pack - 6%Christmas Sale ($372.23 /each) 3 Pack - 6% Christmas Sale($372.23 /each) 4 Pack - 6% Christmas Sale ($368.47 /each)

Product variants

Quantity:

Subtotal: $409.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

5 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns

LiTime 12V 200Ah Plus LiFePO4 Lithium Battery - 200A BMS

~~$819.99~~ $409.99

Choose Options

Quantity:

LiTime 12V 200Ah Plus LiFePO4 Lithium Battery - 200A BMS

~~$819.99~~ $409.99

Size: 1 Pack 12V 200Ah Plus 1 Pack 12V 200Ah Plus 2 Pack - 6%Christmas Sale ($372.23 /each) 3 Pack - 6% Christmas Sale($372.23 /each) 4 Pack - 6% Christmas Sale ($368.47 /each)

Product variants

FEATURES
SPECS
FAQ
REVIEWS

A Universal Power Solution

An upgraded version of a regular 12V 200Ah LiFePO4 battery, LiTime 12V 200Ah PLUS has top-quality EV Grade-A cells and a 200A battery management system. It unleashes incredible energy and equips a larger flow capacity for your indoor and outdoor applications.

Powerful, Sustainable and Durable

Built with industry-leading LiFePO4 EV Grade-A cells, the LiTime 12V 200Ah PLUS LiFePO4 battery provides over 4000 life cycles at 100%DOD. Certified by UL1973, FCC, CE, RoHS and UN38.3, it has stable high performance, which provides you stable power and reliable protection.

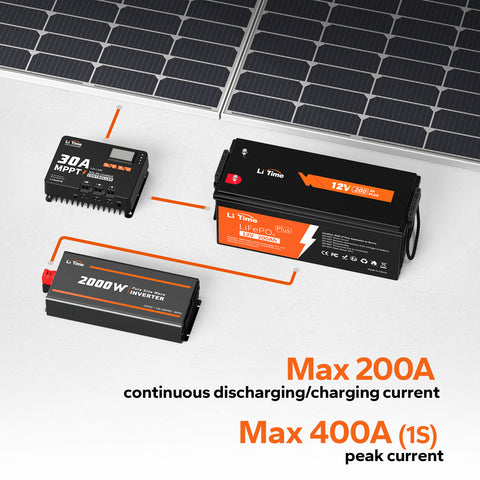

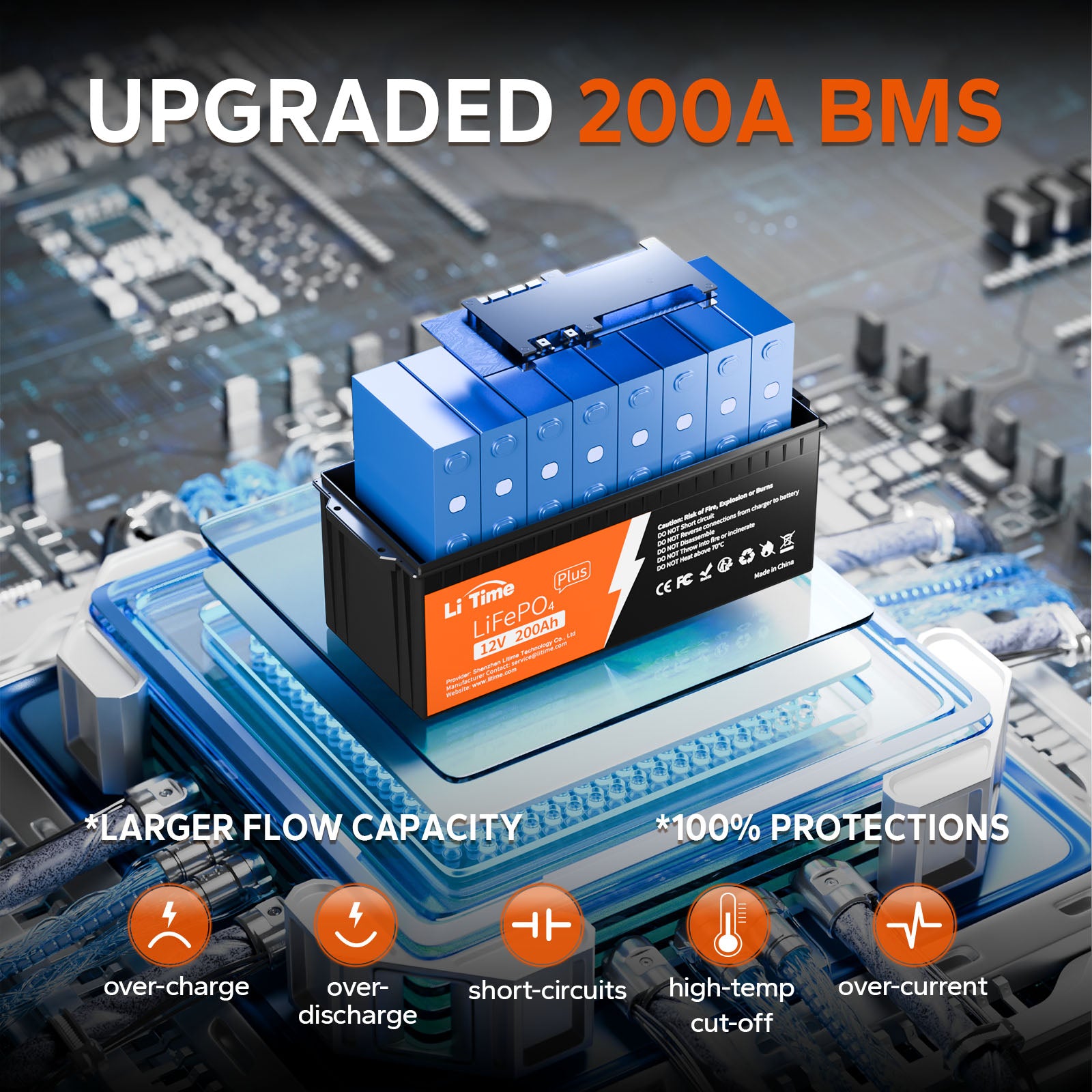

Upgraded BMS

The upgraded 200A BMS has a larger flow capacity. It has a Max 200A continuous discharging & charging current. 2560W load Power can energy high-power applications. Meanwhile, the BMS can protect the battery from potential risks for long-term use. A 3% ultra-low self-discharge rate gives your battery a longer lifespan.

More Juice, Less Fuss

The LiTime 12V 200Ah PLUS LiFePO4 battery is superior to lead-acid batteries in all aspects, capacity in particular. LiTime 12V 200Ah LiFePO4 battery powers 2560Wh, 2X usable energy of a 12V 200Ah Lead-acid battery, easily powering all your needs.

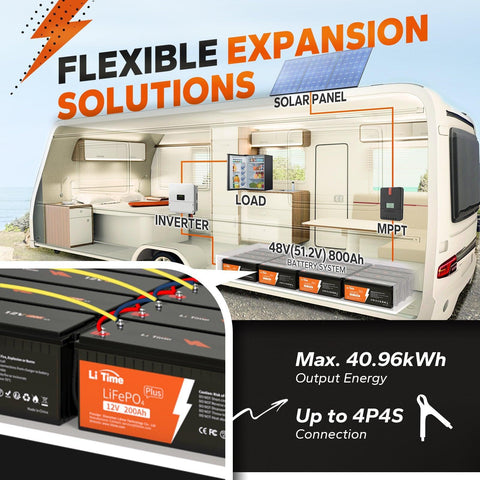

Power tailored for you

Customizable LiTime 12 200Ah PLUS LiFePO4 battery provides Max 40.96kWh of energy for your indoor needs and outdoor adventures. You can build a tailored power system according to your need.

Meet All Your Needs

The durable and powerful LiTime 12V 200Ah PLUS LiFePO4 battery provides reliable power for RVs, Campers, Home Storage, Off-grid, Solar, Marine, Trolling Motors(30~70 lb) and more. You do not need to worry about power-off even if the electricity is suddenly cut off.

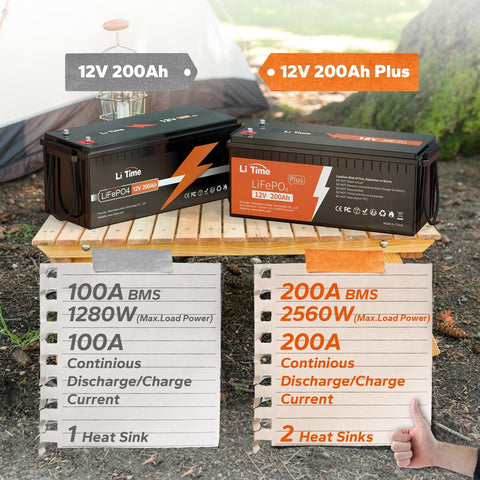

VS. 12V 200 LiFePO4 Battery

Fast Flexible Charging

LiTime battery has faster charging efficiency than lead-acid and supports various quick charge options for continuous high performance. Without memory effect, you can charge the battery via a LiFePO4 charger, solar panel and generator/alternator partially or fully at anytime.

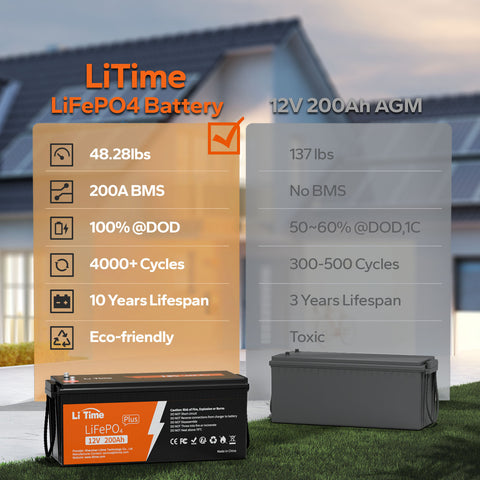

Superior to Lead Acid

LiTime 12V 200Ah LiFePO4 battery weighs 48 lbs, only 1/3 of a 12V 200Ah lead acid battery but has 2X usable energy of a 12V 200Ah lead-acid battery, making it easier to install and transport for indoor and outdoor power needs.

Convenient to Use

One-Stop Power Solution

Professional Certification

Precautions for Usage

Best Service

SPECS

BATTERY

Cell Type：

LiFePO4 Prismatic

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

12.8V

Rated Capacity：

200Ah

Energy：

2560Wh

Max. Expansion (Parallel & Series)：

4P4S

Internal Resistance：

≤40mΩ

Certifications：

UL, FCC, CE, RoHS, UN38.3

BMS

BMS：

200A

Max. Continuous Output Power：

2560W

Max. Continuous Charge Current：

200A

Max. Continuous Discharge Current：

200A

Max. Discharge Current 5 Seconds：

400A

Max. Discharge Current 1 Second：

600A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

14.4V ± 0.2V

Recommend Charge Current：

40A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

OTHERS

Terminals：

M8 bolts

Weight Approx.：

45.59 lbs

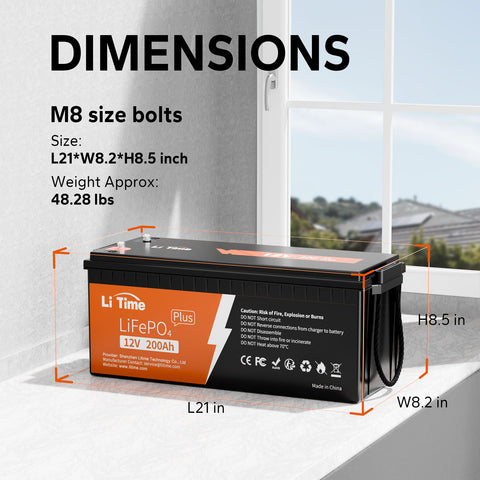

Size：

L21*W8.2*H 8.5 inch

Housing Material：

ABS

Protection Class：

IP65

FAQ

Q: What are the advantages of LiTime 12V 200Ah Plus over 12V 200Ah LiFePO4 lithium battery?

A: The LiTime 12V 200Ah PLUS LiFePO4 battery has an upgraded 200A BMS. It can charge at a current of up to 200A instead of 100A, so it can take handle high output current loads, making it a reliable power source that can supply all your power needs.

Q: Are LiTime LiFePO4 Lithium batteries safe?

A: Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

No. LiTime LiFePO4 lithium deep cycle batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.

If you need the marine starting batteries, visit LiTime 12V 20Ah Marine Cranking or 12V 140Ah Dual Purpose battery to choose.

For more information to tell the differeces among these 2 types batteries, read on our blog Deep Cycle VS Starting Marine Battery.

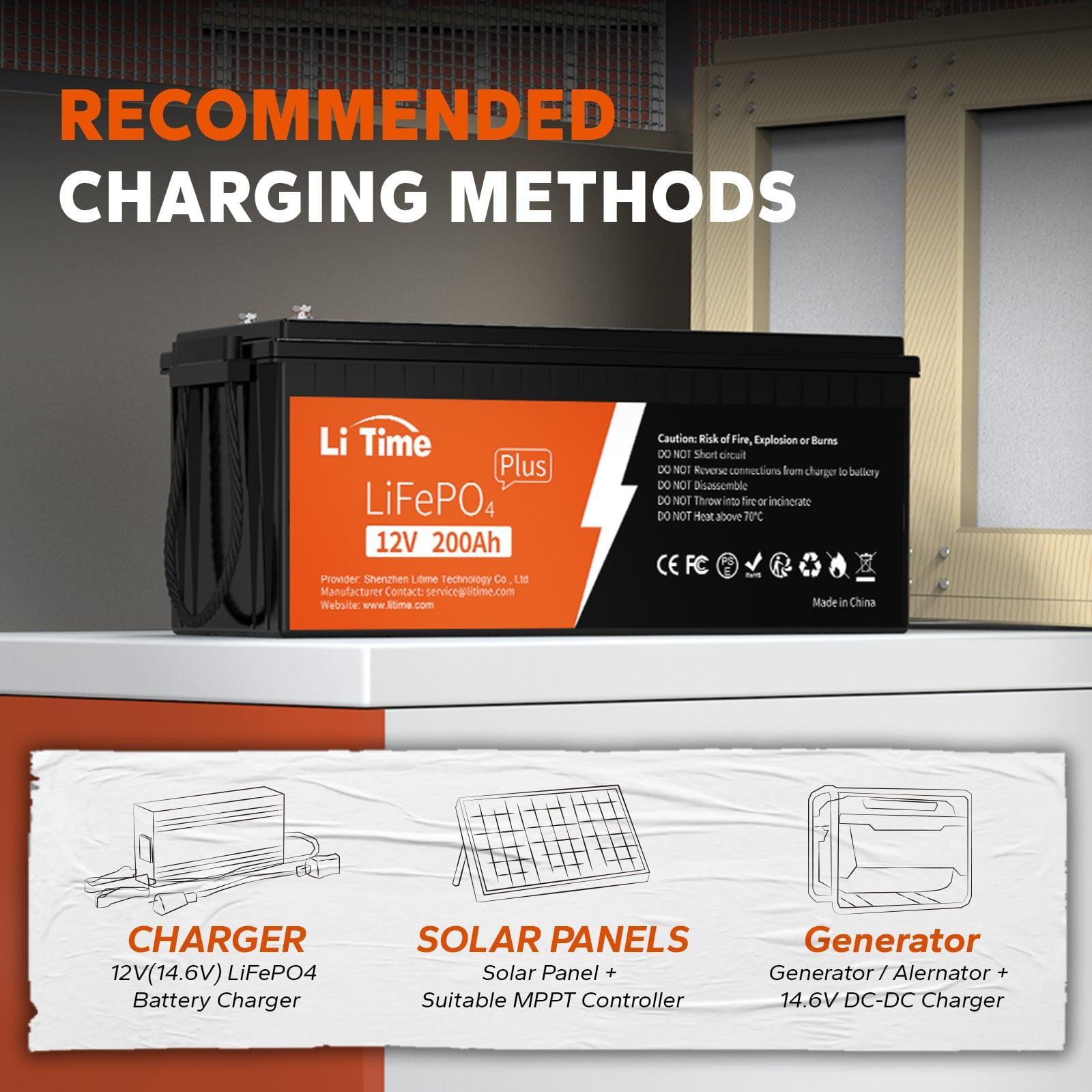

Q: How to Charge LiFePO4 lithium batttery?

1. Using Solar Panels

The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency. Besides solar panels, there are 2 more ways to charge.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 40A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 100A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 12V battery, it is recommended to use 14.6V battery charger. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 40A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 100A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

LiFePO4 batteries can safely charge between 0℃ to 50℃ / 32℉ to 122℉. LiTime cold weather batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.

Q: How do I store LiTime LiFePO4 lithium batteries?

It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH

Q: Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.

Q: How Long Will a 12V 200Ah Battery Last?

Run Time (hours) = Battery Capacity (Ah) / Current (A)

The higher the discharge rate (amount of current/amps being drawn from the battery), the shorter the duration it will last.

For example:

A 200Ah battery discharging at just 10A could theoretically last around 20 hours. Discharging at 50A would last only around 4 hours.
