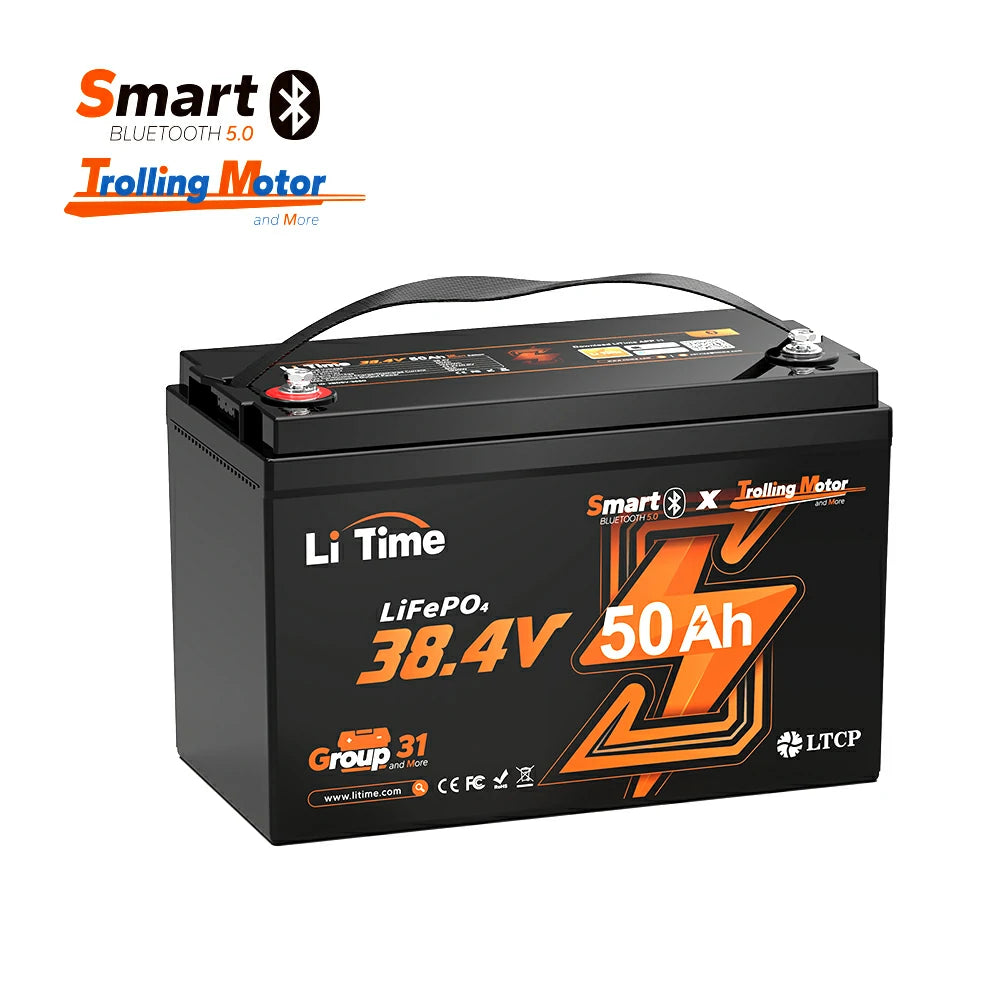

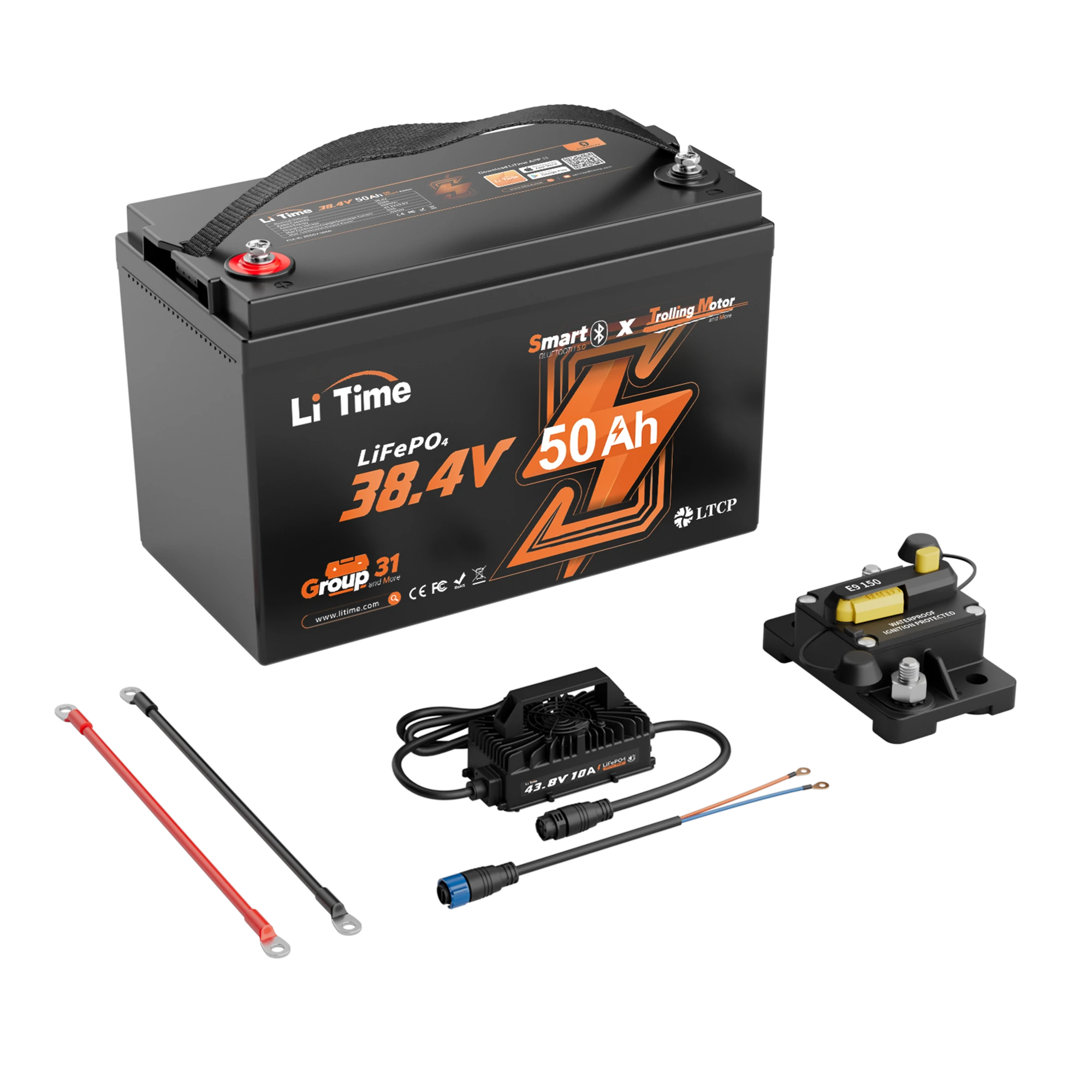

LiTime 36V 50Ah Marine Trolling Motor Lithium Bluetooth Battery
Born for 100-120 lb trolling motors, Upgraded with Smart Bluetooth 5.0.
- Intelligent Bluetooth 5.0: Monitor a single battery or system's status, control discharge, or turn off battery via LiTime APP.
-
60A Max. Discharging Current (30 mins): Ensures stable operation of trolling motor.
-
Low-temp Cut-off Protection: Extends battery life even in the cold.
-
20+ Upgraded Protection: Includes pre-charging, over-current protection with auto-recovery (30s), moisture-proof, salt-spray resistance, etc.
- IP65 Waterproof & Dustproof: No fear of wet/ marine environment.
-
EV-graded LiFePO4 Cells: 4000-15000 deep cycles, 10 years lifespan, eco-friendly.
-
Compact & Lightweight: With a 10.85% increase in energy density, 57.93 Wh/lb unparalleled energy density surpasses 52.26Wh/lb of a typical 12V 100Ah TM battery.
-
Max. 4P1S connection: Expand to a 38.4V 200Ah system.
-
Drop-in Replacement of Lead-acid Battery: With 65% lighter, 2.1X energy (VS 3pcs 12V 50Ah lead-acid batteries), better driving experience and further sailing.
-
Multi-application: Designed for 100-120 lb trolling motor, also for marine, home backup energy, off-grid, etc.
-
3 Charging Ways: LiFePO4 battery, solar panel, or generator.
-
Size: L13*W6.77*H8.5 inch. View Spces.
-
Safety Guarantee: As a proud member of the ABYC and ASA, LiTime exceeds industry standards with innovative design.

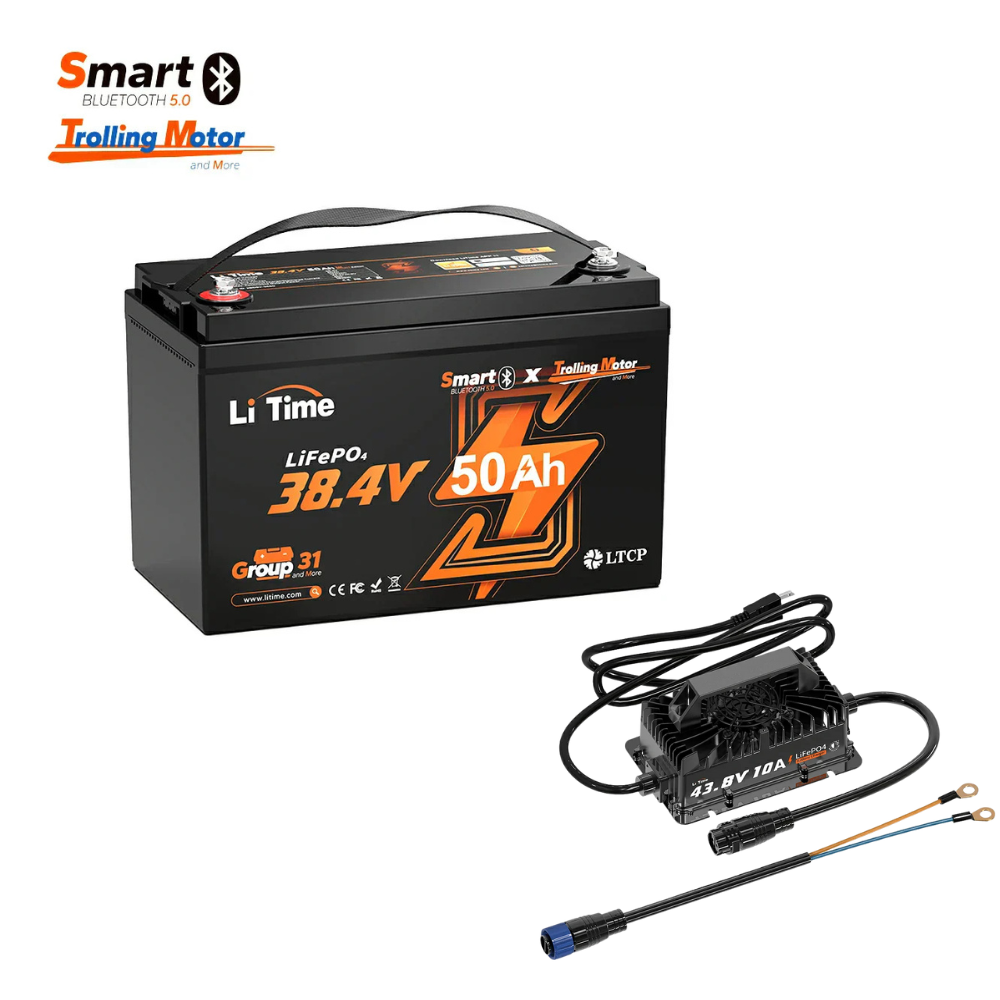

- Note: First use or after manual shutdown: Connect the charger to activate the battery. Use LiTime 43.8V 10A charger.
30-Day Price Guarantee
- $399.99
-
$785.99 - $399.99
- Unit price
- per
Order Our Revolutionary and Top-tier Performance Marine Battery at Launch Price and Enjoy the Greatest Savings. Hurry, this deal won't last long.
Limited-Time Offers, End in:
151D
8H
23M
0S
Please hurry! Only 21 left in stock
Subtotal:
$399.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
Lithium Battery for 36V Trolling Motor
This battery is ideal for 100–120 lb trolling motors, built with EV-grade LiFePO4 cells for high energy density. Equipped with LiTime's self-developed 50A smart BMS for enhanced protection, it features a Group 31 size that offers broad compatibility with trolling motors.
Bluetooth Integrated for Easy Monitoring
Equipped with Smart Bluetooth 5.0, the battery connects to the LiTime app for real-time monitoring of key metrics, including SOC, charge/discharge status, voltage, current, power, remaining capacity, temperature, and life cycles. Simply scan the battery's barcode for automatic connection, and use the app to control discharge or power off the battery.
Protect the Battery's Safety in Winter
Featuring low-temperature cutoff protection, this 36V trolling motor battery intelligently halts charging below 0°C and discharging below -20°C, protecting its cells from harsh winter conditions. Powered by LiTime's latest BMS innovation, it ensures safe and efficient performance year-round."
Top EV-Grade A LiFePO4 Cells
Green, Safe, and High-Efficiency: Designed with higher energy density for superior performance.
Enhanced Power Output: Delivers a max continuous discharge current of 50A, with an upgraded capacity of 60A for up to 30 minutes, and peak discharging at 250A for 1 second.
Durability & Longevity: Built for endurance, offering 4000+ deep cycles at 100% DOD, ensuring a lifespan of over 10 years without the need for replacement.
Full Protected By BMS
The advanced 50A battery management system (BMS) offers over 20 protections and warnings, including smart Bluetooth connectivity, low-temperature charging cutoff, over-voltage and low-voltage protection, over-current protection with auto-recovery, temperature protection (high and low), short-circuit protection, overload protection, and a pre-charging function with a 30mF capacitive load. These features ensure stable, intelligent, and safe operation.
Best Replacement to Lead-Acid Battery
This advanced lithium battery features Bluetooth connectivity for real-time monitoring, a smart BMS for comprehensive protection, and non-toxic LiFePO4 cells for eco-friendly, efficient power. Compared to three 12V 50Ah lead-acid batteries, it offers significant advantages: 65% lighter, delivering 2.1x the energy and lasting 3.3x longer. Experience a high-performance, long-lasting, and environmentally conscious power solution.
Reliable Power for Trolling Motor/Back-Up Power/Solar Power
3 Ways to Charge The Lithium Trolling Motor Battery
LiFePO4 batteries offer versatile charging options, allowing you to keep them powered efficiently no matter your environment. Here are three reliable ways to charge your battery:
LiFePO4 Charger (AC-DC)

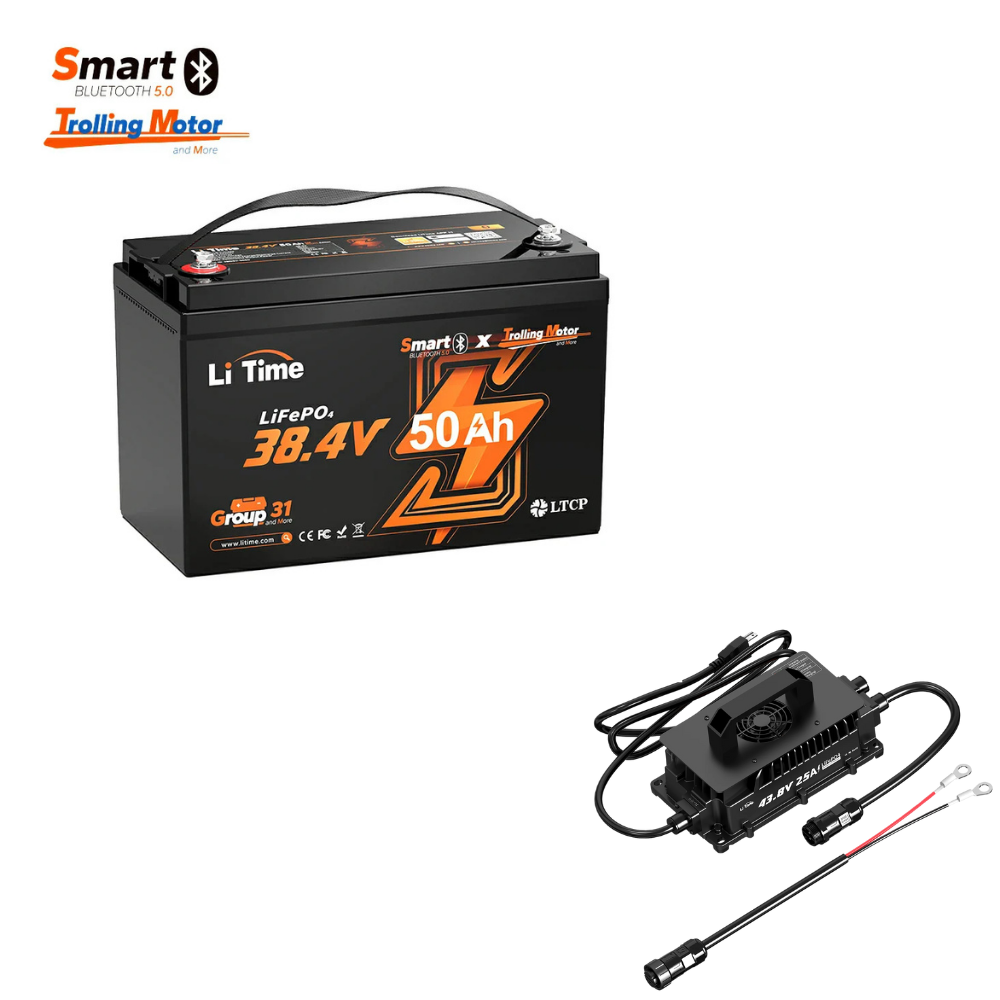

For a fast and efficient charge, use a 43.8V 25A AC-DC charger. In just 2 hours, your battery will be fully recharged, ensuring minimal downtime and maximum performance. This is the go-to method for quick, convenient charging at home or in any location with AC power access.
Solar Panel + MPPT Controller
For eco-friendly charging, harness the power of the sun. With a solar panel setup of at least 600W, paired with an MPPT (Maximum Power Point Tracking) controller, you can charge your LiFePO4 battery in just one sunny day. This method is ideal for off-grid applications or environmentally conscious users looking for renewable energy solutions.
Generator + AC-DC Charger
When access to solar power or grid electricity is limited, a generator can be an excellent alternative. Using a 43.8V 25A AC-DC charger connected to a generator, you can fully recharge the battery in just 2 hours. This option is perfect for remote locations or as a backup charging solution during emergencies.
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000 cycles
Nominal Voltage：
38.4V
Rated Capacity：
50Ah
Energy：
1920
Max. Expansion (Parallel & Series)：
4P1S
Internal Resistance：
≤40mΩ
Certifications：
UL-1973,FCC,CE,RoHS,UN38.3
ABYC Official Certi.：
Yes
Bluetooth：
√
BMS
BMS：
50A
Max. Continuous Output Power：
1920W
Max. Continuous Charge Current：
50A(1C)
Max. Continuous Discharge Current：
50A
Max. Discharge Current 1 Second：
250A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
43.2±0.6V
Recommend Charge Current：
10A(0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
-20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection：
Yes
Low-Temperature Charging Protection Auto Recovery：
Yes
OTHERS
Terminals：
M8 bolts
Weight Approx.：
33.14lbs
Size：
13*6.77*8.5 inch
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: What is the ideal thrust range for a 36V 50Ah trolling motor battery?
A:
100-120 lbs trolling motor
Q: What should I do when I receive the battery?
A:
Upon receiving your battery, please be aware that it may have a low State of Charge (SOC) due to transportation and storage. To ensure optimal performance, we recommend charging the battery immediately to prevent over-discharge.
For Bluetooth batteries, they may arrive in an off state, showing a virtual voltage of 3V to 5V at the terminals. This is normal and can be rectified by using an AC-DC LiFePO4 lithium battery charger or an MPPT solar charge controller to charge the battery for 3 to 10 seconds, which will activate it for normal use.
If you intend to store the battery for an extended period without use, charge it to a SOC between 30% and 50% and perform maintenance every three months. This practice will help maintain its functionality and performance over time.
Q: Can I use the trolling motor battery in my electric outboard motor?
A:
Normally, it's not recommended to use a battery designed for a trolling motor in an electric outboard motor since the surge discharge current might not be sufficient. Outboard motors often require higher power for acceleration and sustained operation, which can lead to higher surge currents that trolling motor batteries may not handle well.
If you’re planning to use an electric outboard motor, it’s best to invest in a battery specifically designed for such applications like LiTime Outboard Motor Batteries. These batteries are built to handle the high power requirements and ensure optimal performance and safety.
Read on Electric Outboad Motor VS Trolling Motor for more detailed information.
Q: Can I connect the battery in series or parallel?
A:
LiTime 36V 50Ah lithium battery supports connecting up to 4 identical batteries in parallel for up to 36V(38.4V)200Ah battery system. However, the battery do not support connect in series.
To connect in series or parallel, batteries should meet the below conditions:
- identical batteries with the same battery capacity (Ah) and BMS (A);
- from the same brand (as lithium battery from different brands has their special BMS);
- purchased in near time (within one month).
Q: Can I charge LiTime 36V 50Ah TM LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
A:
LiTime 36V 50Ah TM LiFePO4 batteries can charge between 0℃ to 50℃ / 32℉ to 122℉. The 36V 55Ah TM version has low-temperature charging protection function, it would cut off charging when it's below 0℃. It's recommended to charge the battery indoor during cold days.
Q: Do you provide marine staring batteries?
A:
Yes. Visit LiTime Marine Starting Batteries to choose the right one.
Q: How do I monitor the battery status?
A:
The battery is equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the LiTime App.
