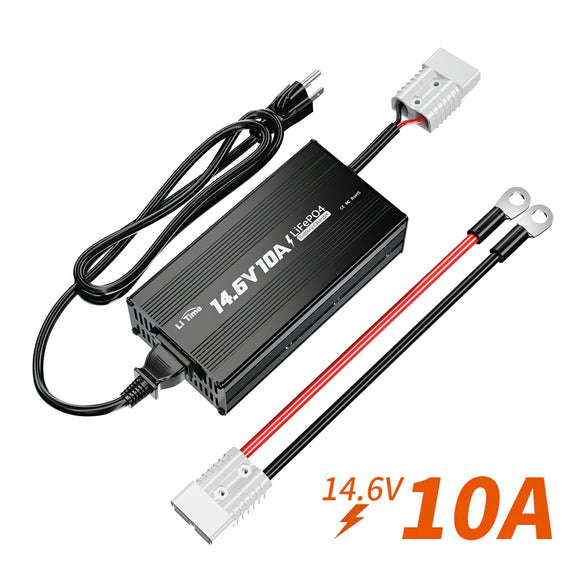

LiTime 12V (14.6V) 10A LiFePO4 Battery Charger
- 12V LiFePO4 Battery Charger: 14.6V DC output, 10A current, 100-240V AC input.
- Input cable: 47.24 inch; output cable: 57.08 inch (including 9.84 inch Anderson extension cable). View specs.
- Safely jump-starts BMS-protected lithium batteries.
- Convenient M8 terminals and 50A Anderson connector.

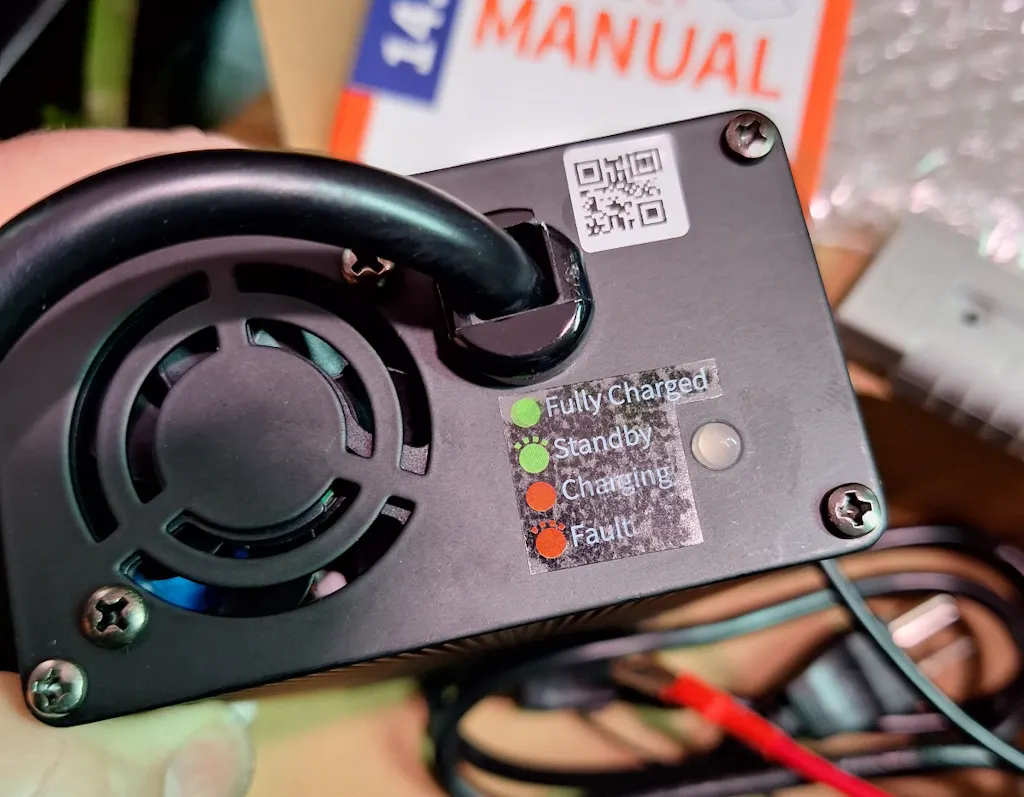

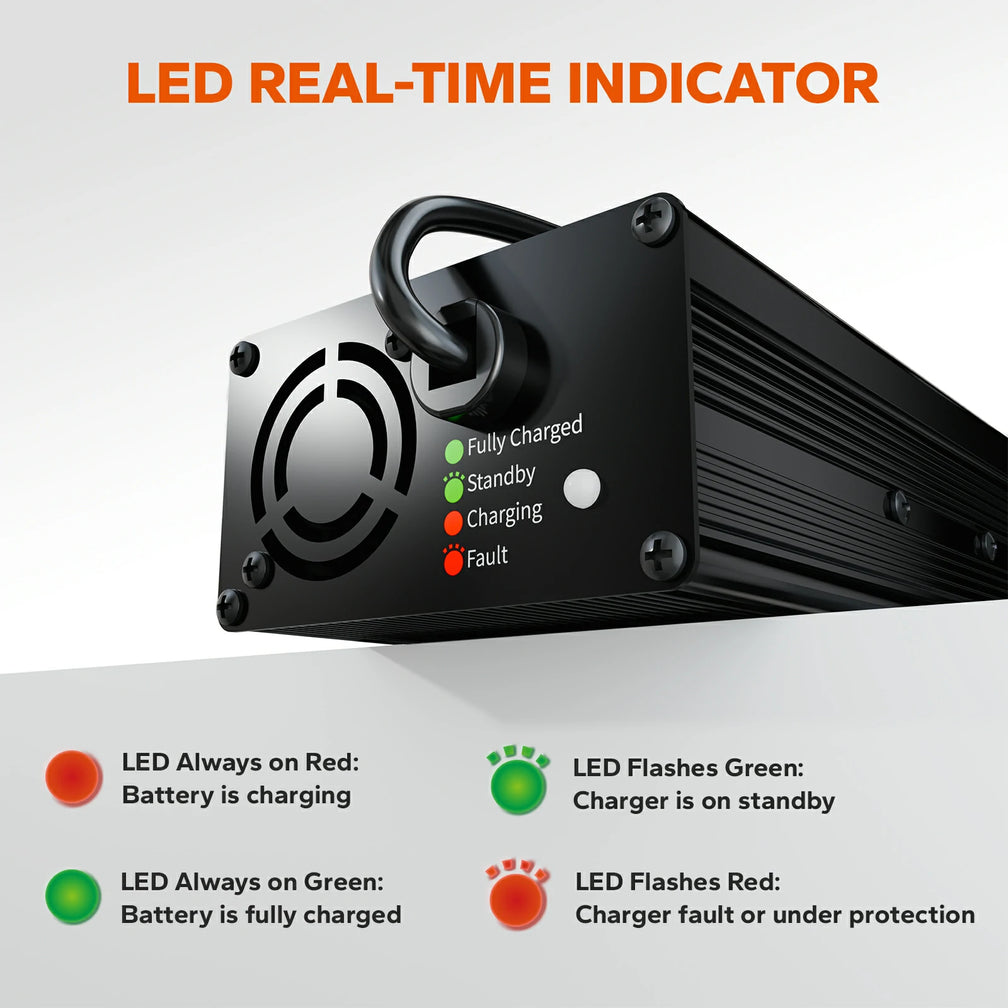

- LED indicators for standby, charging, full charge, and error status.

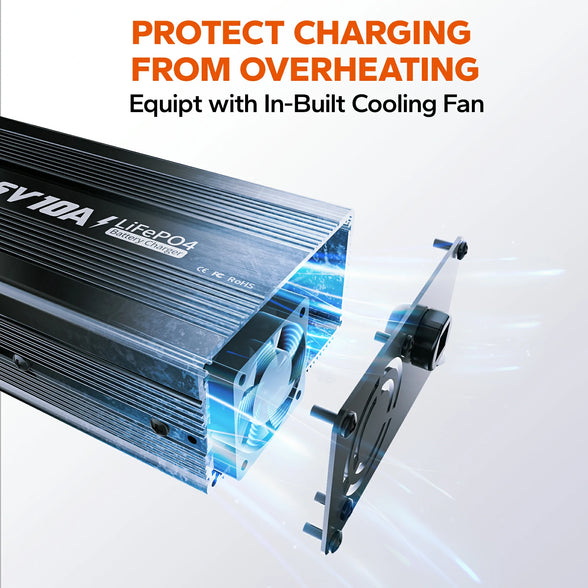

- Durable aluminum alloy shell with an efficient heat-dissipating cooling fan.
- 3-stage charging: pre-charge, CC, and CV stages.
- Multilevel protection for over-temperature, reverse polarity, short circuit, and over-voltage.
- CE & RoHS certified, 2-year warranty, lifetime support, and 24-hour service.
- $59.99
-
$99.99 - $59.99
- Unit price
- per
Don't Miss Out On Our Top Seller Being Re-Stocked - Order Now And Charge Your Adventure!
Please hurry! Only 55 left in stock
Subtotal:
$59.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
2 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
LiTime Lifetime LiFePO4 Charger
12V (14.6V) 10A AC to DC battery charger is an all-in-one charger, widely used in many scenarios, including RVs, trolling motors, boats, camping, off-grid cabins and home storage. LiTime lithium battery charger is committed to be your lifetime RV battery charger and trolling motor battery charger.

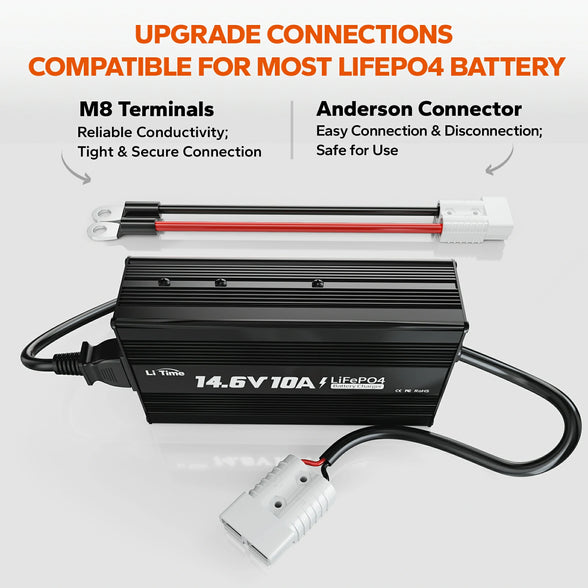

Connection Upgraded

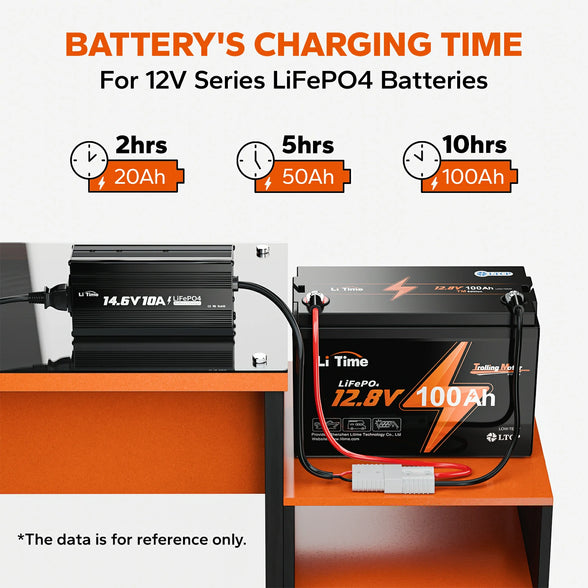

LiTime 12V lithium ion battery charger provides users with a fast charging efficiency and safer charging process with its 50A Anderson connector and M8 terminals. It takes 5 hrs to fully charge a 12V 50Ah lithium battery.

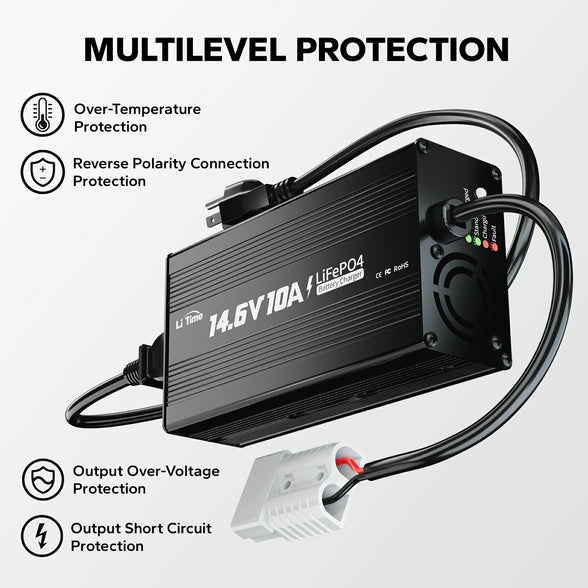

100% Protected Safety & 100% Monitor in Real-Time
LiTime 12V LiFePO4 battery charger can protect and monitor your battery anytime. It provides 100% reliable protection against over-heating, reverse polarity, output short-circuit and output over-voltage, and displays your battery charging status in real-time through its LED indicators.

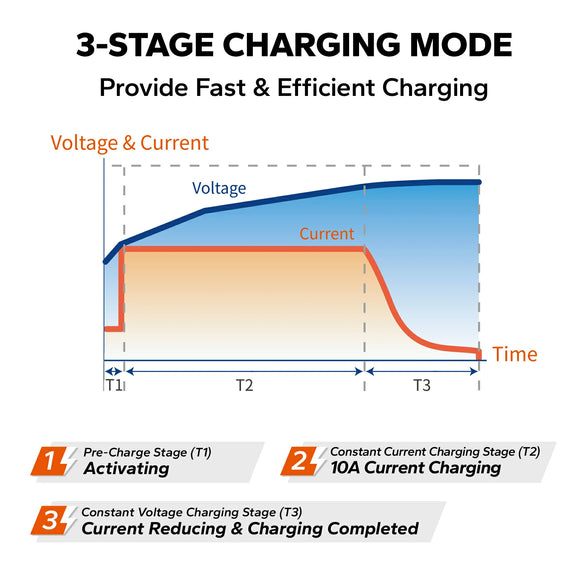

Fast & Efficient Charging Stage with Battery Activation Function

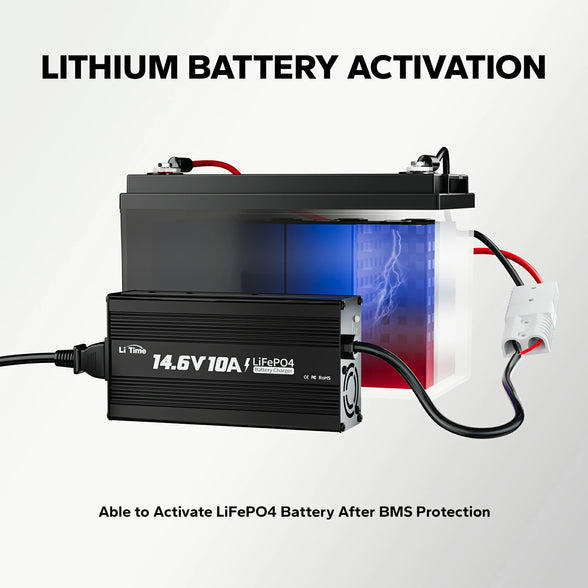

3-Stage charging function can identify battery voltage and automatically switch charging mode, providing fast and efficient charging. When you need to activate your lithium battery after BMS protection, just connect the charger to your battery for charging and the battery will be wake up or activate after 3 seconds.
How to Charge 12V Battery

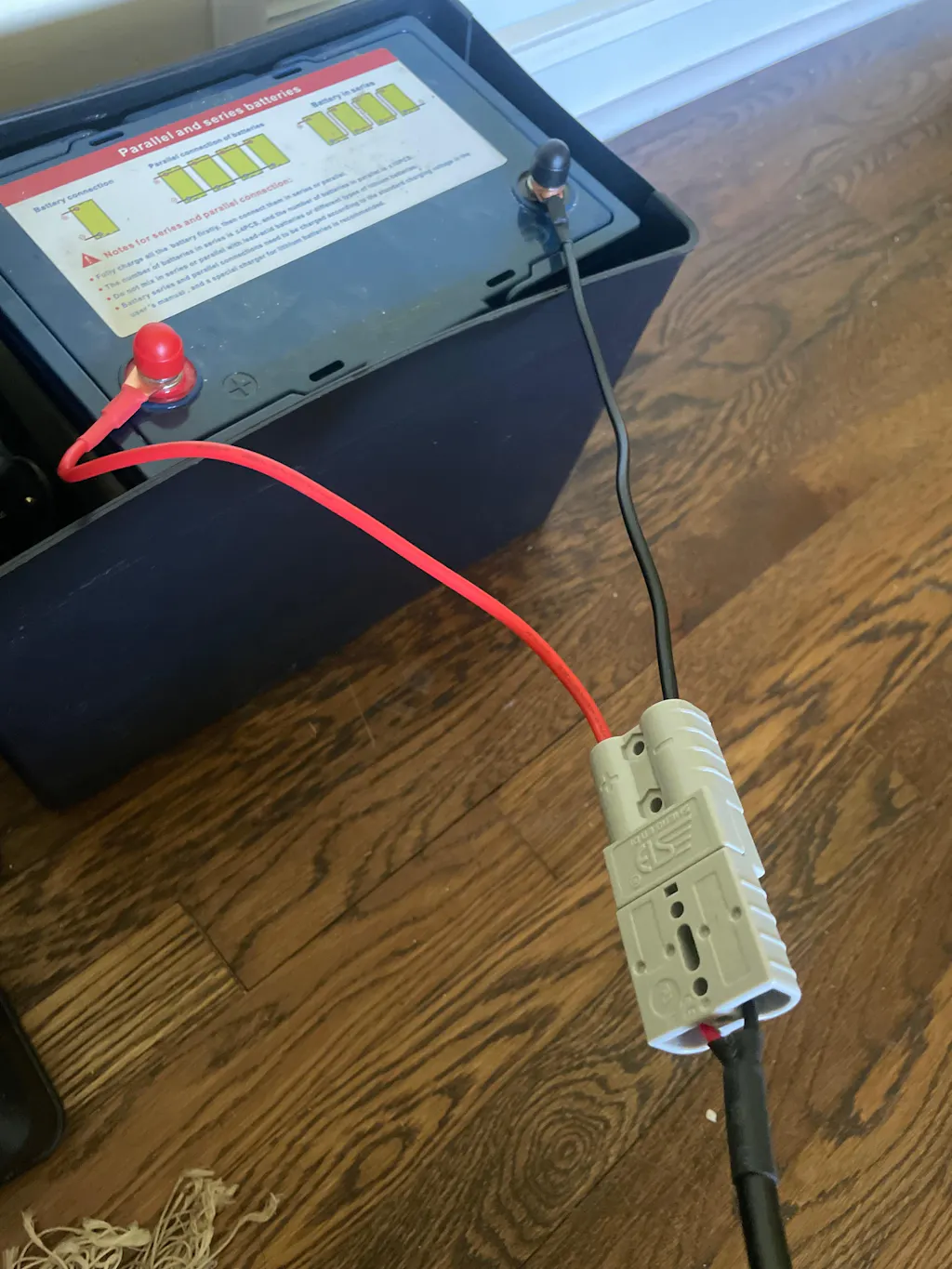

Using LiTime LiFePO4 battery charger is easy and safe for you. First, connect the DC output cable to the battery, making sure their positive and negative connection isn't reversed. Secondly, plug your AC input into the outlet. Lastly, connect the Anderson connector.
SPECS
BASIC
Charger Type：
LiFePO4
Output Voltage：
14.6V
Output Current：
10A
Max Input Current：
5A
Input Voltage Range：
AC 100V to 240V; 50Hz to 60Hz
LED Indicator：
√
PROTECTION
Over Temperature：
√
Output Short-Circuit：
√
Reverse Polarity Connection：
√
Output Over-Voltage：
√
TEMPERATURE
Operating：
-4℉ ~ 104℉
Storage：
-40℉ ~ 158℉
OTHERS
Size：
L7.09*W3.58*H2.03 inch
Approx. Weight：
2.07 lbs (0.94kg)
Warranty：
2 Years
Certifications：
CE, RoHS
Anderson Connector：
50A/M8 Terminal
Input Cable：
47.24 inch
Output Cable：
57.08 inch (Include 9.84 inch Anderson Extension Cable)
FAQ
Q: What charger should I use for LiFePO4 battery?
A:
For a complete charge of a 12V LiFePO4 battery, a charger with a voltage ranging of 14.4V±0.2V is necessary. If a charger with a lower voltage is used, it can still charge the battery, but it won't reach full 100% capacity.
Q: Can I charge a LiFePO4 battery with a trickle charger?
A:
Trickle charging is not acceptable for lithium batteries. Charging a LiFePO4 battery with a trickle charger not designed for this type of battery could lead to overcharging or damage due to the different charging requirements of lithium batteries compared to traditional lead-acid batteries.
Q: How long does it take to charge a 12V 100Ah LiFePO4 lithium battery?
A:The 14.6V 10Ah LiFePO4 battery charger is designed to charge LiFePO4 batteries. The low resistance in the Lithium cells allow the battery to accept the full output from the charger. With a constant 10A current, it takes around 100Ah/10A=10hrs to fully charge a 12V 100Ah LiFePO4 lithium battery.
Q: Is it OK to leave a LiFePO4 lithium battery on the charger?
A:
Leaving a lithium-ion battery on the charger overnight should be safe if the charger is set with the correct voltage limit for the type of lithium-ion battery being used. For instance, with a LiFePO4 cell like the one used in LiTime Battery (with a nominal voltage of 12.8V and a fully charged voltage of 14.6v), using a charger with a 14.4-14.6V CC/CV output should work, provided it doesn't exceed roughly a 1C maximum current output. By following the CC/CV profile, ensuring the voltage is correct, and the current isn't excessive, you can safely achieve a full charge for your battery.
Q: How fast will my battery charge?
A:
To determine your charging speed, take the amp hour rating of your battery and divide it by the output current of your charger. For example, a 100 amp hour battery (Ah) would charge in 100AH/10A=10 hours with a 14.6V 10A LiFePO4 lithium battery charger.
Q: Can I charge my LiFePO4 lithium battery faster?
A:For most applications, a charging time of 3-10 hours provides the longest lifespan for your LiFePO4 lithium battery. But if you have an application where you need rapid charging, you can choose a charger with a higher output current. For example, you could use a 40 amp charger with a 100Ah battery for a 2.5-hour charge time.
Q: What voltage should LiFePO4 lithium batteries be charged at?
A:
It depends on the voltages of your LiFePO4 lithium batteries. LiTime 14.6 volts charger is recommended for 12V LiFePO4 lithium batteries. And LiTime 29.2 volt charger is recommended for 24V LiFePO4 lithium batteries.
Q: How to choose the right charger for my LiFePO4 lithium battery?
A:It is always important to match your charger to deliver the correct current and voltage for the LiFePO4 lithium battery you are charging. For example, you wouldn't use a 24V charger to charge a 12V LiFePO4 lithium battery. It's also recommended that you use a charger matched to your battery chemistry. Additionally, when charging a LiFePO4 lithium battery with a normal lead-acid charger, you would want to ensure that the charger does not have a desulfation mode or a dead battery mode.
REVIEWS
R

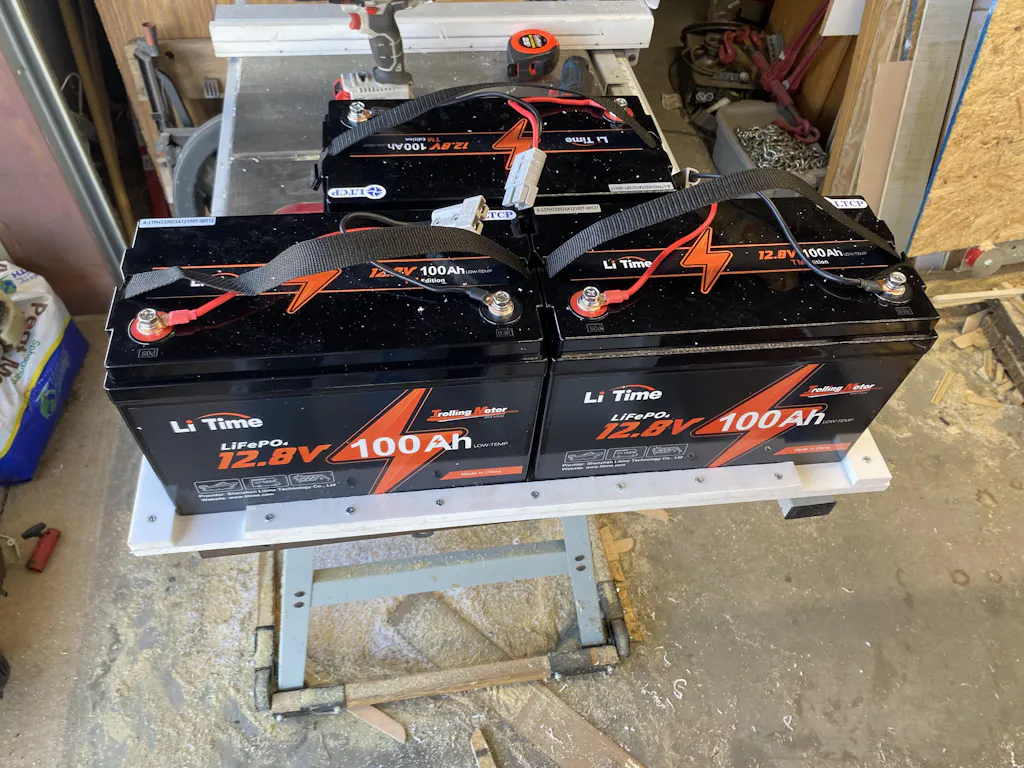

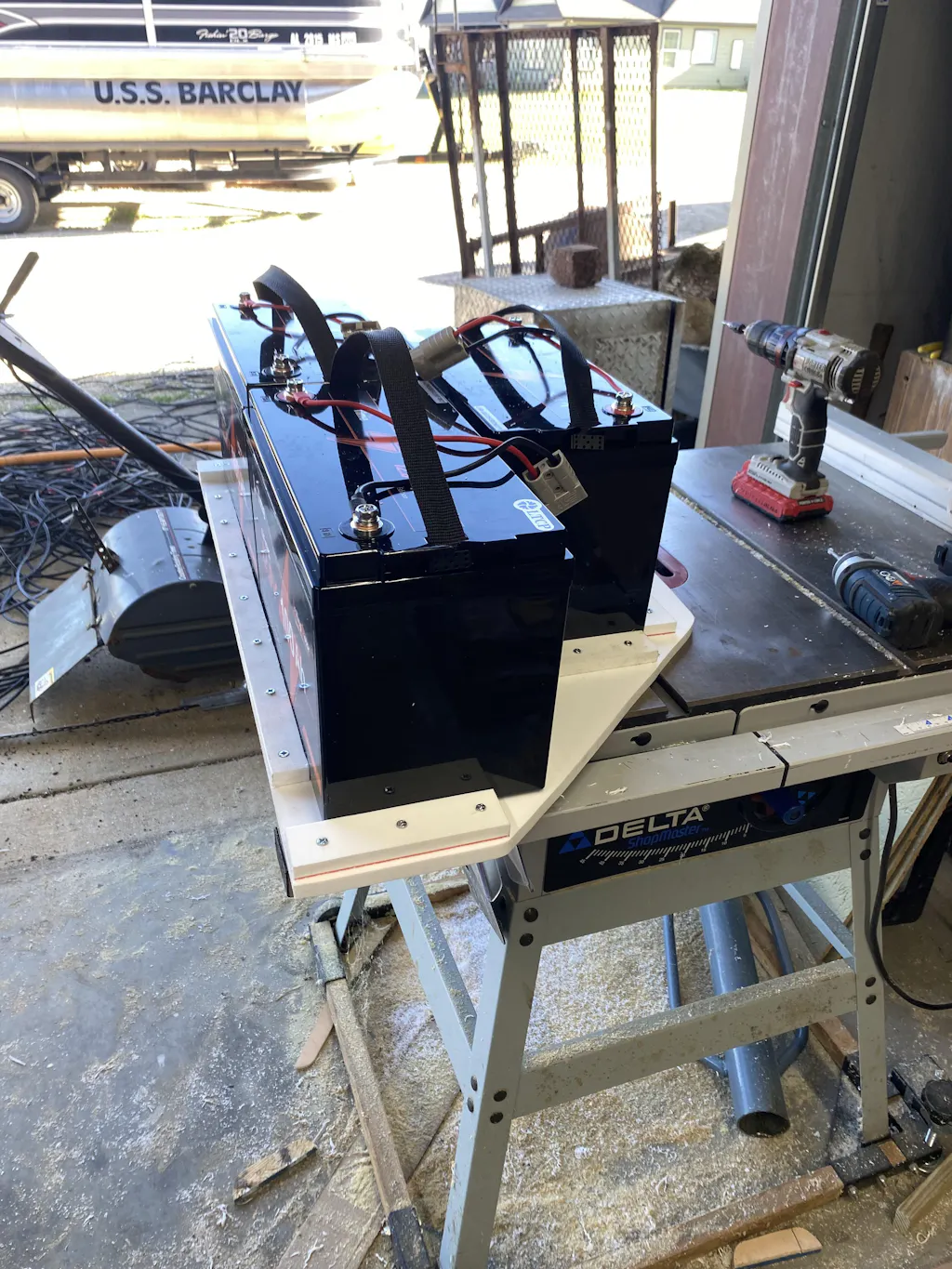

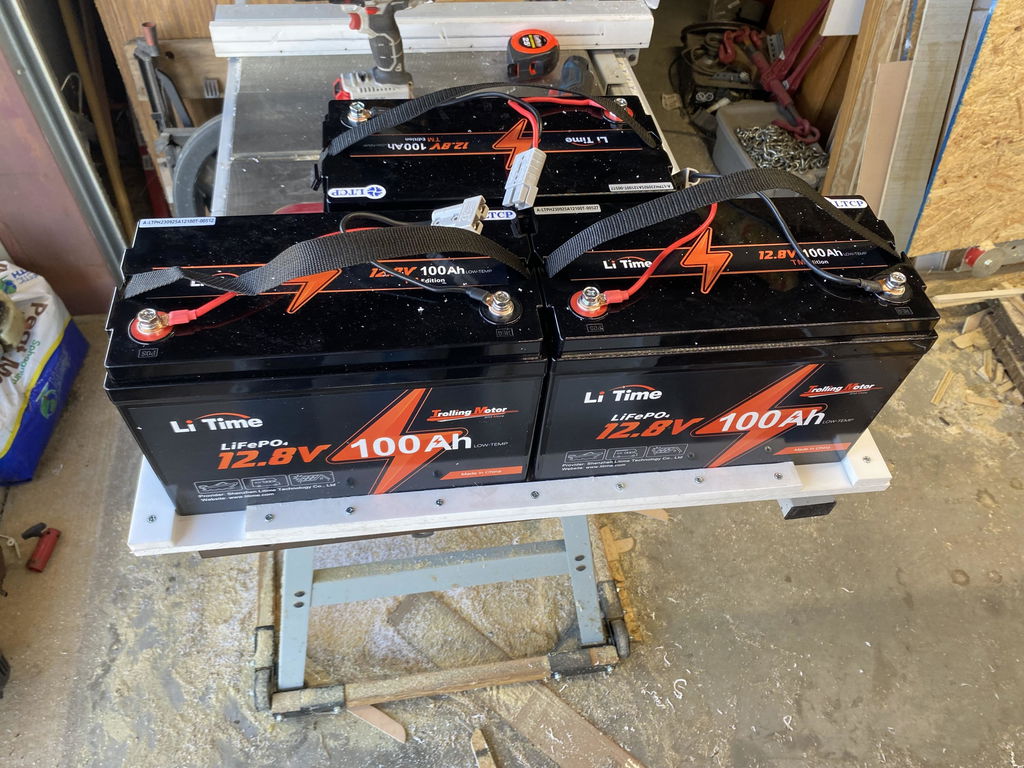

So far everything is great quick shipping arrived fast and on time with no problems got three batteries and three chargers for under 1000 could not beat anywhere else for hundred amp per hour very pleased
E

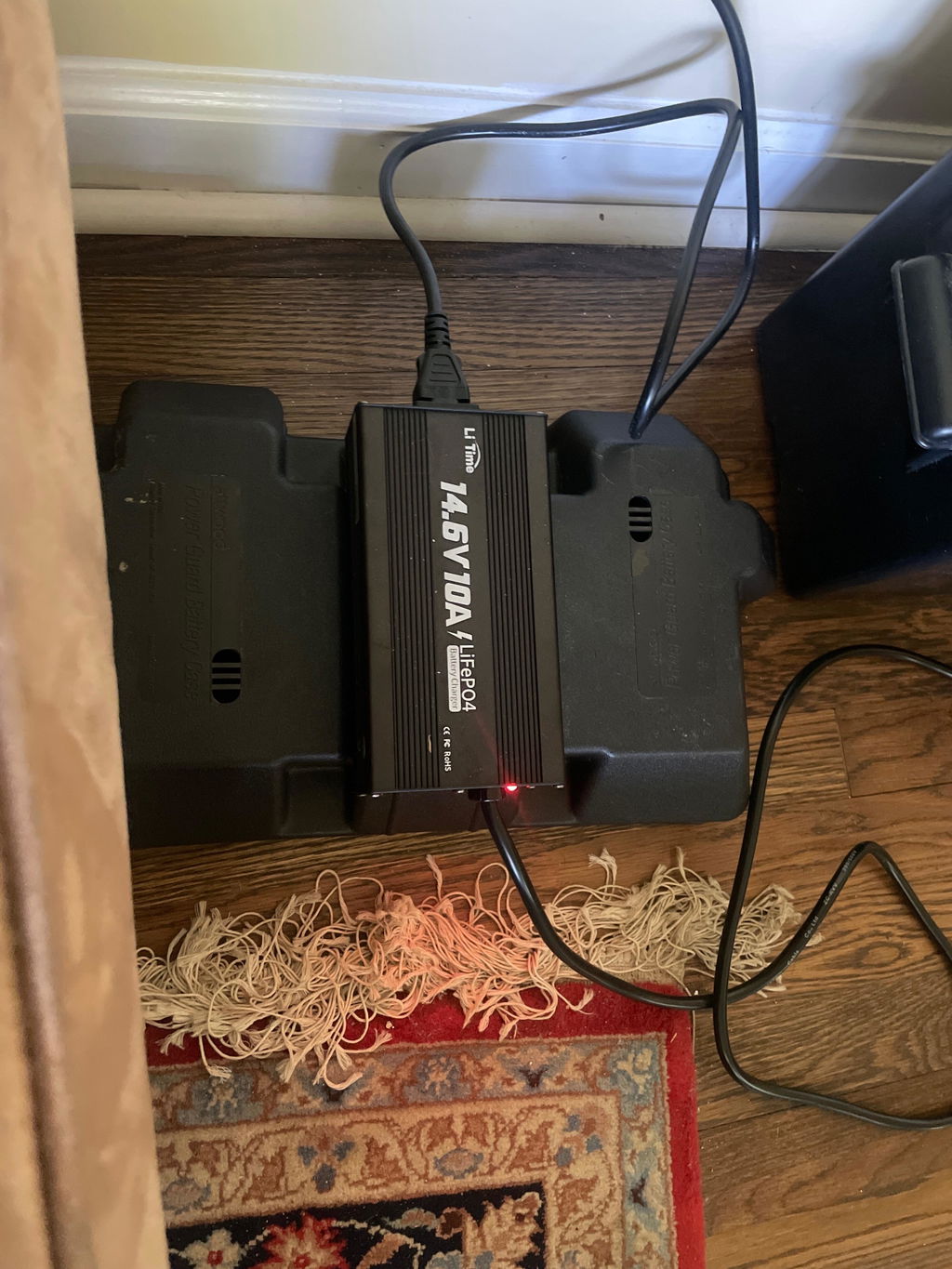

It works as advertised. Haven't had a problem with it so far.
J

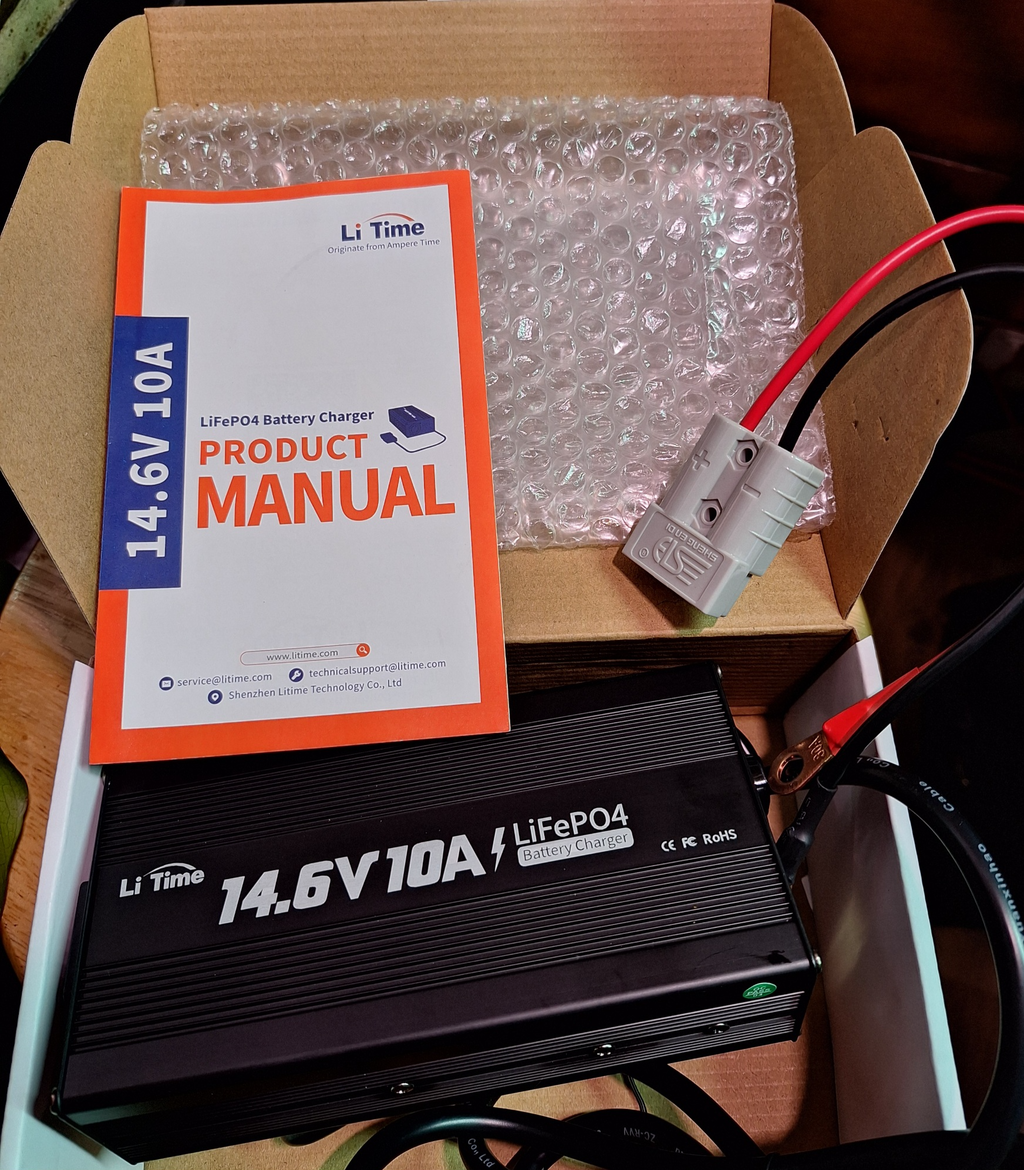

It works perfectly
C
Outstanding quality at a very reasonable price. Lithium is the only way to go on the water
F
It does what it should do
