LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery

Safe & Reliable 24V Lithium Battery

-5120Wh High Energy, 5120W Output Power
-BCI Group 8D Size
-1/3 the Weight of a 24V 200Ah Lead-acid Battery
-EV Grade-A Cells, Over 4000+ deep cycles @100%DOD (10+ Years Lifespan)
-Reliable 200A BMS Provides All-round Protections
-Max. 4P2S (40.96kWh Energy)
-61Wh/lbs of High Energy Density
-Excellent 3% Self-discharge Rate
-Suitable for Marine/Off-grid/Solar System/Trolling Motor
-Clean & Non-toxic
-Simple wiring Connection, Perfectly Replace 4* 12V 100Ah LiFePO4 batteries in series/parallel
-4 Flexible Charging Ways (LiFePO4 charger/solar panel/alternator/generator)
-IP65 Waterproof
-Free Maintenance, Lower TCO (total cost of ownership)
-DO NOT use as Starter Battery

$1,129.99; ~~$1,799.99~~; $1,129.99
Unit price: per

Please hurry! Only 32 left in stock

Size: 1 Pack 24V 200Ah 1 Pack 24V 200Ah 2 Pack ($1118.69 /each)

Product variants

Quantity:

Subtotal: $1,129.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

5 Years Warranty

Backed up by technical support within 24hrs.

Free Returns

30 Days Hassle Free Returns

LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery

~~$1,799.99~~ $1,129.99

Choose Options

Quantity:

LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery

~~$1,799.99~~ $1,129.99

Size: 1 Pack 24V 200Ah 1 Pack 24V 200Ah 2 Pack ($1118.69 /each)

Product variants

Frequently Bought Together

LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery

$1,799.99 $1,129.99

Choose Options

litime 24V 230Ah LiFePO4 Lithium Battery 1600

LiTime 24V 230Ah Deep Cycle LiFePO4 Lithium Trolling Motor Battery

$2,199.99 $1,169.99

Choose Options

LiTime 24V 3000W Pure Sine Wave Solar Inverter Charger

$819.99 $499.99

LiTime 24 (29.2) Volt 20A Mountable Lithium Battery Charger

$199.99 $139.99

Price Total: $0.00

FEATURES
SPECS
FAQ
REVIEWS

Safe & Reliable Lithium Battery

LiTime 24V 200Ah LiFePO4 batteries have exceptional quality for their EV Grade-A LiFePO4 Cells with UL1973, FCC, CE, RoHS and UN38.3 certificated, which have a higher energy density, less size and weight, greater power, and excellent stable performance.

Super Longevity Offers the Best Value

LiTime 24V 200Ah lithium battery can run 4000~15000 cycles, which is over 8 times Lead Acid batteries. This battery can reach 100% SOC&DOD and has an over 10-year lifespan, three times longer than the Lead Acid batteries. LiTime lithium batteries offer you the nicest price and cost-effectiveness.

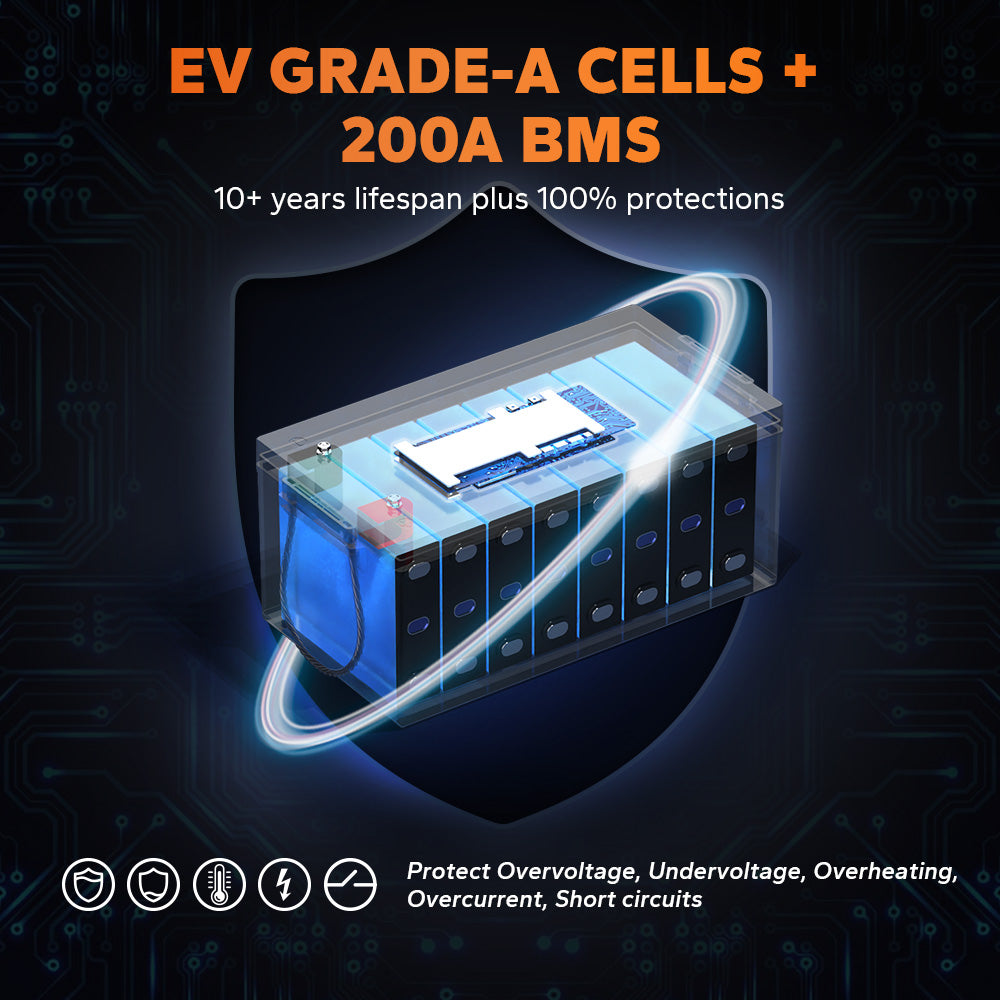

200A BMS Ensures the Safety & Longevity of batteries

The built-in 200A BMS protects the LiFePO4 battery from potential risks for long-term use. This reliable BMS has protections against over-voltage, under-voltage, overheating, over-current, and short circuit. 3% ultra-low self-discharge rate per month makes it longer-lasting. Feel comfort and peace of mind when using it anytime and anywhere.

One-step energy juice facilitates your life.

LiTime 24V 200Ah LiFePO4 Lithium Battery weighs 83 lbs, only 1/3 the weight of two 12V 200Ah lead-acid batteries. Another advantage you can't ignore is its simple wiring connection. You don't need to connect 4* 12V 100Ah batteries in series/parallel to get a 24V 200Ah battery bank.

Power Your World with LiTime

With 5120Wh higher energy, a 24V 200Ah lithium battery equals two 24V 100Ah lithium batteries. Perfect for which requires higher power and longer battery runtime applications. Our 24V 200Ah lithium batteries can power your trips, sudden electricity shortfalls, off-grid and boat-fishing.

51.2V 800Ah Battery Banck

It is allowed to be expanded to a Max 4P2S as a 51.2V 800Ah battery system with around 41kWh energy to meet all your needs.

Your Convenient Juice Station

The durable yet powerful LiTime battery provides reliable power for Marine/Off-grid/Solar Systems. Plus, the IP65 level waterproof case with two solid handles on both sides, making you feel comfortable when using it indoors or outdoors

4 Fast Flexible Charging

LiTime battery has faster-charging efficiency than lead-acid and supports various quick charge options for continuous high performance. Without memory effect, you can charge the battery via a LiFePO4 charger, solar panel, alternator and generator partially or fully at anytime.

Excellent Service

SPECS

BATTERY

Cell Type：

LiFePO4 Prismatic

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

25.6V

Rated Capacity：

200Ah

Energy：

5120Wh

Max. Expansion (Parallel & Series)：

4P2S

Internal Resistance：

≤40mΩ

Certifications：

UL, FCC, CE, RoHS, UN38.3

BMS

BMS：

200A

Max. Continuous Output Power：

5120W

Max. Continuous Charge Current：

200A

Max. Continuous Discharge Current：

200A

Max. Discharge Current 5 Seconds：

400A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

28.8V ± 0.4V

Recommend Charge Current：

40A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

OTHERS

Terminals：

M8 bolts

Weight Approx.：

82.67 lbs

Size：

L20.47*W10.59*H8.66 inch (group 8D size)

Housing Material：

ABS

Protection Class：

IP65

FAQ

Q: Are LiTime LiFePO4 batteries safe?

Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are certificated by UL, FCC, CE, RoHS, and UN38.3 to ensure their quality and safety.

All LiTime LiFePO4 batteries come with an internal Battery Management System, which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage.

Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. If you need the marine starting batteries, visit LiTime 12V 20Ah Marine Cranking or 12V 140Ah Dual Purpose battery to choose.

Read on deep cycle vs starting batteries to learn more.

Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?

Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. Here are 3 reliable ways to charge

1. Using Solar Panels

The LiTime 24V 200Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 1200W solar panels. It may take more than one day to fully charge the battery by ≥1200W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.

The Recommended Charging Voltage: 28.4V - 29.2V. The Recommended Charging Current: ① 40A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 100A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 24V battery, it is recommended to use 29.2V battery charger.

The Recommended Charging Voltage: 28.4V - 29.2V.

The Recommended Charging Current: ① 40A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 100A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

Q: What does a group 8D battery mean?

The group 8D battery is one of the largest batteries available to use. The group 8D battery dimension is about L21*W11*H10 inch. Read on Guide to Group 8D Battery to learn more.

Q: Is this 8D battery a deep cycle battery?

LiTime 24V 200Ah LiFePO4 battery is a 8d deep cycle battery, widely used in RVs, marine, home storage and off-grid.

Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

LiFePO4 batteries can safely charge between 0℃ to 50℃ / 32℉ to 122℉. LiTime cold weather batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.

It's recommended to charge the battery indoor when it's cold day.

Q: How do I store LiTime LiFePO4 lithium batteries?

It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH

Q: How many LiTime 24V 200Ah lithium Batteries can I connect at most?

The LiTime 24V batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 2 batteries in series, 4 in parallel, or 8 in the series-parallel connection.

Q: Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.

REVIEWS

Rv solar battery

So far great battery with plenty of power

24V 200 AH for my trolling motor

It is impossible to wear this battery down on a long day of trolling for Kokanee. I replaced 2 12V lead acid batteries with this battery and now i can stay on the water as long as i want. The old batteries were done in about 6-7 hours. Quite an investment but it will probably outlast the trolling motor. Very happy with the performance.

Good battery

I purchased my first battery 1 1/2 years ago. Then decided to add a second battery. Not a good plan. The old battery began to swell after 5 days. So much so the top pulled open. I contacted the seller and they offered a replacement battery. Very good customer service. I now am running 400 AH on my RV and it gives me more than enough power. Thank you.

Double the capacity of the power bank in my cargo trailer, from 5k to 10k watts. Have not given the battery the off road test yet, if it survives I will be happy, 100 miles of ruff roads should be a good test. Price for the battery was great, shipping was good.

24 volt 200AH Lithium Battery

I needed a battery that could power my 24 volt trolling motor for sustained, high-speed trolling for salmon on E-only lake. This battery has far exceeded my expectations. I recently tested this battery over 7 hours of heavy use in high winds and there was no voltage drop. The battery was also delivered quickly by LiTime. I priced other brands and LiTime was the best value. I couldn't be happier with this purchase.
