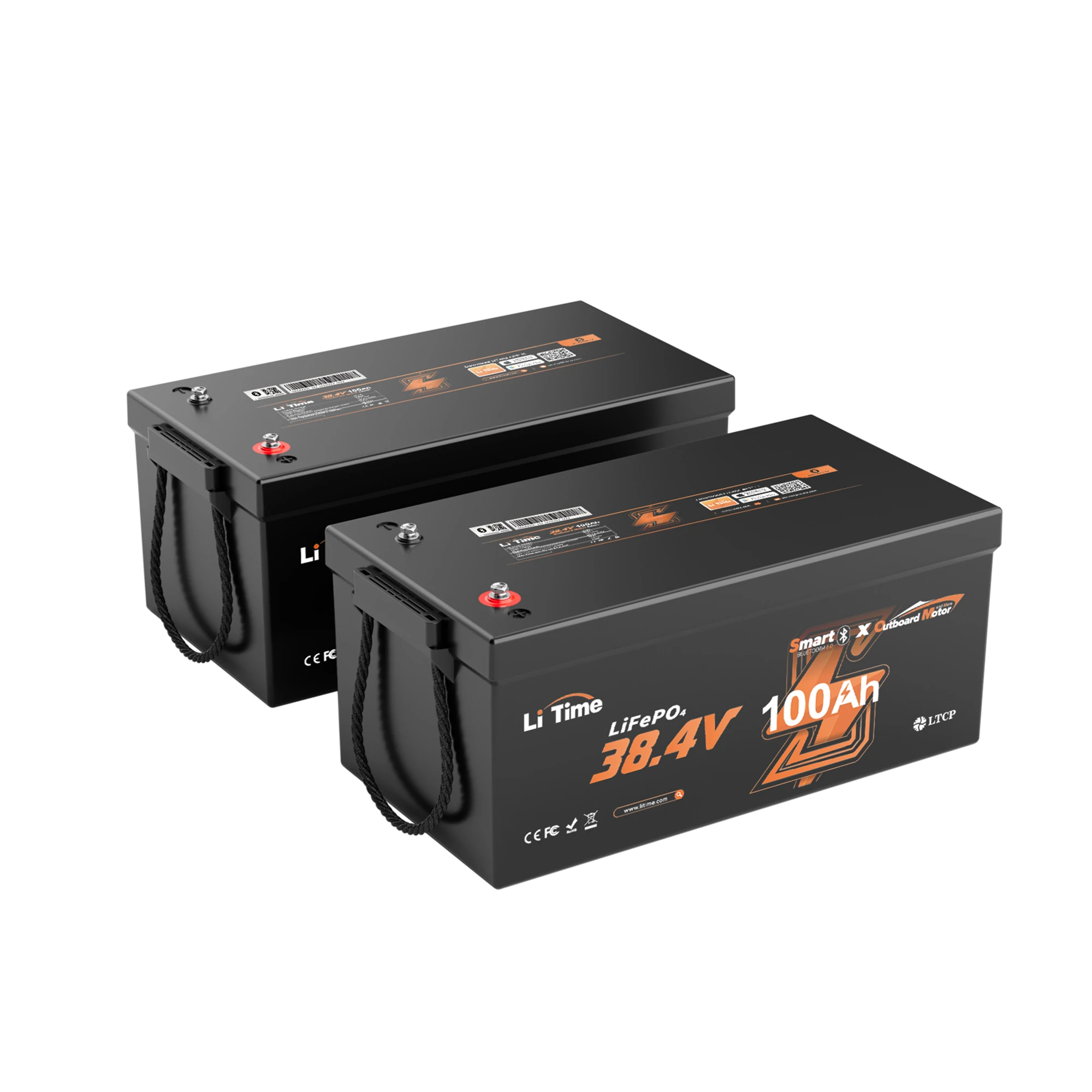

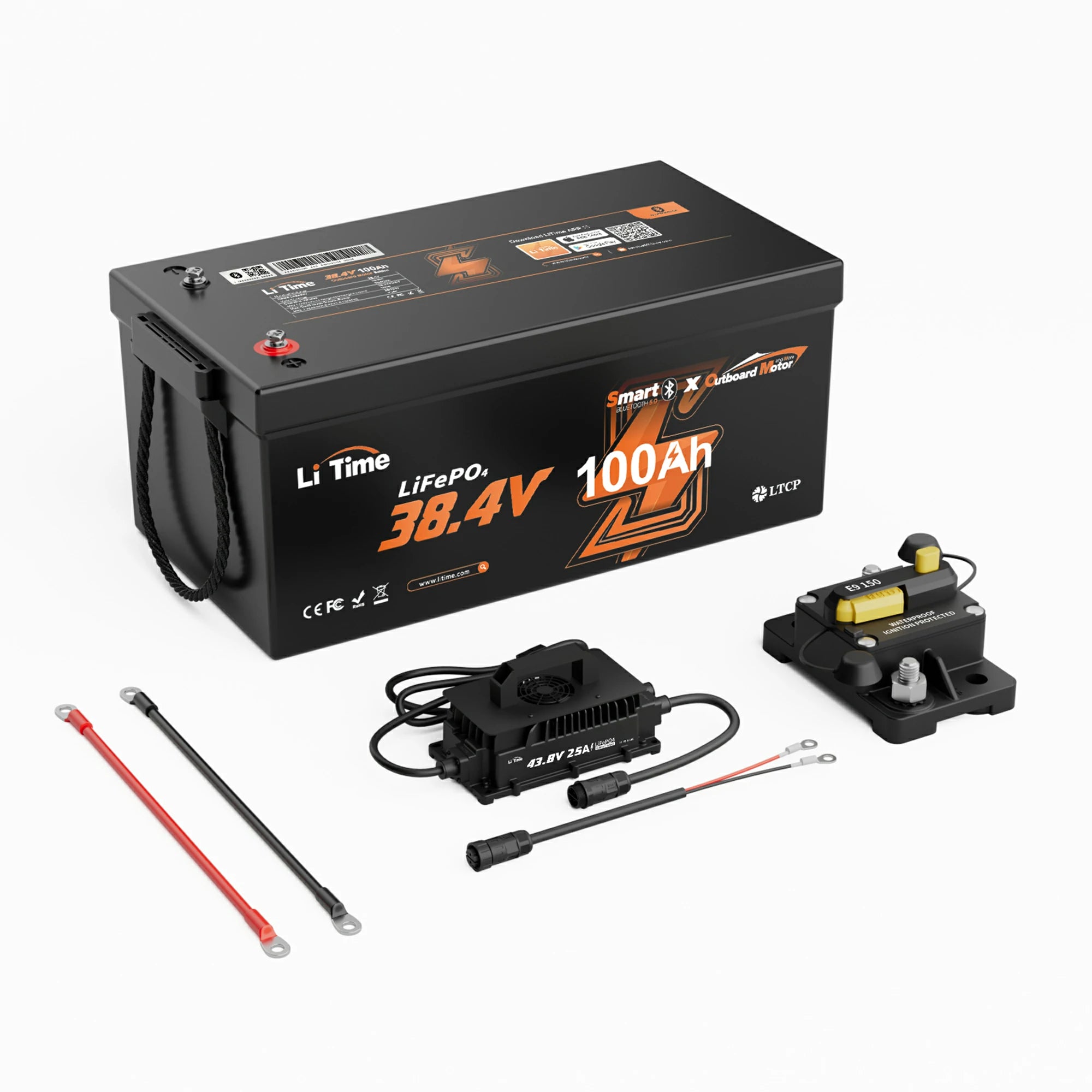

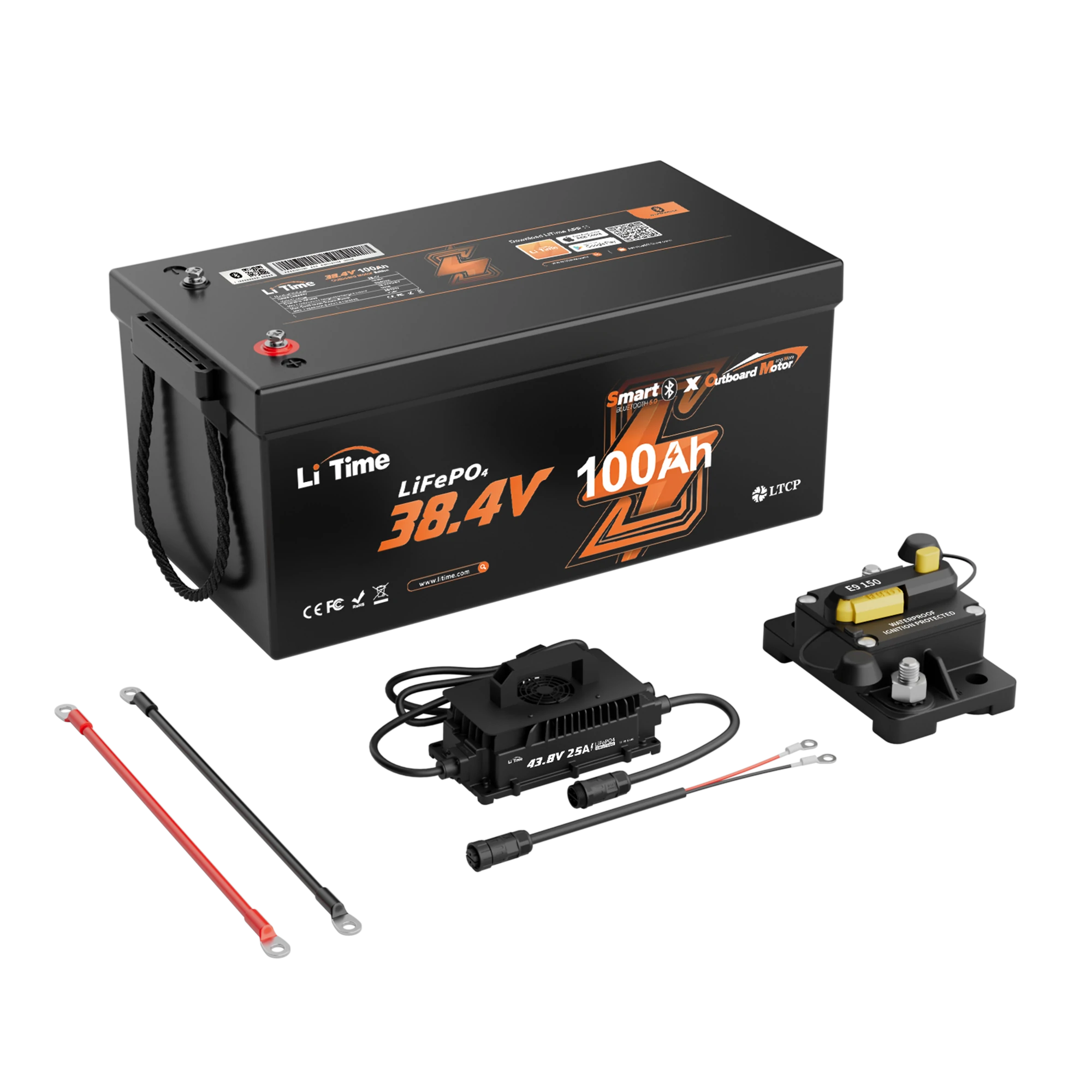

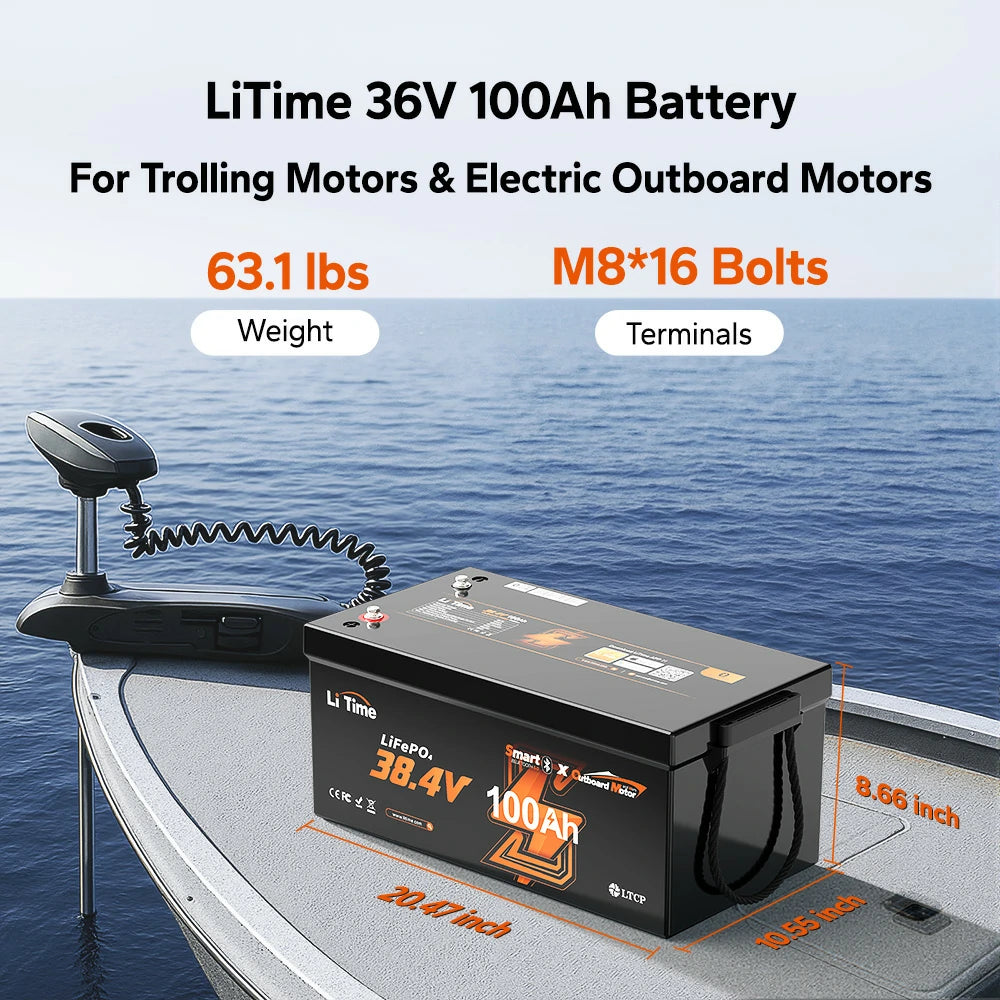

【Pre-order】LiTime 36V 100Ah OBM Outboard Motor Lithium Marine Electric Boat Battery
Ultimate LiFePO4 Battery for Electric Outboard Motors
- Born for Electric Outboard Motors:Engineered for marine excellence, LiTime OBM battery is the perfect power source for 36V & 72V electric outboard motors.
- Smart Bluetooth 5.0: auto-connection with your phone allows for smart control of discharging, real-time monitoring of battery status and data, and easy battery system checking.
- Max. 2S4P: Configure up to 2S4P to build a 72V 400Ah battery system (Max. 30.72kWh of energy), capable of operating at a continuous discharge current of up to 400A.
- Support Max. 49HP (30.72kW) Motor: 1S1P for 9HP (3840W) motor; 2S1P for 16HP (7680W) motor; 2S4P for 49HP (30720W) motor.
- High Performance BMS: supports continuous charging/discharging current of 100A, with peak performance handling 500A for 1s.
- Top EV Grade-A LiFePO4 Cells: lighter, safer, and more efficient LiFePO4 Cells, delivering 4000+ deep cycles @100% DOD.
- 100% Protections for Electric Outboard Motors: BMS is tailored for electric outboard motors, offering 20+ protections (including over-charge, over-discharge, over-current, over-temp, short-circuit protections); low-temp cut-off protection; auto-recovery after overload protection(30s); moisture & salt spray resistance; pre-charge function.
- Low-Temp Cut-Off Protection: Intelligently designed to disable charging at 0℃/32°F and discharging at -20℃/-4°F, safeguarding your battery in extreme conditions.
- 3840Wh & 3840W: one is equal to 3* 12V 100Ah lead-acid batteries.
- IP65 Waterproof & Dustproof: double protection ensures reliability in marine and humid environments.
- 3 Fast Charging Ways: LiFePO4 charger/solar panels/generator (Max.1C charging).
- ABYC Official Certi.: LiTime batteries are installed to ABYC E-13 standards, fully compliant with lithium battery requirements.
- Professional Testing & Certi.: UL1973, FCC, CE, RoHS, UN38.3 Certified.
-
Unexceptional Service: fast delivery, 24-hour online service, lifetime technical support ; 5-year warranty.
- DO NOT Use as A Cranking/Starting Battery: LiTime OBM electric outboard batteries are designed for marine deep cycles, not for cranking up fuel powered outboard or dual purpose. If you want to purchase a starting battery for your fuel powered outboard, please consider LiTime 12V marine starting batteries series
- Electric Outboard Batteries Purchase Note: LiTime OBM batteries, including 12V100Ah OBM battery, are specifically built for outboard use. However, LiTime TM batteries are primarily designed for trolling motors and are not suitable for electric outboards. If you have any questions about selecting a battery for your motor, please feel free to contact us for a recommendation.
- Note: Upon initial use or after manually powering off the battery, please ensure to connect the charger to turn on the battery. Recommended LiTime 43.8V 25A charger.
30-Day Price Guarantee
- $819.99
-
$1,599.99 - $819.99
- Unit price
- per
Revolutionary 36V+ Marine Pro Battery: One Charge, Endless Power! Addresses all your boating power challenges with just one solution. Pre-sale launches -secure your upgraded adventures. Shipping on April 4th.
Please hurry! Only 0 left in stock
Subtotal:
$819.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
Experience the Future of Power with LiTime's Advanced Design & Superior Quality
LiTime innovates electric outboard motor batteries with cutting-edge technology. Featuring built-in Bluetooth and a self-developed 100A BMS offering 20+ protections, this battery supports up to 4P2S configurations for 72V motors. With a 10-year lifespan and EV Grade-A cells, it ensures long-lasting, reliable performance.

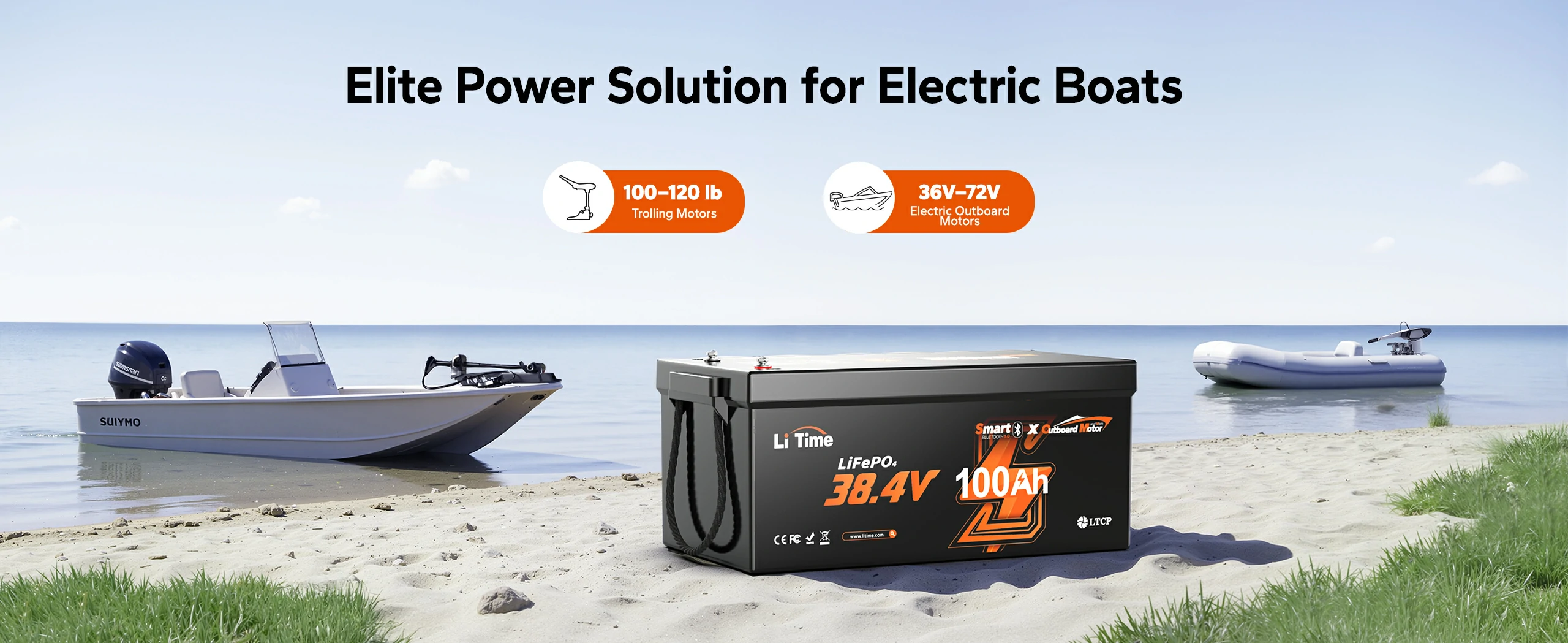

Premium LiTime 36V 100Ah OBM Lithium Marine Batteries for Electric Outboards
Engineered for durability and performance, LiTime 36V 100Ah OBM lithium battery boasts IP65 waterproof and dustproof ratings, ensuring reliability in harsh conditions. It features low-temperature cut-off protection, offering protection for battery charging and discharging. Its EV Grade-A LiFePO4 cells extend its lifespan to max.15,000 deep cycles (60% DOD). With a 3.84kW continuous load power and 3.84kWh usable power capacity, this battery is perfect for demanding marine applications. Enjoy consistent, long-lasting power on your electric outboard motor.

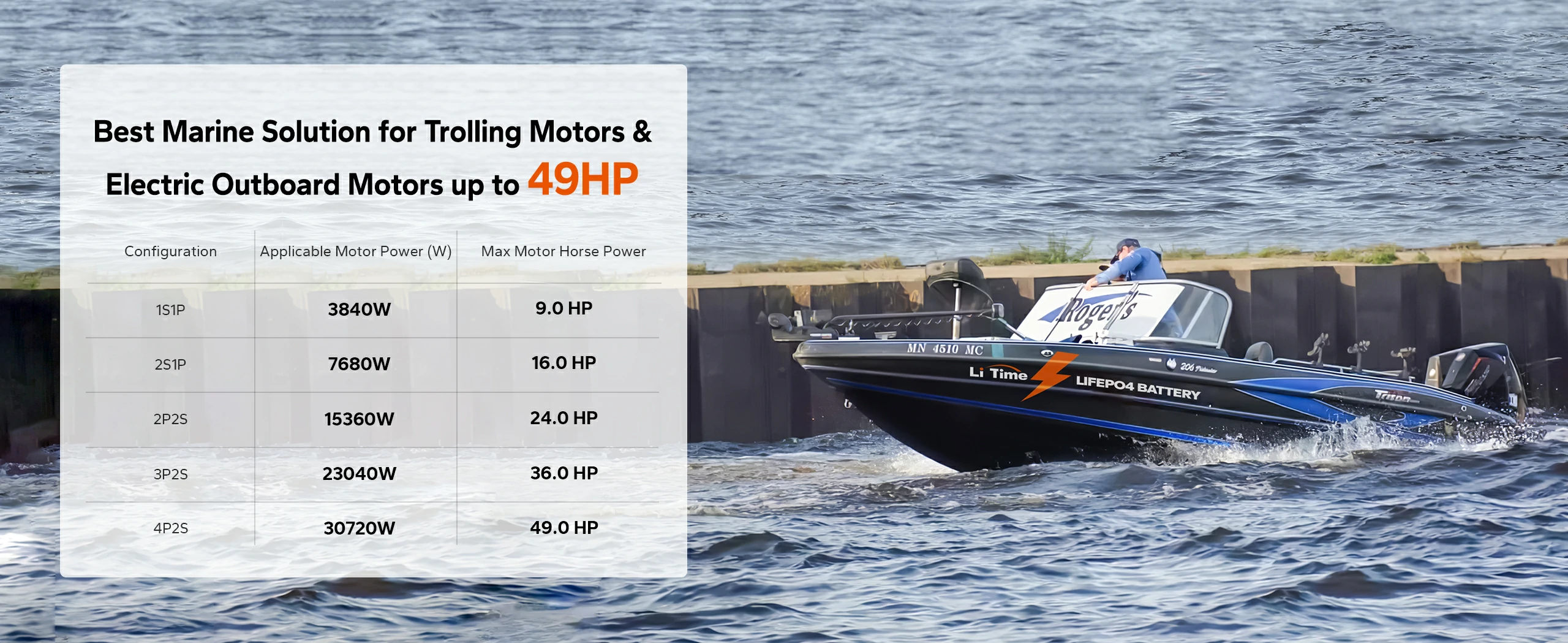

Support Max. 49HP (30.72kW) Electric Outboard Motor
Max. 2S4P: Configure up to 2S4P to build a 72V 400Ah battery system (Max. 30.72kWh of energy), capable of operating at a continuous discharge current of up to 400A. 1S1P for 9HP(3840W) motor; 2S1P for 16HP (7680W) motor; 2S4P for 49HP (30720W) motor.
Power Your On-Water Adventures and On-Ground Fun with One Solution
Power your on-water adventures and on-ground fun with the versatile LiTime 36V 100Ah OBM LiFePO4 battery. Perfect for 36V and 72V electric outboard motors, and ideal for 36V trolling motor and 72V golf carts. Enjoy long-lasting, reliable performance, making it the perfect solution for all your outdoor activities. Elevate your experience with LiTime's robust battery technology.

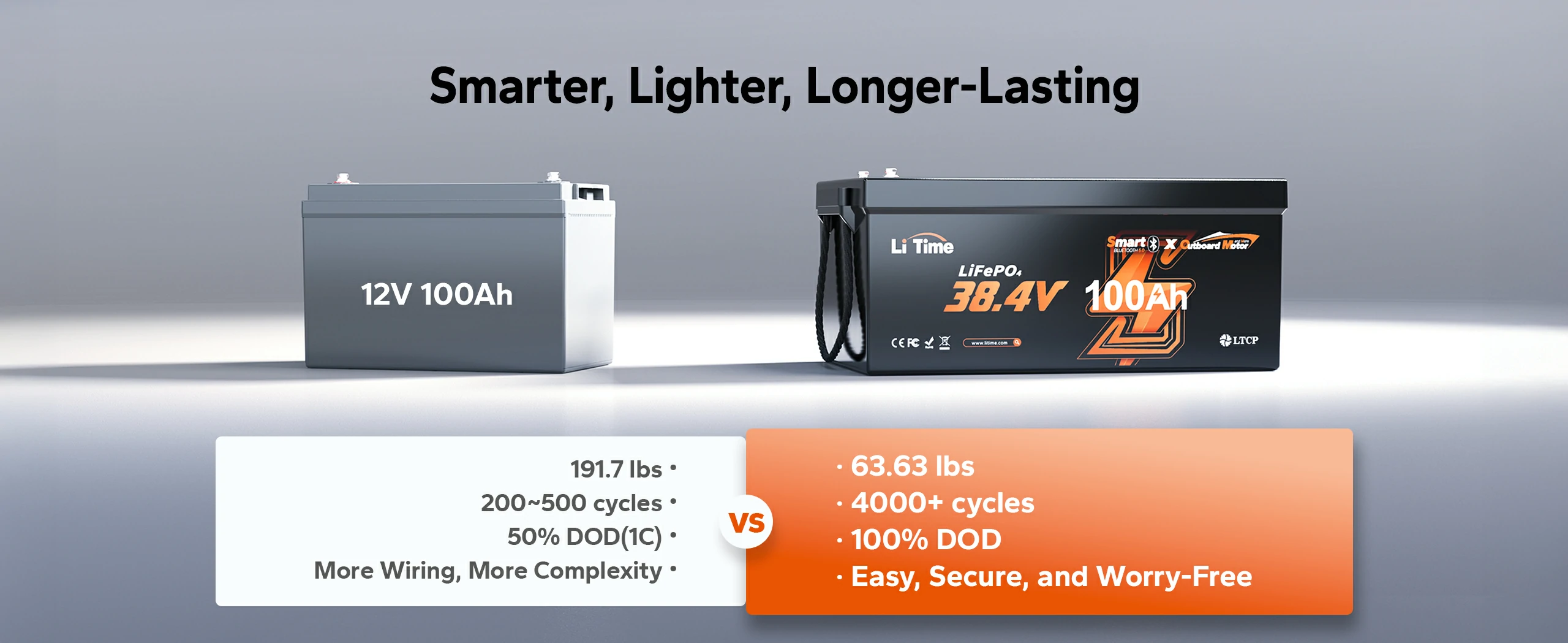

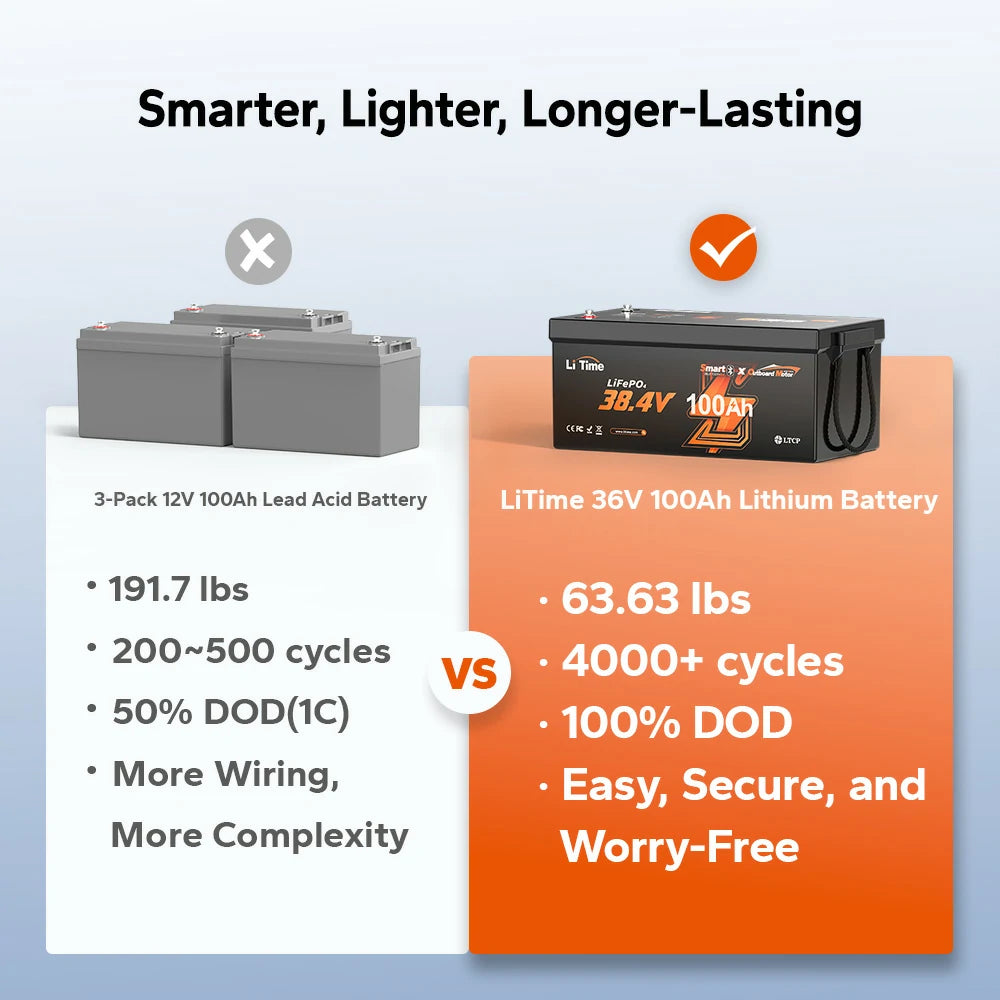

The Perfect Replacement for 36V Marine Lead-Acid Batteries
The perfect replacement for lead-acid batteries, the LiTime 36V 100Ah OBM LiFePO4 battery offers 8 times the cycles (4000-15000) and 3.3 times the lifespan (10+ years). Experience superior performance, longevity, and reliability. Upgrade to lithium power for enhanced efficiency and long-term savings. Say goodbye to frequent replacements and hello to consistent, dependable energy.

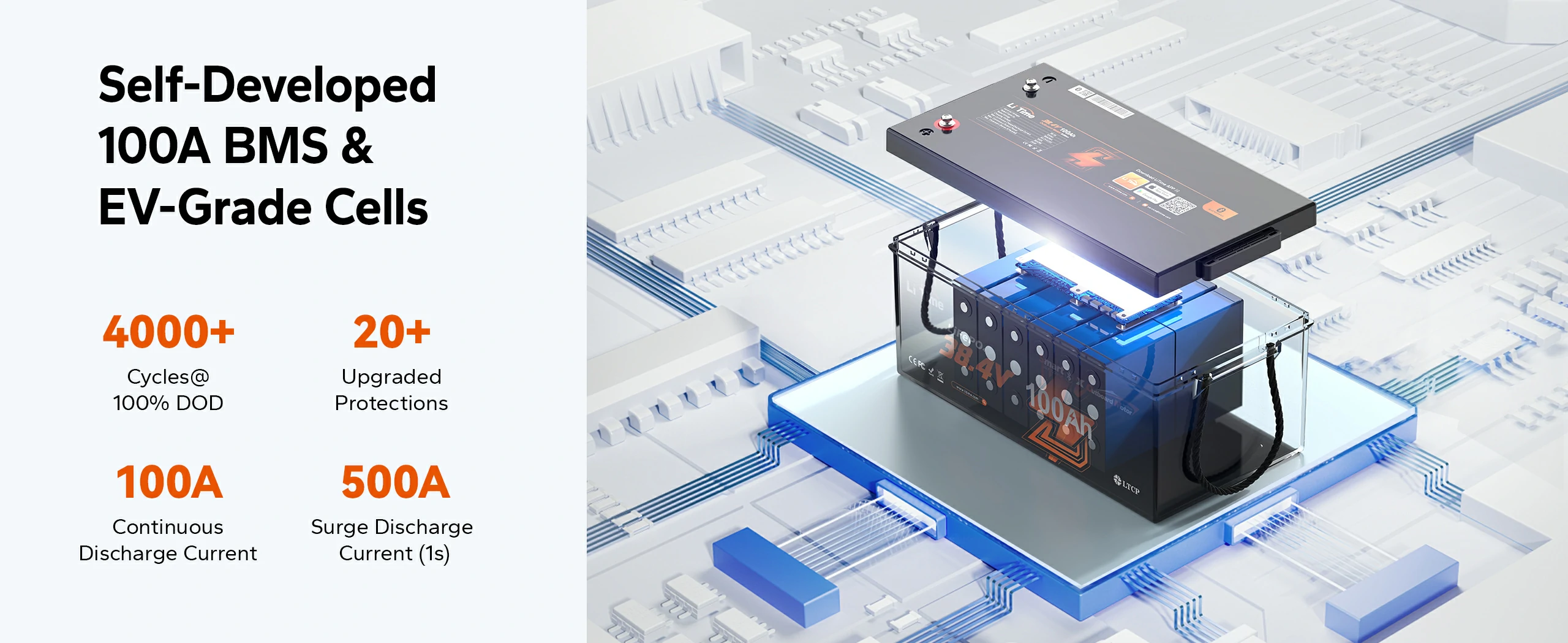

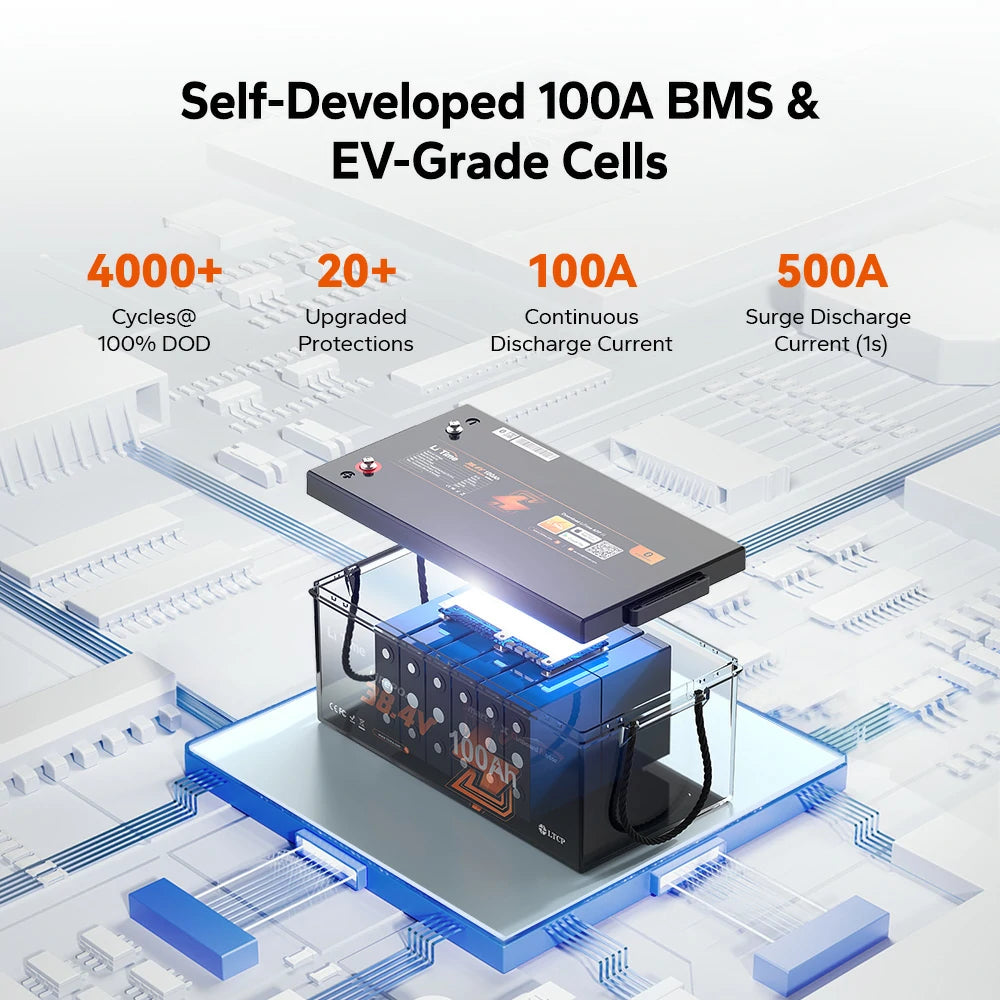

Self-Developed 100A BMS Provides 20+ Protections for Optimal Performance
Equipped with a self-developed 100A BMS, the LiTime 36V 100Ah OBM LiFePO4 battery offers 20+ protections, including over voltage, under voltage, overheating, over current, and short circuit. These safeguards ensure optimal performance, prevent damage, and extend battery lifespan. Enjoy peace of mind and reliable power with advanced BMS technology, protecting your investment and enhancing safety during use.

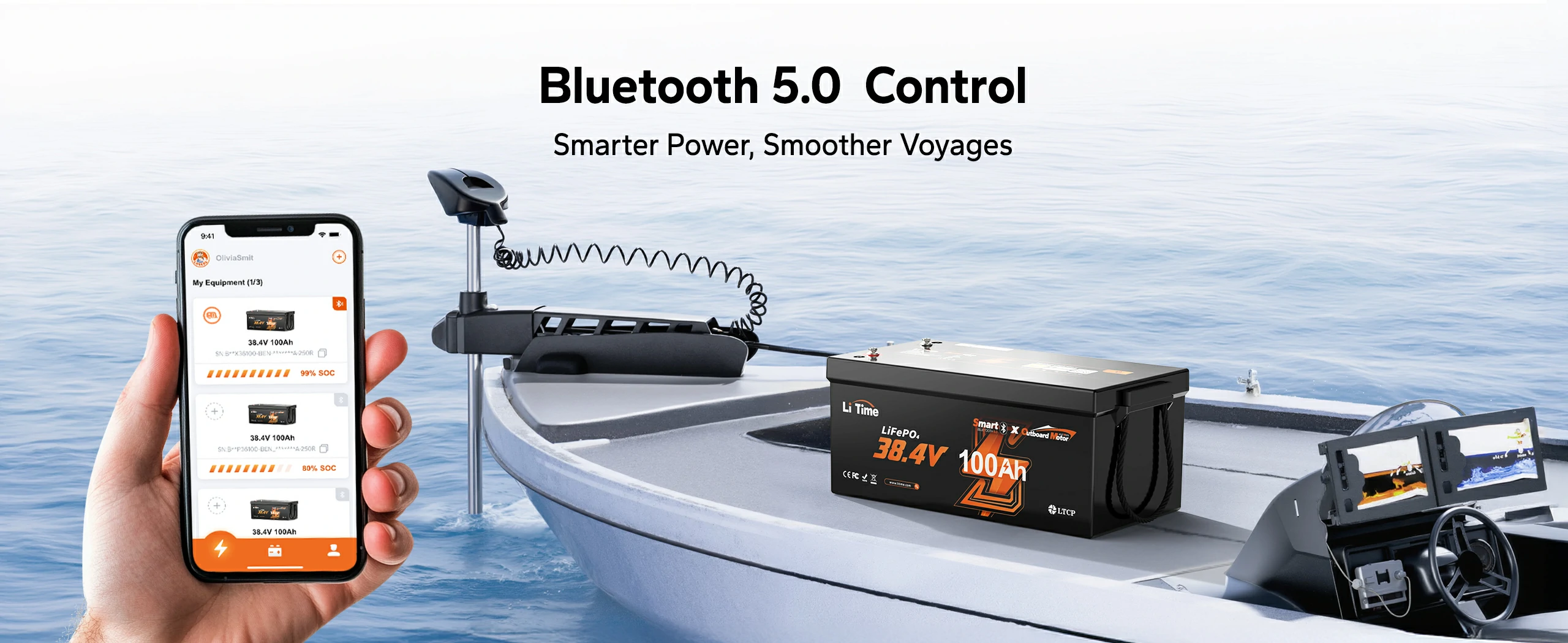

Enjoy Advanced Management with Bluetooth 5.0
Brand new and upgraded with Bluetooth 5.0, the LiTime 36V 100Ah OBM LiFePO4 battery offers unparalleled convenience. Use the LiTime App to monitor battery status (SOC, charge/discharge state, voltage, temperature, etc.), control discharging on/off, turn off the battery, and check the system with ease. With Bluetooth 5.0, you can check your battery data and status every time and everywhere with just a simple tap on your phone.

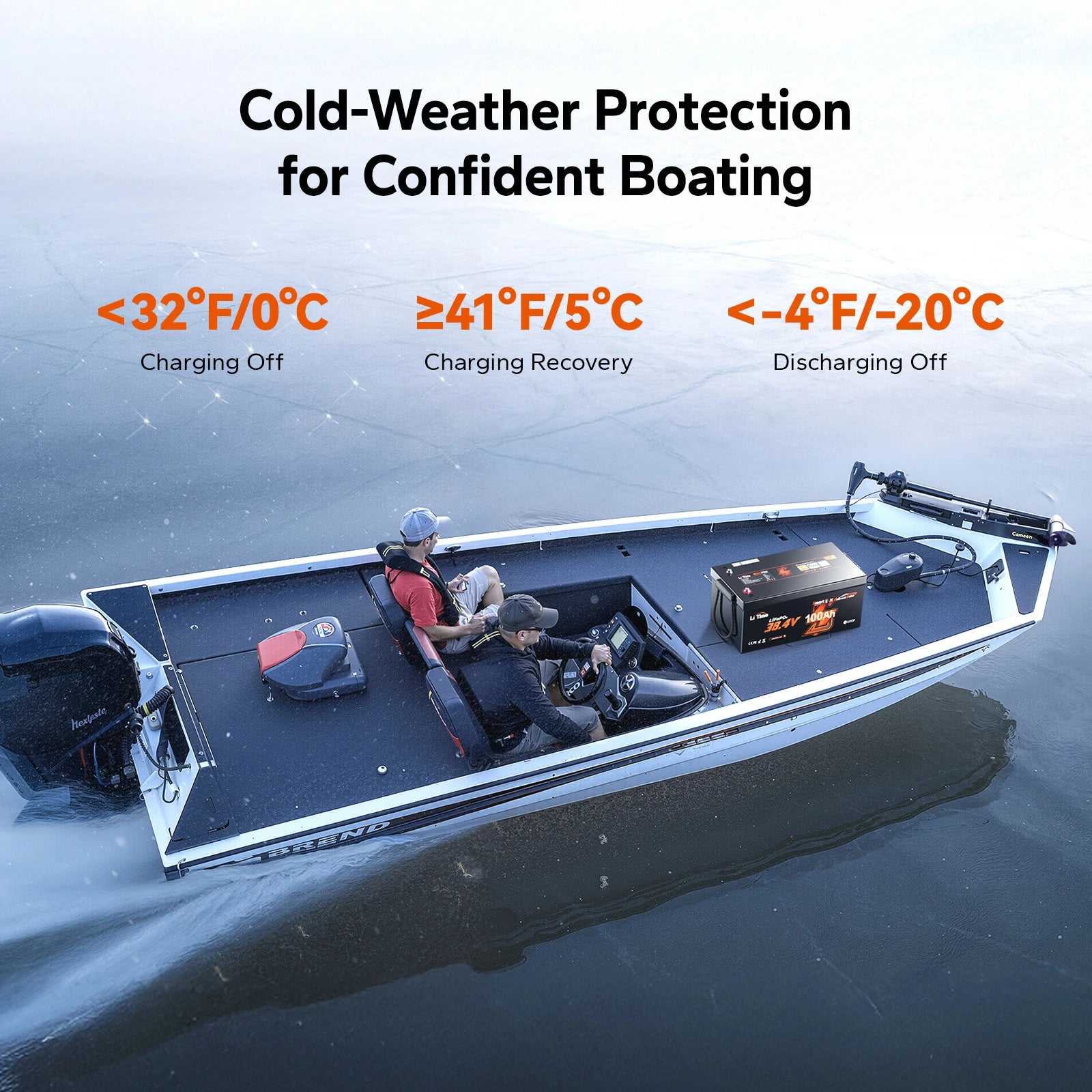

Boosting Your Electric Outboard Motors under Low-Temp
LiTime's 36V 100Ah OBM LiFePO4 battery features an intelligent BMS with low-temperature cut-off protection, ensuring safe and reliable operation. This innovative function automatically halts charging and discharging in freezing conditions, preventing damage and prolonging battery lifespan. Designed for durability and safety, it’s the perfect choice for maintaining optimal performance for your electric outboard motors even in harsh weather.
Tailored for Your Electric Outboard Motor & Golf Cart Needs
Designed specifically for 36V/72V electric outboard motors and 72V golf carts up to 5000W, the LiTime 36V 100Ah OBM LiFePO4 battery offers exceptional flexibility. Easily connect two batteries in series to support 72V motors. With the LiTime 36V OBM lithium battery powering your passion, you can rest assured that you'll enjoy your adventure whether on the water or on the ground.
3 Ways to Charge 36V 100Ah LiFePO4 Battery Efficiently

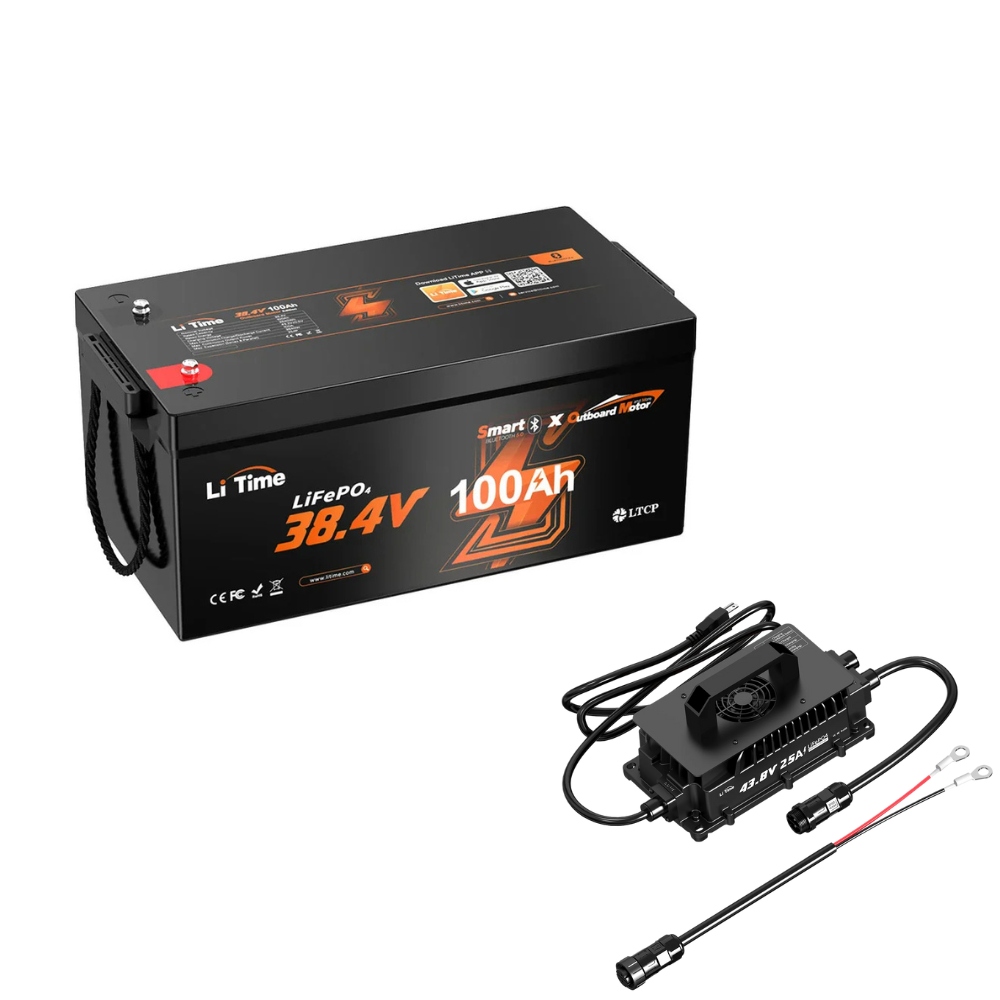

Charge your LiTime 36V 100Ah LiFePO4 battery efficiently with these 3 methods: use a 43.8V 25A charger, connect to solar panels with an MPPT controller, or utilize a 43.8V 25A AC-DC to connect the generator.
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 years
Cycle Life：
≥4000 times
Nominal Voltage：
38.4V
Rated Capacity：
100Ah
Energy：
3840Wh
Max. Expansion (Parallel & Series)：
2S4P
ABYC Official Certi.：
Yes
BMS
BMS：
100A
Max. Continuous Output Power：
3840W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
Max. Discharge Current 1 Second：
500A@1 second
CHARGE
Charge Method：
CC/CV
Charge Voltage：
43.2V±0.6V
Recommend Charge Current：
20A (0.2C)
TEMPERATURE
Charge Temperature：
0°C to 50°C/32°F to 122°F
Discharge Temperature：
-20°C to 60°C/-4°F to 140°F
Storage Temperature：
-10°C to 50°C/14°F to 122°F
Low-Temperature Protection：
Yes
Low-Temperature Charging Protection Auto Recovery：
Yes
OTHERS
Terminals：
M8
Weight Approx.：
63.63 lbs
Size：
20.47*10.59*8.66 in
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: Is this battery compatible with my electric outboard motor?
A:
Yes, the LiTime 36V 100Ah battery is compatible with most 36V electric outboard motors, including brands like ePropulsion, Torqeedo, and Newport. Please check your motor’s voltage and power requirements to ensure compatibility.
Q: Is this item suitable for gas propelled/ fuel powered outboard motors?
A:
No. Designed for electric outboards, this OBM battery powers electric outboard motors. Beyond marine, it's perfect for 36V and 72V golf cart, home storage, off-grid, etc. If you're looking for a battery for your fuel-powered outboard motors, we've introduced starting batteries to suit your needs: 12V 20Ah starting battery and 12V 140Ah dual purpose battery.
Q: What are the difference between trolling motor batteries and electric outboard motor batteries?
A:
LiTime electric outboard motor batteries are versatile, being suitable for both electric outboards and trolling motors.Conversely, LiTime trolling motor batteries are engineered specifically for trolling motors and are not suitable for electric outboards.
Electric outboard motor batteries must cater to higher current demands and more dynamic power requirements. These batteries are designed to deliver bursts of high power necessary for propulsion and rapid acceleration, in addition to sustaining prolonged periods of operation. LiTime 36V 100Ah OBM lithium marine battery support 500A/1s surge discharge current, which ensures the battery able to withstand high current at start-up. Moreover, it able to discharge at 1.2 time the norminal current for 3 minutes, which much longer than those trolling motor batteries, sustaining prolonged periods of operation.
Read on Electric Outboad Motor VS Trolling Motor for more detailed information.
Q: Is this a dual purpose battery in that it performs as a starting/cranking battery but also as a deep cycle battery for electronics?
A:
No, this battery is not a dual purpose battery and can't be used as a stater battery. It is a deep cycle battery specifically for electric outboards. Our cranking/ starting batteries has launched (both marine starting battery and dual purpose battery that supports cranking/starting and deep cycles), click here to select the cranking/ starting battery or dual purpose battery you need.
Q: Will this battery avoid supplying too much voltage, current, or heat to the motor?
A:
All LiTime batteries, including this item, are provide 5 basic protections: overheat, overcurrent, overcharge, overdischarge, and short circuit protections. More than that, with LiTime newly upgraded 100A BMS, this battery provides more than 20+ protections (including the above 5 basic protections): low-temp cut-off protection, auto-recovery after overload protection (30s), pre-charge function, moisture and salt-spray resistance.
Q: How long can this battery power my electric outboard motor?
A:
Runtime depends on your motor’s power draw. For example:
- A 2000W motor (~55A draw) can run for ~1.8 hours at full throttle.
- Lower speeds significantly extend runtime.
REVIEWS
Customer Reviews
Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A

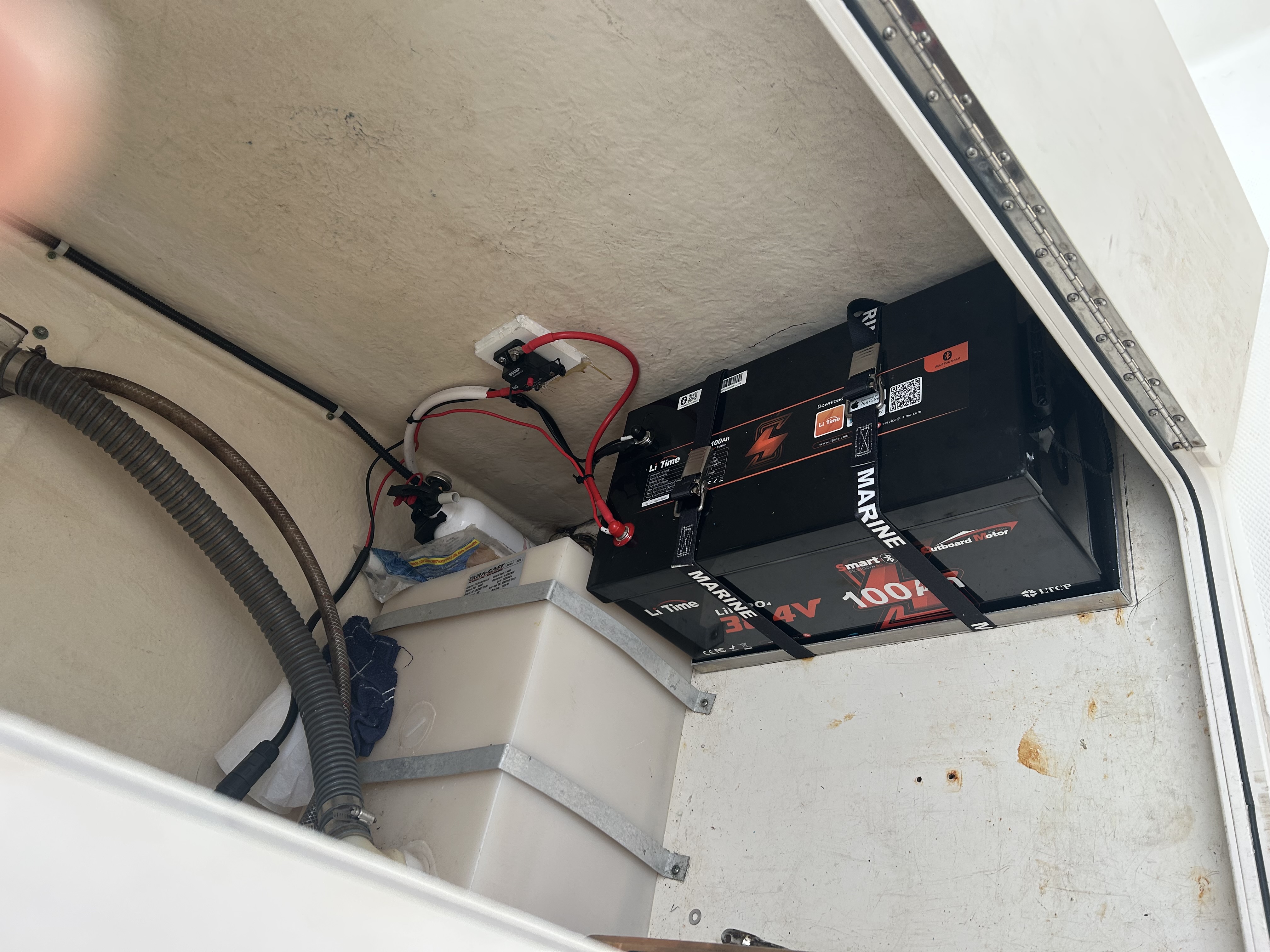

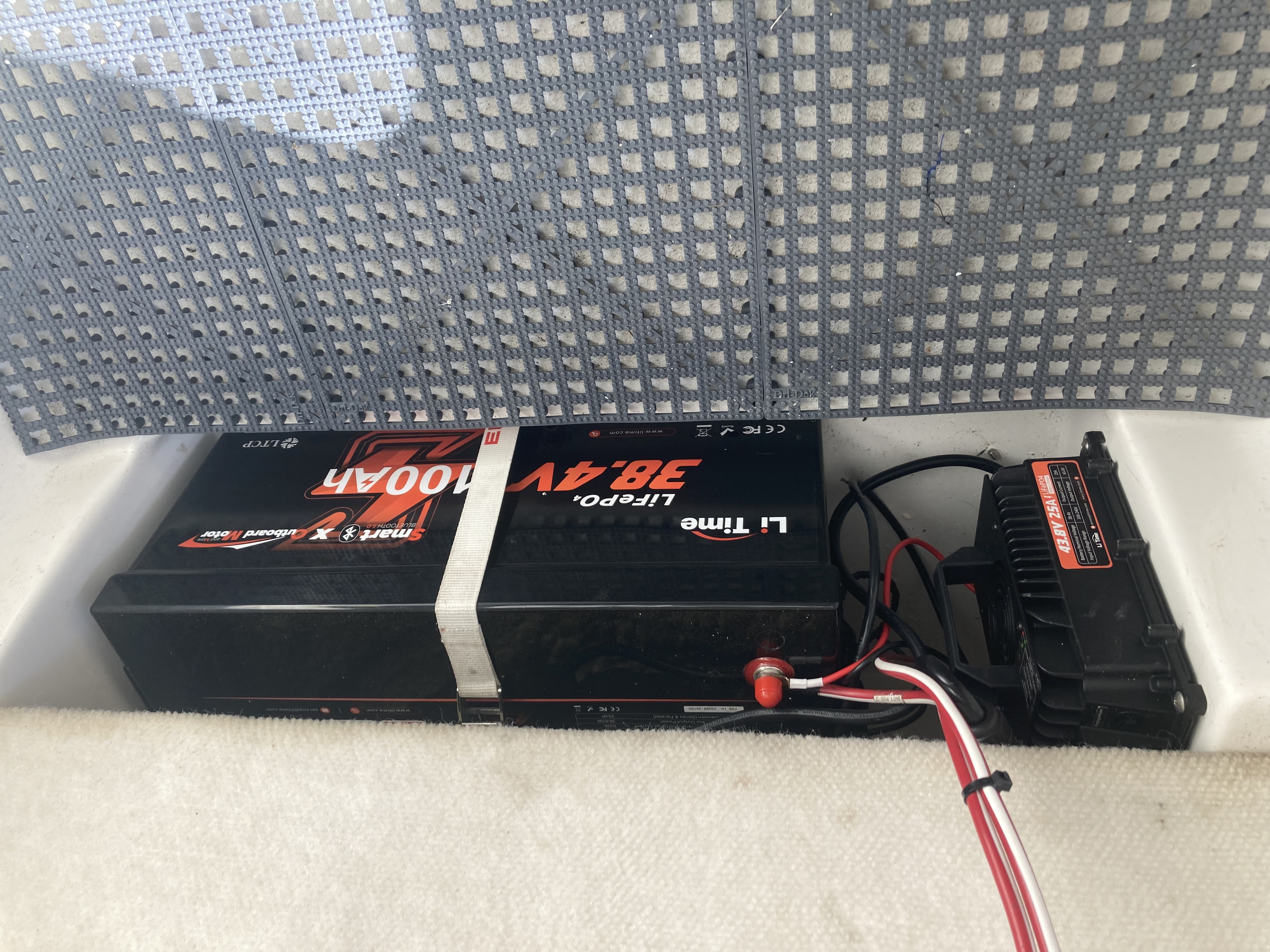

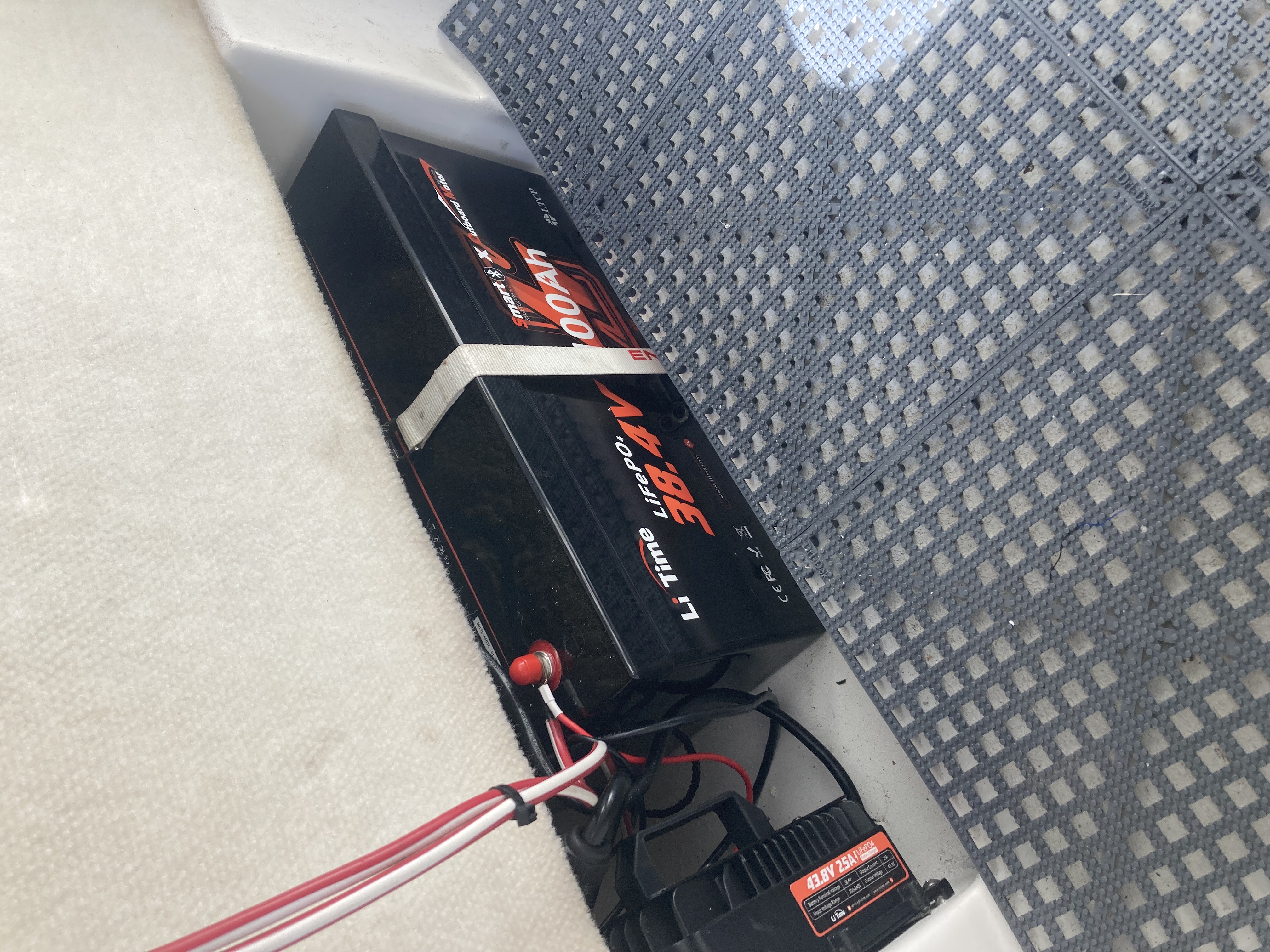

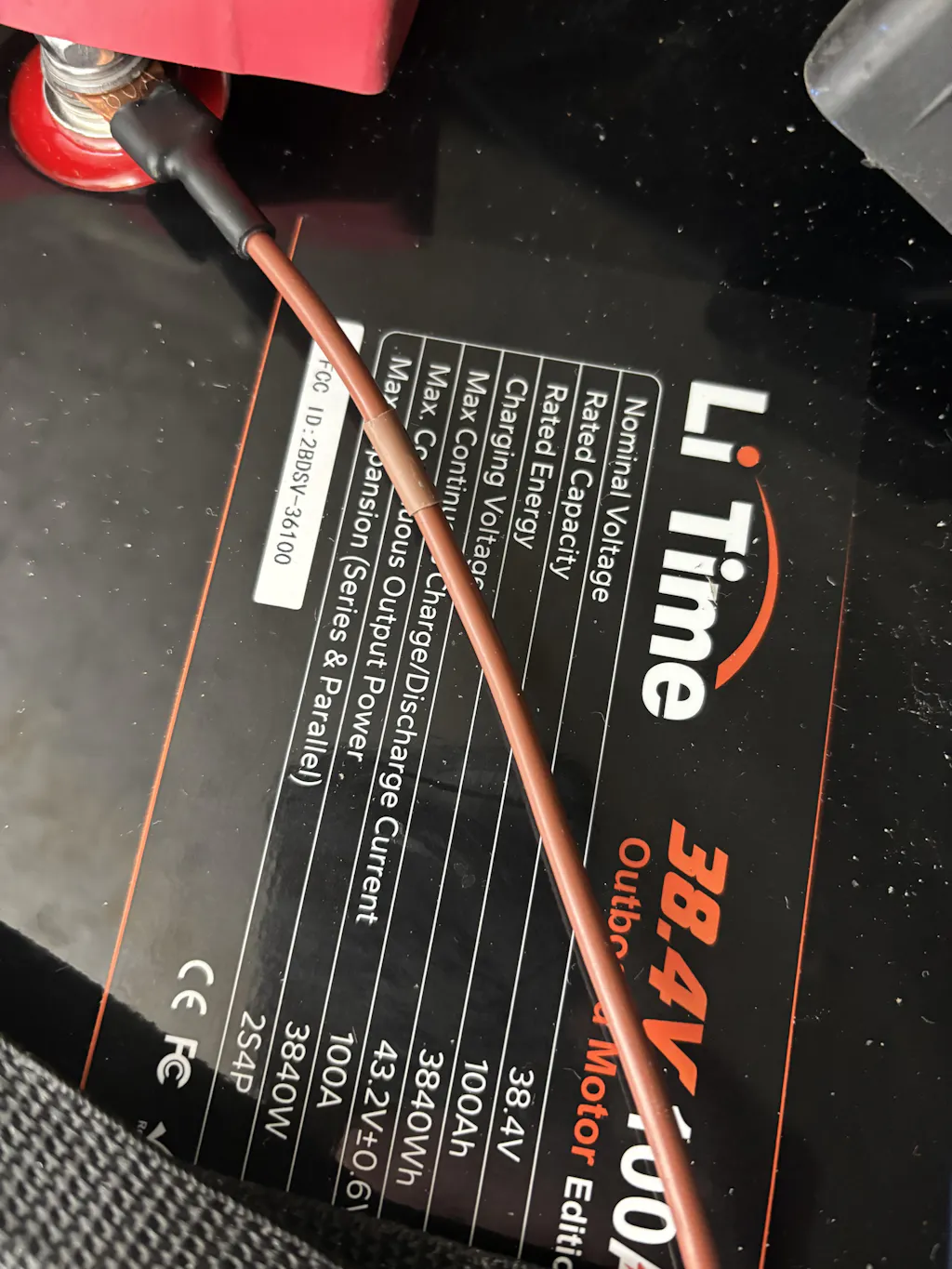

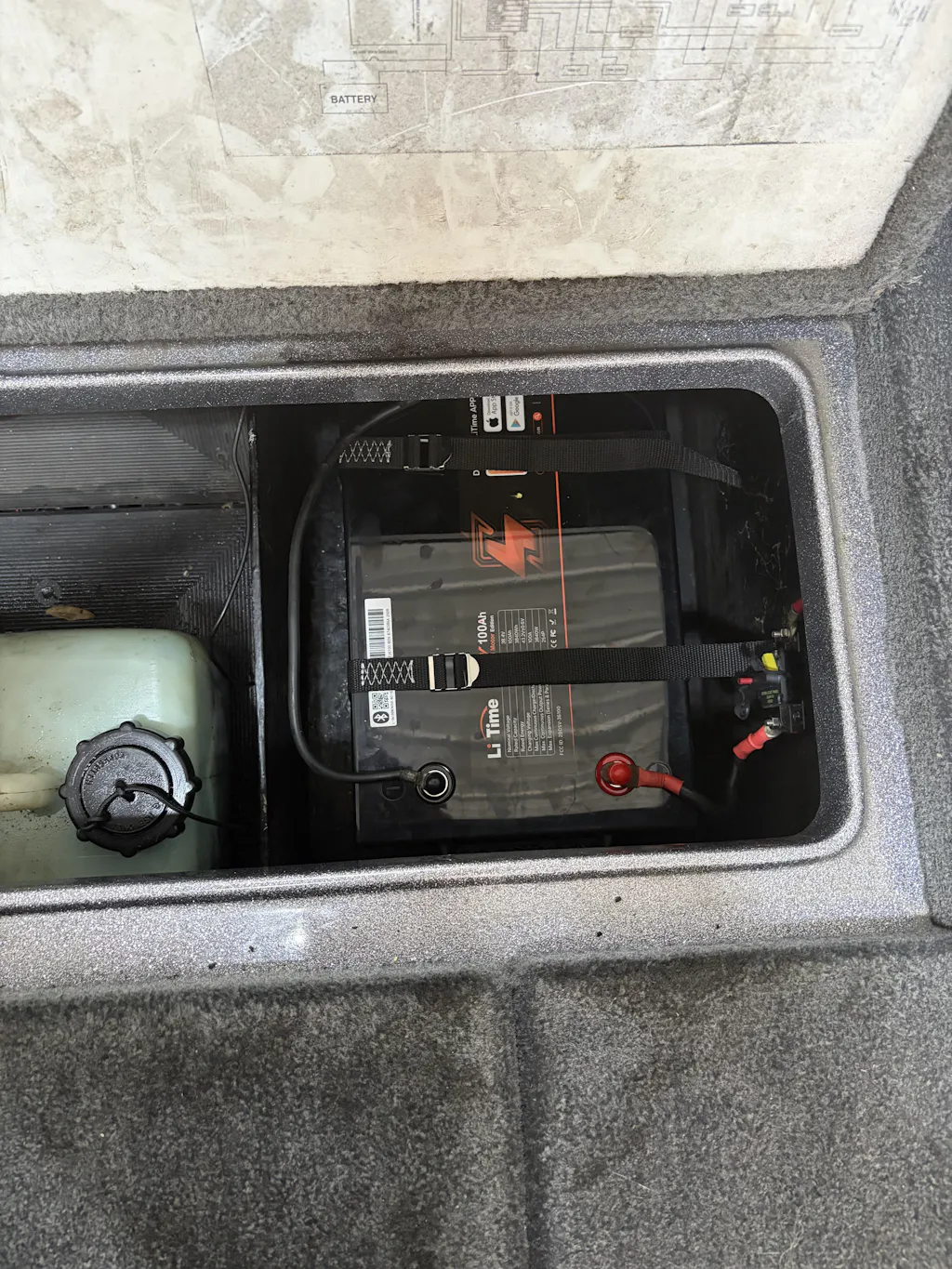

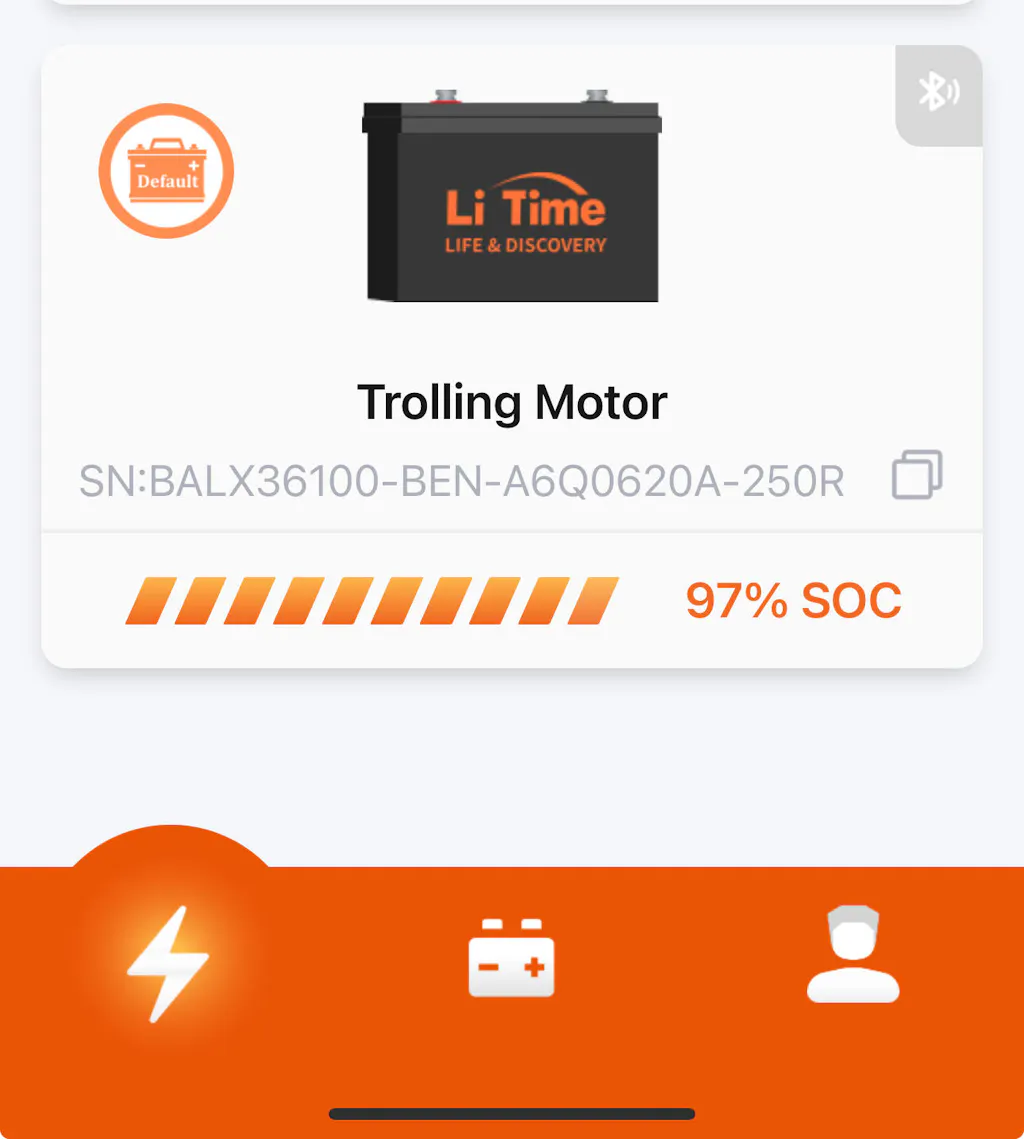

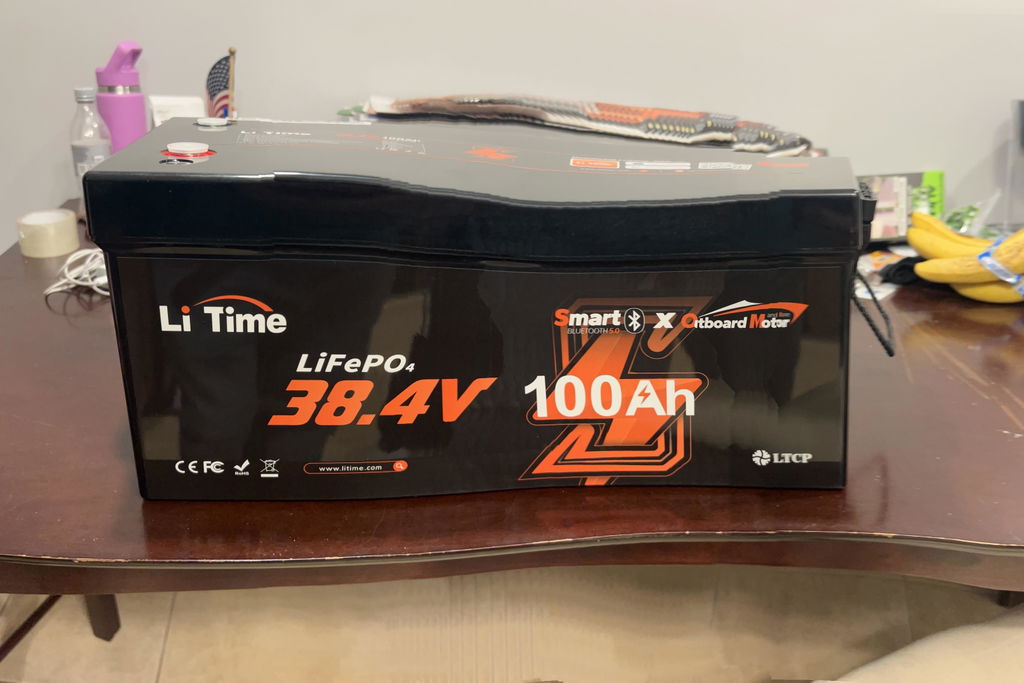

Fished 6hrs with it for the first time and still had 97% I was shocked at how much percentage I still had. They charge fast and hold a charge for hours and hours
T

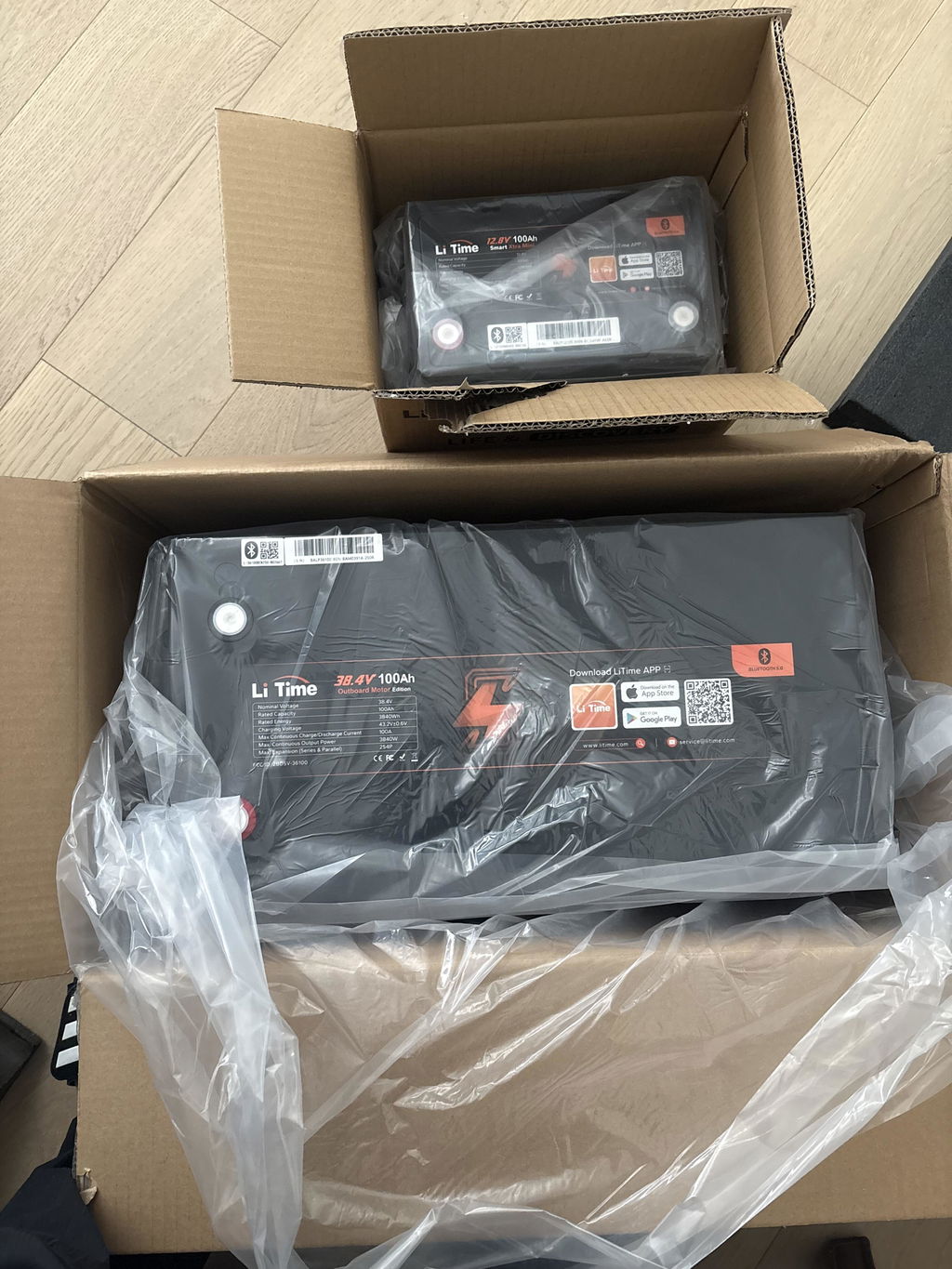

Haven't used it yet but looking forward to it!
B

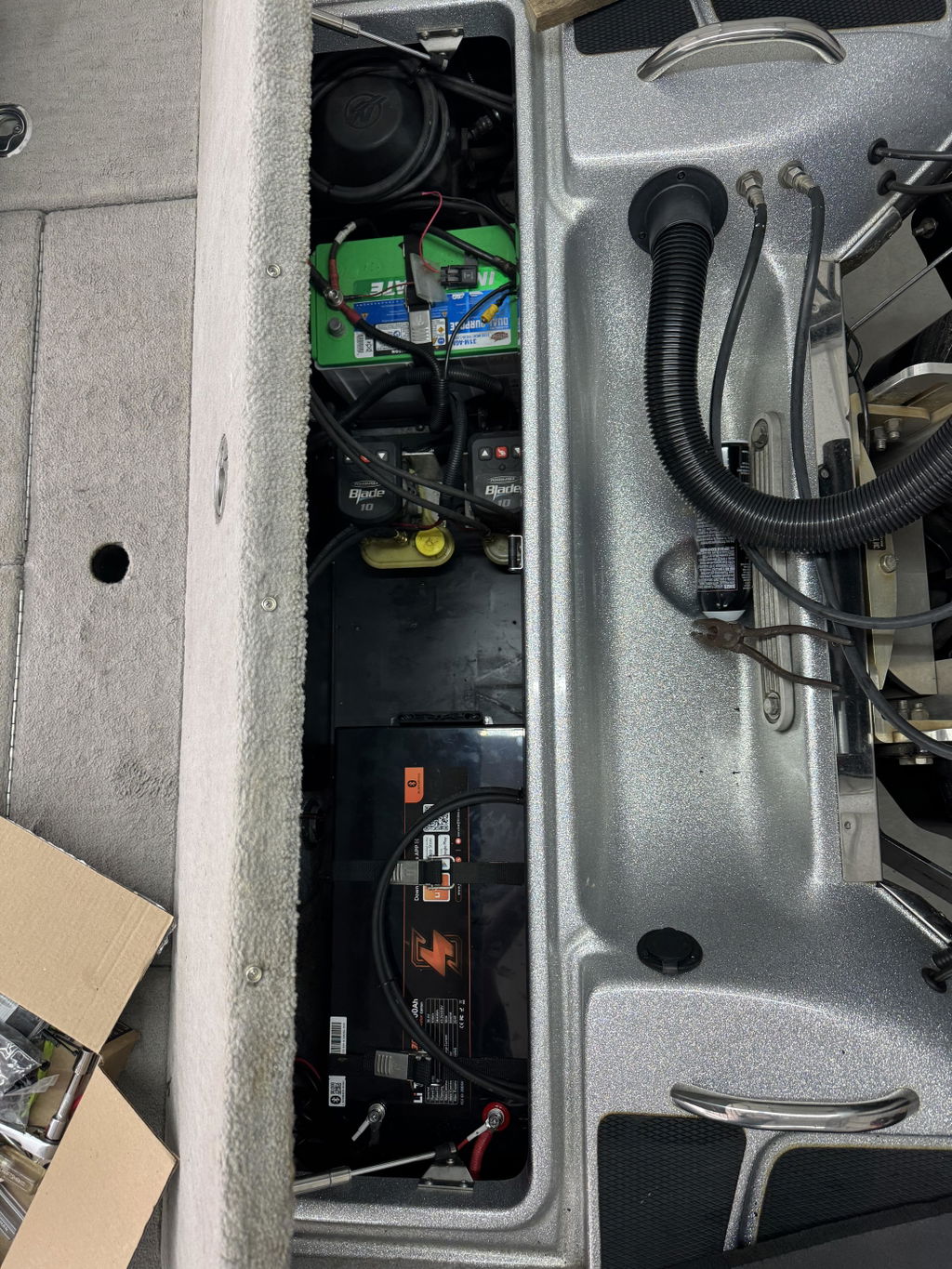

Works great for trolling battery too.
A
This battery is the best thing I’ve done
