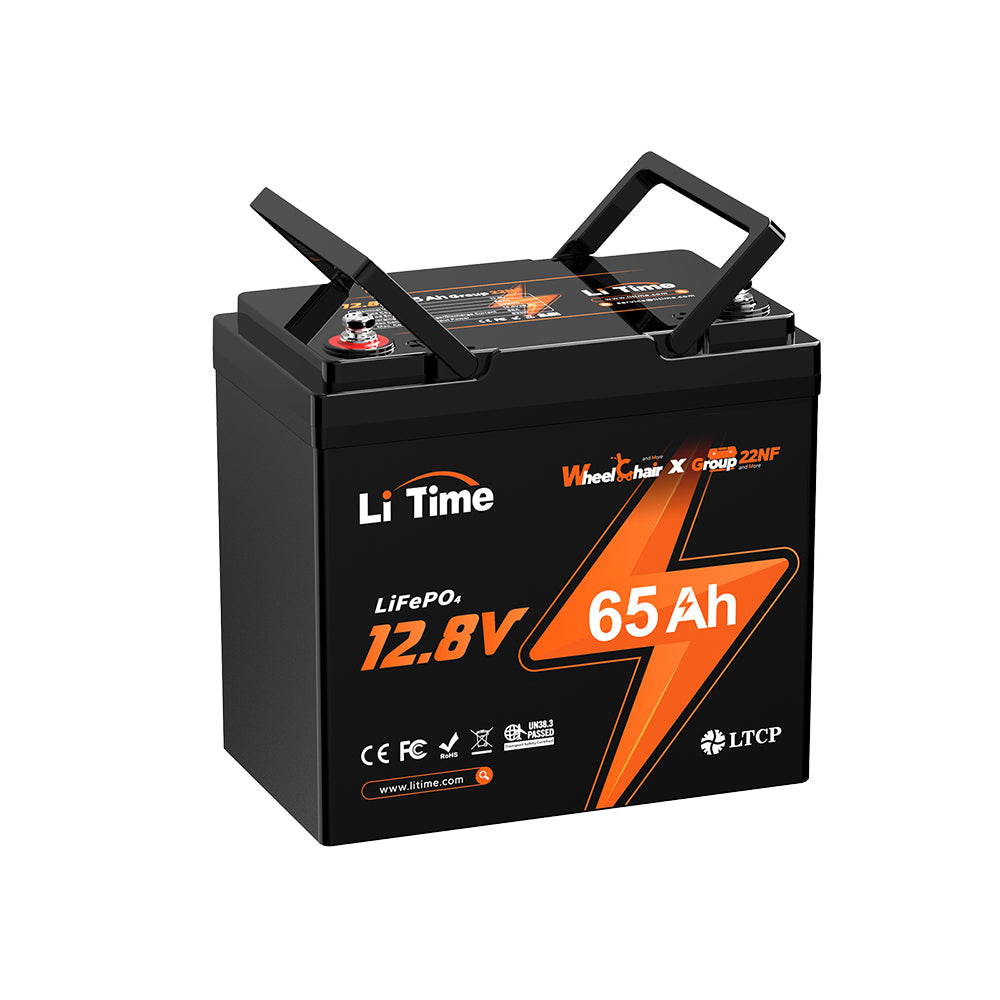

LiTime 12V 65Ah 22NF Lithium Battery for Heavy Duty Power Wheelchair, Mobility Scooter

"Perfect LiFePO4 Battery Choice for Wheelchair, Mobility Scooter"

  • Suitable for wheelchair, mobility scooter, 30-70lb trolling motor, fish finder, farm equipment, etc. 2 batteries in series for 24V wheelchair.
  • 832Wh usable energy & 832W max. output power.
  • 65A self-developed BMS for 20+ protections.
  • Low-temp cut-off protection: disharging off at <-4℉, charging off at <0℉.
  • EV-grade LiFePO4 cells, 4000-15000 cycles, 10 years lifespan, and non-toxic.
  • Max. 4P4S, up to 51.2V 260Ah battery system. (13.3kWh Max. Energy & 13.3kW Max. Power)
  • With 152% more energy, 3.3X lifespan, perfectly replacing 12V 55Ah AGM battery.

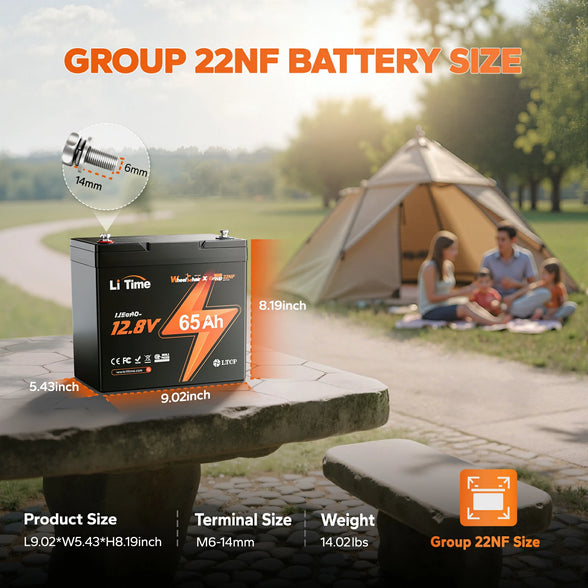

  • Group 22NF battery size, 14.26 lbs weight.
  • IP65 water & dust proof.
  • 4 Flexible charging methods:  LiFePO4 battery charger, solar panel, alternator and generator.
  • Recommended with LiTime 14.6V 10A battery charger.
  • Do NOT use it as a starter battery.
$169.99
$379.99
$169.99

Group 22NF size Lithium Wheelchair Battery Now Available with a Special Launch Price.

Pack: 1 Pack 12V 65Ah
Subtotal: $169.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

5 Years Warranty

Backed up by technical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
LiTime 12V 65Ah 22NF Wheelchair Lithium Battery

LiTime 12V 65Ah 22NF Lithium Battery for Heavy Duty Power Wheelchair, Mobility Scooter

$379.99 $169.99

LiTime 12V 65Ah 22NF Lithium Battery for Heavy Duty Power Wheelchair, Mobility Scooter

$379.99 $169.99
Pack: 1 Pack 12V 65Ah

Frequently Bought Together

LiTime 12V 65Ah 22NF Wheelchair Lithium Battery 1000
$379.99 $169.99
Choose Options
Choose Options
Pack: 1 Pack 12V 65Ah
Hurry up! only 5 left
12V 10A LiFePO4 lithium battery charger with IP67 waterproof 1600
$138.56 $63.99
litime mppt solar charge controller 1000
$219.99 $99.99
battery monitor with shunt 1000
$99.99 $59.99
Price Total: $0.00
    • FEATURES

    • SPECS

    • FAQ

    • REVIEWS

    12V Lithium Battery for Electric Wheelchair

    LiTime introduces 12V 65Ah lithium ion battery, specifically designed for electric wheelchairs, ensuring you enjoy unparalleled independence and mobility. You can connect 2*Group 22NF 12V batteries in series to be compatible with your 24V electric wheelchair or mobility scooter, to replace the old lead-acid batteries. It also supports portable lights, trolling motors and more to enhance your mobility experience!

    LiTime 12V 65Ah 22NF Wheelchair Lithium Battery

    Discover Reliable, Robust, Secure Power

    Experience the perfect blend of performance and durability with the LiTime 12V 65Ah wheelchair battery. Optimized for use with EV-grade cells, 12V LiFePO4 battery boasts a lifespan of up to 10 years and supports over 4000 cycles at 100% DOD, making it a cost-effective choice for long-term use. With low-temp cut-off protection and IP65 water & dustproof, you can rely on the battery in any environment. Group 22NF size and 4P4S max. connection is perfect for your wheelchair, saving storage space and meeting mobility power needs.

    LiTime 12V 65Ah 22NF Wheelchair Lithium Battery

    Elevated Performance with EV-grade Cells

    Featuring EV grade cells, LiTime 12V 65Ah deep cycle battery can reach 4000+ cycles@100% DOD and 40.39Wh/lbs energy density, supporting stable discharging over a longer period. Adhering to environmental and sustainable principles, every drop of energy is fully utilized, allowing you to travel with confidence. The advanced LiFePO4 cells are not only equipped with 20+ protections, but also have safety certifications and tests, such as FCC, CE, RoHS, UN38.3 and UL 2271, ensuring a longer lifespan. Deliver strong power while prioritizing your safety, offering an efficient and reliable mobility solution!

    EV Grade-A cells

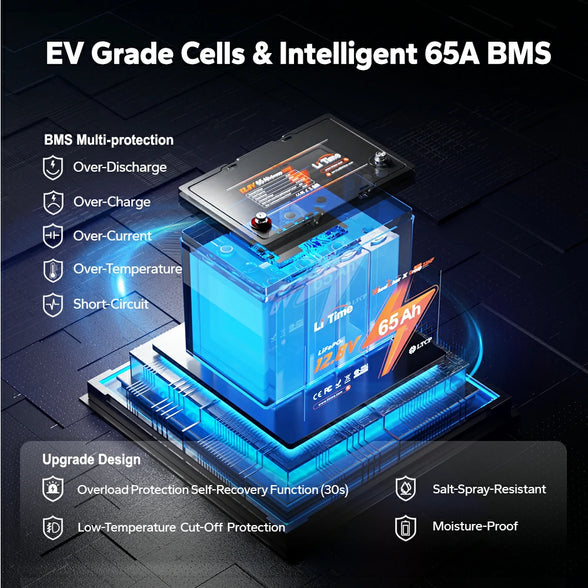

    Safety First: 20+ BMS Protection

    LiTime 12V wheelchair LiFePO4 battery is equipped with self-developed BMS, which not only features basic protection, like overcharge, over-discharge, overcurrent, overheating, and short-circuit protection, but also additional upgraded protections, including low-temp cut-off protection, moisture resistance, salt-spray resistance, and overload protection with auto-recovery function, effectively avoiding damage to the batteries. 3% self-discharge rate per month keeps power longer even when not in use, and 1C fast charging rate reduces waiting time and charging costs. Always ready to start a safe journey with easy and fast charging!

    65A BMS Protection

    Weather Protection: Without Low-temp Damage

    Stay safe and mobile this winter with the LiTime 12V electric wheelchair lithium battery, featuring innovative low-temperature cut-off protection. When temperatures drop below -4°F (-20°C), the battery automatically stops discharging. When below 32°F (0°C), stops charging to prevent damage from freezing weather. Once temperatures rise above 41°F (5°C), the battery resumes charging, so you can quickly get back on the move. It can effectively ensure the safety and performance of the battery in cold environments, thus extending the battery's service life.

    low temperature cut-off protection

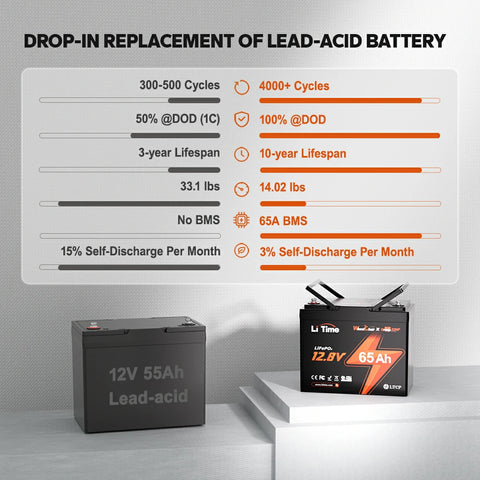

    Explore Lightweight Power, Enjoy Effortless Mobility

    LiTime 12V 65Ah lithium ion battery gives you a new level of mobility freedom. Weighing only 9.28 pounds, the wheelchair battery is 56% lighter than traditional lead-acid battery, resulting in less burden on the go. Its compact design saves 30% space, fitting in your wheelchair. With 152% more usable energy, you can enjoy longer operating time.

    better replacement for lead-acid battery

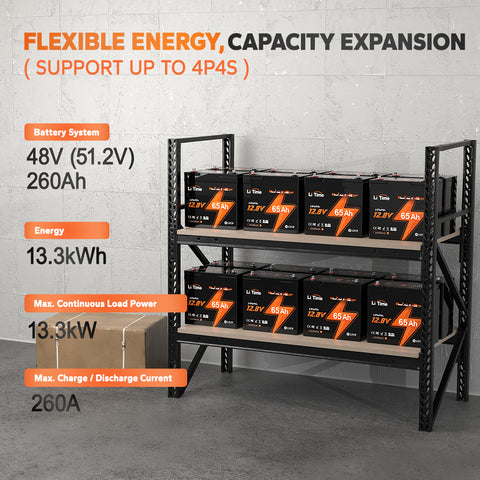

    DIY Battery System for Your Power Needs

    LiTime 12V 65Ah wheelchair battery offers a customized power solution, up to 4P4S connection for a 51.2V 260Ah battery bank to yield maximum power. The 4P (Parallel) configuration increases capacity for longer usage, while the 4S (Series) configuration boosts voltage for higher performance. Customize your power system to meet your different needs.

    up to 4P4S build a 51.2V 260Ah system

    4 Flexible Charging Methods

    LiTime 12V deep cycle battery outperforms lead-acid battery with 10X faster-charging efficiency. Recommend with LiTime 14.6V 10A LiFePO4 charger, it reaches full capacity in 6.5hrs, offering swift replenishment for efficient usage. Also suitable for 3 other charging methods, including solar panel, alternator, and generator.

    charging methods

    Born for Wheelchair, Ready for More

    LiTime 12V wheelchair battery is your ultimate power solution for a variety of applications. Whether you're going out with an electric wheelchair or a mobility scooter, or exploring outdoors while camping and fishing, LiTime 12V battery always delivers reliable energy, wherever you go.

    perfect for many aplications

    SPECS

    BATTERY
    Cell Type:
    LiFePO4
    Warranty:
    5 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    12.8V
    Rated Capacity:
    65Ah
    Energy:
    832Wh
    Max. Expansion (Parallel & Series):
    4P4S
    Internal Resistance:
    ≤40mΩ
    Certifications:
    UL-2271, CE, FCC, RoHS, UN38.3
    BMS
    BMS:
    65A
    Max. Continuous Output Power:
    832W
    Max. Continuous Charge Current:
    65A
    Max. Continuous Discharge Current:
    65A
    Max. Discharge Current 1 Second:
    325A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    14.4V ± 0.2V
    Recommend Charge Current:
    13A (0.2C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    Low-Temperature Protection:
    Yes (32℉/0℃)
    Low-Temperature Charging Protection Auto Recovery:
    Yes (41℉/5℃)
    OTHERS
    Terminals:
    M6 bolts
    Weight Approx.:
    14.26 lbs

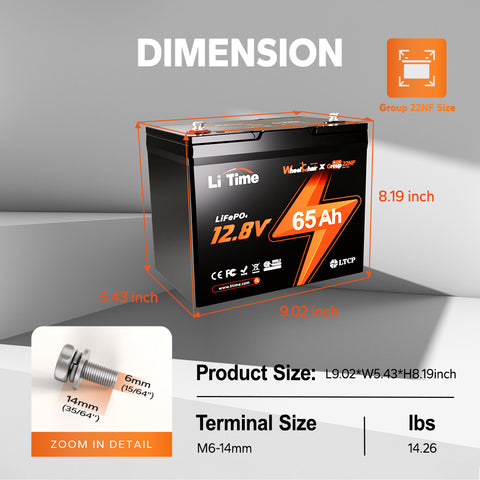

    Size:
    L9.02*W5.43*H8.54 inch
    Housing Material:
    ABS
    Protection Class:
    IP65

    FAQ

    Q: Can I use this battery to replace my old lead-acid battery?

    A:

    The 12V 65Ah battery is designed to fit most electric wheelchairs and mobility scooters available on the market. Its Group 22NF size serves as a direct plug-and-play replacement for the original lead-acid battery pack.

    If you experience any difficulties during the replacement process, we recommend consulting your wheelchair's user manual and seeking assistance from a professional technician. For further support, feel free to reach out to us at service@litime.com.

    Additionally, please ensure the old batteries are disposed of responsibly, in accordance with local regulations and environmental guidelines.

    Q: What are the benefits of upgrading to lithium wheelchair mobility scooter battery?

    A:

    Lithium batteries are lighter, which helps reduce the overall weight of electric vehicles, improving energy efficiency and acceleration performance. Supports 4P4S, meeting the needs for long-range mileage.

    The BMS has a self-recovery protection function, meaning that after protection is triggered, you do not need to disconnect and reconnect the load, making it more convenient for using.

    It has a low-temperature protection function, cutting off charging below 0°C, resuming charging at 5°C, and cutting off discharge below -20°C.

    With certifications and test reports: UL-2271, FCC, CE, ROHS, UN38.3. This lithium battery ensures compliance with international safety, environmental, and performance standards, providing users with reliable and safe power for various applications.

    Q: What should I do when I receive the battery?

    A:

    When you receive your battery, please note that it may have a low State of Charge (SOC) due to transportation and storage. For optimal performance, we recommend charging the battery immediately to avoid over-discharge.

    For Bluetooth batteries, they may arrive in an off state with a virtual voltage of 3V-5V at the terminals. This is normal and can be resolved by using an  AC-DC lithium battery charger or  MPPT solar charge controller to charge for 3-10 seconds, which will activate the battery for normal use.

    If you plan to store the battery for an extended period without use, charge it to a SOC of 30% to 50% and perform maintenance every three months. This will help preserve its functionality and performance over time.

    Q: What should I pay attention to before installing?

    A:

    1. Pay attention to the battery dimensions. The size should not be too large, and should be based on the size of the original lead-acid battery case.

    2. If the size matches (Group 22NF), you can directly use the original battery fixing components in the vehicle for installation.

    3. Confirm whether the charger is compatible with lithium iron phosphate (LiFePO4) batteries. If not, it needs to be replaced with a LiFePO4 charger.

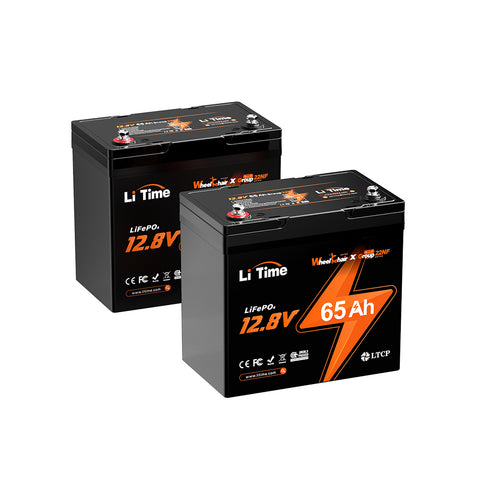

    Q: Can I connect the battery in series or parallel?

    A:

    LiTime 65Ah lithium batteries can be connected in series and parallel, making them ideal for 24V electric wheelchairs or mobility scooters. They support configurations of up to 4 in parallel and 4 batteries in series (max 4P4S), creating a 51.2V 260Ah battery system with 13.3 kWh of energy and a maximum load power of 13.3kW. In addition to being perfect for daily use in electric wheelchairs and mobility scooters, these batteries are also well-suited for solar energy storage systems, campers, backup power, trolling motors (30-70 lb), and a wide range of farm equipment applications.
