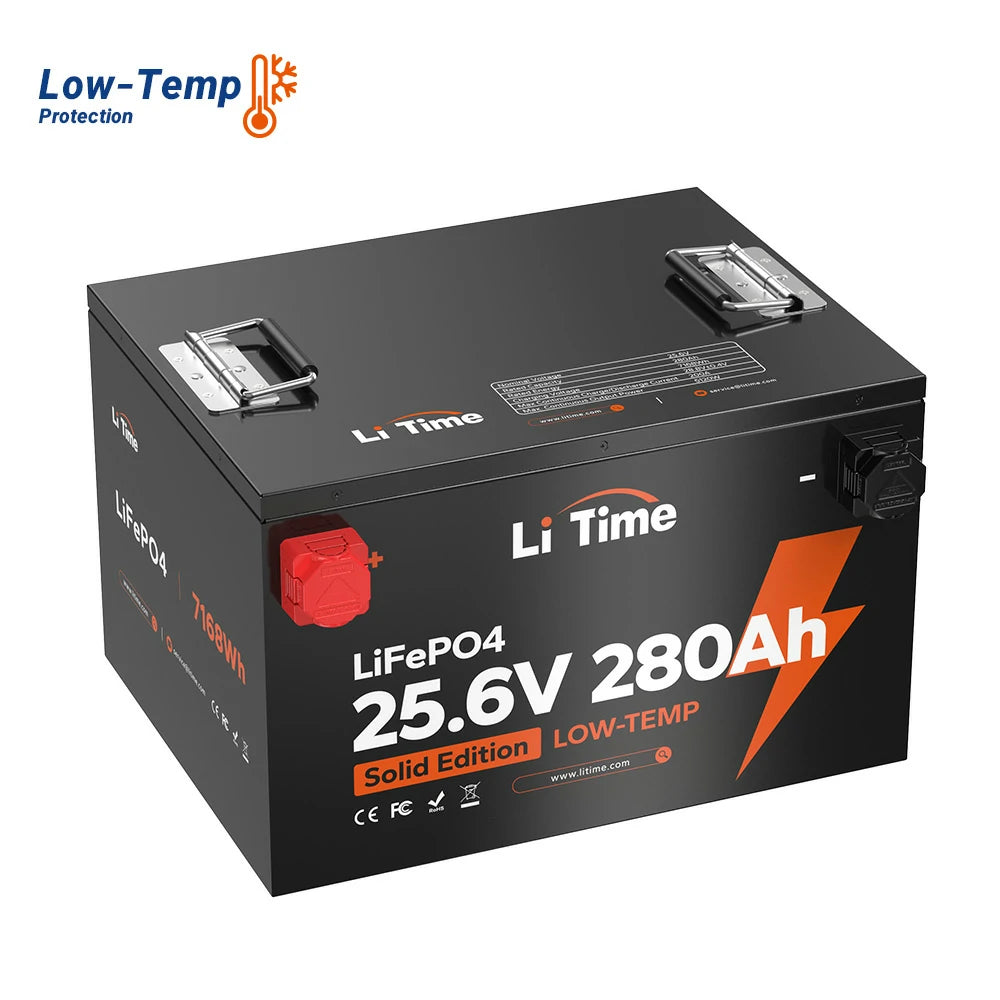

LiTime 24V 280Ah LiFePO4 Lithium RV, Marine Battery Low-Temp Protection
Max 7168Wh Energy & Up to 15000 Deep Cycles, Perfect for Solar System, Camping, Boat, Home Energy Storage

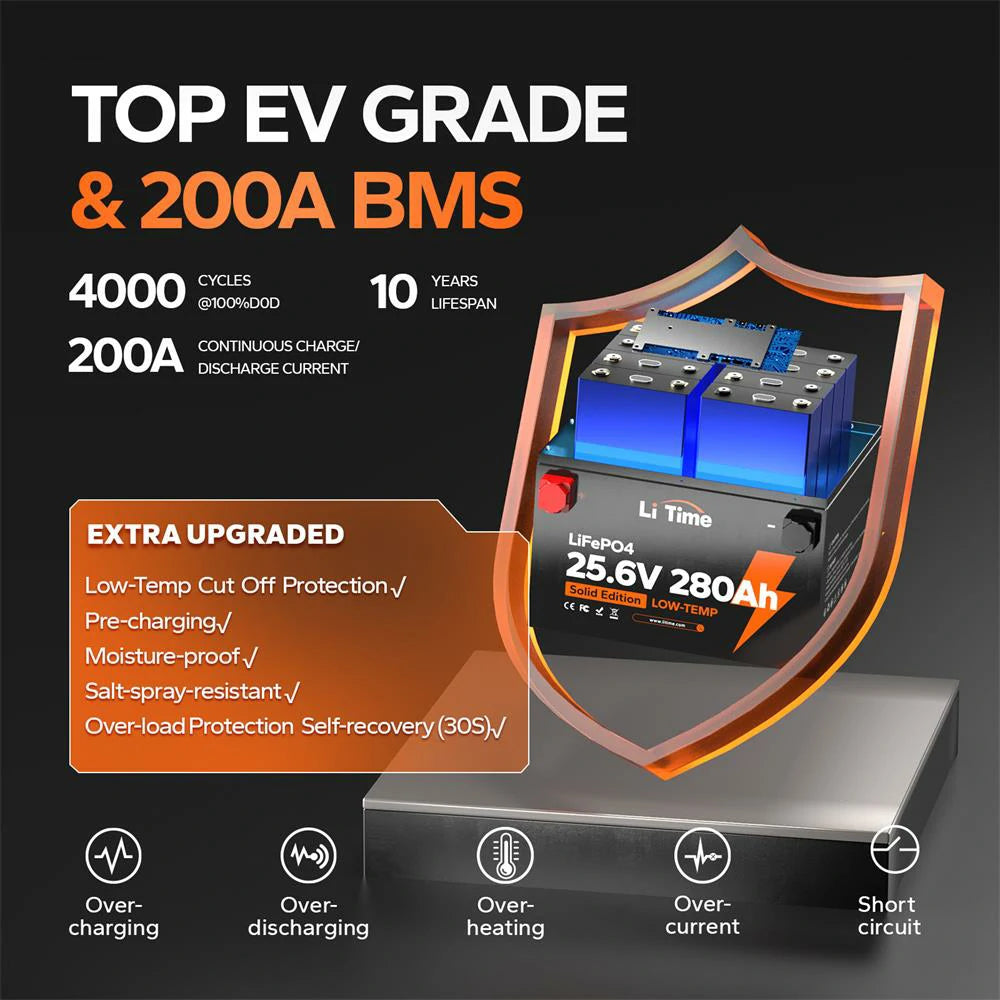

Low-Temp Cut-Off & 200A BMS LiTime 24V 280Ah LiFePO4 200A BMS with 20+ protection functions, including over-charge, over-discharge, over-current, over-heat and short-circuit protections, as well as low-temperature cut-off function, which ensures reliable performance in cold environments down to -20°C. It comes with a pre-charging function, which is suitable for all the 24V inverters on the market. Over-load protection self-recovery function, can be automatically reconnected within 30 after protection. The new upgraded features can protect your battery well and convenient to use in daily life.
Perfect Replacement for Lead-acid Batteries With a rated capacity of 280Ah and energy of 7168Wh, The 24V LiFePO4 Battery supplies of power for your energy storage needs. The 24V 280Ah lithium iron phosphate battery can be used for 4,000-15,000 times in 10 years under the condition of full discharge, and compared with the lead-acid battery with 200-500 cycles, the use cost is only 1/10. It is not a necessity to maintain the LiFePO4 battery on a regular basis like other lead-acid batteries, which saves time and effort to use the battery.
Capacity Expansion LiTime LiFePO4 battery is made of Grade A+ Lithium Iron Phosphate (LiFePO4) Cells in 3.2V with a configuration of 8 cells in series to make sure the high density and consistency when using the LiFePO4 battery, and its performance is more stable. LiTime 24V 280Ah LiFePO4 Battery supports 5120W load power, and it also can be connected in parallel & in series for larger capacity. Allow being extended up to 4P2S to get a 48V (51.2V)1120Ah battery bank. Meanwhile, our batteries provide 57.34kWh energy (4P2S) that could be widely used for outdoor, Perfect for campers, marine, solar power system, UPS, off-grid etc.
Easy Heat Dissipation The 24V 280Ah battery is designed with a metal case, which offers unparalleled reliability and good heat dissipation compared to lead-acid battery cases, so there is no need to worry about the battery overheating during use, making it safer to use.Additionally, LiFePO4 battery does not contain any heavy metals or rare metals, resulting in improved environmental performance. Due to its long service life and eco-friendly nature, LiFePO4 battery can completely replace the traditional lead-acid battery and can be utilized in a multitude of different situations.
Reliable After-sales Support LiTime battery come with a 5-year warranty. We also provide professional technical support and online customer service with fast feedback within 24 hours.
Tips on Using The LiTime Battery This 24V 280Ah Low-temp LiFePO4 battery is suitable for energy storage rather than start-up/cranking. If you need a starting battery, please consider LiTime 12V marine starting batteries series.
30-Day Price Guarantee
- $1,549.99
-
$2,285.99 - $1,549.99
- Unit price
- per
$200 OFF Discount
CODE: $200OFF
Massive New-Launch Markdowns Live Now! Order our tech-driven innovative 24V battery with limited-time $200 off for early bird ordering. Hurry, this exclusive deal won't last long!
Subtotal:
$1,549.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
≥4000 times
Nominal Voltage：
25.6V
Rated Capacity：
280Ah
Energy：
7168Wh
Max. Expansion (Parallel & Series)：
4P2S
Internal Resistance：
≤40mΩ
Certifications：
CE,FCC,UL1973
BMS
BMS：
200A
Max. Continuous Output Power：
5120W
Max. Continuous Charge Current：
200A
Max. Continuous Discharge Current：
200A
Max. Discharge Current 1 Second：
1000A@1 Second
CHARGE
Charge Method：
CC/CV
Charge Voltage：
28.8V±0.4V
Recommend Charge Current：
56A(0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50°C/32°F to 122°F
Discharge Temperature：
-20°C to 60°C/-4°F to 140°F
Storage Temperature：
-10℃ to 50°C/14°F to 122°F
Low-Temperature Protection：
Yes
Low-Temperature Charging Protection Auto Recovery：
Yes (5°C/41°F)
OTHERS
Terminals：
M8 Size Bolts
Weight Approx.：
132.4lbs

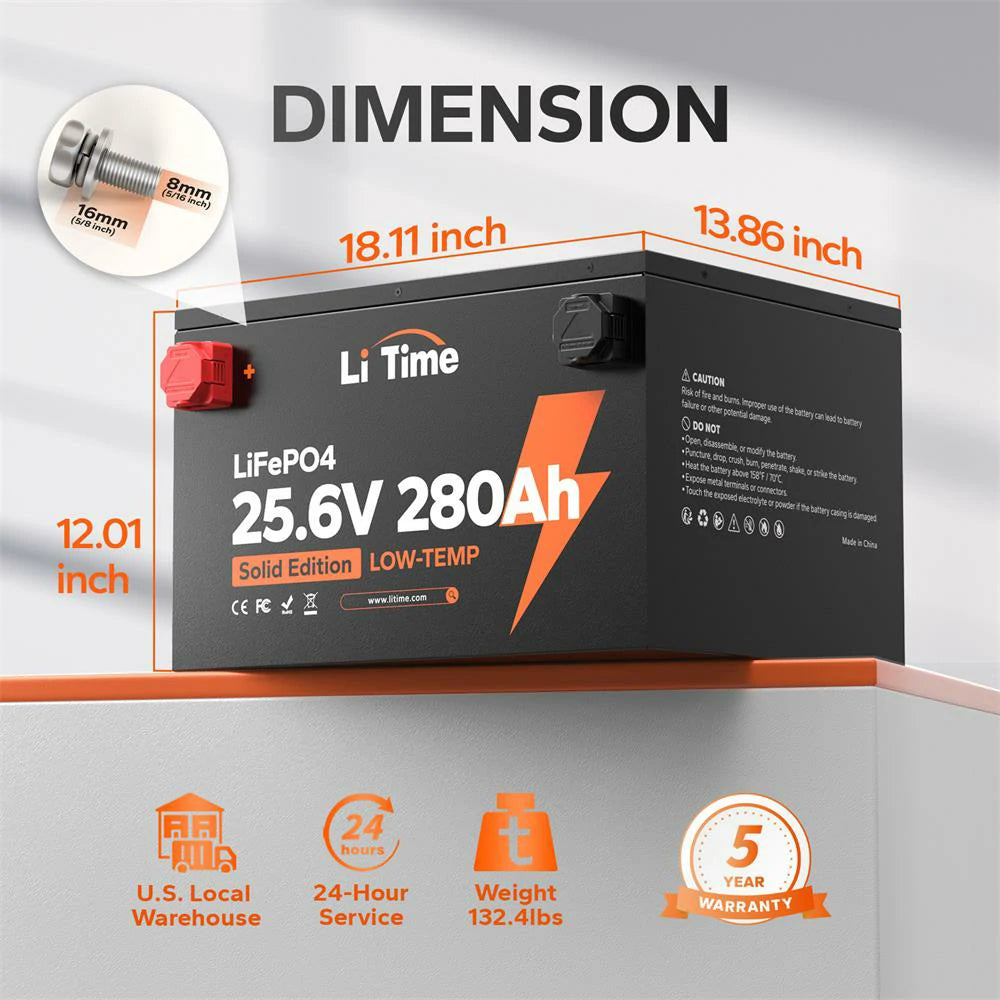

Size：
L18.11*W15.16*H11.42 inch
Housing Material：
SPCC (Steel Plate Cold Common)
FAQ
Q: How many LiTime 24V 280Ah lithium Batteries can I connect at most?
A:
This battery allows being extended up to 4P2S to get a 48V (51.2V)1120Ah battery bank, which provides 57.34kWh energy that could be widely used for outdoor. Perfect for campers, marine, solar power system, UPS, off-grid etc.
To connect in series or parallel, batteries should meet the below conditions:
a. identical batteries with the same battery capacity (Ah) and BMS (A);
b. from the same brand (as lithium battery from different brands has their special BMS);
c. purchased in near time (within one month).
Read on Battery Connect in Series and Parallel Guide to know more inforamtion.
Q: Are LiTime LiFePO4 Lithium batteries safe?
A:
Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards.
All LiTime LiFePO4 batteries come with an internal Battery Management System, which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.
Q: What should I do when I receive the battery?
A:
When you receive your battery, please note that it may have a low State of Charge (SOC) due to transportation and storage. For optimal performance, we recommend charging the battery with lithium battery charger or solar panel + solar charge controller immediately to avoid over-discharge.
If you plan to store the battery for an extended period without use, charge it to a SOC of 30% to 50% and perform maintenance every three months. This will help preserve its functionality and performance over time.
Q: Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
A:
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.
