LiTime 500A Battery Monitor With Shunt
【For 8-120V Battery】Suitable for 8-120V, 0-9999AH battery bank. Auto-recognition for various battery types, including Li-ion, LiFePO4, Gel, AGM, and more.
【Precise Data】The display includes battery voltage/current/power/capacity, remaining charge/discharge time, charge/discharge indicator, and capacity percent. It has a backlight for easy use at night.
【Easy to Install】The shunt can be stably placed or mounted on a flat surface by the shunt holder. The monitor display is simple to install as it's fixed by tabs. (The manual provides very detailed installation instructions)
【Buzzer Alarm】If the voltage or capacity falls below the set value, the LCD display will flash and the buzzer will sound an alarm every 10 seconds.
【Package Include】LCD Monitor Screen*1, 500A Shunt*1, Shunt Holder*1, 20ft Shielded Wire*1, 20AWG 3ft (1M) Power Wire*1,Screwdriver*1, Mounting Screws*3, Manual*1
30-Day Price Guarantee
- $59.99
-
$99.99 - $59.99
- Unit price
- per
Please hurry! Only 154 left in stock
Subtotal:
$59.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
1 Year Warranty
Backed up by technical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
Accurate Monitoring
Auto-Recognition for Various Battery Types
Precautions
Suitable for Different Applications
SPECS
BASIC
Voltage Range：
8V to 120V
Current Range：
0A to 500A
Battery Capacity：
0.1Ah to 9999Ah
Accuracy
Current ：
±1.0%
Voltage ：
±1.0%
Capacity：
±1.0%
Power Consumption
Working ：
10mA
Standby ：
1.0mA
DIMENSIONS
Monitor Screen：
3.9*2.4*0.7 inch
Shunt：
2.6*1.4*1.2 inch
OTHERS
Operating Temperature：
14°F to 140°F/-10°C to 60°C
Shunt Connection Bolts：
M10
Shielded Wire：
20ft (6m)
Power Wire：
3ft (1m)
FAQ
Q: Why is it important to monitor batteries with a shunt?
A:
Monitoring batteries with a shunt is vital for efficient energy management. It helps prevent undercharging or overcharging, which can degrade battery performance and reduce lifespan. Monitoring also helps diagnose battery issues and allows for better planning and optimization of power usage. Suggest reading : What Is A Battery Monitor? Why Do You Need It?
Q: What information can a battery monitor with shunt provide?
A:
A battery monitor with shunt can provide real-time data on the battery bank's voltage, current, state of charge, state of health, and remaining capacity. It can also measure energy consumption and estimate the time remaining until the battery needs to be recharged.
Q: Are LiTime battery monitors with shunt compatible with different types of batteries?
A:
Yes, LiTime 500A battery monitor with shunt is generally compatible with different types of batteries, including lead-acid, lithium-ion, gel, AGM, and more.
REVIEWS
J

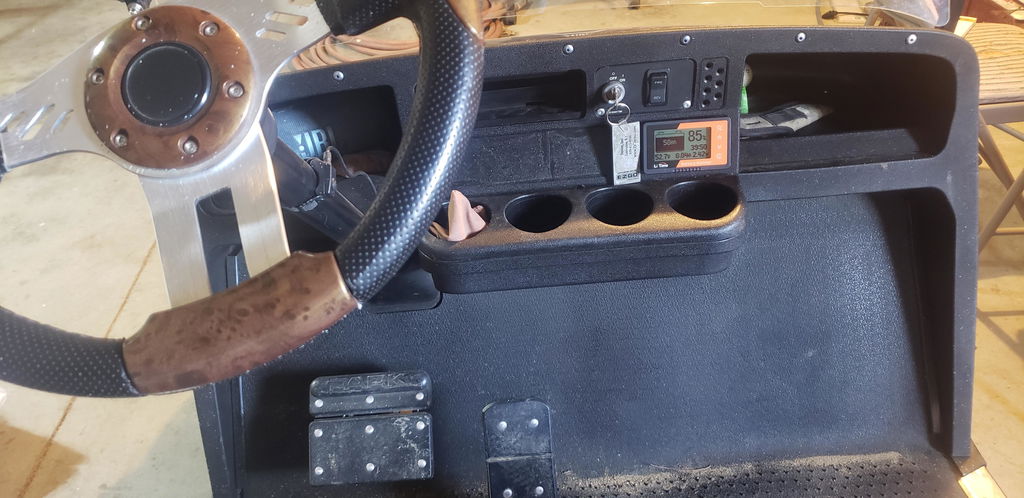

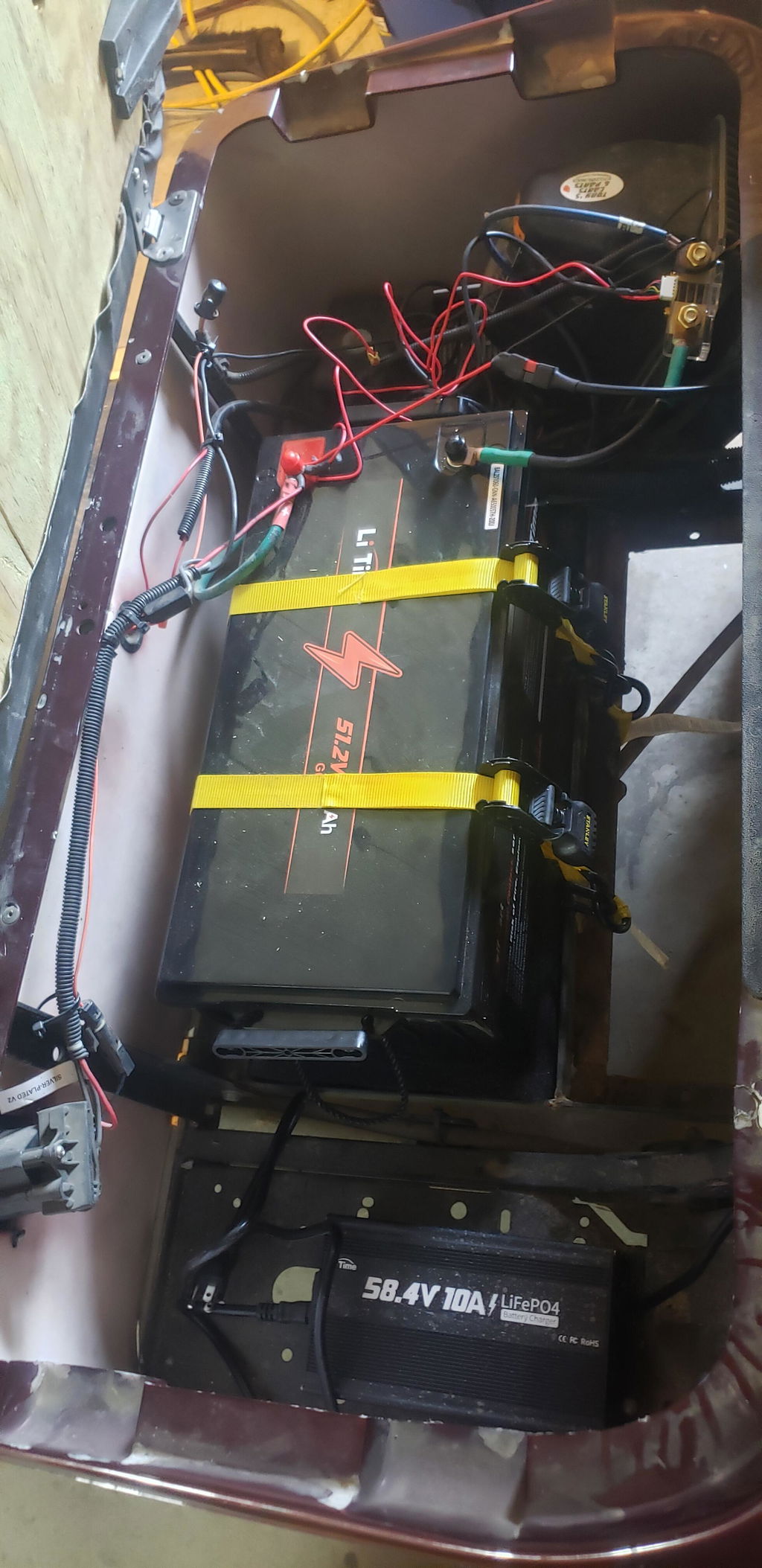

Purchased this monitor and shunt for my golf cart. Replaced 6 8v trojan lead batteries with litime 51.2 60ah big battery with litime 10amp charger. Only complaint about the shunt is the studs are to wide so you have to upgrade your connections from your charger and anything else thats connected to shunt.. supposed to be plug and play but you will have to change connections out to bigger size. Other then that everything works together very well!
A

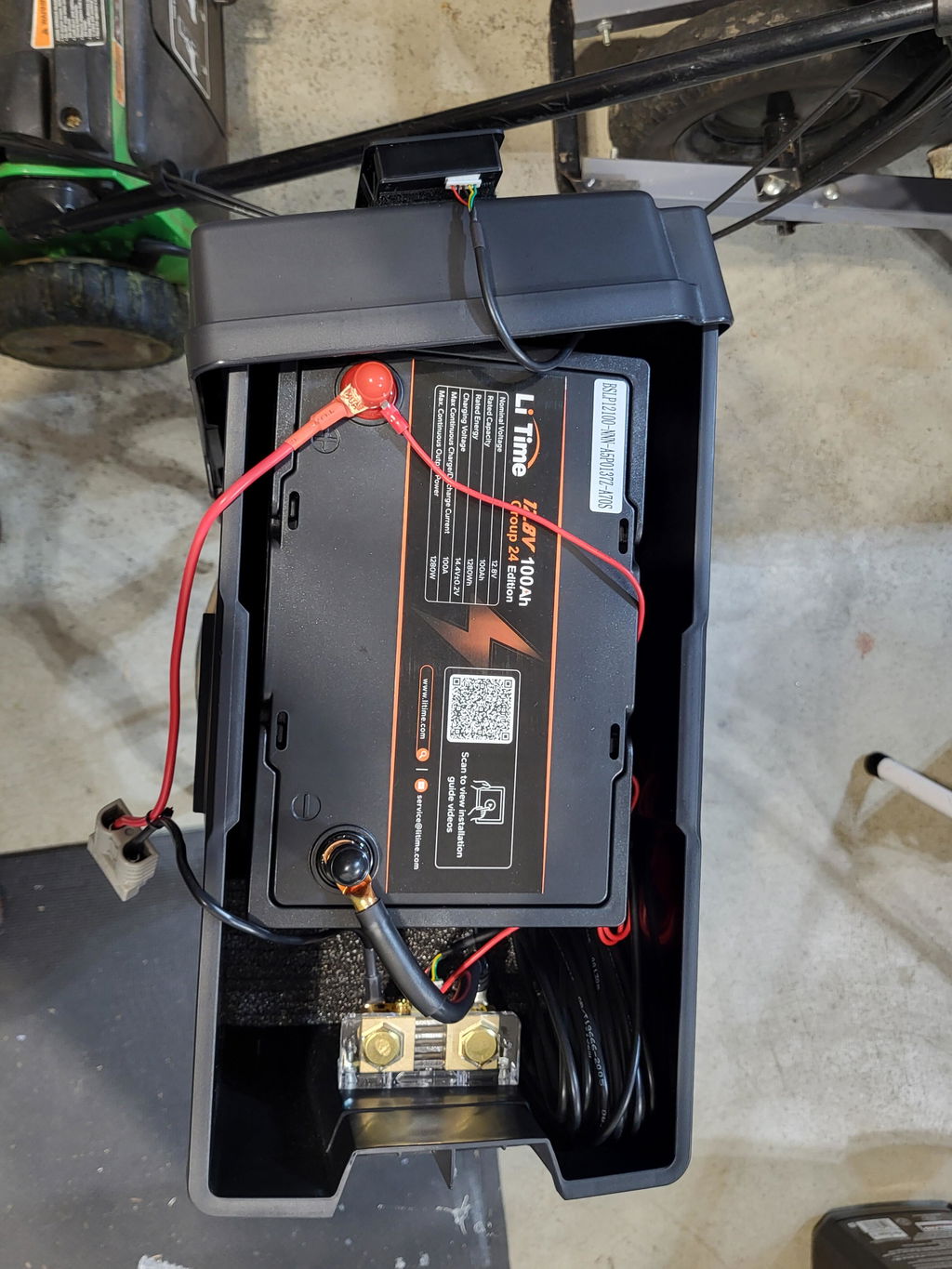

I had ordered group 24 100A battery for my trolling motor and crab Davit. I thought I had ordered the smart version but I messed up and didn't. After contacting LiTime about exchanging batteries, it was suggested that the 500A battery monitor would do the same thing and save the hassle and expense of the exchange. The monitor was ordered and everything got hooked up nicely.

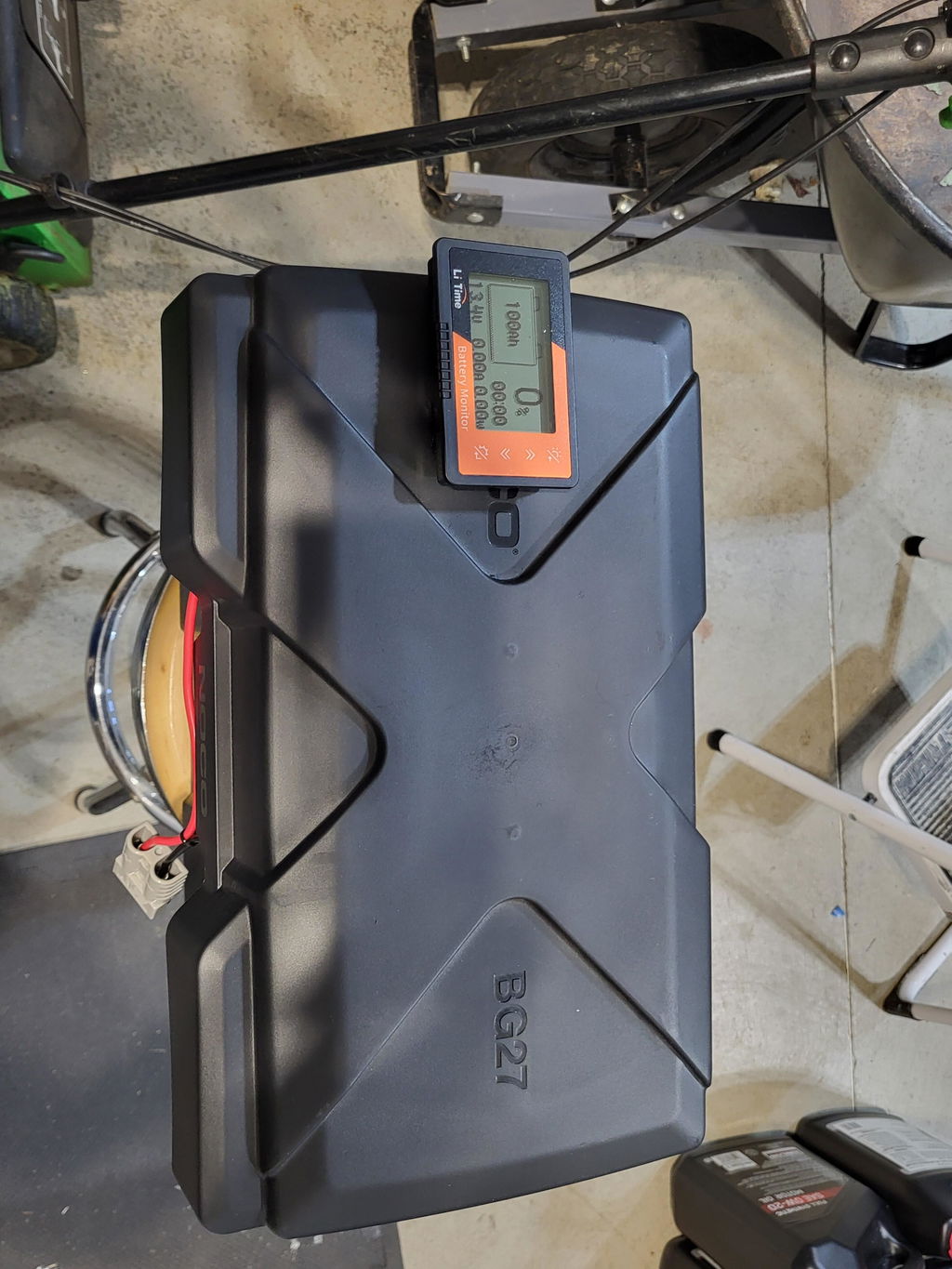

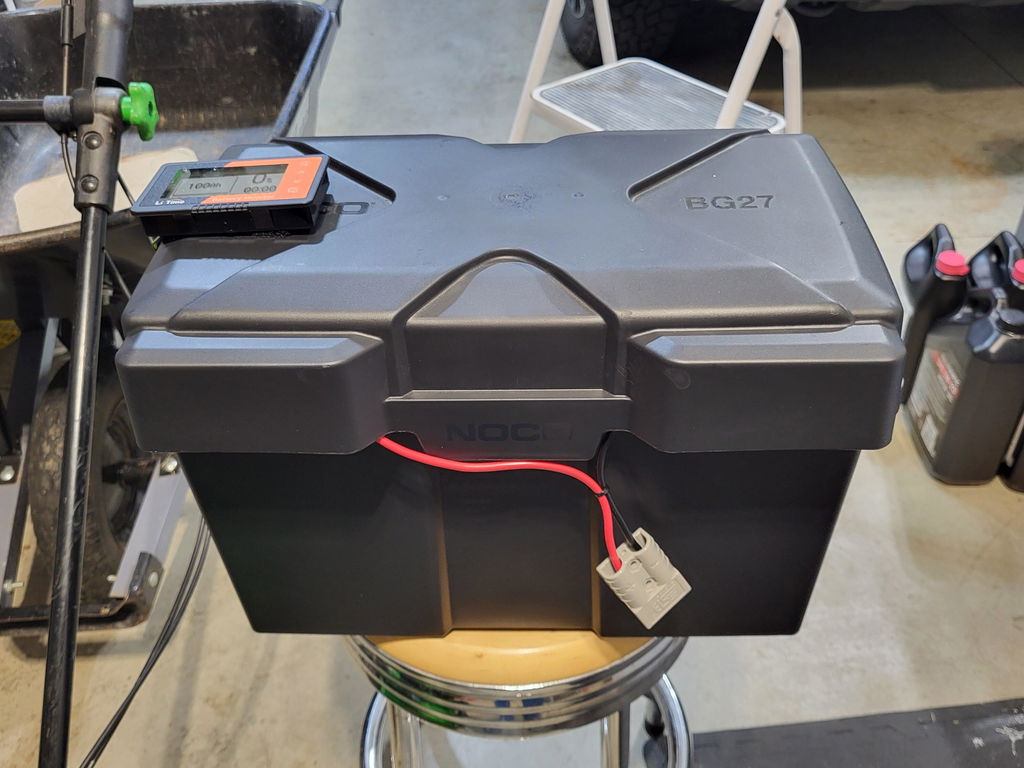

The monitor screen is mounted on the battery box with velcro, the 20ft. cord allows it to be moved almost anywhere in the boat. Haven't used the system yet because it's to Dam Cold. Can't wait for Spring
D
I installed this in my 1986 ezy go golf cart, what a difference, extremely light and I charge about every two weeks, great for running around our RV park.
M
Have issues with monitor no one will help me fix it
[

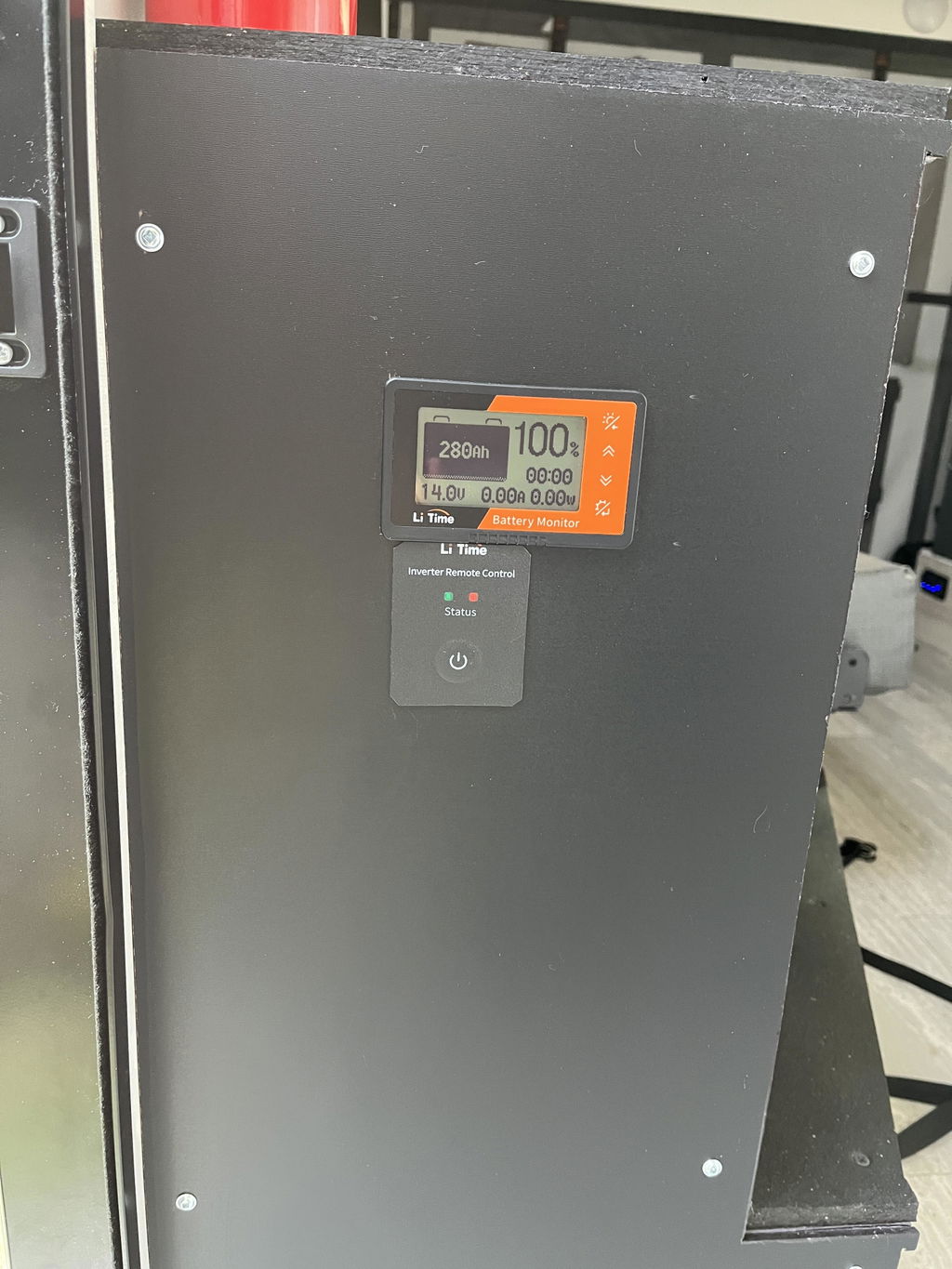

I like the 500A Monitor but the instructions are not every clear (MPPT) don't under stand what they mean / mounting was another problem - using it in my Van could not cut hole to mount it, do to all my cabinets / after two days running wires and making a mount for it, its in. Yes glade to have it done - looks great with the wood finish / easy to read and see but out of the way, yes I'm happy
