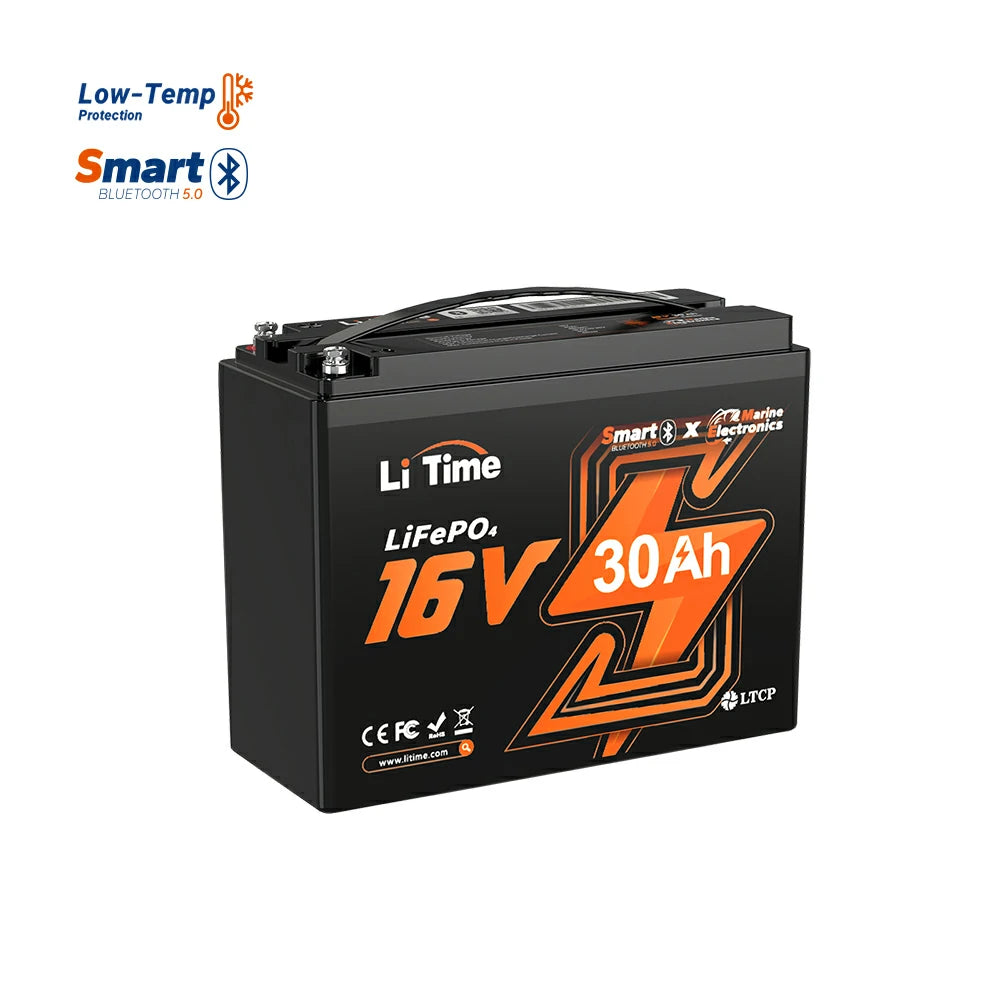

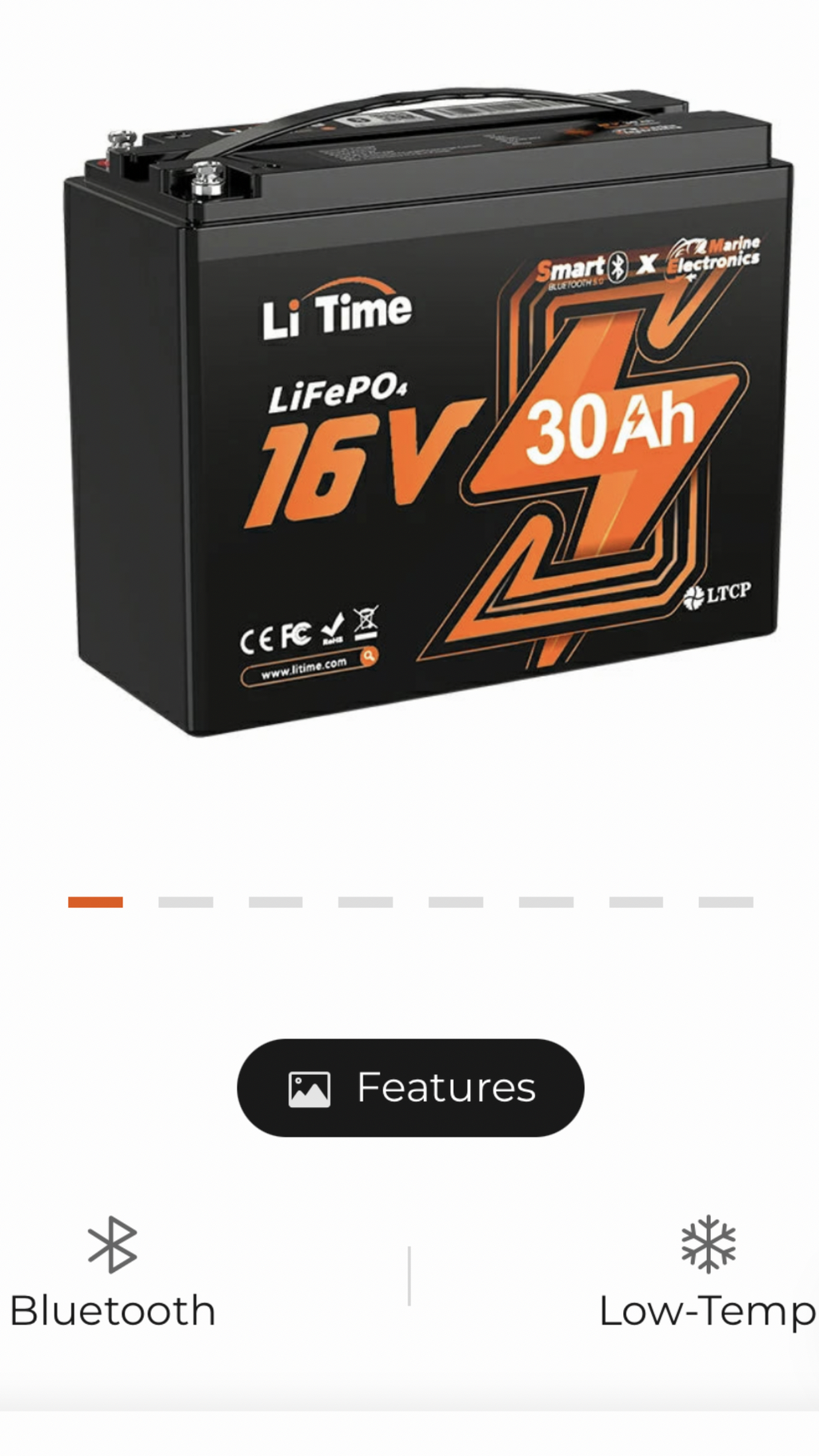

LiTime 16V 30Ah Deep Cycle Bluetooth Lithium Kayak Fish Finder Battery, Fishing Electronics

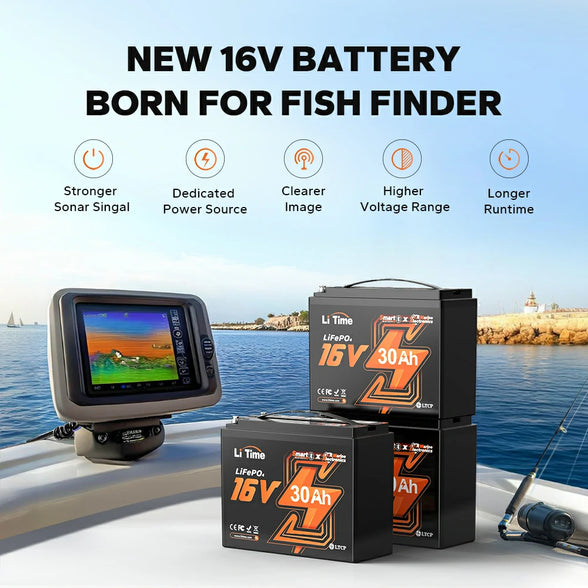

Pro-level Small Fish Finder Battery - No Interference with Separated Power, Target Big Fish with Precision!
- Newly upgraded 16V battery is born for fish finders, and suitable for marine radars, marine sonars, etc.
- Separated power supply, no interference from trolling motor, for more stable operation.
- Upgraded replacement of 12V battery, with better clarity, higher efficiency and 25% longer runtime.
- Bluetooth 5.0 to check battery system, monitor real-time data and control discharge on/off.
- Low-temp cut-off protection: ＜-4℉ discharging off, and ＜32℉ charging off.
- 30A BMS provides 20+ protections.

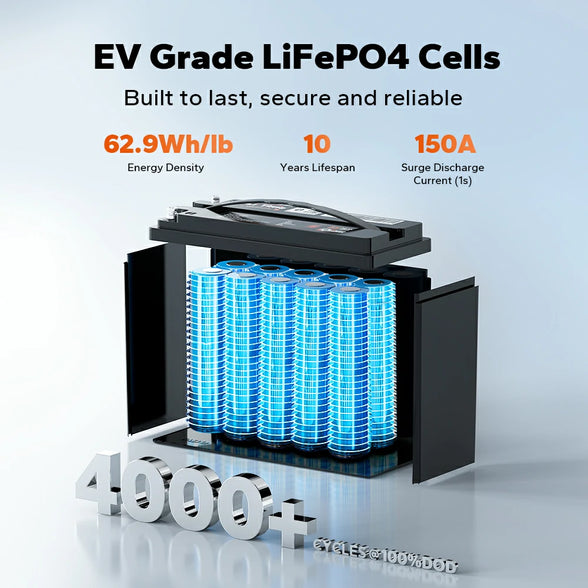

- EV grade LiFePO4 cells, 4000+ cycles@100% DOD, 10 years lifespan and 62.9Wh/lb energy density.
- Compact and powerful, 52% smaller, 75% lighter, 1.8X energy(1C). (VS 16V 32.9Ah lead-acid battery)
- 480Wh usable energy & 480W load power.
- 4P1S expansion, up to 1920Wh energy & 1920W power.
- This battery will run 1 graph for 7.4 to 37 hours.
- IP65 water & dust proof, perfect for outdoor fishing.
- 3 Flexible charging methods - dedicated 16V LiFePO4 charger, solar panel, and generator.
- FCC, CE, RoHS, UN38.3 certified, and UL-1642 tested.
- Do NOT use it as a starting battery!

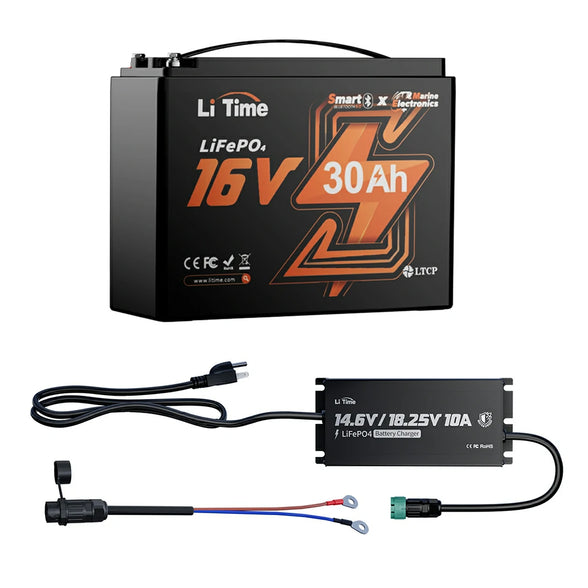

- First use or after manual shutdown: Connect the charger to activate the battery. Use LiTime 16V 10A charger.
- Compatible with Humminbird, Lowrance, Garmin, Raymarine, etc. (NOTE: If using the Lowrance fish finder while charging, recommended to add a 16.4V voltage regulator to ensure normal use.)
30-Day Price Guarantee
- $149.99
-
$299.99 - $149.99
- Unit price
- per
Upgrade Your Fishing Game with Our New 16V Bluetooth Lithium Battery! Order Now at a Special Launch Price with Extra $20 Off When Spending $400.
Please hurry! Only 30 left in stock
Subtotal:
$149.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
Ultimate Professor for Your Fishing Life
Tired of ending the day with nothing? Expensive fish finders that produce fuzzy and messy imaging? Consider connecting your kayak fish finder with a LiTime 16V lithium battery. Provide your fish finder with a separated power source, avoid potential interference caused by TM, water pumps, starter motors, or other on-board electrical devices. It can provide more stable power support, maximizing your fish finder's performance. Big fish are about to get hooked!
Get the Highlights
LiTime 16V marine deep cycle battery brings you a brand-new fishing experience. Responding to the principles of intelligence, safety, and convenience, the 16V LiFePO4 battery features multiple significant functions, including smart Bluetooth 5.0, low-temp cut-off, etc., realizing easy control at your finger and upgrading performance.
Reasons You Must Have 16V Battery
Unlike 12V battery, LiTime 16V 30Ah LiFePO4 battery maintains a higher voltage level, so the fish electronics remain in an ideal state for 25% longer run time. When used exclusively to power the fish finder screen, the 5 inch screen (1A) can run for 37hrs, 7 inch (2A) for 18hrs, 9-10 inch (3A) for 12hrs, 12 inch (4A) for 9hrs, and the 16 inch (5A) for 7.4hrs.
LiTime 16V battery significantly enhances the clarity and brightness of your fish finder's screen, allowing to see critical details in real time. The improvement is crucial when using sonar technologies such as Garmin Livescope, Lowrance Active Target, and Humminbird Mega Live, as it allows for superior imaging and more accurate fish detection. Additionally, the increased voltage level improves the transducer's return signal for clearer side, down and forward imaging. It means you can identify fish and underwater structures with unprecedented precision, giving you a tactical advantage on the water.

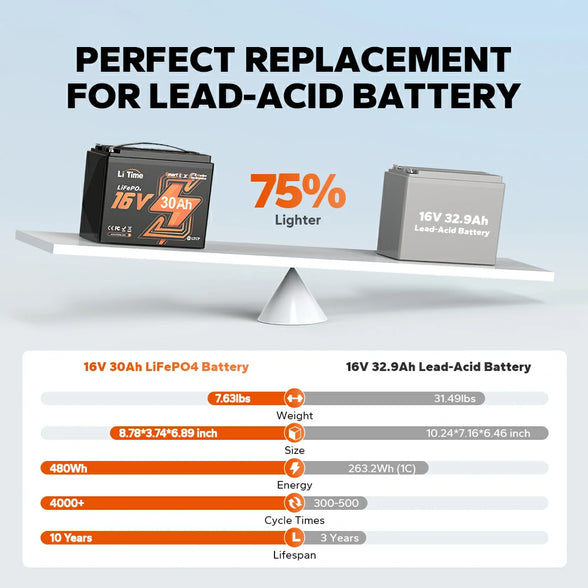

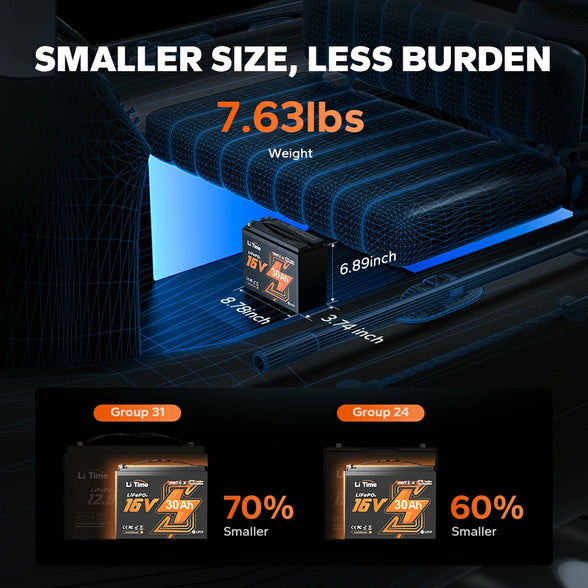

Reduce Burden, Lighten Sailing
Compared to traditional 16V 30Ah lead-acid battery, LiTime 16V fish finder LiFePO4 battery is 52% smaller, 75% lighter, yet 1.8X usable energy. It lightens the burden of kayak sailing while meeting high-demand power needs. Throw off the tiredness and catch lots of fish!

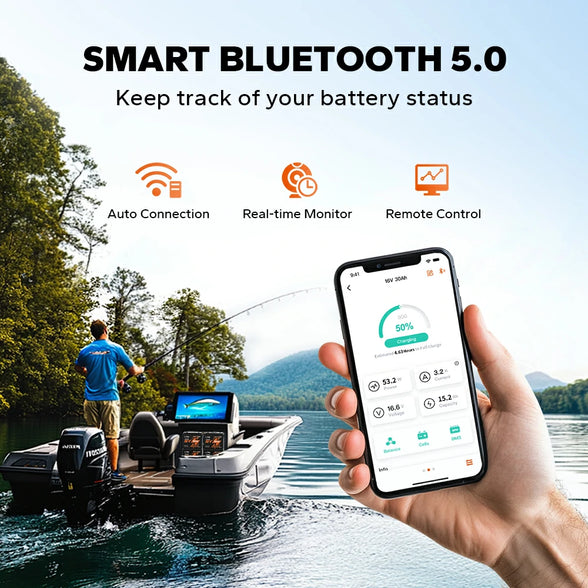

Click Your Phone, Control with Ease
LiTime 16V 30Ah LiFePO4 battery features smart Bluetooth 5.0 for remote control and instant access to battery status, including SOC, charge/discharge status, voltage, current, power, remaining capacity, temperature, and life cycles. Just scan the QR code on the battery with LiTime APP, to realize a quick connection.

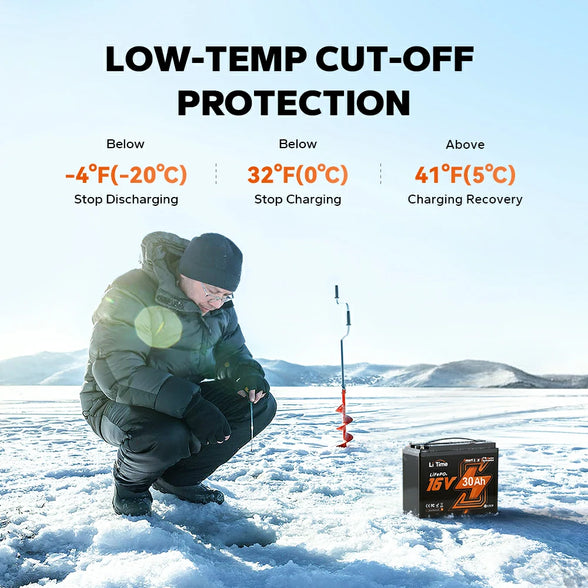

Stay Safe Even in Cold
LiTime 16V 30Ah lithium ion marine battery automatically cuts off charging and discharging in freezing weather, protecting cells from damage. It will keep the battery operating at optimal performance and capacity while extending its lifespan. Be your powerful partner in winter ice fishing!

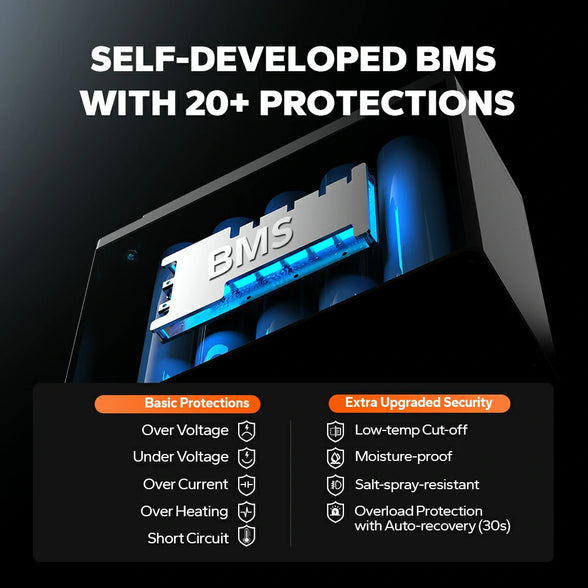

All Around Protection
LiTime 16V marine lithium battery implements the principle of safety first. The self-developed 30A BMS provides upgraded protection, including moisture-proof, salt-spray resistance, and overload protection with auto-recovery (30s). Thanks to its IP65 water and dust resistance, it's ideal for outdoor fishing.
Power Your Full Fishing Day
LiTime 16V lithium deep cycle marine battery focuses on fishing electronics, such as fish finder, bass fishing electronics, fish sonar and fish radar. It can offer unparalleled benefits on the water, which is a professional choice for fishermen. Whether you're participating in a bass fishing tournament, or exploring the underwater, LiTime 16V battery will always be the reliable power source.
3 Charging Methods
LiTime 16V fish finder lithium battery supports 3 charging methods - dedicated 16V LiFePO4 charger, solar panel and generator. Upon initial use or after manually powering off the battery, please ensure to connect the charger to turn on the battery and activate Bluetooth.
Secure & Reliable & Guaranteed
LiTime 16V kayak fish finder battery is backed by rigorous testing and features a trustworthy quality guarantee. We provide customers with professional technical support, a considerable return policy, a comprehensive operation manual and 24-hour online service.
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000+
Nominal Voltage：
16V
Rated Capacity：
30Ah
Energy：
480Wh
Max. Expansion (Parallel & Series)：
4P1S
Internal Resistance：
≤40mΩ
Certifications：
UL-1642, FCC, CE, RoHS, UN38.3, FCC ID
ABYC Official Certi.：
Yes
Bluetooth：
Yes
BMS
BMS：
30A
Max. Continuous Output Power：
480W
Max. Continuous Charge Current：
30A
Max. Continuous Discharge Current：
30A
Max. Discharge Current 1 Second：
150A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
18±0.25V
Recommend Charge Current：
6A(0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
-20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection：
Yes
Low-Temperature Charging Protection Auto Recovery：
5℃ / 41℉ (Battery Temperature)
OTHERS
Terminals：
M6 bolts
Weight Approx.：
7.63lbs
Size：
8.78*3.74*6.89 inch
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: Why choose LiTime 16V fish finder battery?
A:
LiTime 16V battery was originally developed from customer feedback on the performance of fish finders. Using a single battery on your fish finder, especially a 16V LiFePO4 battery, provides a more stable power supply. It effectively isolates interference from other devices on the boat, and prevents affecting the fish finder's imaging and sonar signals. The stable power is crucial for maintaining the optimal performance of sensitive equipment like forward facing sonar and marine electronics.
Q: What are the advantages of 16V batteries over 12V batteries?
A:
With longer running time, using a traditional 12V lead-acid or LiFePO4 battery, the voltage may drop and result in erratic imaging. LiTime 16V LiFePO4 battery provides a higher voltage level to stabilize and maximize the performance of your fish finder.
1. Better Clarity & Stronger Singal: It not only enhances the clarity and brightness of the electronic display, but also produces a stronger signal for greater penetration and clearer returns from underwater, further improving the accuracy of the sonar image.
2. 25% Longer Runtime: 16V 30Ah LFP battery has higher power than 12V 30Ah LFP battery, which offers longer running time to meet your all-day fishing.
Q: Will a 16V battery damage my fish finder?
A:
Not at all! For the same power, a higher voltage results in a lower current. It's well known that more current generates more heat, which is the enemy of your electronics. Therefore, a 16V battery will produce less than 20% of the current as a 12V battery, resulting in less heat to reduce the risk of overheating.
Example:
A 7-inch graph is rated for 2A at 12.8V. If upgraded to a 16V battery, and maintaining the same power of 25.6W, we can calculate the current at 16V based on the power formula:
I=P/U=25.6W/16V=1.6A
Therefore, the 16V battery will not produce more heat to damage your graphs.
Q: Is LiTime 16V battery suitable for ice fishing?
A:
Yes. LiTime 16V lithium battery features low-temp cut-off protection to stop discharging below -4℉ and stop charging below 32℉. With IP65 water and dust proof, it is perfect for ice fishing.
Q: Is LiTime 16V battery compatible with my fish finder?
A:
LiTime 16V LiFePO4 battery is compatible with most fish finder brands on the market, including Raymarine, Lowrance, Garmin, Humminbird, etc. Note: If you use your Lowrance fish finder while charging, it is recommended that you add a 16.4V voltage regulator to ensure normal use.
Q: Do I need a special charger for 16V LiFePO4 battery?
A:
Yes. You will need to have a charger that is specifically for 16V LiFePO4 battery. It is not compatible with chargers for 12V, 24V, 36V or 48V batteries.
Q: Can I use LiTime 16V LiFePO4 lithium batteries as starting batteries?
A:
No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. If you need a starting battery, learn more about LiTime marine starting battery.
Q: Can I connect the battery in series or parallel?
A:
The LiTime 16V 30Ah lithium fish finder battery supports max. 4 batteries in parallel conncetion. Please don't connect the battery in series.
When connect the battery in series or parallel, please make sure:
- They should be identical batteries with the same capacity (Ah) and battery management system (BMS) rating (A).
- They must be from the same brand, as lithium batteries from different brands have unique BMS configurations.
- They should be purchased within a close timeframe (ideally within one month).
