RS485 (Recommended Standard 485) communication is a widely used industry standard for data transmission in various applications, including industrial automation, building automation, and even in some consumer devices. It plays a crucial role in enabling reliable communication over long distances and in noisy environments. In this article, we’ll explore what RS485 communication is, its key features, advantages, and applications.

Table of Contents

What is RS485 Communication?

RS485 is a differential serial communication standard that allows multiple devices to communicate with each other over long distances. Unlike traditional single-ended communication protocols like RS232, RS485 uses two wires to transmit data, which helps it to overcome many of the limitations of older technologies.

In an RS485 system, devices are connected in a network, and data is transmitted in a balanced manner between two lines: the positive (A) and negative (B) lines. This differential signal helps to cancel out any noise that may interfere with the communication, making RS485 ideal for use in industrial environments where electromagnetic interference (EMI) is a concern.

what is rs485 connection

What is RS485 Cable

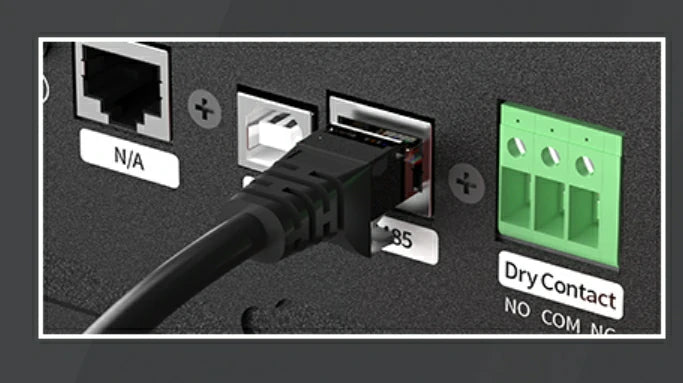

An RS485 cable is a type of data communication cable used for transmitting signals in RS485 serial communication systems. These cables are specially designed to support differential signaling, which is the foundation of RS485 communication. The cable typically consists of twisted pair conductors that help minimize electromagnetic interference (EMI) and maintain signal integrity over long distances.

what is rs485 cable

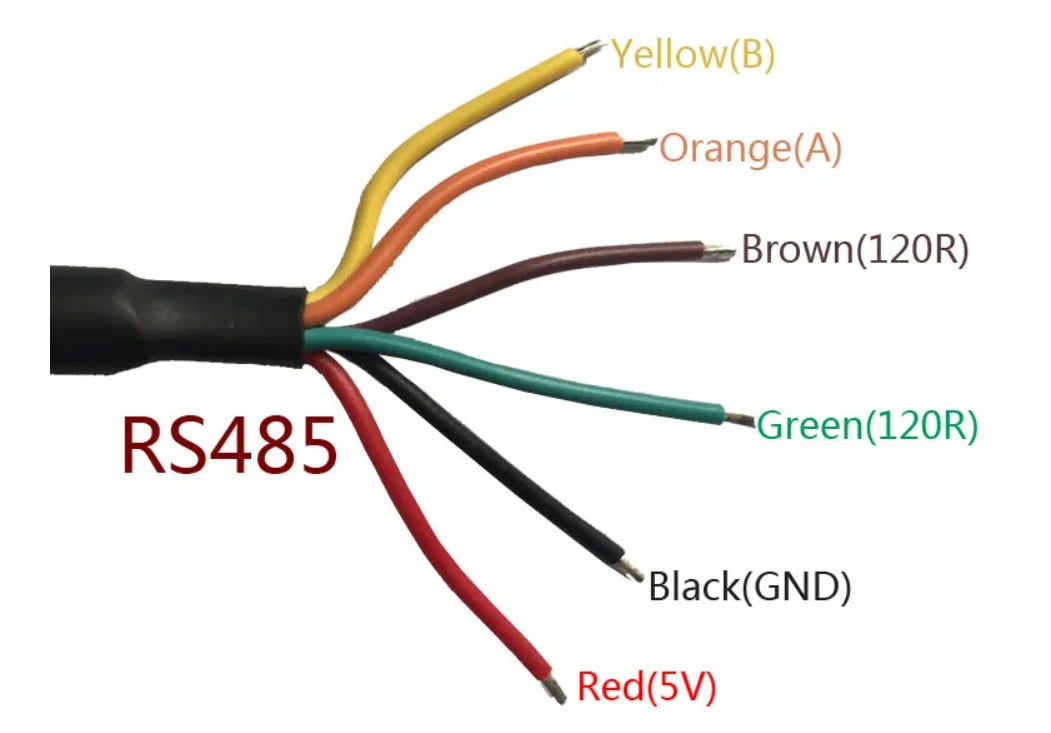

Most RS485 cables include two main conductors labeled as A (non-inverting) and B (inverting), and sometimes an additional wire for ground reference. The twisted pair design ensures that both conductors are equally exposed to external interference, allowing the differential receiver to filter out common-mode noise effectively.

In demanding environments—such as industrial automation, solar energy systems, and battery monitoring—shielded RS485 cables may be used. These come with an added layer of foil or braided shielding to further protect against signal degradation caused by electrical noise.

Because RS485 supports multi-drop communication, meaning multiple devices can share the same communication line, it’s essential that the cable maintains consistent impedance and low capacitance to support stable and high-speed data transmission across the network.

how does rs485 cable look like

Common characteristics of RS485 cable:

  • Twisted pair wires for differential signaling
  • Optional shielding for enhanced noise resistance
  • Designed for long-distance data transmission (up to 1,200 meters)
  • Supports high-speed communication (up to 10 Mbps for short distances)
  • Used in industrial control, BMS systems, solar inverters, and more

Key Features of RS485 Communication

Differential Signaling: RS485 uses two wires to transmit data, which helps to reduce the effects of electrical noise and signal degradation. This allows for more reliable communication, especially in environments with high electromagnetic interference.

Multi-Device Communication: RS485 supports a bus configuration, meaning it can connect multiple devices (up to 32 devices per bus) in a single communication line. This is ideal for applications where multiple devices need to communicate with one another, such as building automation systems or remote sensor networks.

Long-Distance Transmission: RS485 supports communication over long distances, up to 4000 feet (1,200 meters) at lower data rates. This makes it ideal for industrial environments or situations where devices are spread out over large areas.

Half-Duplex and Full-Duplex Modes: RS485 can operate in both half-duplex and full-duplex modes, depending on the application. In half-duplex mode, data can flow in one direction at a time, while in full-duplex mode, data can flow in both directions simultaneously.

High-Speed Data Transmission: RS485 supports high-speed data rates up to 10 Mbps, although the actual data rate will depend on the length of the cable and the number of devices connected to the network.

Advantages of RS485 Communication RS485

Noise Immunity: The differential signaling used in RS485 ensures that noise from external sources doesn’t interfere with the communication signal. This is a significant advantage in noisy industrial environments or in areas with high electromagnetic interference.

Scalability: RS485 is designed to support multiple devices on the same communication bus, making it highly scalable for large systems. Whether you're building a small system with just a few devices or a larger network with hundreds, RS485 can handle the load.

Cost-Effective: RS485 is relatively inexpensive to implement, especially when compared to other communication standards. The use of twisted-pair cables, which are widely available and inexpensive, further reduces the cost of setting up an RS485 network.

Long Distance Transmission: With its ability to transmit data over long distances, RS485 is an excellent choice for remote sensing applications or systems spread across large areas, such as industrial control systems or monitoring equipment in buildings.

Versatility: RS485 is used in a wide variety of applications, including factory automation, HVAC systems, energy meters, process control, and even home automation. Its versatility makes it a go-to choice for many industries.

Applications of RS485 Communication

Industrial Automation

RS485 powers machines. It links sensors, PLCs, and controllers across factory floors. It shrugs off noise. It runs over long cables. It keeps commands clear in loud, messy environments. Engineers trust it to control robots, sorters, and conveyors.

Building Automation

RS485 runs smart buildings. It connects lights, air systems, and alarms. One cable pulls them together. Managers monitor rooms, adjust lighting, or tweak temperatures—all from one screen. It turns buildings into smart, reactive spaces.

Energy Monitoring and Metering

RS485 collects power data. It listens to many meters and sends the numbers home. Power plants, offices, and factories rely on it. It shows where energy flows and where it leaks. Operators use this to cut waste and lower costs.

Smart Grid and Metering

RS485 shapes smart grids. It links meters, sensors, and control hubs. The grid tracks demand. It shifts supply. It balances loads in real time. RS485 gives grids brains and quick reflexes.

Remote Sensing

RS485 reaches far. It thrives where devices sit alone—in fields, tunnels, or rooftops. It grabs sensor data—like heat, moisture, or gas levels—and sends it back. Farmers, researchers, and engineers use it when wireless won't cut it.

Automated Test Equipment

RS485 runs lab tests. It hooks up dozens of tools in one go. Test benches buzz with instruments. RS485 commands them all from one controller. It gathers results fast. It trims wires and cuts clutter.

RS485 vs. RS232: Key Differences

RS485 and RS232 both move data through serial communication. But they work in very different ways.

Signal Type

RS232 sends single-ended signals. One wire carries voltage. Noise creeps in easily. Over distance, the signal breaks down.

RS485 sends differential signals. Two wires carry opposite voltages. Noise hits both lines together. The receiver subtracts them. This kills the noise and clears the message. RS485 holds strong over long runs.

Building Automation

RS485 runs smart buildings. It connects lights, HVAC systems, and alarms. You can control everything from one place. It makes buildings think and respond. Need to dim lights, drop temperature, and lock doors? RS485 makes it happen.

Energy Monitoring and Metering

RS485 talks to meters. It collects data from many spots and sends it back. Offices, factories, and power plants all use it. It helps you track real-time power use. This saves energy and cuts costs.

Smart Grid and Metering

RS485 powers smart grids. It links meters, sensors, and control units. The grid watches demand, shifts load, and avoids waste. With RS485, power flows smarter—not just harder.

Remote Sensing

RS485 reaches far. It thrives where wires stretch—fields, factories, labs. Sensors check heat, moisture, or pressure. RS485 pulls their readings back to base. It’s the lifeline for data from hard-to-reach places.

Automated Test Equipment

RS485 organizes complex test setups. In labs and lines, tools must talk. RS485 joins them. One bus, many devices. It runs the tests, gathers results, and cuts out mess.

Conclusion

RS485 communication is a versatile, cost-effective, and reliable solution for various industrial and commercial applications. With its ability to transmit data over long distances, support multiple devices, and withstand noisy environments, it is a preferred choice in many systems that require robust and scalable communication. Whether you’re working in industrial automation, energy monitoring, or building automation, RS485 provides the performance and flexibility needed to build efficient and reliable systems.

If you’re looking to implement RS485 in your systems, understanding its key features and benefits can help you design and optimize your network for maximum performance and reliability.
