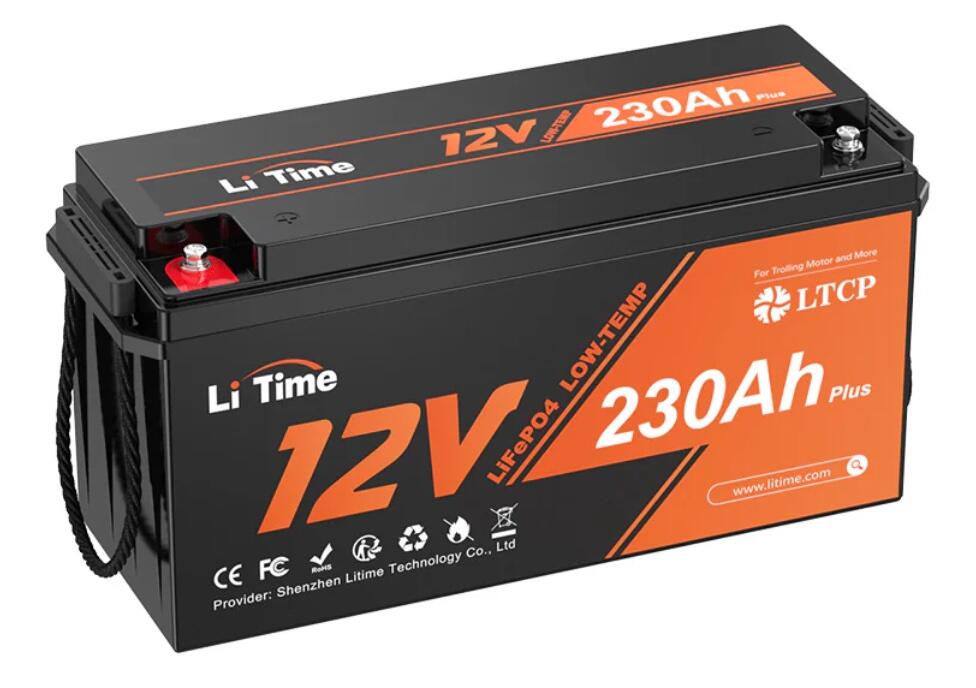

Name: LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection
Brand: LiTime
SKU: L12V230-200-LTCP-4-A150
Price: 469.99 USD
Availability: InStock

FEATURES
SPECS
FAQ
REVIEWS

Upgraded Low-Temperature Cut-Off Protection

Maximize your battery life and charging efficiency with the low-temperature cut-off protection - keeping you safe and powered up even in the coldest conditions. LiTime 12V 230Ah low-temp cut-off protection battery can cut charging when it is below 0°C/32°F and disconnect loads when it is below -20°C/-4°F to extend our battery life. While other batteries struggle in chilly conditions, suffering capacity loss or going into hibernation, our advanced technology safeguards your charge and discharging.

low-temperature protection function of litime 12v 230ah battery

Ultra-Long Battery Lifespan

Most lead-acid batteries are only 2~3 years lifespan. But the LiTime LiFePO4 battery is built to stand the test of time. Boasting a stunning 4000+ cycles@100% DOD, the LiTime lithium battery leads the industry in sheer longevity. That allows you to power your home or cabin for over a decade. Experience peace of mind with EV Grade-A LiFePO4 battery cells, which are free from mercury, lead, and other toxic substances. IP65 waterproof level protect against water and dust.

quality information of litime 12v 230ah, life cycles, protection features battery

All-Round Upgraded BMS

The upgraded 12V 230Ah LiFePO4 deep cycle battery is designed for harsh environments such as rainy, coastal areas, or dusty and wet conditions, and offers worry-free and long-lasting performance with a reduced risk of damage and an extended lifespan. Our upgraded BMS secures your battery from over-charging, over-discharging, and short-circuiting, ensuring a safer and more reliable battery. You can reduce the cost of replacing vulnerable batteries.

battery management system protection information of litime 12v 230ah battery

Max. 4P4S, Up to 47.104kWh of Energy

Experience unparalleled versatility with the LiTime 12V 230Ah low-temp protection lithium batteries. Combine up to 16 units with a 4P4S configuration to establish a formidable 51.2V 920Ah system, boasting a staggering 47.104kWh of green energy. Tailor your energy solution to suit your needs, whether it's for residential, marine, RVs, trolling motors, off-grid, or any scenario demanding extended runtime capabilities or in any cold conditions. With LiTime, the possibilities are endless.

operating temerature of litime 12v 230ah lifepo4 battery

energy information of litime 12v 230ah lifepo4 battery

4 Ways to Recharge

The LiTime 12V 230Ah low-temp cut-off protection lithium battery outperforms lead-acid batteries with its faster charging efficiency. Moreover, there are 4 versatile charging options: LiFePO4 chargers, solar panels, alternator and generators. It takes about 5.75 hours to fully charge the battery with a 14.6V 40A LiFePO4 charger, enabling you to swiftly recharge the battery for a better user experience.

4 ways to charge litime 12v 230ah battery

Conquer Every Scenario with Ease

Versatility meets reliability with this battery. LiTime 12V 230Ah low-temp cut-off protection lithium battery is perfect for many applications, including trolling motors, home energy storage, solar power systems, caravans, and outdoor adventures. Its lightweight and compact design allows for effortless portability

Outstanding Service

Professional technical support, customer service, easy-to-understand operation manuals, phone support, and 24-hour quick online feedback are provided.

SPECS

BATTERY

Cell Type：

LiFePO4 Prismatic

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

12.8V

Rated Capacity：

230Ah

Energy：

2944Wh

Max. Expansion (Parallel & Series)：

4P4S

Internal Resistance：

≤40mΩ

Certifications：

UL, FCC, CE, RoHS, UN38.3

ABYC Official Certi.：

Yes

BMS

BMS：

200A

Max. Continuous Output Power：

2560W

Max. Continuous Charge Current：

200A

Max. Continuous Discharge Current：

200A

Max. Discharge Current 5 Seconds：

600A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

14.4V ± 0.2V

Recommend Charge Current：

46A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

Low-Temperature Protection：

Yes (32℉/0℃)

Low-Temperature Charging Protection Auto Recovery：

Yes (41℉/5℃)

OTHERS

Terminals：

M8 bolts

Weight Approx.：

45.22 lbs

Size：

L19*W6.7*H9.5 inch

Housing Material：

ABS

Protection Class：

IP65

FAQ

Q: Can I use LiTime 12V 230Ah LiFePO4 batteries as starting batteries?

No. LiTime 12V 230Ah lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. Visit LiTime Marine Starting Batteries for starting using.

Learn more about Deep Cycle VS Starting Batteries.

Q: Can I charge LiTime 12V 230Ah LiFePO4 lithium batteries with solar panels?

Yes, you can charge LiTime 230Ah lithium batteries with solar panels. Here are 3 ways to charge the battery.

1. Using Solar Panels

The LiTime 12V 230Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.

The Recommended Charging Voltage: 14.2V - 14.6V.

The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 12V battery, it is recommended to use 14.6V battery charger. The Recommended Charging Voltage: 14.2V - 14.6V.

Rlated reading: Best Ways to Charge LiFePO4 Lithium Battery

Q: Can I charge LiTime 12V 230Ah lithium batteries in cold weather (under freezing temperatures)?

LiFePO4 batteries can safely charge between 0℃ to 50℃ / 32℉ to 122℉. LiTime 12V 230Ah LiFePO4 batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.

Recommended reading on LiFePO4 Temperature Range Guide for more information on safe usage and performance.

Q: How do I store LiTime 12V 230Ah LiFePO4 lithium batteries?

It is recommended to store LiFePO4 lithium batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment: 10℃ to 35 ℃ / 50℉ to 95 ℉，45%RH～75％RH

Q: In what applications can I use 12V 230Ah LiFePO4 lithium battery?

1. Solar Energy Storage: LiFePO4 batteries are commonly used in off-grid solar energy systems for storing and utilizing solar-generated electricity.

2. RVs and Marine Applications: These batteries are suitable for powering lights, appliances, and electronic devices in RVs, boats, and yachts, providing a reliable and long-lasting power source.

3. Off-Grid Power Solutions: LiFePO4 batteries can be used for off-grid cabins, cottages, or remote locations where a reliable power supply is necessary.

4. Backup Power for Home and Business: They can be utilized as a backup power source for homes, businesses, or critical systems in case of power outages.

5. UPS (Uninterruptible Power Supply): LiFePO4 batteries can be integrated into UPS systems to provide reliable and long-lasting backup power for critical equipment.

Q: How Long Will a 12V 230Ah Battery Last?

The length of time a 12V 230Ah battery will last depends on the amount of current drawn from it and the specific use. You can estimate this by using the following formula:

Battery life (in hours) = Battery capacity (in amp-hours) / Load current (in amperes)

For example, if we assume a load current of 10 amperes:

Battery life = 230Ah / 10A = 23 hours

This means you can expect approximately 23 hours of continuous operation with a 10-ampere load. However, actual duration can vary based on factors such as system efficiency, changes in the load current, and the overall condition of the battery.

Q: Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.

REVIEWS

Perfect upgrade

I purchased this battery to convert our travel trailer from lead acid tecnology to Lithium.
The battery has performed beautifully and met and exceeded my expectations.
I intend to purchase another to further extend our stay limit without external power source.

Doubling capacity in my sprinter van

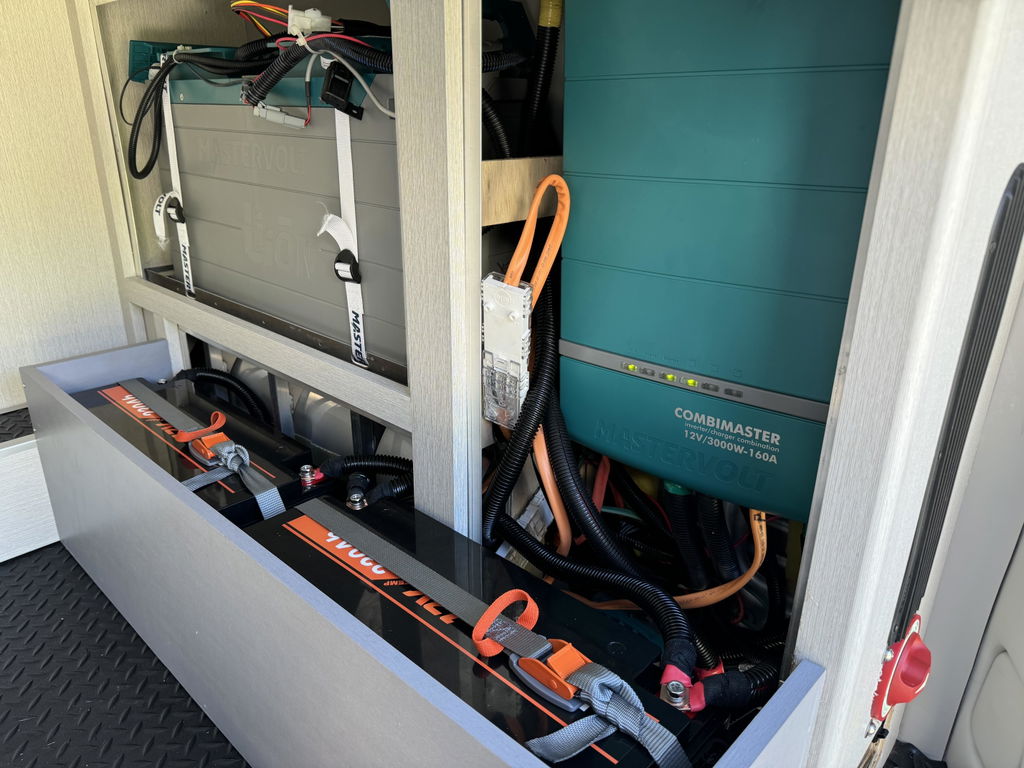

I bought this Thor class B sprinter van and it came equipped with a 400 AH Master volt system, but it wasn't enough to run the air conditioning for eight hours overnight. A new master volt battery cost over $5000. My Li time second bank cost less than a quarter of that price and appears to be performing better!

230 AH for RV

This is a revision of an earlier one star review…………After an extended shipping period, the battery finally arrived. It appears in excellent condition and very much met my expectations for overall quality. My installation of solar on my RV, with this battery, is complete, and I’m extremely satisfied. What is best however, was the LiTime follow-up with checking on my order. Mavis was an excellent communicator and followed my order to maintain my satisfaction as a continuing customer. Kudos to Customer Service!!! I would definitely purchase again!!!

Fast delivery

I have only had my new 230 amp litime batteries 2 weeks but so far they have performed great. three weeks to our first real test.

Game changer batteries will let us boondock in our RV comfortably

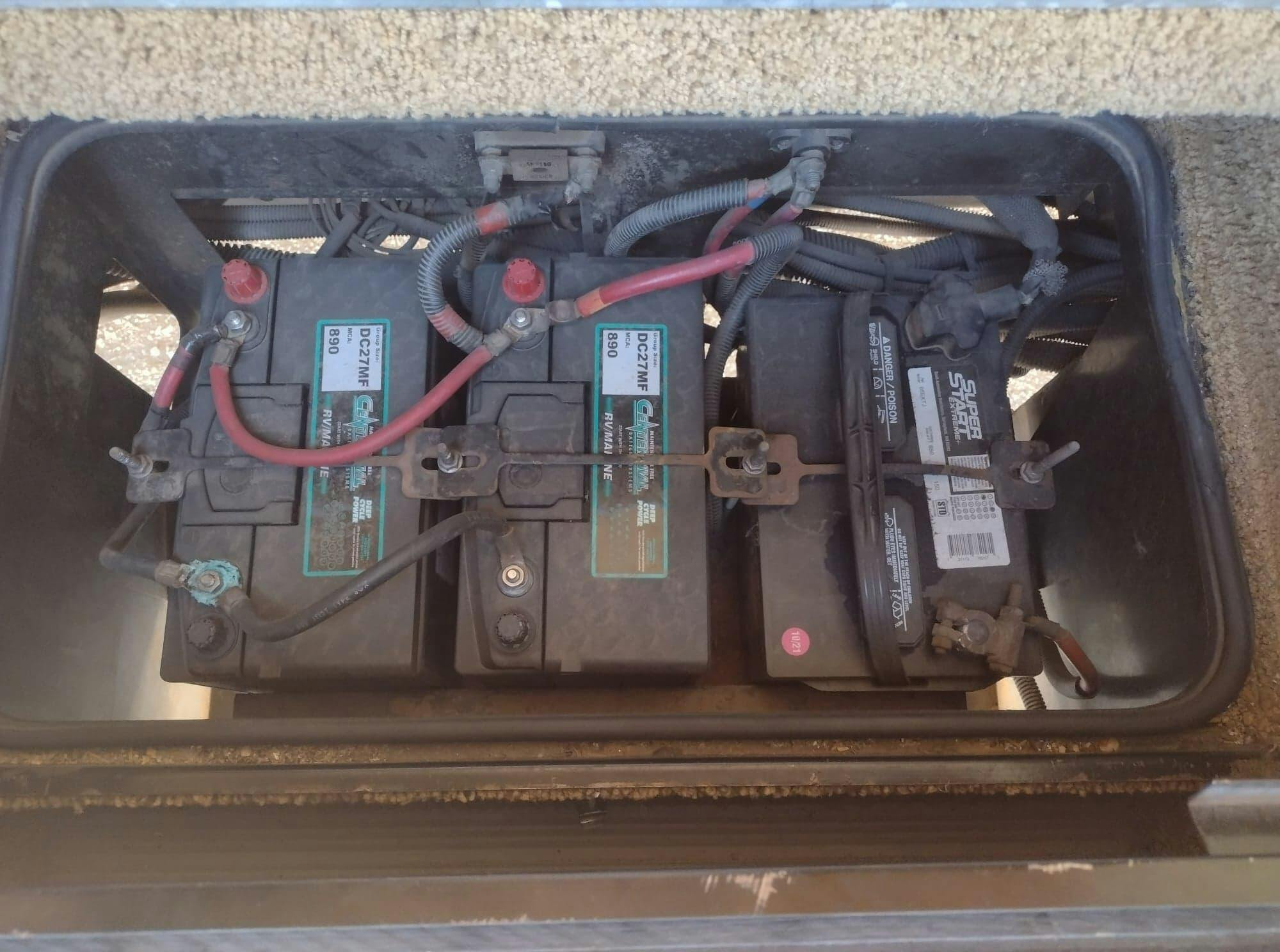

We've got a 32 foot motorhome with a wheelchair lift and door. The lead/acid batteries didn't allow us to venture far from an RV park or a power plug with the setup we had partially because of the power hungry wheelchair lift.
We have a big trip planned and wanted to upgrade our house batteries from two 100Ah batteries to as much lithium based energy as possible. These 230Ah batteries fit perfectly under the stairs in the RV with some minor modifications.
We now have nearly 460Ah of usable energy instead of 50Ah.
Because of that, the old Norcold refrigerator is now replaced with a new Samsung inverter compressor "garage ready" fridge that will easily run on the LiTime batteries as will the TV and the lights.
We haven't taken a test trip yet, but the RV has been in the back yard running flawlessly on and off the batteries in 100+ degree heat.

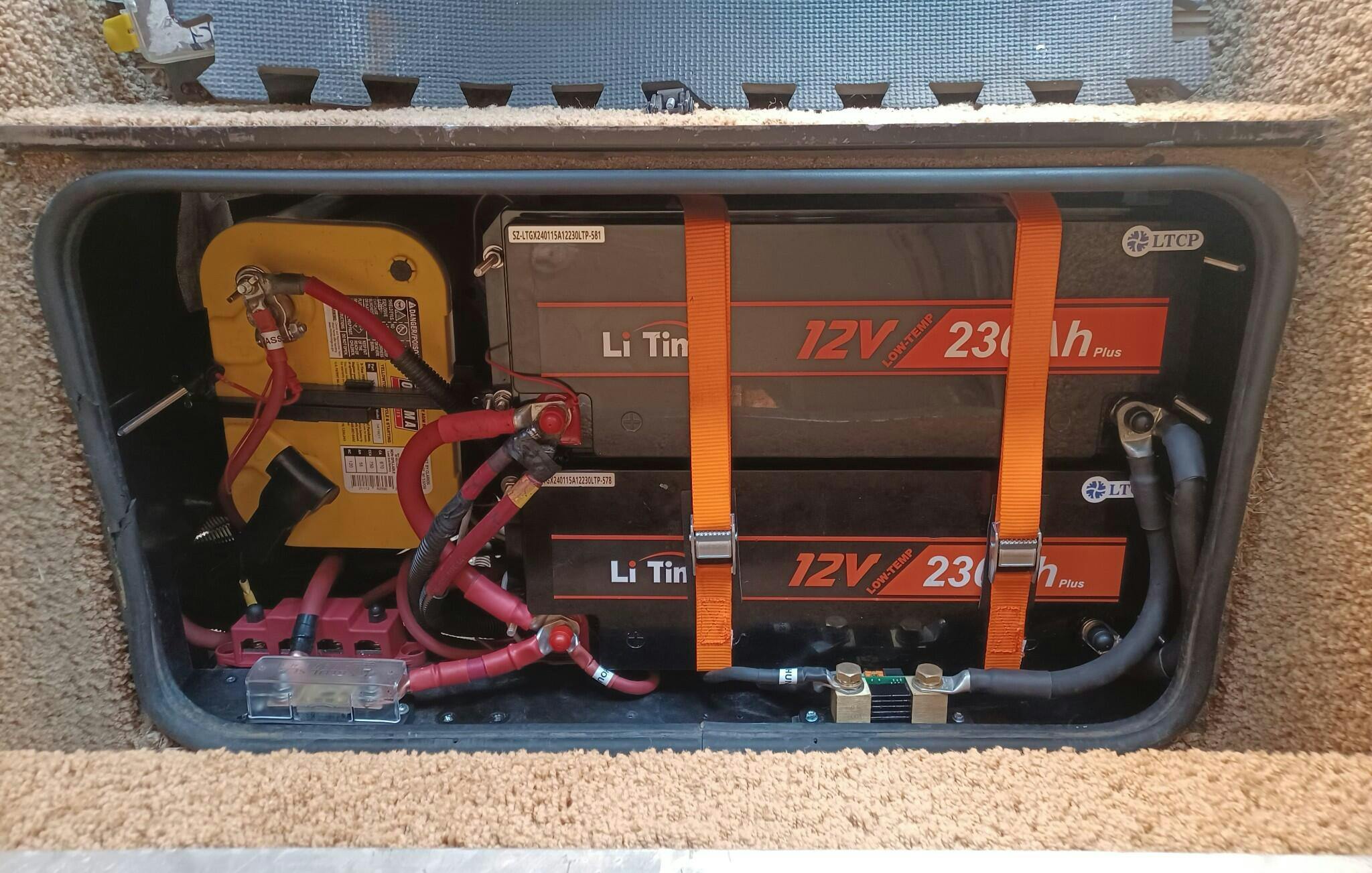

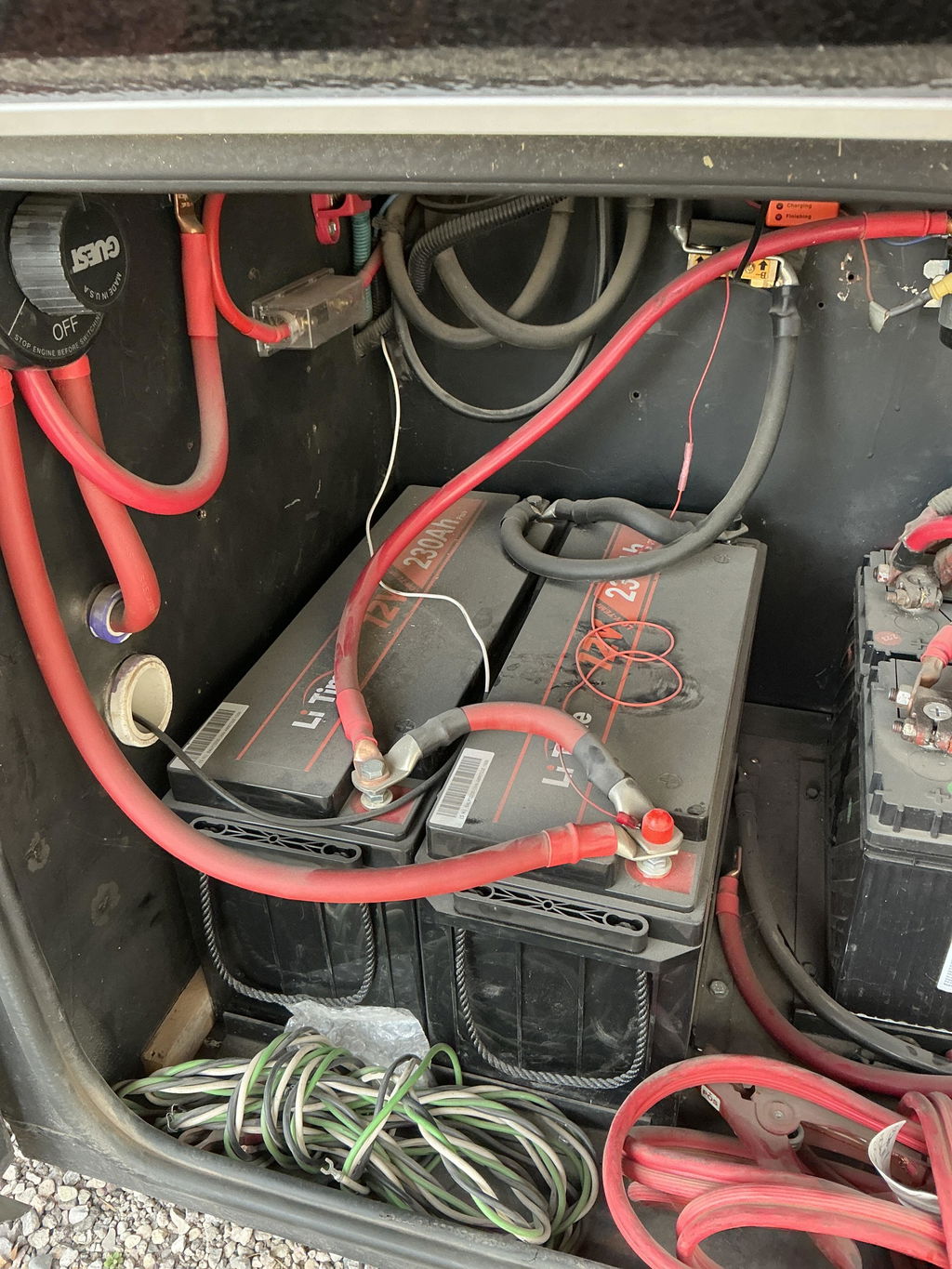

The pictures show how well everything fits in a very tight space and the weight of all that additional energy is almost exactly the same as ELEVEN percent of lead/acid chemistry batteries.
(I'm not a fan of the recessed terminals and a Bluetooth BMS would be nice, but it's not worth taking off a "star", these batteries are great)
