Features

LiTime 12V (14.6V) 10A LiFePO4 Battery Charger

$79.99

$99.99

- 20.00 %

12V LiFePO4 Battery Charger: 14.6V DC output, 10A current, 100-240V AC input.
Input cable: 47.24 inch; output cable: 57.08 inch (including 9.84 inch Anderson extension cable). View specs.
Safely jump-starts BMS-protected lithium batteries.
Convenient M8 terminals and 50A Anderson connector.

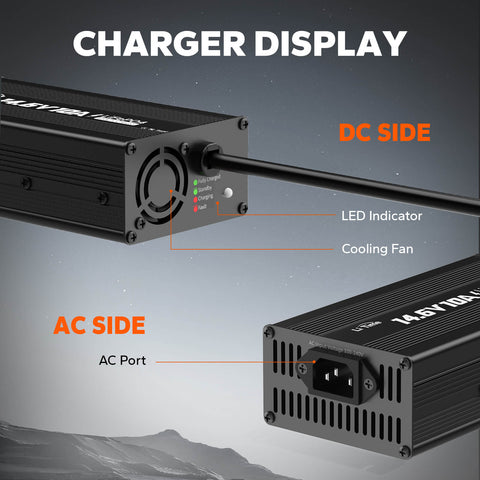

LED indicators for standby, charging, full charge, and error status.
Durable aluminum alloy shell with an efficient heat-dissipating cooling fan.
3-stage charging: pre-charge, CC, and CV stages.
Multilevel protection for over-temperature, reverse polarity, short circuit, and over-voltage.
CE & RoHS certified, 2-year warranty, lifetime support, and 24-hour service.

Comparison

Quantity:

$79.99

$99.99

- 20.00 %

2-Year Warranty

Backed up by techical support within 24hrs.

Free Shipping

Free standard shipping on all orders.
Delivered in 2–5 business days.

Free Returns

30 Days Hassle Free Returns

14.6V 10A

$79.99

$99.99

[{"alt":"overview of litime 12v 10ah lifepo4 lithium battery charger","id":33813723807964,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_1.webp?v=1723628547"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_1.webp?v=1723628547","width":1600},{"alt":"multi level protections of litime 12v 10a lifepo4 battery charger","id":33813723840732,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_2.webp?v=1723628547"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_2.webp?v=1723628547","width":1600},{"alt":"activation function of litime 12v 10a lithium battery charger","id":33813723873500,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_3.webp?v=1723628548"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_3.webp?v=1723628548","width":1600},{"alt":"lifepo4 battery charger with LED indicator","id":34089976037596,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/4_6bb81511-dea1-42c6-bfe4-ce0892c77840.webp?v=1729072593"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/4_6bb81511-dea1-42c6-bfe4-ce0892c77840.webp?v=1729072593","width":1600},{"alt":"M8 terminals and anderson connectors of litime 12v 10ah lifepo4 battery charger","id":33813723939036,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_5.webp?v=1723628547"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_5.webp?v=1723628547","width":1600},{"alt":"3 stage charging mode of litime 12v 10ah lithium battery charger","id":33813723971804,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_6.webp?v=1723628547"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_6.webp?v=1723628547","width":1600},{"alt":"LiTime 12v 10a lifepo4 battery charger with build in fan to protect overheating","id":33813724004572,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_7.webp?v=1723628547"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_7.webp?v=1723628547","width":1600},{"alt":"charging time of litime 12v (14.6v) 10a lifepo4 battery charger","id":33813724070108,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_9.webp?v=1723628547"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_9.webp?v=1723628547","width":1600},{"alt":"what's in the box of LiTime 12v 10a lifepo4 battery charger","id":33813724037340,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_8.webp?v=1723628547"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime12V10Acharger_8.webp?v=1723628547","width":1600}]

Features

Specs

FAQ

Reviews

activation and extending function of litime 12v 10ah lifepo4 battery charger

LiTime Lifetime LiFePO4 Charger

12V (14.6V) 10A AC to DC battery charger is an all-in-one charger, widely used in many scenarios, including RVs, trolling motors, boats, camping, off-grid cabins and home storage. LiTime lithium battery charger is committed to be your lifetime RV battery charger and trolling motor battery charger.

features of litime 12v 10a lifepo4 battery charger

specification information of litime 12 volt 10a lithium battery charger

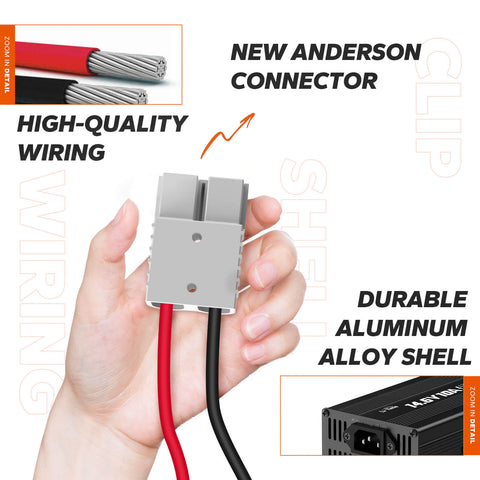

Connection Upgraded

LiTime 12V lithium ion battery charger provides users with a fast charging efficiency and safer charging process with its 50A Anderson connector and M8 terminals. It takes 5 hrs to fully charge a 12V 50Ah lithium battery.

upgraded connections with m8 terminals and anderson connector of litime 12v 10amp lifepo4 battery charger

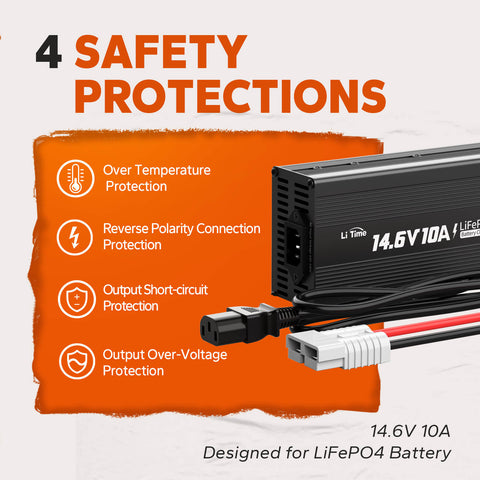

100% Protected Safety & 100% Monitor in Real-Time

LiTime 12V LiFePO4 battery charger can protect and monitor your battery anytime. It provides 100% reliable protection against over-heating, reverse polarity, output short-circuit and output over-voltage, and displays your battery charging status in real-time through its LED indicators.

safety protections of litime 14.6v 10a lifepo4 battery charger

litime 12 volt lithium battery charger with led indicator light showing charging status

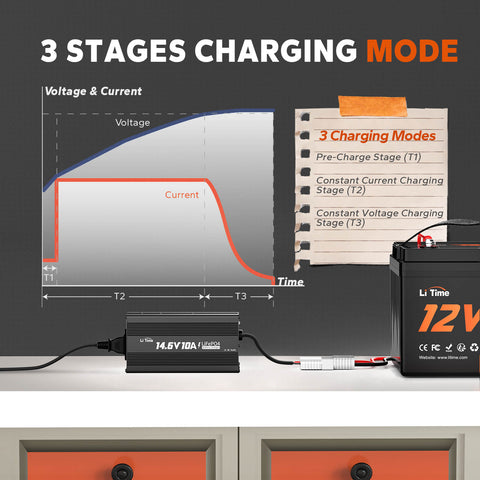

Fast & Efficient Charging Stage with Battery Activation Function

3-Stage charging function can identify battery voltage and automatically switch charging mode, providing fast and efficient charging. When you need to activate your lithium battery after BMS protection, just connect the charger to your battery for charging and the battery will be wake up or activate after 3 seconds.

litime 12 volt lithium battery charger feature with 3-stage charging mode for lifepo4 battery

activation function of litime 12v 10 amp lifepo4 lithium battery charger

How to Charge 12V Battery

Using LiTime LiFePO4 battery charger is easy and safe for you. First, connect the DC output cable to the battery, making sure their positive and negative connection isn't reversed. Secondly, plug your AC input into the outlet. Lastly, connect the Anderson connector.

conncetion guide of litime lithium battery charger

package information of litime 12v 10a lifepo4 lithium battery charger

SPECS

BASIC

Charger Type：

LiFePO4

Output Voltage：

14.6V

Output Current：

10A

Max Input Current：

5A

Input Voltage Range：

AC 100V to 240V; 50Hz to 60Hz

LED Indicator：

√

PROTECTION

Over Temperature：

√

Output Short-Circuit：

√

Reverse Polarity Connection：

√

Output Over-Voltage：

√

TEMPERATURE

Operating：

-4℉ ~ 104℉

Storage：

-40℉ ~ 158℉

OTHERS

Size：

L7.09*W3.58*H2.03 inch

Approx. Weight：

2.07 lbs (0.94kg)

Warranty：

2 Years

Certifications：

CE, RoHS

Anderson Connector：

50A/M8 Terminal

Input Cable：

47.24 inch

Output Cable：

57.08 inch (Include 9.84 inch Anderson Extension Cable)

FAQ

What charger should I use for LiFePO4 battery?

For a complete charge of a 12V LiFePO4 battery, a charger with a voltage ranging of 14.4V±0.2V is necessary. If a charger with a lower voltage is used, it can still charge the battery, but it won't reach full 100% capacity.

Can I charge a LiFePO4 battery with a trickle charger?

Trickle charging is not acceptable for lithium batteries. Charging a LiFePO4 battery with a trickle charger not designed for this type of battery could lead to overcharging or damage due to the different charging requirements of lithium batteries compared to traditional lead-acid batteries.

How long does it take to charge a 12V 100Ah LiFePO4 lithium battery?

The 14.6V 10Ah LiFePO4 battery charger is designed to charge LiFePO4 batteries. The low resistance in the Lithium cells allow the battery to accept the full output from the charger. With a constant 10A current, it takes around 100Ah/10A=10hrs to fully charge a 12V 100Ah LiFePO4 lithium battery.

Is it OK to leave a LiFePO4 lithium battery on the charger?

Leaving a lithium-ion battery on the charger overnight should be safe if the charger is set with the correct voltage limit for the type of lithium-ion battery being used. For instance, with a LiFePO4 cell like the one used in LiTime Battery (with a nominal voltage of 12.8V and a fully charged voltage of 14.6v), using a charger with a 14.4-14.6V CC/CV output should work, provided it doesn't exceed roughly a 1C maximum current output. By following the CC/CV profile, ensuring the voltage is correct, and the current isn't excessive, you can safely achieve a full charge for your battery.

Can I charge my LiFePO4 lithium battery faster?

For most applications, a charging time of 3-10 hours provides the longest lifespan for your LiFePO4 lithium battery. But if you have an application where you need rapid charging, you can choose a charger with a higher output current. For example, you could use a 40 amp charger with a 100Ah battery for a 2.5-hour charge time.

What voltage should LiFePO4 lithium batteries be charged at?

It depends on the voltages of your LiFePO4 lithium batteries. LiTime 14.6 volts charger is recommended for 12V LiFePO4 lithium batteries.

And LiTime 29.2 volt charger is recommended for 24V LiFePO4 lithium batteries.

Please refer on Guide of Charging Different Voltage's Lithium Batteries for more detailed information.

How to choose the right charger for my LiFePO4 lithium battery?

It is always important to match your charger to deliver the correct current and voltage for the LiFePO4 lithium battery you are charging. For example, you wouldn't use a 24V charger to charge a 12V LiFePO4 lithium battery. It's also recommended that you use a charger matched to your battery chemistry. Additionally, when charging a LiFePO4 lithium battery with a normal lead-acid charger, you would want to ensure that the charger does not have a desulfation mode or a dead battery mode.

REVIEWS

Perfect for trolling motor battery

I have an 100ah marine battery from almost drained to a full charge takes 10 hours max. It’s “slow” compared to the other bigger chargers but I like this because I can charge overnight and be full by the time we load the boat.

Does the JOB!

This does exactly what is was meant to. It charges LiTime LiFePO4 12v Batteries. It is bare bones construction only one light for a readout. But in this case, simplicity equals durability. It seems to be extremely well built.
I had panic bought a 280Ah just before the 2024 election. Was planning on using a Harbor freight solar charger to charge it. The Harbor freight controller doesn't with with lithium batteries, so I had to figure something else out. The recommended charger for my battery is 60A, but this 10A is what finances allowed. It charged the giant battery just fine. It just took close to 20 hours.
It's not whisper quiet. It has a fan that sounds like an old computer tower cooling off. I wish it had more information, but at this price point, I'm glad it feels more solid than hi tech. I give it 5 stars because it does the job of talking to the BMS and charges at such an affordable price point.

Three 100ah 12volt batteries

So far everything is great quick shipping arrived fast and on time with no problems got three batteries and three chargers for under 1000 could not beat anywhere else for hundred amp per hour very pleased

Great battery

Excellent Customer Service

After an initial problem getting the charger to work, customer support was very responsive and helped resolve the issue. Service and communications with customer support after the sale was excellent. Battery charged very quickly. I am very happy with the purchase.
