LiTime 48V 30Ah GC2 Lithium Golf Carts LiFePO4 Battery
- Drop-In Replacement for GC2 Size Lead-Acid Golf Cart Battery
- Easy Installation: With dimensions of 10.24 x 7.09 x 10.43 inches, it effortlessly replaces GC2 lead-acid batteries like the T-105 and T-875. It's compatible with golf cart brands, including Club Car, EZGO, ICON, Yamaha, and more.
- Lightweight & High Energy Density: Four LiTime batteries weigh 77% less and deliver the same energy as eight 6V 225Ah lead-acid batteries, enhancing your golf cart's range, maneuverability, and speed.
-
Versatile Use: Ideal for Ryobi electric lawn mowers, electric UTVs, street-legal carts (≤21Ml/35Km/h), electric outboard motors, and home storage.
- 1536Wh Energy: One battery provides 1536Wh of usable energy, equivalent to two 6V 210Ah lead-acid batteries.
- 2C Discharging Rate: A maximum of 60A continuous discharging and 300A (1s) continuous enable smooth navigation through steep slopes.
- EV Grade LiFePO4 Cells: Lasts over 10 years with 4000+ cycles at 100% DOD without replacement.

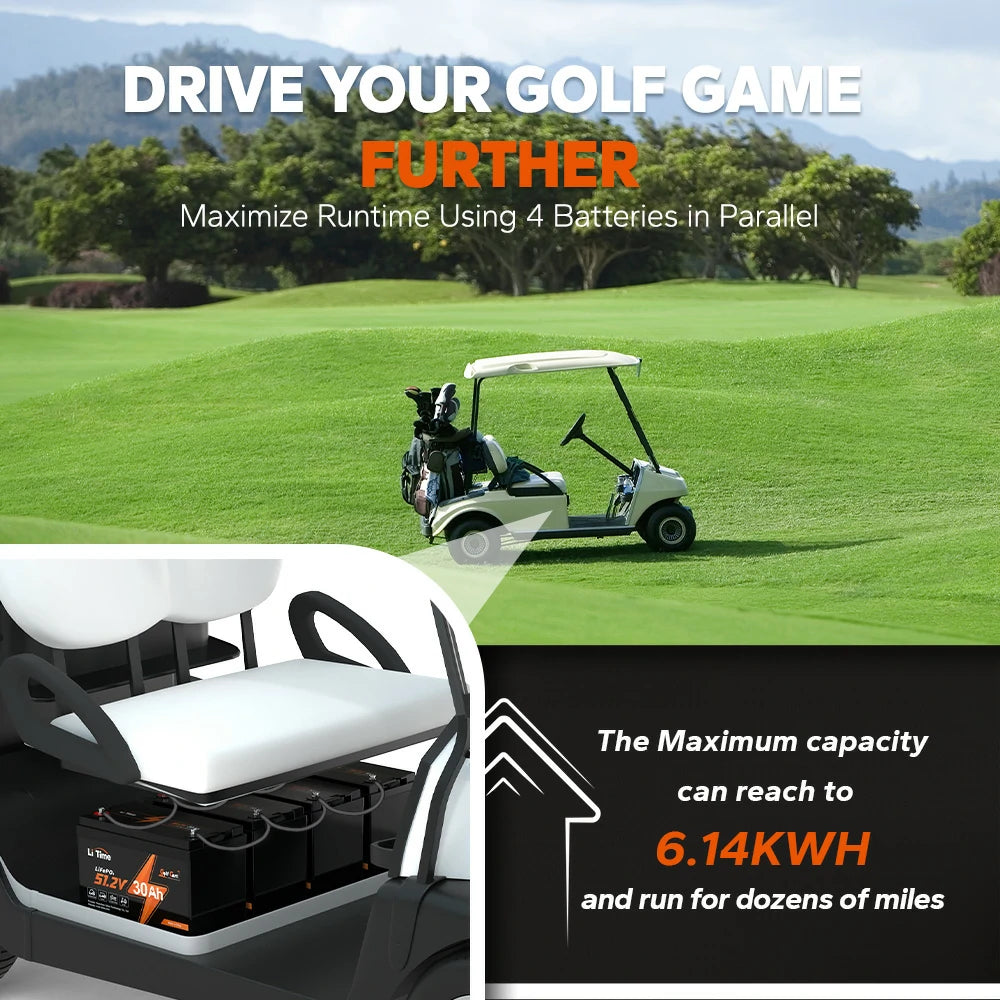

- Max. 8P Configuration: Can build a 51.2V 240Ah battery system, releasing 12.28kWh for an approximate driving range up to 112 miles.
- Smart BMS Protection: Equipped with a robust 60A BMS to prevent over-current, over-charging, over-discharging, short circuits, and overheating.
-
Newest Choices:
Check out our upgraded 48V 100Ah Golf Cart Battery with real-time display, RS485, and 2C discharge (120S)! Limit offers the best discounts. Click here!
- The Best Service: Fast delivery, 24-hour response, and a 5-year warranty.
- Note: Do not use it as a starter battery. For starting needs, consider the LiTime 12V marine starting batteries series.
- $349.99
-
$714.27 - $349.99
- Unit price
- per
This Year Biggest Markdowns on Our Upgraded GC2 Golf Cart Battery! Enjoy 8% off the Charger with our Battery + Charger Pack.
Please hurry! Only 32 left in stock
Subtotal:
$349.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Estimated to be delivered within 2-5 business days.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns
Frequently Bought Together
-
FEATURES
-
SPECS
-
FAQ
-
REVIEWS
LiTime 51.2V Lithium Golf Cart Battery
The LiTime 51.2V 30Ah Lithium Iron Phosphate Battery is designed in the GC2 size, making it an easy drop-in replacement for traditional GC2 lead-acid batteries in golf carts, without needing to replace the original hold-down. Featuring EV-grade cells, it offers exceptional power with a cylindrical design that enhances stress resistance and heat dissipation. With a 200% overcurrent capacity and low internal resistance, it delivers a remarkable 300A (1s) discharge current, ensuring you have the power you need for every round.

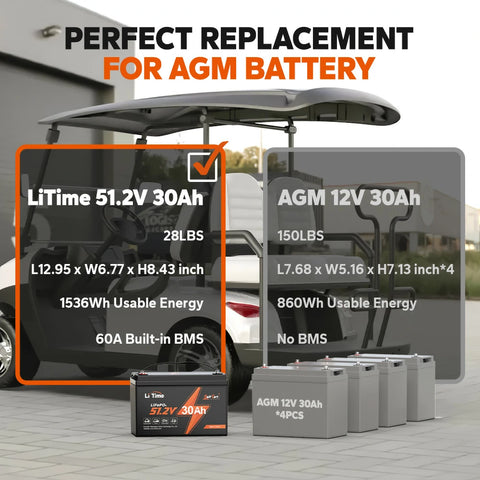

Lightweight and Performance-Driven Battery
LiFePO₄ batteries are more than half the weight of traditional lead-acid options, enhancing maneuverability and energy efficiency. They offer nearly 3.3 times the lifespan, meaning fewer replacements and lower maintenance costs. The lightweight design also reduces balance issues, providing greater stability and smoother operation. Experience reliable, long-lasting power with superior performance.
Enhanced Reliability and Performance
The 51.2V 30Ah GC2 LiFePO₄ battery features an upgraded BMS and is free from toxic lead acid, making it a safer, environmentally friendly option. Its lightweight design and high energy density provide more power than traditional lead-acid batteries. Choose this efficient solution for your golf cart over heavy, toxic alternatives.
One Solution for Multiple Applications
This 48V power solution is designed for versatility, perfect for golf carts like Club Car, EZGO, ICON, Yamaha and more, as well as LSV, ATV, UTV, and NEV vehicles (≤21 miles/hour). It easily replaces lead-acid batteries such as the T-105 and T-875 models. Ideal for Ryobi electric lawn mowers and widely used in electric UTVs, this powerful solution offers efficient and reliable energy for all your outdoor and off-road equipment.
*Note: If you wish to use this product for your electric lawn mower, please note that this battery is only compatible with the following RYOBI models: RY48130, RY48ZTR100, RT48110, RY48111, RY48140, RT48ZTR75.

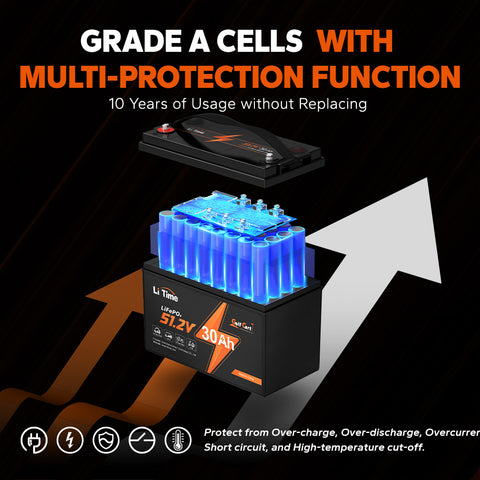

Optimized BMS and EV-Grade A High C-Rate Cells
This golf cart battery is equipped with a custom BMS for improved performance, delivering smooth rides even under full load. Its advanced current protection enables extended uphill driving and manages surges safely. With EV-grade high C-rate cells, it enhances acceleration, ensures smooth climbing, and minimizes heat generation, providing a responsive and comfortable driving experience in any condition.
Lower Energy Consumption
Unlock exceptional performance with the LiTime 51.2V 30Ah battery, offering a range of up to 17 miles on a full charge. Its lightweight design reduces weight by 58%, improving your golf cart's handling and efficiency while minimizing wear on tires, shocks, and brakes. Enjoy extended range and enhanced speed, delivering dependable power for all your golf adventures.
Lower Total Cost of Ownership (TCO)
The LiTime 51.2V 30Ah battery removes the necessity for frequent replacements and regular maintenance, needing only preventive care. With over 4,000 cycles and a lifespan of up to 10 years, it outlasts traditional batteries by 3-4 times, which usually last just 2-3 years.
Precautions for Use
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
51.2V
Rated Capacity：
30Ah
Energy：
1536Wh
Max. Expansion (Parallel & Series)：
8P
Internal Resistance：
≤40mΩ
Certifications：
UL2271, FCC, CE, RoHS, UN38.3
Bluetooth：
/
Self-Heating：
/
BMS
BMS：
60A
Max. Continuous Output Power：
For Golf Cart: 2000W For Energy Storage: 3072W
Max. Continuous Charge Current：
30A
Max. Continuous Discharge Current：
60A
Max. Discharge Current 5 Seconds：
120A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
57.6V ± 0.8V
Recommend Charge Current：
6A (0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature：
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：
-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Protection：
/
OTHERS
Terminals：
M8 size bolts
Weight Approx.：
28 lbs
Size：
10.24*7.09*10.43 in (GC2 size)
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: How will installing lithium batteries improve the performance of a golf cart?
A:
Lithium batteries can deliver more power to your golf cart than traditional lead-acid batteries. This means you can tackle hills and inclines with ease, and your golf cart will have a higher top speed.
Q: Can I connect the GC2 batteries in series or parallel?
A:
The 48V GC2 lithium golf cart battery supports only connecting in parallel instead of series.
It supports max.8 batteries connect in parallel to get 12.288kWh energy.
Q: What's the nominal voltage of the LiTime 48V (51.2V) 8D lithium battery?
A:
The nominal voltage of this battery is 51.2V
Over the years, the term "48V" has become the standard naming convention for golf cart batteries, even though lithium battery technology provides a nominal voltage of 51.2V. This slight voltage difference is within the acceptable range for 48V systems, allowing for compatibility and improved performance.
As a result, LiTime continues to use "48V" as a reference, out of habit and ease of understanding. Can read on 48V VS 51.2V Golf Cart Battery for more information.
Q: What is the life expectancy of a lithium golf cart battery?
A:
Lithium batteries have a significantly longer lifespan compared to lead-acid batteries. With more than 4000 life cycles, LiTime lithium golf cart batteries can last 10+ years.
Q: Is a 48V Lithium Golf Cart Battery Better Than 36V?
A:
While 36V setups have been popular in golf carts for many years and perform well, there are notable advantages to using a 48V system:
•Faster Acceleration: A 48V system provides higher low-end torque, allowing for quicker acceleration.
•Increased Power: With more overall power, a 48V setup is beneficial for tackling hills and challenging terrain.
•Improved Efficiency: 48V batteries draw fewer amps, making them more efficient than 36V batteries. This efficiency translates to longer usage on a single charge.
•Better for Rough Terrain: A 48V system handles rougher terrain effectively, enabling off-road capabilities and easier navigation of hilly areas.
Related reading: Golf Cart Batteries: 36V VS 48V
Q: Can I convert an ezgo golf cart to lithium batteries?
A:
Yes. LiTime 48V 30Ah lithium golf cart battery can be used in ezgo golf cart.
Q: How to Charge 48V 30Ah lithium golf cart battery?
A:
1. LiFePO4 Battery Charger
We recommend using a 58.4V battery charger to maximize the capacity
Recommend charging voltage: 56.8V ~ 58.4V
Recommend charging current: 6A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 15A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.
Attention:
Connect the charger to the battery before connecting it to the grid power in case of sparks.
Remember to disconnect the charger from the battery after fully charging.
Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?
2. Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 700W solar panels. It may take more than one day to fully charge the battery by ≥700W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
3. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 56.8V ~ 58.4V .
The Recommended Charging Current: ① 6A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 15A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
Q: How much does a group 31 battery weigh?
A:
With the same size of group 31 battery, LiTime 48V 30Ah Golf Carts Lithium battery weighs on 28 lbs. It's very easy for you to carry and install.
