✅Like New✅LiTime 12V (14.6V) 20A LiFePO4 Lithium Battery Charger

  • LiTime Lifetime RV & Trolling Motor Battery Charger
  • 12V LiFePO4 Battery Charger: Output Voltage: 14.6V DC | Output Current: 20A | Input Voltage: AC 100V to 240V; 50Hz to 60Hz
  • Lithium Battery Activation: activates BMS-protected lithium batteries.
  • Smart LED Indicators: displays standby, charging, full charge, and charging abnormalities status in real-time.

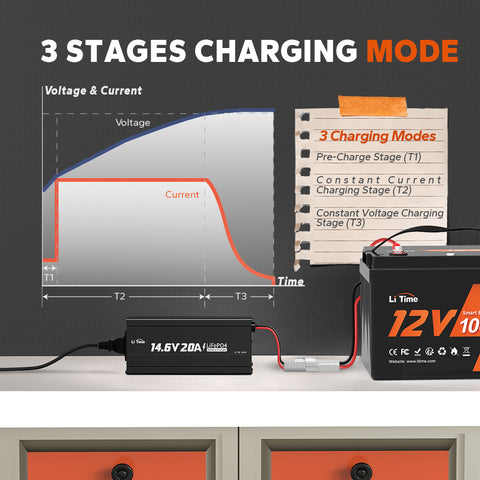

  • Smart 3-Stage Charging Mode: intelligently switch pre-charge, CC and CV stage to extend battery life
  • Multilevel Protection: over-temperature, reverse polarity connection, output short circuit, over-current, and output over-voltage.
  • New Upgrade: adopts advanced LLC half-bridge resonant soft-switching power supply control technology
  • Durable Shell and Cooling Fan: made of aluminum alloy with a built-in fan, making it a sturdy shell and good heat dissipation.
  • 50A Anderson Connector & M8 Terminals
  • CE & RoHS Quality Certification
  • Lifetime Service: 2-year quality warranty, lifetime technical support, 24-hour service, and fast delivery.
$80.94
$129.99
$80.94
Please hurry! Only 12 left in stock
Subtotal: $80.94

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

2 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
litime 12v ac to dc battery charger 20A

✅Like New✅LiTime 12V (14.6V) 20A LiFePO4 Lithium Battery Charger

$129.99 $80.94
litime 12v ac to dc battery charger 20A
litime 12v smart battery charger
litime 12v smart battery charger for rv and trolling motors
litime 12v battery charger 20A
charging mode for lithium batteries
12v lithium ion battery charger
12v lithium ion battery charger for rv and trolling motor battery

✅Like New✅LiTime 12V (14.6V) 20A LiFePO4 Lithium Battery Charger

$129.99 $80.94

Frequently Bought Together

litime 12v ac to dc battery charger 20A 1000
$129.99 $80.94
✅Like New✅LiTime 12V 100Ah Group 24 LiFePO4 Lithium Battery 1000
$519.99 $153.99
Choose Options
Choose Options
PACK: Used - Like New
✅Like New✅LiTime 12V 100Ah Trolling Motor LiFePO4 Battery, Low-Temp Protection 1000
$539.99 $170.03
Choose Options
Choose Options
PACK: Used - Like New
✅Like New✅LiTime 12V 100Ah LiFePO4 Lithium Battery 1000
$349.99 $149.99
Choose Options
Choose Options
Size: Used - Like New
Price Total: $0.00

    • FEATURES

    • SPECS

    • FAQ

    • REVIEWS

    SPECS

    BASIC
    Charger Type：
    LiFePO4
    Output Voltage：
    14.6V
    Output Current：
    20A
    Max Input Current：
    7A
    0V Charge Function：
    √
    Input Voltage Range：
    AC 100V to 240V; 50Hz to 60Hz
    LED Indicator：
    √
    PROTECTION
    Over Temperature：
    √
    Output Short-Circuit：
    √
    Reverse Polarity Connection：
    √
    Output Over-Voltage：
    √
    TEMPERATURE
    Operating：
    -4℉ ~ 104℉
    Storage：
    -40℉ ~ 158℉
    OTHERS
    Size：
    L7.99*W3.94*H2.13 in
    Approx. Weight：
    2.87 lbs（1.3kg）
    Warranty：
    2 Years
    Certifications：
    CE, RoHS
    Anderson Connector：
    50A/M8 Terminal

    FAQ

    Q: How long does it take to charge a 12V 100Ah LiFePO4 lithium battery?

    A:The 14.6V 20Ah LiFePO4 battery charger is designed to charge LiFePO4 batteries. The low resistance in the Lithium cells allow the battery to accept the full output from the charger. With a constant 20A current, it takes around 100Ah/20A=5hrs to fully charge a 12V 100Ah LiFePO4 lithium battery.

    Q: Is it ok to leave a LiFePO4 lithium battery on the charger?

    A:If the correct voltage limit is set for the LiFePO4 lithium ion battery you are charging, there should be no issue leaving a lithium ion battery on the charger overnight. LiTime Battery uses a LiFePO4 cell giving a nominal voltage of 12.8v and a fully charged voltage of 14.6v. A charger with 14.4-14.6v CC/CV output will do the job with consideration not to exceed roughly 1C maximum current output of the charger. As long as the CC/CV profile is used, the maximum voltage is at the correct level and the current is not excessive, you will achieve a safe and full charge on your battery.

    Q: How fast will my battery charge?

    A:To determine your charging speed, take the amp hour rating of your battery and divide it by the output current of your charger. For example, a 100 amp hour battery (Ah) would charge in 100AH/20A=5 hours with a 14.6V 20A LiFePO4 lithium battery charger.

    Q: Can I charge my LiFePO4 lithium battery faster?

    A:For most applications, a charging time of 3-10 hours provides the longest lifespan for your LiFePO4 lithium battery. But if you have an application where you need rapid charging, you can choose a charger with a higher output current. For example, you could use a 40 amp charger with a 100Ah battery for a 2.5-hour charge time.

    Q: What voltage should LiFePO4 lithium batteries be charged at?

    A:It depends on the voltages of your LiFePO4 lithium batteries. LiTime 14.6 volts charger is recommended for 12V LiFePO4 lithium batteries. And LiTime 29.2 volts charger is recommended for 24V LiFePO4 lithium batteries.

    Q: How to choose the right charger for my LiFePO4 lithium battery?

    A: It is always important to match your charger to deliver the correct current and voltage for the LiFePO4 lithium battery you are charging. For example, you wouldn't use a 24V charger to charge a 12V LiFePO4 lithium battery. It's also recommended that you use a charger matched to your battery chemistry. Additionally, when charging a LiFePO4 lithium battery with a normal lead-acid charger, you would want to ensure that the charger does not have a desulfation mode or a dead battery mode.

    REVIEWS

    Customer Reviews

    Based on 4 reviews
    50%
    (2)
    50%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    S
    Sidney Mitchell

    Your charger worked great and performed better that another brand previously purchased. Glad I got the 20 vs 10, speeds up charging.

    [
    [Jeffrey Cragin]

    ✅Like New✅LiTime 12V (14.6V) 20A LiFePO4 Lithium Battery Charger

    L
    Larry Reed
    20 amp Charger

    Works like expected. It was one of the Like New units. With the discount codes and used unit i save considerable money. I’m happy with my purchase.

    R
    Rex Pippenger
    Like-new lithium 20amp battery charger

    This charger was new, but had battery clamps instead of the Anderson cconnectors like the new version. It worked perfectly. It took 5 hours each to charge two new lithium batteries. I was very pleased with its performance. It was also $50 cheaper than the updated (out of stock) version,and on Amazon, $30 cheaper for the same style of charger. So far, I'm pleased with the quality of the Li Time products and delivery.
